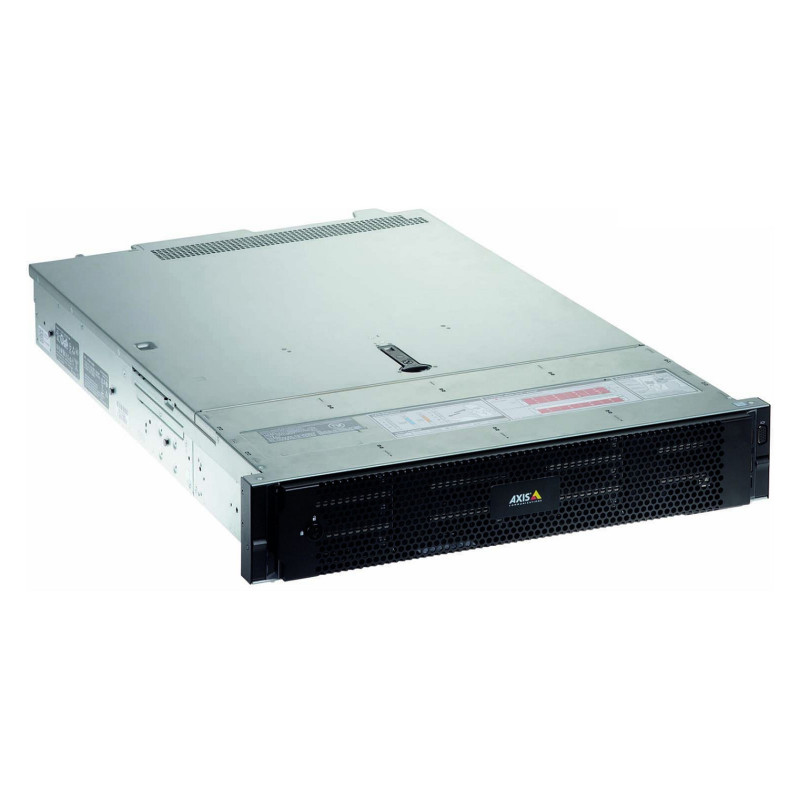

Ašis S1148

Axis S1148. Video input channels: 64 channels, Operating system installed: Windows 10 IoT Enterprise. HDD capacity: 8 TB, Maximum storage capacity: 96 TB, Total installed storage capacity: 64 TB. Rack capacity: 2U, Product colour: Black, Grey, Certification: EN/IEC/UL 60950-1, FCC part 15 class A, VCCI class A, RCM AS/NZS CISPR 32 Class A, EN 55032, class.... Power consumption (max): 750 W, AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz. Width: 482 mm, Depth: 681 mm, Height: 87 mm

Performance

Video input channels: 64 channels
Operating system installed: Windows 10 IoT Enterprise

Hard drive

Number of HDDs installed: 8
HDD capacity: 8 TB
Number of HDDs supported: 12
Total installed storage capacity: 64 TB
Maximum storage capacity: 96 TB
Feature: RAID support
RAID levels: 0, 1, 5, 6, 10

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) output ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Features

Feature: Rack mounting
Rack capacity: 2U
Product colour: Black, Grey

Processor

Feature: Built-in processor

Power

Power consumption (max): 750 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Output current: 5 A

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -40 - 65 °C

Weight & dimensions

Width: 482 mm
Depth: 681 mm
Height: 87 mm
Weight: 22.3 kg

Packaging content

Cables included: AC
