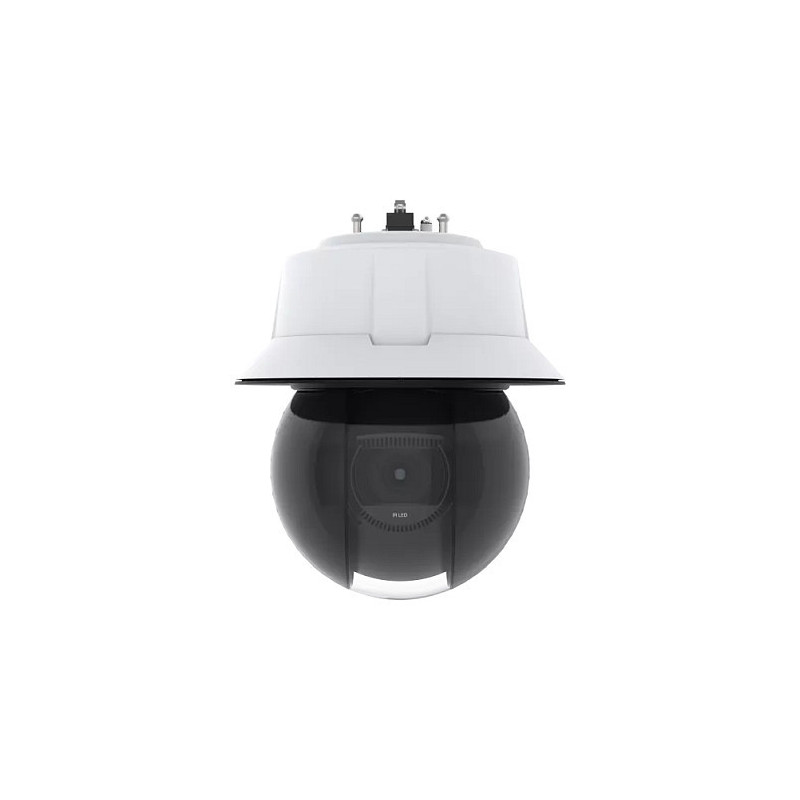

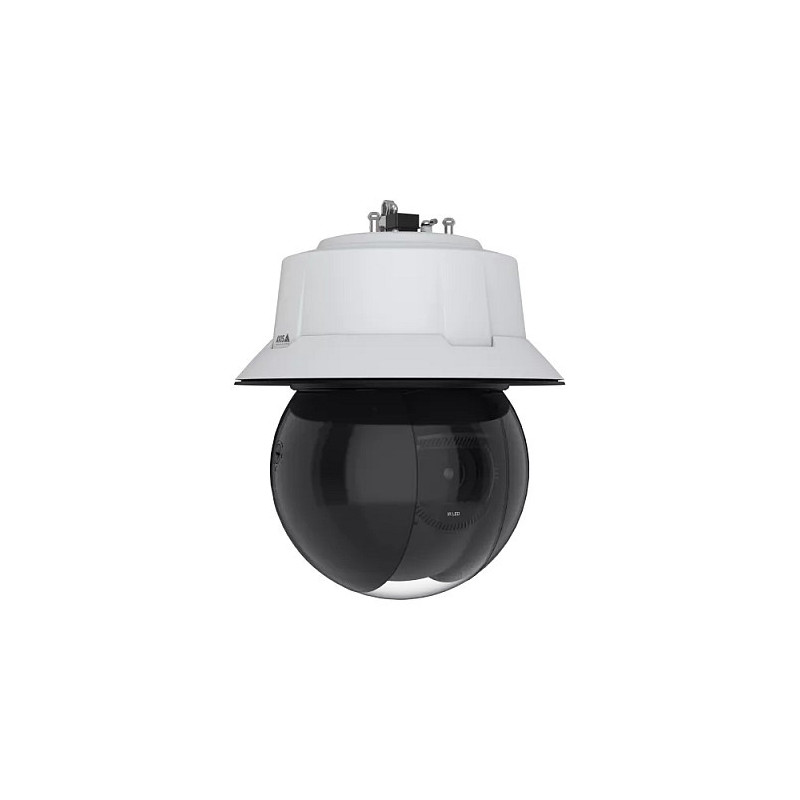

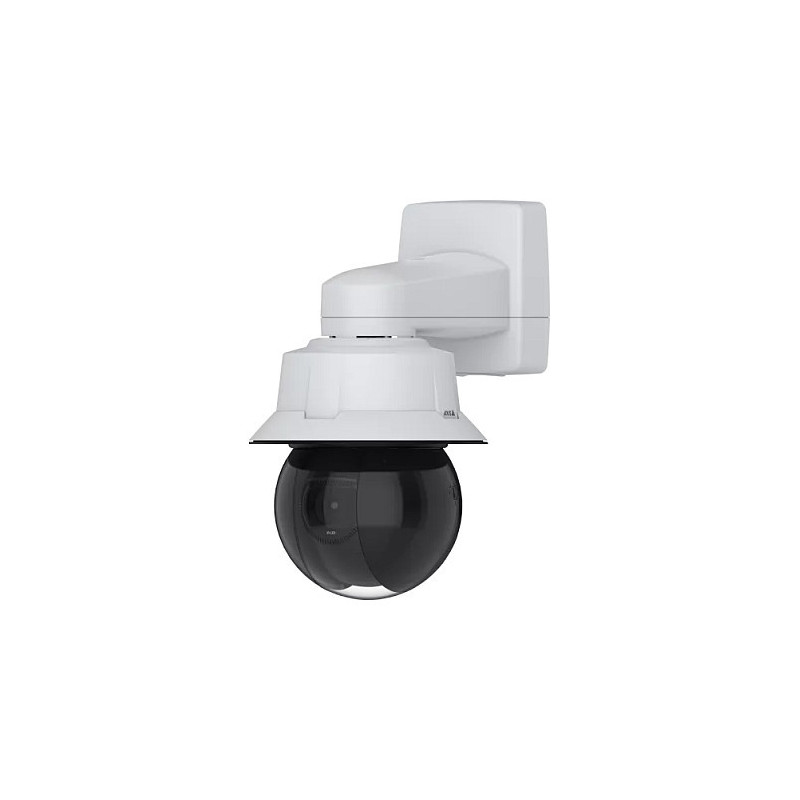

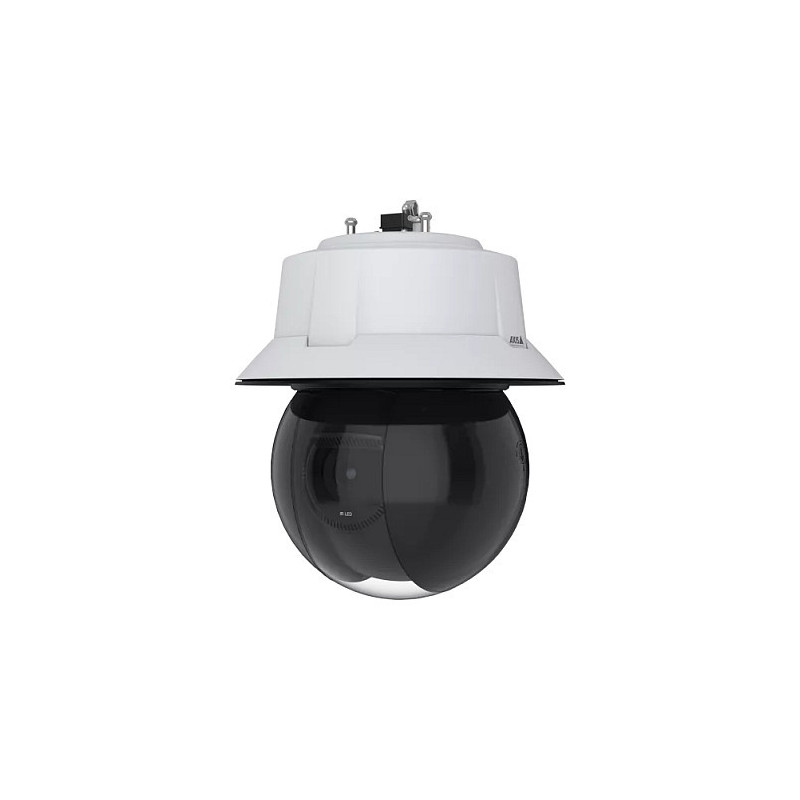

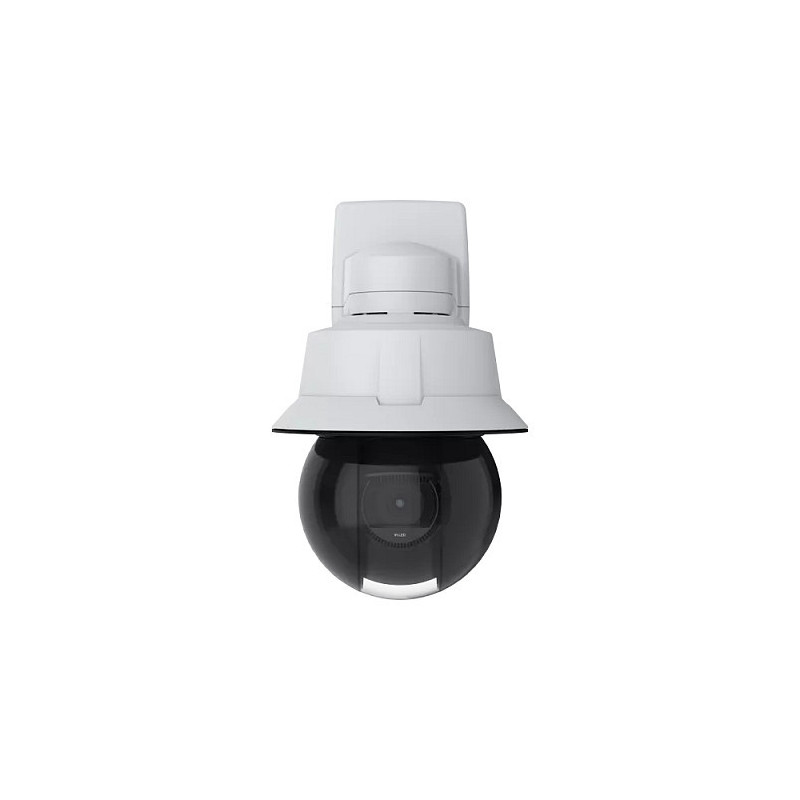

Ašis Q6325-LE

Axis Q6325-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Experience exceptional image quality in all lighting conditions with this PTZ camera. Reuse existing mounting accessories for a cost-efficient upgrade to the latest AI-powered analytics and Axis technologies.

Superior surveillance in all light conditions
AXIS Q6325-LE offers outstanding 2 MP and features an extremely light-sensitive ½" sensor to deliver clear, bright images and better handling of shadows. Lightfinder 2.0 and Forensic WDR provide details even in challenging light conditions. Plus, OptimizedIR enables surveillance in total darkness. With 31x optical zoom, you can easily follow fast-moving objects. And Axis Zipstream, with support for AV1, H.264, and H.265, significantly lowers bandwidth and storage requirements. Dynamic power mode, together with low power profile, reduces power demands by up to 30% in certain temperature ranges. Furthermore, this camera offers support for audio with a midspan (sold separately) and four I/O ports.

AI-powered with advanced analytics
Built on ARTPEC-9, the latest Axis system-on-chip, this AI-based camera features a deep learning processing unit (DLPU) to run advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. Autotracking 2 allows for active object tracking, and an orientation aid enables dynamic text overlays for quick orientation. In addition, chameleon masking safeguards privacy.

Robust with strong cybersecurity
AXIS Q6325-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. This IP66-, IK10-, NEMA 4x, and NEMA TS2-rated device is both impact and weather-resistant. Furthermore, a midspan is available (sold separately) with support for fiber connection, PoE, audio, I/O, and smart restart, allowing for cost-effective installation and long-distance connection.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Preset point
Feature: Tour recording
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Aluminium
Protection features: Impact resistant, Weather resistant
International Protection (IP) code: IP66, IP67
IK code: IK10
Feature: Weatherproof

Camera

Minimum illumination: 0.008 lx
Lens viewing angle, horizontal: 60.6°
Lens viewing angle, vertical: 36.5°
Tilt angle range: -20 - 90°
Tilt speed: 550 °/sec
Pan range: 0 - 360°
Pan speed: 550 °/sec
Camera shutter speed: 1/111000 - 1/2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2 mm (1 / 2")
Feature: Progressive scan
Sensor type: CMOS

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Feature: Zoom capability
Optical zoom: 31x
Digital zoom: 12x
Number of lenses: 1
Zoom speed: 1 s
Focal length range: 6.91 - 214.64
Feature: Auto focus

Night vision

Feature: Night vision
Night vision distance: 300 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 320 x 180
Frame rate: 60 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Sharpness
Feature: Text caption overlay
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3bt

Storage

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Flash memory: 8192 MB
Internal memory: 4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: 256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Moving object

Power

Power consumption (typical): 13.7 W
Power consumption (max): 51 W

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 239 mm
Depth: 239 mm
Height: 291 mm
Weight: 4.4 kg

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1

Other features

Doesn't contain: CFR, PVC/BFR
