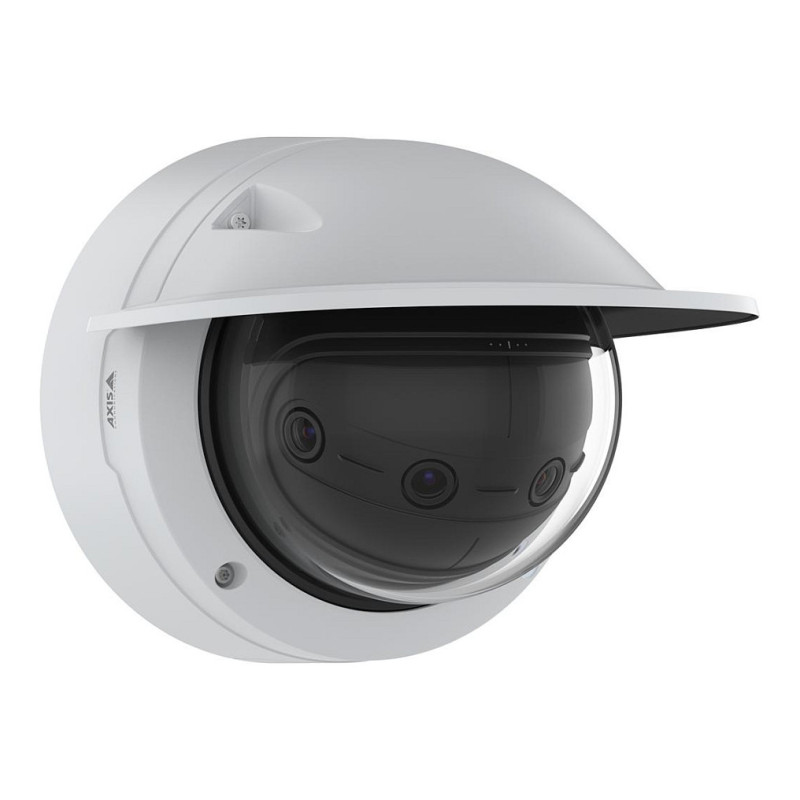

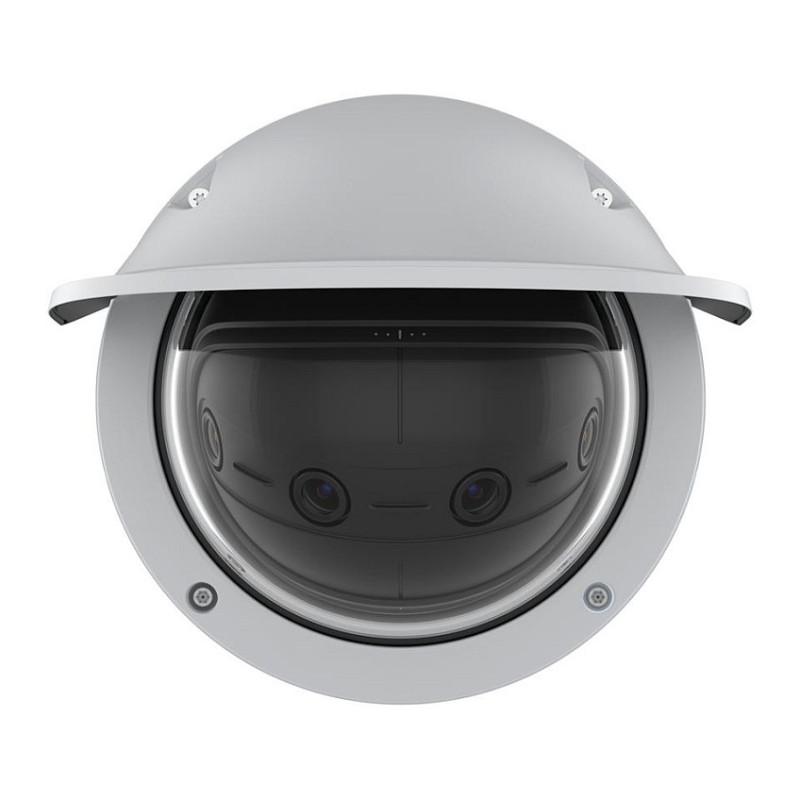

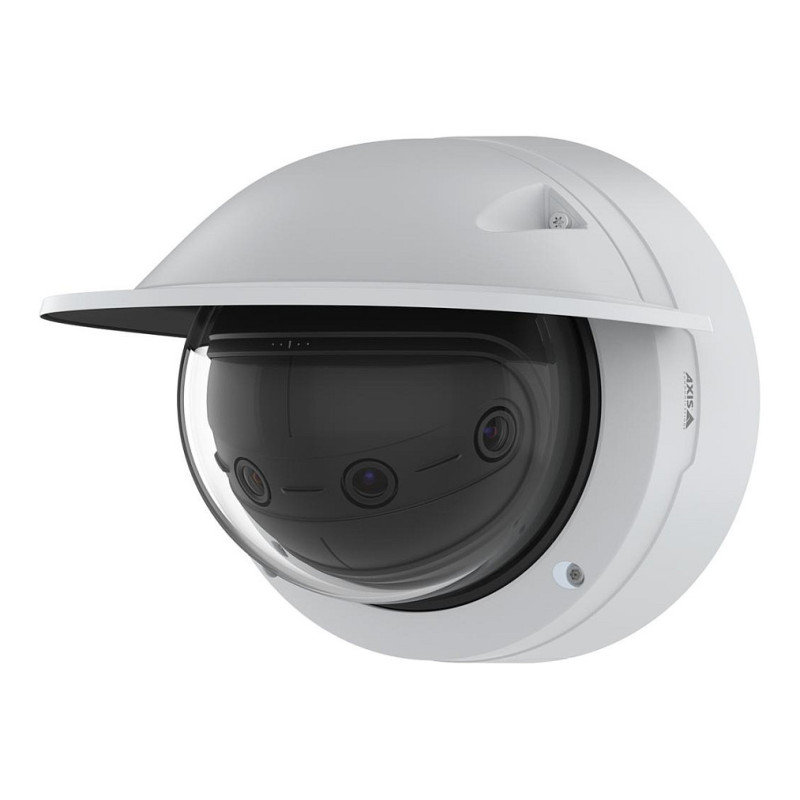

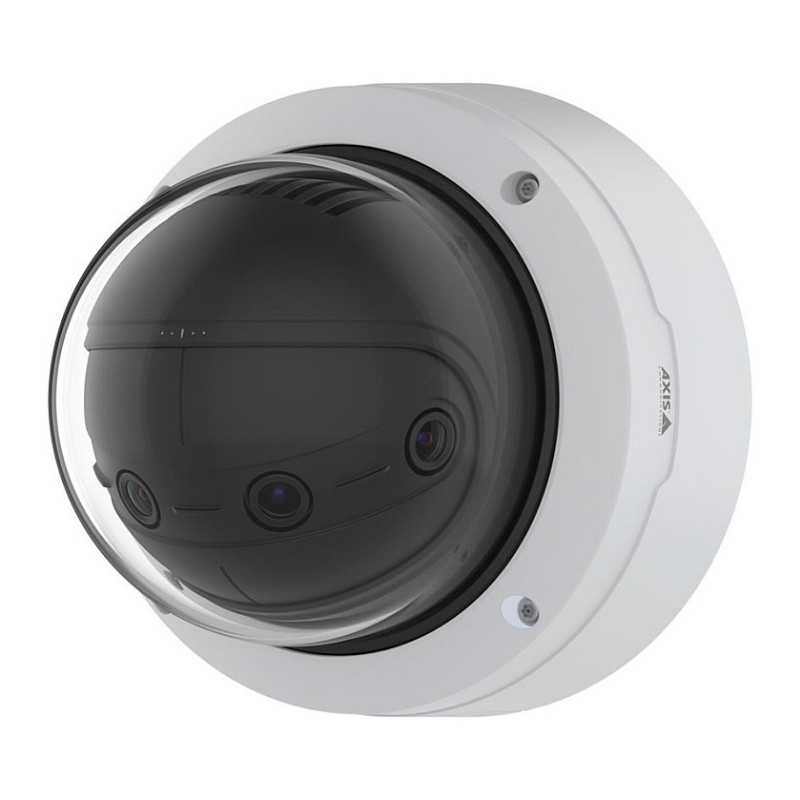

Ašis P3827-PVE

Axis P3827-PVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). LED type: IR

True to life, 180° coverage, no blind spots
Do you need a camera that ensures complete coverage and excellent image quality with no blind spots? Built on ARTPEC-8, this multisensor, cost-efficient camera supports advanced analytics based on deep learning on the edge.

True to life images
This 7 MP multisensor camera offers a single smooth and cohesive video stream with 180° panoramic coverage and captures high resolution images with incredible details up to 30 fps. Thanks to horizon straightening, it ensures visually balanced images. Plus, the operator's viewing experience will be more natural due to the straightened horizon in the image. With seamless stitching across all 4 images, it delivers a coherent-looking image in one single video stream for a perfect overview without any stitch in the center. And the camera automatically optimizes white balance and exposure time. Furthermore, thanks to Forensic WDR, it offers excellent forensic image usability.

Complete coverage with support for audio input
AXIS P3827-PVE is perfect when you need to see the whole picture. It offers panoramic overview of extensive areas with 180° horizontal and 90° vertical coverage with no blind spots. And it's possible to mount two cameras back-to-back for a complete 360° overview using AXIS T94V01C Dual Camera Mount. This allows for quick and intuitive situational awareness over a large area and lets the operator visually follow objects across great distances. Furthermore, with edge-to-edge technology, it's easy to add whatever connectivity devices you need. For instance, you can add support for audio using AXIS T61 Audio and I/O Interface.

Deep learning on the edge
Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P3827-PVE can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Cost-efficient, flexible, and secure
This cost-efficient camera gives you get the benefits of four cameras while paying for just one. And fewer cameras are needed to cover large areas. Additionally, it offers a wide variety of mounting options and adjustable positions to ensure fast, cost-efficient, and easy installation. Furthermore, AXIS P3827-PVE includes built-in cybersecurity features. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. And, for added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.05 lx
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 90°
Tilt angle range: 0 - 50°
Pan range: 0 - 180°
Camera shutter speed: 1/31500 - 1.5 s

Image sensor

Number of sensors: 4
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Night vision

Feature: Night vision
LED type: IR

Video

Maximum resolution: 3712 x 1856 pixels
Total megapixels: 7 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Feature: Privacy masking
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Signal-to-Noise Ratio (SNR): 55 dB

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1

Security

Feature: IP address filtering
Security algorithms: EAP-TLS, HTTPS, TLS
Feature: HTTPS encryption

Power

Power source type: PoE
Power consumption (Power over Ethernet (PoE)): 12 W

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 169 mm
Diameter: 19.5 cm
Weight: 2.3 kg

Packaging content

Number of cameras: 1
