Ašis P3278-LV

Axis P3278-LV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 103°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

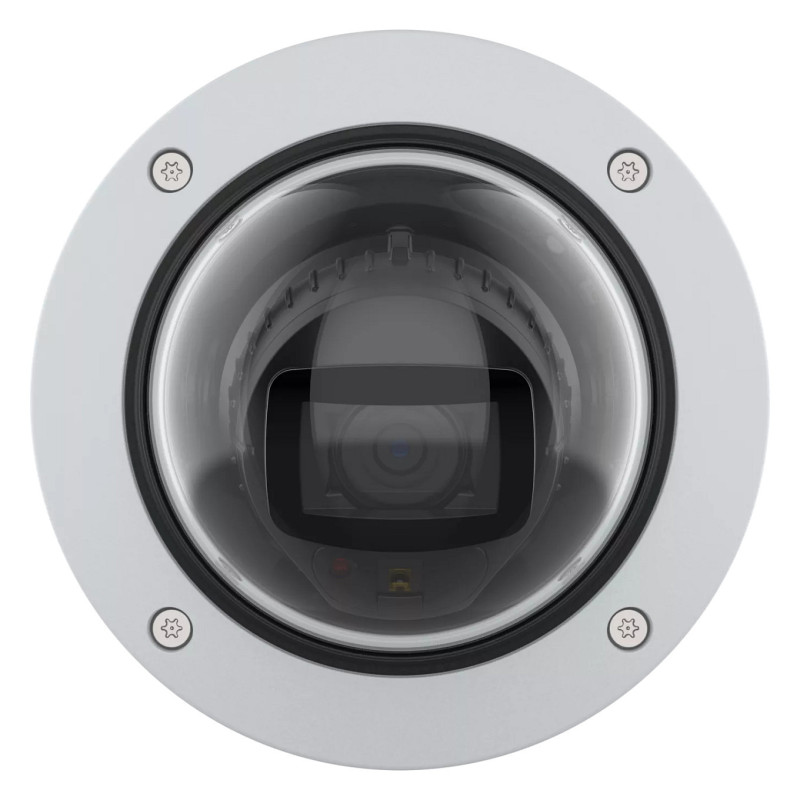

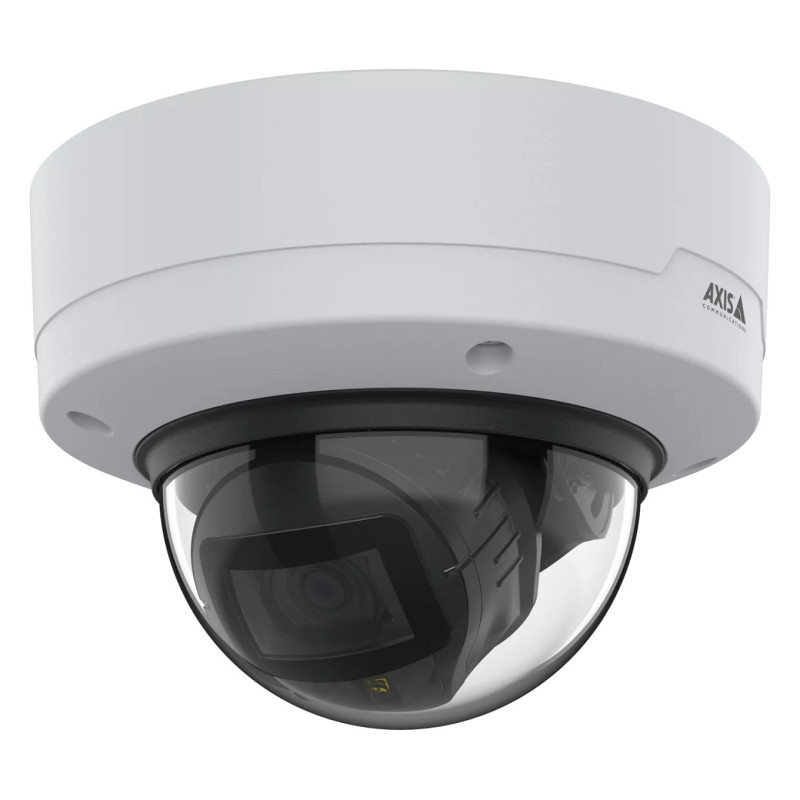

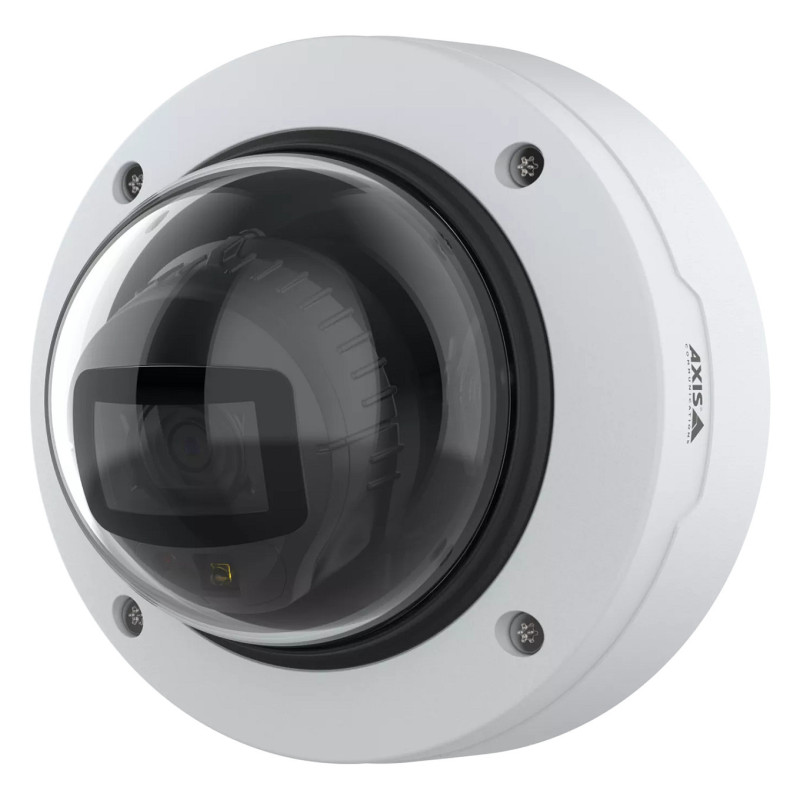

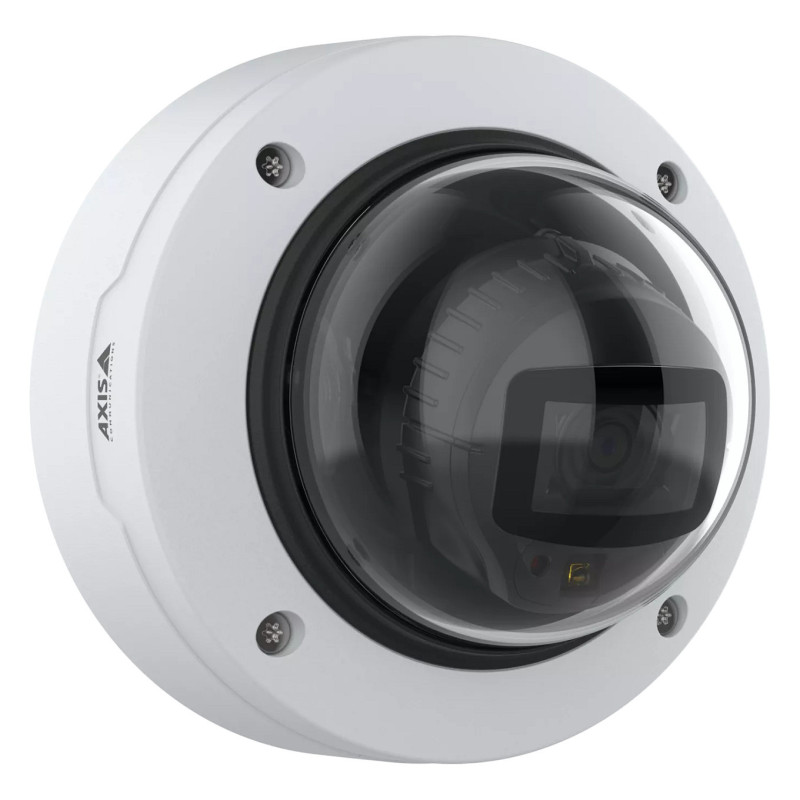

AXIS P3278-LV Dome Camera

Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 8 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Excellent image quality

AXIS P3278-LV offers excellent image quality and forensic details in 8 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it's possible to connect a microphone for audio support.

Powerful analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you'll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it's easy to remotely monitor activities while protecting privacy.

Robust with strong security

This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What's more, this dome camera is easy to install, maintain, and operate.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Auto-tracking
Feature: Tour recording
Feature: People counting function
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Yes
Housing material: Plastic, Polycarbonate (PC)
Protection features: Impact resistant, Vandal proof
International Protection (IP) code: IP54
IK code: IK10
Feature: Weatherproof
Feature: Fog proof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.03 lx
Angle of rotation: 190°
Lens viewing angle, horizontal: 103°
Lens viewing angle, vertical: 56°
Tilt angle range: -50 - 80°
Pan range: -190 - 190°
Camera shutter speed: 1/66500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Number of lenses: 1
Lens diameter: 1 cm
Focal length range: 4.4 - 14.6 mm
Feature: Auto focus
Maximum aperture number: 3.65
Minimum aperture number: 1.65
Detect distance (wide): 88 m
Detect distance (tele): 292 m
Observe distance (wide): 35 m
Observe distance (tele): 116 m
Recognize distance (wide): 18 m
Recognize distance (tele): 58 m
Identify distance (wide): 9 m
Identify distance (tele): 29 m
Closest focusing distance: 1 m

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 2560 x 1600 (WQXGA), 2592 x 1944, 3840 x 2160
Frame rate: 30 fps
Feature: Video streaming
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Flip & mirror
Feature: Text caption overlay
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Feature: Audio system full duplex
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Feature: Audio detection

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af
Feature: Quality of Service (QoS) support
Streaming method: Multicast

Storage

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8 MB
Internal memory: 2000 MB

Ports & interfaces

Feature: Microphone in
Feature: Terminal block port

Security

Security algorithms: 256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Moving object
Feature: Human and vehicle targets classification

Power

Power source type: PoE
Power consumption (typical): 5.5 W
Power consumption (max): 12.9 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 149 mm
Depth: 149 mm
Height: 107 mm
Weight: 810 g

Packaging content

Number of cameras: 1
Feature: Manual

Other features

Doesn't contain: BFR, PVC
