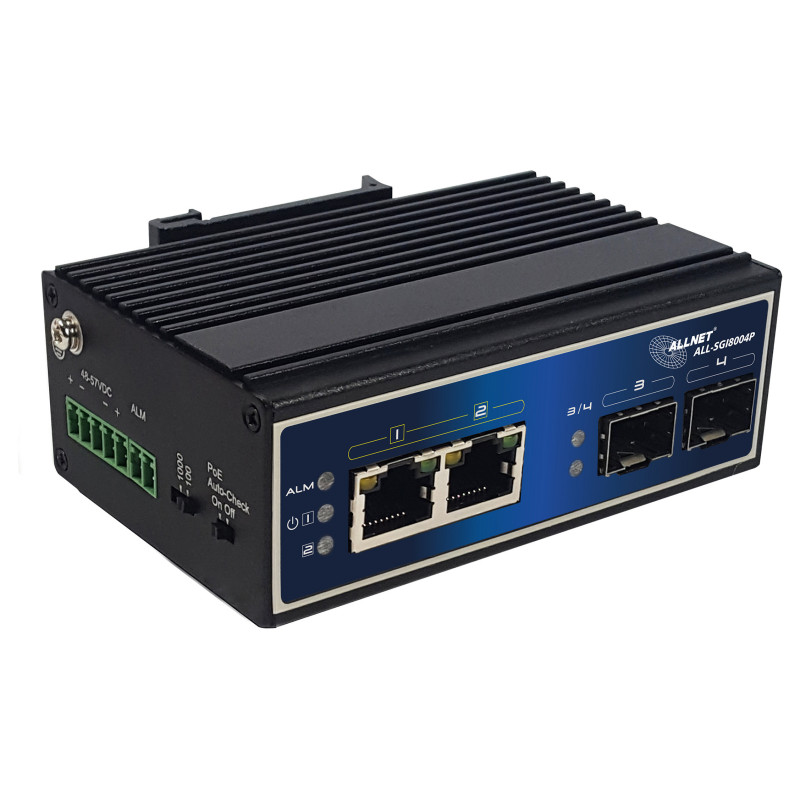

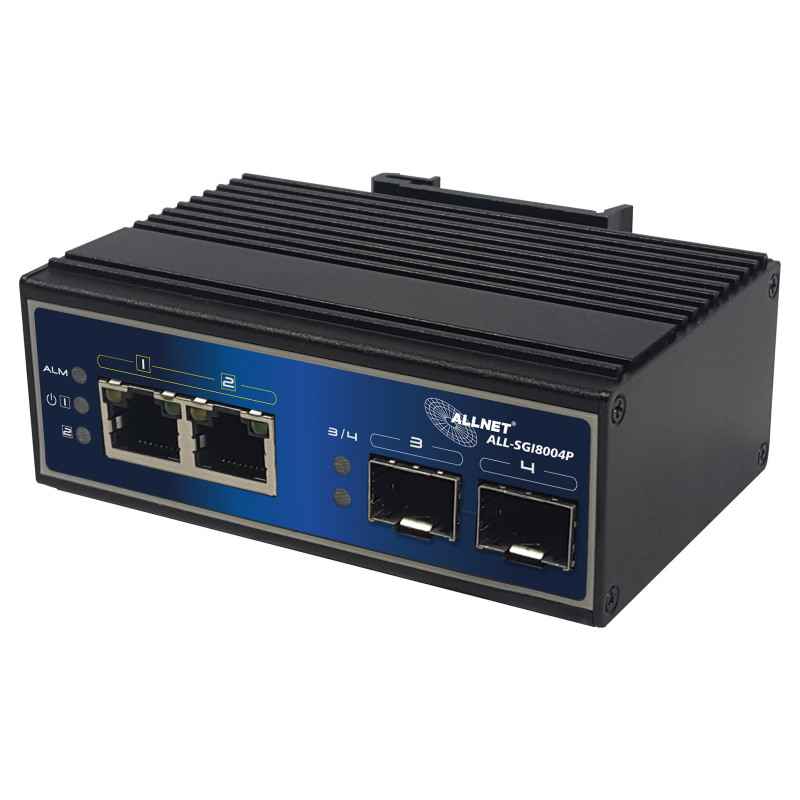

ALLNET ALL-SGI8004P tinklo komutatorius

ALLNET ALL-SGI8004P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2. Switching optical modules type: Gigabit Ethernet. MAC address table: 8000 entries, Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)

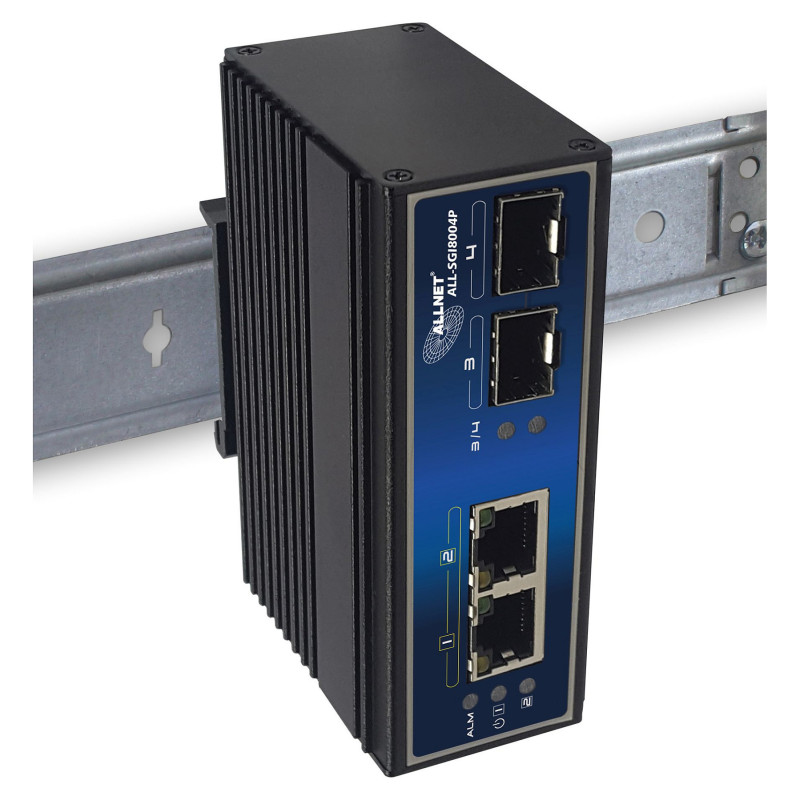

The ALLNET industrial switch ALL-SGI8004P is a very small switch with an extended temperature range of -40°C - +75°C. Due to its small dimensions it is very well suited for switch cabinets and fuse boxes and is also used in industry with strong requirements for dirt and dust protection.

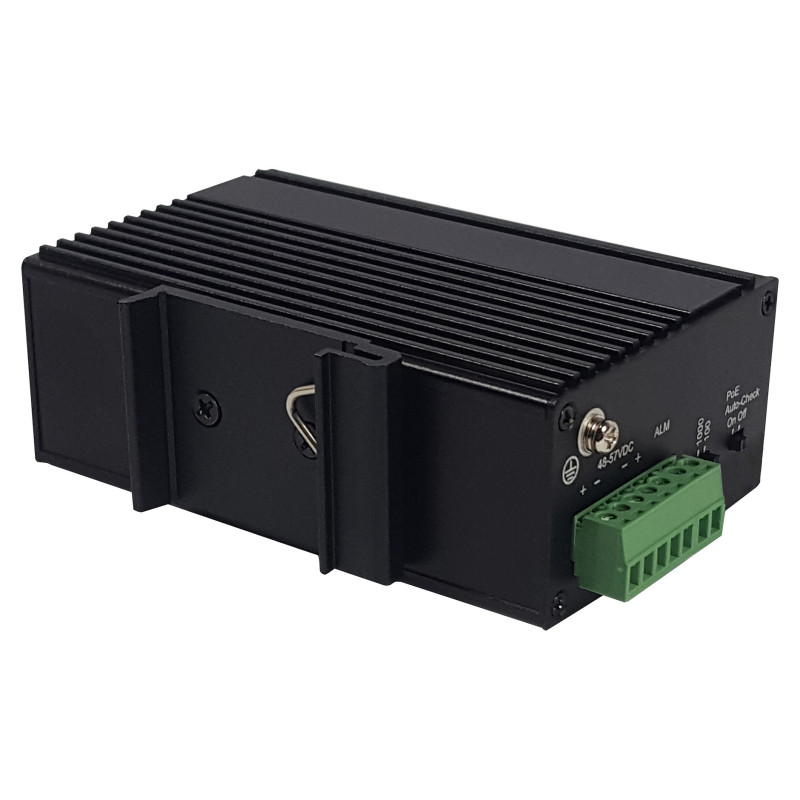

Scope of delivery: Manual, top-hat rail clamp, 5-fold Phoenix clamp power connection, switch, no power supply unit included.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 2
Fiber ports quantity: 2
Fiber optic connector: SFP

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported: Cat5e, Cat6
Ethernet LAN data rates: 10,100,1000 Mbit/s

Optical fiber

Fiber ethernet cabling technology: 100BASE-FX, 1000BASE-X
Switching optical modules type: Gigabit Ethernet

Data transmission

Switching capacity: 8 Gbit/s
Throughput: 5.95 Mpps
MAC address table: 8000 entries
Packet buffer memory: 1 MB

Design

Product colour: Black
Housing material: Aluminium
LED indicators: Activity, Link, Power
International Protection (IP) code: IP40

Power

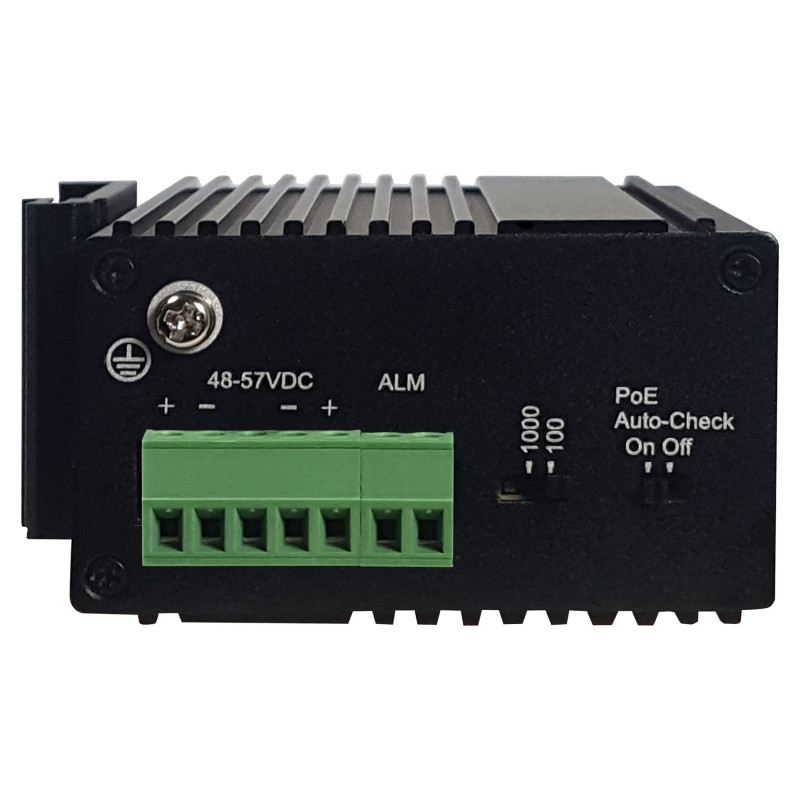

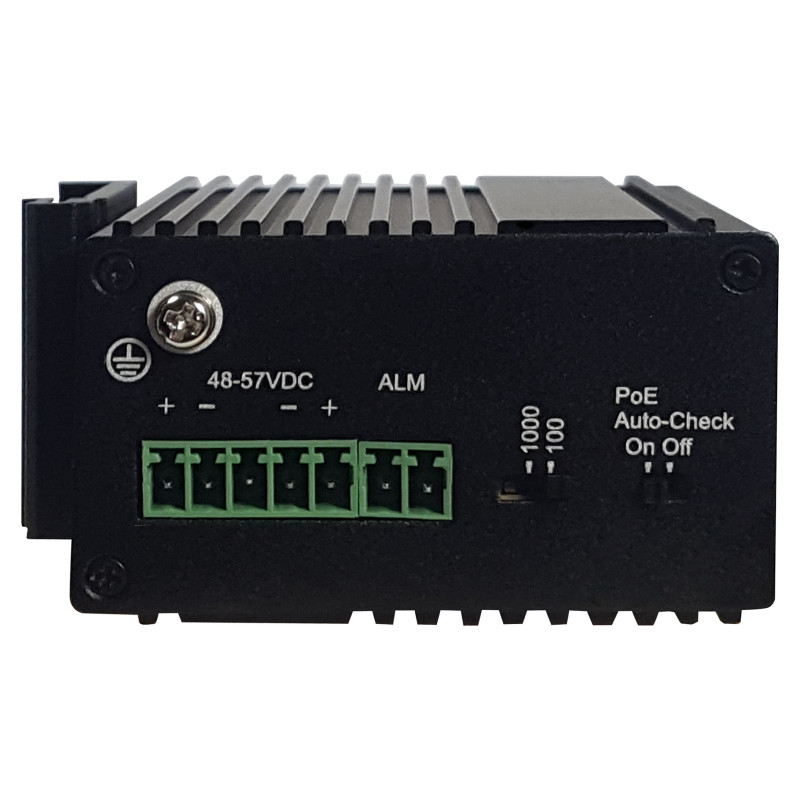

DC input voltage: 48 - 57 V
Power consumption (typical): 5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 2
Total Power over Ethernet (PoE) budget: 30 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 101 mm
Depth: 36 mm
Height: 65 mm
Weight: 300 g

Packaging content

Feature: Manual

Packaging data

Feature: Rack rails

Certificates

Compliance certificates: CE
