ALLNET ALL-BRICK-0223 kūrimo plokštės priedas

ALLNET ALL-BRICK-0223. Product type: Cobbler breakout kit, Compatibility: Development board Brick'R'knowledge kit. Weight: 3.05 kg

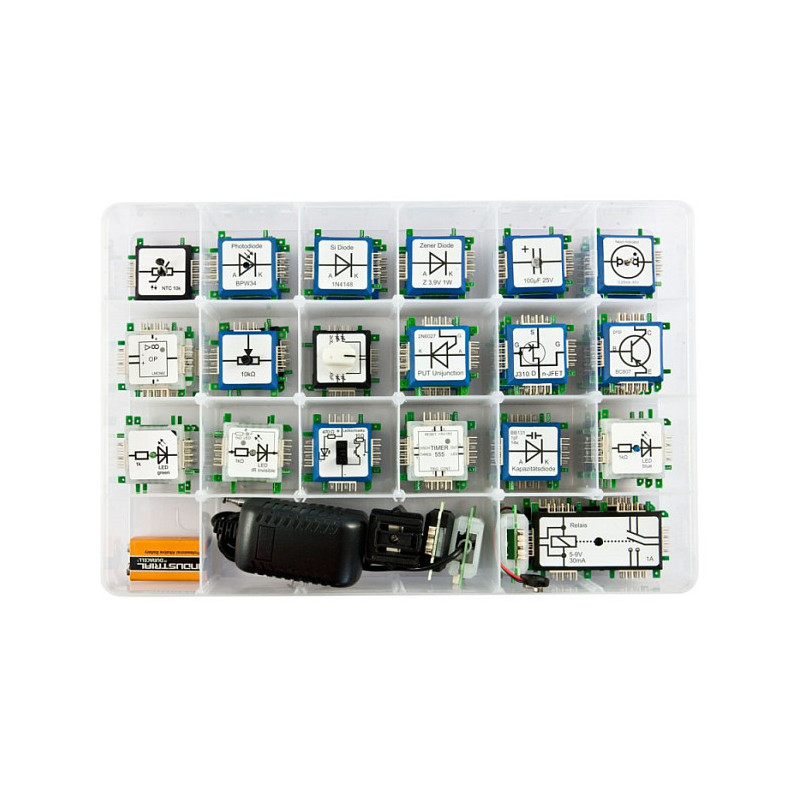

The Advanced Set, consisting of 111 bricks, enables the construction of advanced-level-solutions. Brick"R"knowledge as a innovative educational system was developed to teach electrical engeneering with ist units, operations and other components in a playful way.
The system enhances the practical implementation of learning; knowledge can be gathered and handed down to the younger generation. It can be used for education in elementary schools as well as universities, and it may be a helpful tool for engineers, too.
The special connectors allow the construction of large circuits and individual solutions.
Due tot he develpment as an open source system, individual components can be added, so the bricks can be adapted to specific needs.
Furthermore, Brick"R"knowledge is suitable to RF experiments, which makes it worldwide unique.
Prospective, the possibility to integrate oscilloscopes and signal generators into the system will be given, so that it is interesting for industry standards and requirements.

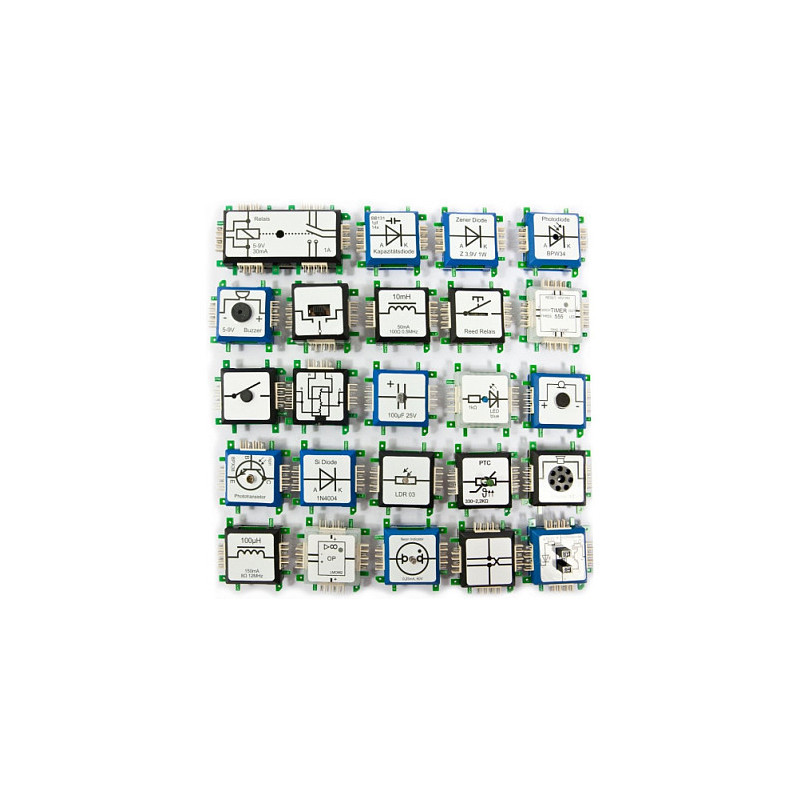

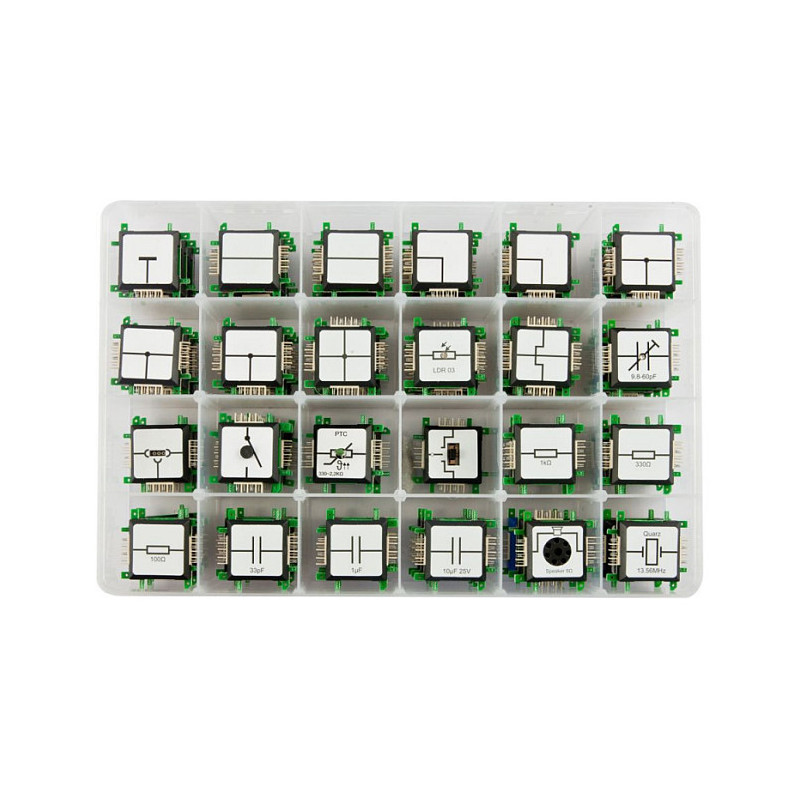

- 1 x 3.5mm jack stereo + micro (4-pole) sideways (118700)
- 1 x 9V power supply adapter 1A fuse and ground (118627)
- 1 x antenna (114183)
- 1x battery adapter (113628)
- 1 x buzzer (118370)
- 1 x photodiode BPW34 (113694)
- 1 x germanium diode AA118 (113688)
- 1 x varactor diode BB131 1pF 4x (113690)
- 1 x diode Si 1N4004 (113686)
- 2 x diode Si 1N4148 (113687)
- 1 x zener diode Z 3.9V 1W (113692)
- 1 x glow lamp (113695)
- 1 x manual Advanced Set (118385)
- 2 x capacitor 1µF (113668)
- 2 x capacitor 10µF 25V (113667)
- 2 x capacitor 100µF electrolytic capacitor 25V (113669)
- 2 x capacitor 100nF 50V (114165)
- 2 x capacitor 10nF (114164)
- 2 x capacitor 1nF (113664)
- 1 x capacitor 33pF (113708)
- 1 x variable capacitor 2x30pF und 2x300pF (118388)
- 1 x capacitor variable 2-30pF (113671)
- 1 x capacitor variable 9.8-60pF (114186)
- 1 x loudspeakers (113703)
- 1 x LED blue (113637)
- 1 x LED yellow (113638)
- 1 x LED green (113639)
- 1 x LED IR (113640)
- 1 x LED red (113636)
- 2 x lines double-crossover (113675)
- 5 x lines straight (113631)
- 3 x lines crossing not connected (113635)
- 4 x lines crossing connected (113634)
- 5 x lines corner brick (113632)
- 5 x lines ground brick (113630)
- 10 x lines T-crossing (113633)
- 1 x light barrier (118369)
- 1 x microphone (118368)
- 1 x operation amplifier LM386 (113704)
- 1 x operation amplifier LMC662 (113696)
- 1 x potentiometer 10kOhm (113654)
- 1 x PUT (programmable unijunction) 2N6027 (118390)
- 1 x quartz 13.56MHz (113705)
- 1 x Reed Relais (114176)
- 2 x Relais 8-12V 30mA 2x1 (118367)
- 1 x coil 10 µH (114170)
- 1 x coil 22µH (114171)
- 1 x coil 100µH (113699)
- 1 x coil 10mH (113702)
- 2 x button (113644)
- 1 x timer 555 (113682)
- 2 x transitor BC 817 npn, basis on both sides (118371)
- 1 x transistor BC807 pnp (118372)
- 1 x transistor n JFET J310 (113674)
- 2 x transistor n MOS 2N7002 (113673)
- 2 x transistor npn BC817 (113657)
- 1 x phototransistor npn BPX38 (120238)
- 1 x switch (113645)
- 1 x universal brick (116009)
- 1 x resistor NTC 10k (114162)
- 2 x resistor 100kOhm (113649)
- 1 x resistor 100Ohm (113646)
- 2 x resistor 10kOhm (113648)
- 1 x resistor 1kOhm (113647)
- 1 x resistor 330Ohm (114160)
- 2 x resistor 4.7kOhm (113650)
- 1 x photoresistor LDR 03 (113655)
- 1 x resistor PTC 2.2k-10..40C (118625)

Features

Product type: Cobbler breakout kit
Compatibility: Development board Brick'R'knowledge kit

Weight & dimensions

Weight: 3.05 kg
