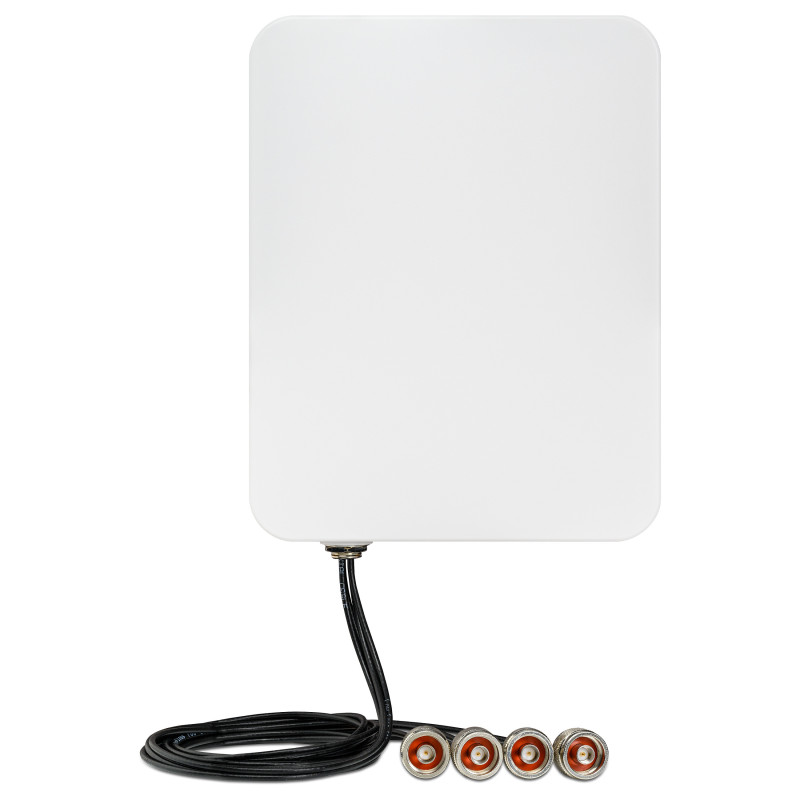

„AirLancer ON-QT60“ tinklo antena

AirLancer ON-QT60. Antenna gain level (max): 7 dBi, Frequency band: 2.4 - 7.125 GHz, Gain: 7 dBi. Antenna type: Directional antenna, Antenna connector type: N-type, Polarization: Dual linear polarization. Width: 183.7 mm, Depth: 40 mm, Height: 233.7 mm. Quantity per pack: 1 pc(s). Country of origin: Taiwan

60° outdoor Wi-Fi sector antenna with 4x4 MIMO
The weatherproof LANCOM AirLancer ON-QT60 sector antenna with a beam angle of 60° is ideal for Wi-Fi coverage over larger areas, such as warehouses and factories. With 4x4 MIMO support, it ensures maximum performance for reliable Wi-Fi client connectivity in difficult environments, especially where reflections and scattering occur. Due to its tri-band capability on all four ports, this antenna is perfect for mixed operation in the 2.4, 5, and 6 GHz bands.

Comparison of the LANCOM Wi-Fi outdoor antennas
In which application scenario and with which LANCOM access points are the LANCOM Wi-Fi accessories best suited? What is the safest way to connect access points and antennas outdoors?

Get to know the different types of antennas in the AirLancer portfolio and compare features such as frequency bands, antenna gain, connectors, and cables.

Performance

Frequency band: 2.4 - 7.125 GHz
Gain: 7 dBi
Antenna gain (2.4 GHz): 7 dBi
Antenna gain (5 GHz): 7 dBi
Impedance: 50 Ω
Horizontal beam width: 60°
Vertical beam width: 60°
Horizontal beam width (2.4 GHz): 60°
Vertical beam width (2.4 GHz): 60°
Horizontal beam width (5 GHz): 60°
Vertical beam width (5 GHz): 60°
Antenna gain level (max): 7 dBi

Features

Antenna type: Directional antenna
Antenna connector type: N-type
Polarization: Dual linear polarization
Voltage Standing Wave Ratio (VSWR): 1.5:1 - 2.0:1
Product colour: Light grey
Feature: Ultraviolet (UV) resistant
Mounting: Wall/Pole
Compatible products: AirLancer SurgeProtect, AirLancer AN-RPSMA-NJ, AirLancer NJ-NP, LANCOM OAP Series 32x, 82x, 170x, OW-602, OX-6402

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Weight & dimensions

Width: 183.7 mm
Depth: 40 mm
Height: 233.7 mm
Weight: 900 g

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit

Logistics data

Customs product code (TARIC): 85177000
Country of origin: Taiwan
