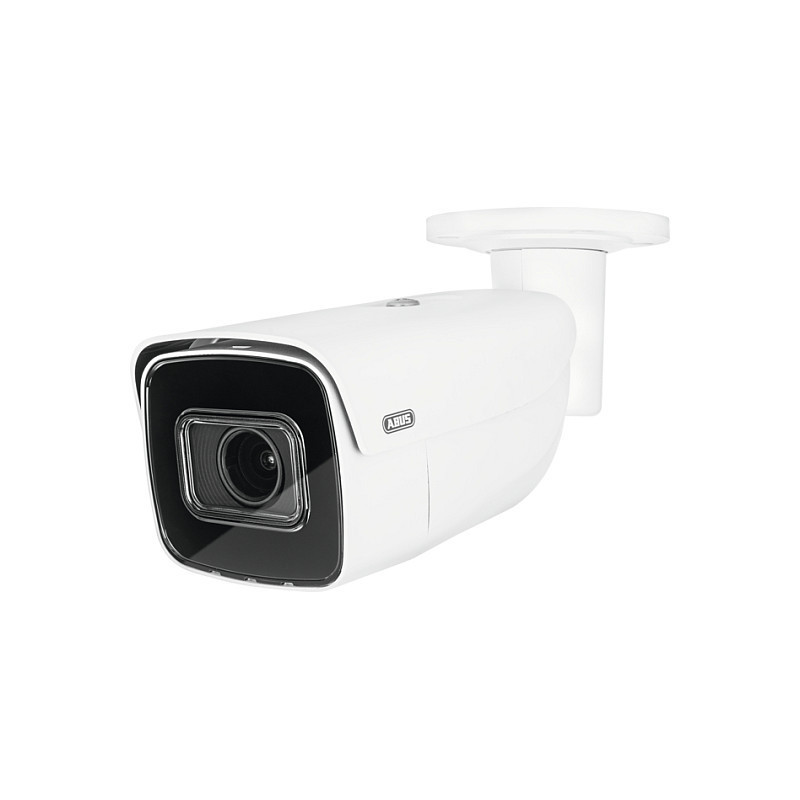

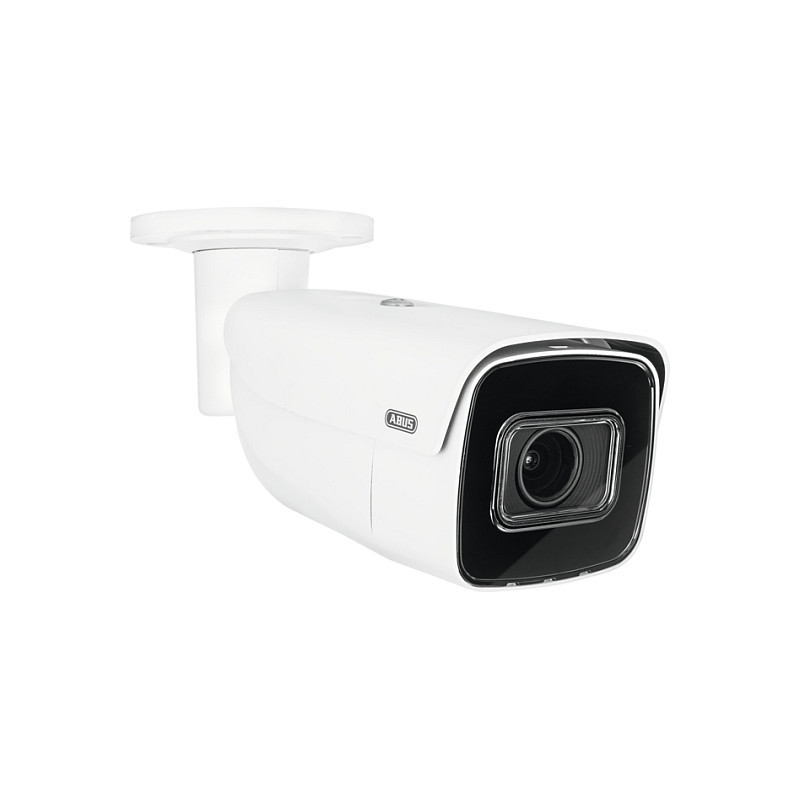

ABUS IPCB68521 apsaugos kamera

ABUS IPCB68521. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 46 - 108, Lens viewing angle, vertical: 26 - 58, White balance: Auto, Manual. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"), Number of effective pixels (H x V): 3840 x 2160 pixels. Optical zoom: 4.2x, Fixed focal length: 2.8 mm

BRILLIANT OUTSIDE: IN ANY LIGHT. AGAINST MANIPULATION.

With 8 MPx (4K) resolution, weatherproof IP67 housing, IK10 vandal protection and powerful IR LEDs, the IP Tube is the surveillance camera for 24/7 outdoor surveillance day and night. WDR dynamics and Ultra Low-Light ensure clear images in any light.

Best, flexible surveillance in 4K Ultra HD

The motorised zoom lens with 2.8-12 mm focal length covers a range of 46-108° (4.2x optical). Focal length and focus are precisely adjusted via the web interface, and the viewing direction is easily fixed with a single screw.

Autom. Object recognition

The security camera reliably distinguishes relevant movements (people, vehicles) from disturbances (branches, light, etc.) and thus minimises unnecessary motion alarms.

Recording and compatibility

Recordings are made on an ABUS recorder, on video management software or local microSD card. The camera is compatible with ABUS Secvest, Secoris and WLX Pro Plus.

Convenient start-up

The installation box (TVAC32600) is used for mounting on the ceiling or wall with protected cabling. The free ABUS IP Installer software makes setup easier.

ABUS Link Station app: Live Image & Push

For mobile access for live viewing, playback and push notifications for events, incl. IPv6.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 6
Languages support: German, French, Italian, Ukrainian
Dynamic range: 120 dB

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Activity
Housing material: Metal
Protection features: Dust resistant, Rain proof, Waterproof
International Protection (IP) code: IP67
Feature: Weatherproof

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 46 - 108
Lens viewing angle, vertical: 26 - 58
White balance: Auto, Manual
Camera shutter type: Electronic
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS
Number of effective pixels (H x V): 3840 x 2160 pixels

Lens system

Feature: Zoom capability
Optical zoom: 4.2x
Number of lenses: 1
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 60 m

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 3840 x 2160
Feature: Video recording
Frame rate: 25 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)

Network

Feature: Ethernet LAN
Number of users: 32 user(s)
User access level: User
Feature: Live view

Storage

Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: DC-in jack

Security

Alarm input channels: 1
Alarm output channels: 1
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Human detection, Region entrance detection, Region exiting detection, Tripwire, Vehicle detection
Feature: Motion sensor

Management features

Feature: Web-based management
Feature: Cable management

Power

Power source type: DC
AC input voltage: 12 V
Power consumption: 1350 mA

Operational conditions

Operating temperature (T-T): -25 - 60 °C

Weight & dimensions

Width: 105 mm
Height: 105 mm
Length: 298 mm
Weight: 1.4 kg

Packaging data

Package weight: 2.1 kg

Packaging content

Number of cameras: 1
