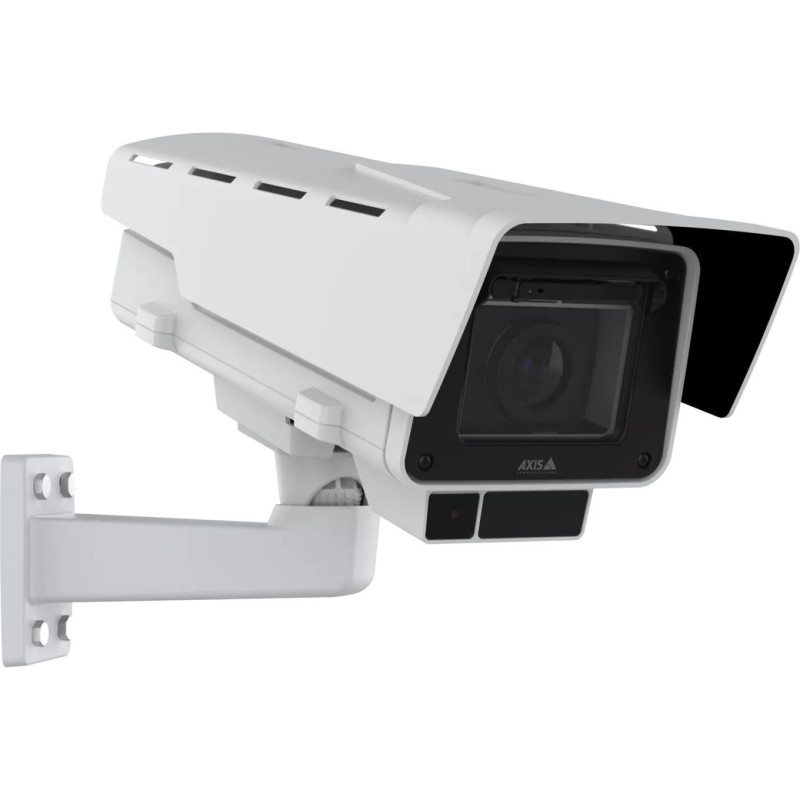

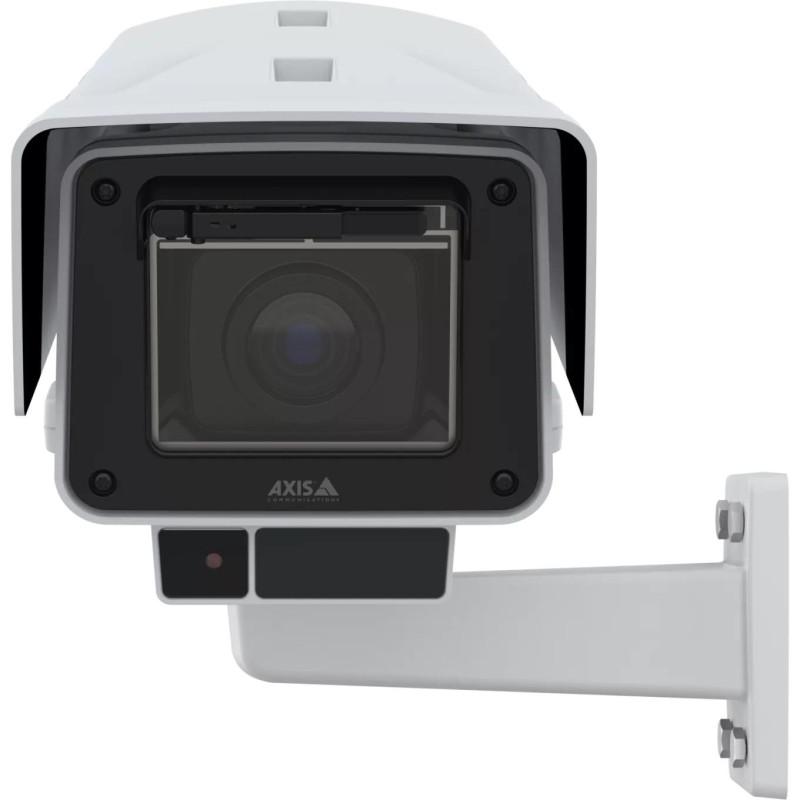

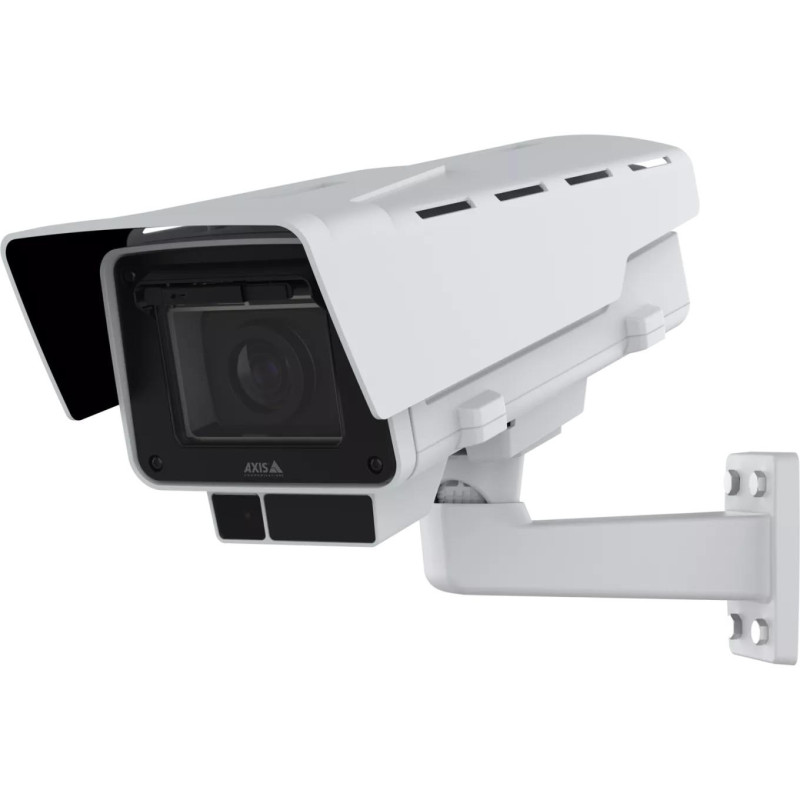

AXIS Q1728-LE Block Camera



Built on ARTPEC-9, with support for AV1 codec, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. Available with a wide or tele lens, it features a built-in wiper to withstand harsh outdoor environments.



Superior image quality



AXIS Q1728-LE offers 8 MP at 60 fps and features a large 1/1.2" sensor for consistent low-light performance. Lightfinder 2.0 and Forensic WDR provide true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. Available in two variants with a choice of lenses: a wide (6-13 mm) lens with a 76°-32° horizontal field of view for surveillance in wide, open areas, and a tele (15-48 mm) lens with a 30°-40° horizontal field of view for great details at long distances. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.



For harsh, outdoor environments



Ideal for any outdoor location, AXIS Q1728-LE comes with a built-in wiper and front window with carbon nanotube film heater to guarantee great images even in snow, rain, ice, and fog. It can operate in temperatures from -40 °C to 60 °C (-40 °F to 140 °F). This future-proof camera has a standardized enclosure design that can be reused with any Axis block camera. This makes it a more efficient and environmentally friendly option and ensures you get the full value from your investment. What's more, the front glass is IK08-rated, and the enclosure is IK10-, NEMA 4X-, NEMA TS-2-, IP66-, and IP67-rated to withstand harsh weather conditions and impacts.



ARTPEC-9 for unmatched performance



ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What's more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.



Powerful with strong security



Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you'll be notified if your image is blocked, degraded, under exposed, or redirected. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.




  • Superior image quality in 4K

  • Built-in wiper for harsh weather

  • Next-generation AI-powered analytics

  • Wide or tele lenses available

  • Built-in cybersecurity with Axis Edge Vault



Summary Axis Q1728-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 49 - 108°, Lens viewing angle, vertical: 27 - 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Lens diameter: 1.3 cm, Focal length range: 5.9 - 13.3 mm, Detect distance (wide): 84.6 m
Vendor Homepage https://www.axis.com/products/axis-q1728-le
Unit Box Height 0.23
Unit Box Length 0.59
Unit Box Width 0.21
Form factor Box
Housing material Aluminium/Plastic
IK code IK10
International Protection (IP) code IP66, IP67
Mounting type Wall
Product colour Black/White
Auto-tracking Yes
Certification CE, EAC, FCC, ICES, KC, RCM, UL, VCCI, TAA
Connectivity technology Wired
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Placement supported Indoor & outdoor
Preset points Yes
PTZ control Yes
PTZ modes Digital PTZ
PTZ protocols Pelco-D
Tour recording Yes
Type IP security camera
Wide Dynamic Range (WDR) Yes
Camera shutter speed 1/66500 - 2 s
Lens viewing angle, horizontal 49 - 108 °
Lens viewing angle, vertical 27 - 58 °
Minimum illumination 0.01 lx
Number of sensors 1
Optical sensor size 1/1.2 "
Progressive scan Yes
Sensor type CMOS
Auto focus Yes
Closest focusing distance 0.5 m
Detect distance (tele) 177.9 m
Detect distance (wide) 84.6 m
Focal length range 5.9 - 13.3 mm
Identify distance (tele) 17.8 m
Identify distance (wide) 8.5 m
Lens diameter 13 mm
Maximum aperture number 2.9
Minimum aperture number 1.6
Number of lenses 1
Observe distance (tele) 70.6 m
Observe distance (wide) 33.6 m
Recognize distance (tele) 35.6 m
Recognize distance (wide) 16.9 m
Zoom capability Yes
Infra-red wavelength 850 nm
LED type IR
Night vision Yes
Night vision distance 50 m
Bit rate control Variable Bit Rate (VBR)
Flip & mirror Yes
Frame rate 60 fps
Gain control type Auto
Image quality adjustment Brightness/Contrast/Saturation/Sharpness
Maximum resolution 3840 x 2160 pixels
Noise reduction Yes
Noise reduction technology 2D noise reduction,3D noise reduction
Supported graphics resolutions 160 x 120/2560 x 1600 (WQXGA)/2592 x 1944/3840 x 2160
Text caption overlay Yes
Total megapixels 8 MP
Video formats supported AV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streaming Yes
Audio detection Yes
Audio formats supported AAC-LC/ADPCM/G.726/OPUS/PCM
Sample rates 8 - 48 kHz
Signal-to-Noise Ratio (SNR) 55 dB
Ethernet interface type Fast Ethernet/Gigabit Ethernet
Ethernet LAN Yes
Networking standards IEEE 802.3af/IEEE 802.3at
Streaming method Multicast
Supported network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash)/MicroSDHC/MicroSDXC
Flash memory 8000 MB
RAM capacity 4000 MB
DC-in jack Yes
Microphone in Yes
RS-485 ports 1
Terminal block port Yes
Human and vehicle targets classification Yes
Intelligent Video Surveillance (IVS) system features Abandoned object/Face detection/Line crossing detection
Privacy protection Yes
Power consumption (max) 25.5 W
Power consumption (Power over Ethernet (PoE)) 25.5 W
Power consumption (typical) 7.8 W
Power source type DC,PoE
Operating relative humidity (H-H) 10 - 100 %
Operating temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 65 °C
Depth 429 mm
Height 179 mm
Weight 4800 g
Width 178 mm
Compliance certificates REACH/RoHS
Number of cameras 1
Wiper included Yes
Doesn't contain CFR/PVC/BFR
Units per Shipping Box 1
Unit Calculated Volume 0.0285 cubm
Unit Calculated Weight 5.81 kg
