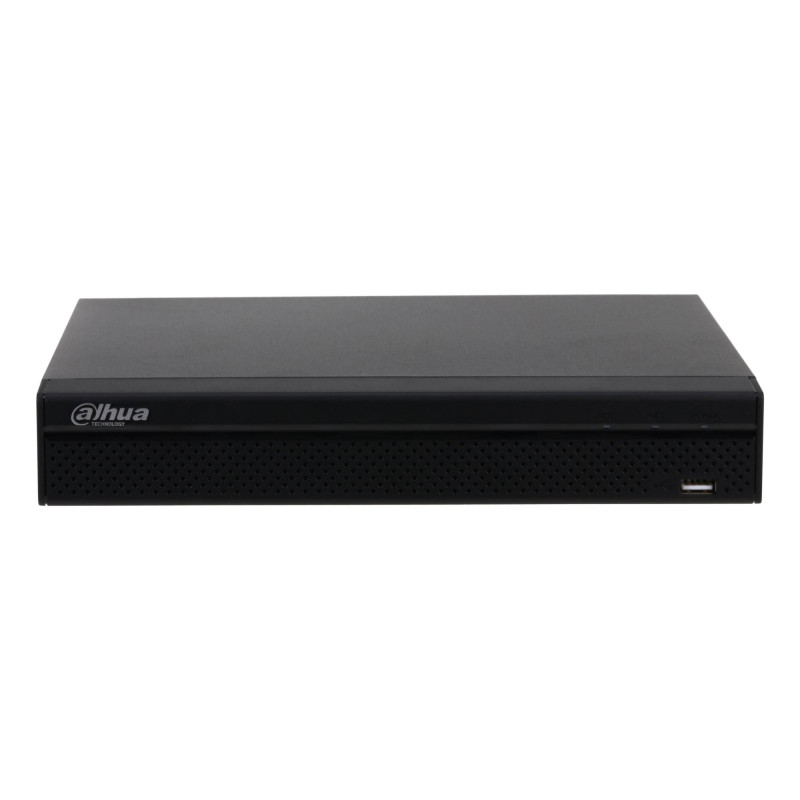

NET VAIZDO ĮRAŠYMAS 16 CH / NVR4116HS-4KS3 DAHUA
Prekės kodas: 2-6923172570697

NET VAIZDO ĮRAŠYMAS 16 CH / NVR4116HS-4KS3 DAHUA

Prekės kodas: 2-6923172570697
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
272,82
Prekė sandelyje

Garantija
36 mėn.

Pristatymas iš Lietuvos
per 3 - 5*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*

8CH Smart 1U 8PoE 1HDD Lite Network Video Recorder
The NVR4000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. When an IPC is connected to the NVR, a variety of AI functions become available such as face detection, perimeter protection, and people counting. This NVR is both cost-effective and easy-to-install, making it ideal for a wide range of applications such as for cities, transportation, education and finance.

Functions
- SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
- Face Detection by Camera
Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.
- Face Recognition by Camera
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database.
- Perimeter Protection by Camera
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
- Stereo Analysis by Camera
With deep learning algorithm and 3-dimensional scene information, Dahua Stereo Analysis technology can recognize people's behaviors, such as fall detection, violence detection, stay detection, and space exception, and then generates alarm signals and triggers linkage.
- Heat Map by Camera
Dahua heat map technology is used to display the crowd density and people appearance probability. Export and display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions.

  • Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
  • Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps
  • Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth
  • Supports IP cameras with a resolution up to 12 MP
  • AI by Recorder supports 4-channel SMD Plus
  • AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map
  • Supports EPTZ, and one-click arming and disarming

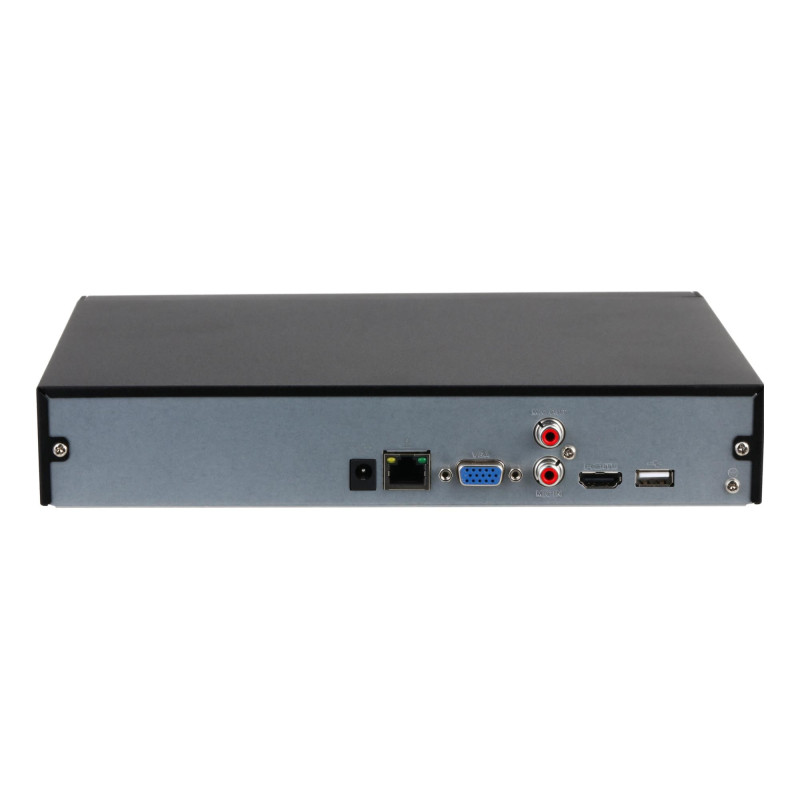

Audio formats supported G.711 µ-law/G.711 A-law/G.726/PCM
Audio RCA inputs 1
Audio RCA outputs 1
Browser supported Chrome; IE; Safari; Edge; Firefox
Built-in processor Yes
Certification CE-LVD: IEC 62368-1:2014

CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Depth 232.5 mm
eSATA ports quantity 1
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10/100 Mbit/s
Face detection Yes
HDD interface SATA
HDMI ports quantity 1
Height 47.6 mm
Image formats supported MJPEG
Input bandwidth 80 Mbit/s
Maximum resolution 3840 x 2160 pixels
Maximum storage capacity 20 TB
Mobile operating systems supported Android/iOS
Model NVR4116HS-4KS3
Model name NVR4116HS-4KS3
Operating relative humidity (H-H) 10 - 93 %
Operating system installed Embedded LINUX
Operating temperature (T-T) -10 - 55 °C
Output bandwidth 60 Mbit/s
Output current 2 A
Output voltage 12 V
Package depth 89 mm
Package height 314 mm
Package weight 1380 g
Package width 334 mm
Power consumption (typical) 10 W
Product colour Black
Rack capacity 1U
Rack mounting Yes
Storage temperature (T-T) -20 - 60 °C
Summary Dahua Technology Lite NVR4116HS-4KS3. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports.... Rack capacity: 1U, Product colour: Black, Certification: CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN.... Power consumption (typical): 10 W, Output current: 2 A, Output voltage: 12 V
Supported network protocols HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Supported resolutions HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Unit Box Height 0.31
Unit Box Length 0.335
Unit Box Width 0.085
Unit Calculated Volume 0.01159 cubm
Unit Calculated Weight 1.5 kg
Units per Shipping Box 10
USB 2.0 ports quantity 2
Vendor Homepage https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4116HS-4KS3
VGA (D-Sub) output ports 1
Video formats supported H.264/H.264+/H.265/H.265+
Video input channels 16 channels
Video motion detection Yes
Video recording modes 1080p/720p/960p
Weight 810 g
Wi-Fi No
Width 260 mm
