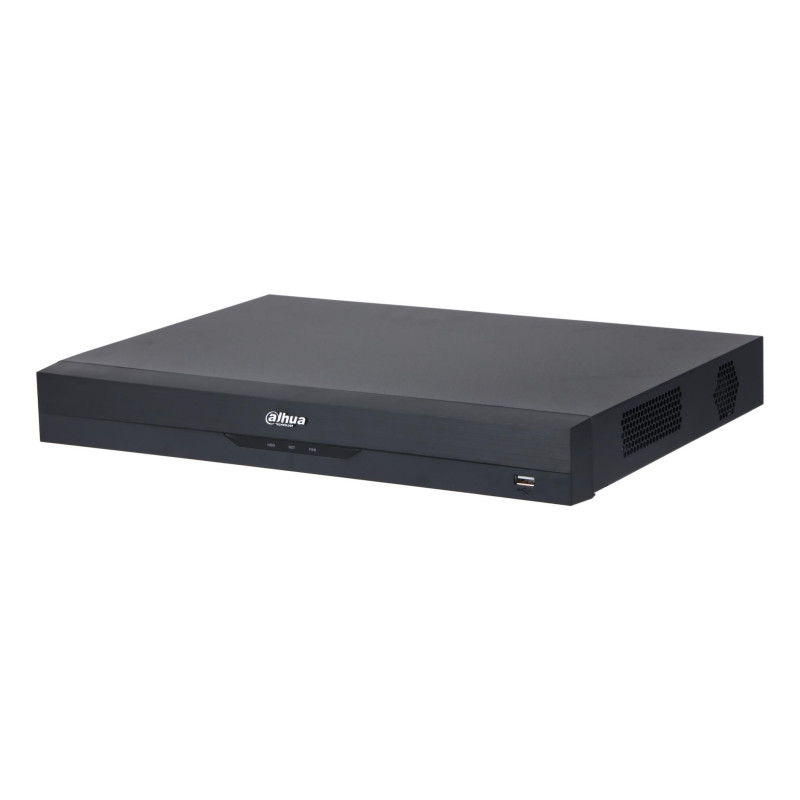

32 kanalų HDCVI penkiakampis vaizdo registratorius / XVR5232AN-I3 / T DAHUA
Prekės kodas: 2-6937552415065

32 kanalų HDCVI penkiakampis vaizdo registratorius / XVR5232AN-I3 / T DAHUA

Prekės kodas: 2-6937552415065
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
745,36
Paskutinė prekė

Garantija
36 mėn.

Pristatymas iš Lietuvos
per 3 - 5*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

The XVR5000-I3/T Series offers powerful recorders that work in conjunction with 1080p HDCVI cameras, delivering smooth and crisp live videos along with an array of advanced security functions. It features two-way talk over coaxial cable, and incorporates AcuPick technology, along with other AI functions, to enhance intelligence and convenience in the surveillance field.

Two-way talk
Allows for seamless communication between the camera, client and recorder over coaxial cable, and offers instant voice intercom and timely audio alerts.

Enhanced Encoding
Encoding Enhancement mode optimizes videos through real-time encoding to make them smoother and improve scene rendering.

Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database. *Face Recognition takes effect when Face is selected in AI Mode.

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy. *Perimeter Protection takes effect when IVS is selected in AI Mode.

AcuPick
This industry-leading search technology effectively utilizes back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision. *AcuPick takes effect when AcuPick is selected in AI Mode.

SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

  • Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above
  • 32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
  • 2-channel AcuPick for analog channels which improves the efficiency of target retrieval
  • 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
  • 2-channel face recognition for analog channels which supports face comparison
  • 32-channel SMD Plus for analog channels or 48-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
  • 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
  • Supports HDCVI, AHD, TVI, CVBS and IP video input
  • Supports up to 48-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 192 Mbps
  • Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
  • Smart H.265+ and H.265 dual-stream video compression

Audio formats supported G.711 µ-law/G.711 A-law/PCM
Audio system 2-way
Bit rate 6144 Kbit/s
BNC input ports 32
Built-in processor Yes
Certification CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
DC voltage 12 V
Depth 289.6 mm
Dual stream support Yes
Ethernet interface type Fast Ethernet/Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Graphical user interface (GUI) Yes
HDD interface SATA
HDMI ports quantity 1
Height 53 mm
Internal No
Line inputs (RCA) 1
Line outputs (RCA) 1
Maximum HDD capacity 16000 GB
Maximum video resolution 3840 x 2160 pixels
Mobile network connection No
Mobile network generation Not supported
Multi-display modes 1/16/25/36/4/8/9
Multi-display supported Yes
Number of HDDs supported 2
Operating relative humidity (H-H) 10 - 90 %
Operating system installed Embedded LINUX
Operating temperature (T-T) -10 - 55 °C
Package depth 137 mm
Package height 356 mm
Package weight 3240 g
Package width 427 mm
Power consumption (typical) 16 W
Power supply type DC
Product colour Black
RS-485 ports 1
Storage temperature (T-T) -20 - 60 °C
Summary Dahua Technology 32CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 1280 x 1024,1280 x 720,1920 x 1080,3840 x 2160. Video input channels: 32 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;.... HDD interface: SATA, Maximum HDD capacity: 16 TB
Supported network protocols HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; P2P
Unit Box Height 0.35
Unit Box Length 0.425
Unit Box Width 0.135
Unit Calculated Volume 0.02008 cubm
Unit Calculated Weight 3.16 kg
Units per Shipping Box 1
USB 2.0 ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Vendor Homepage https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/5MP-Value1080p-Series/XVR5232AN-I3/T
VGA (D-Sub) output ports 1
Video compression formats H.264/H.264+/H.265/H.265+
Video input channels 32 channels
Video motion detection Yes
Video resolutions 1280 x 1024/1280 x 720/1920 x 1080/3840 x 2160 pixels
Weight 1900 g
Wi-Fi No
Width 375 mm
