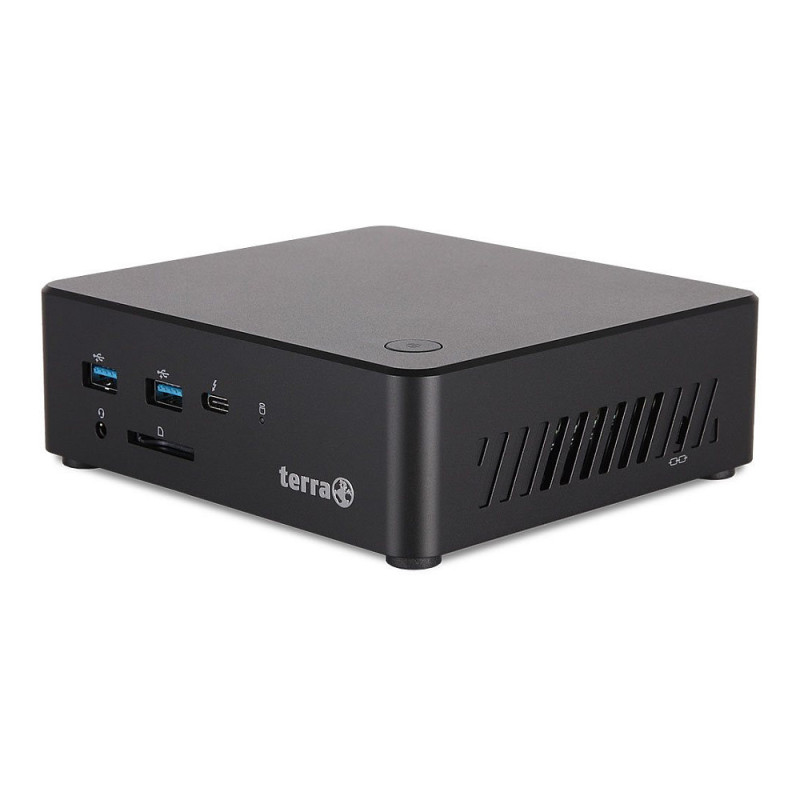

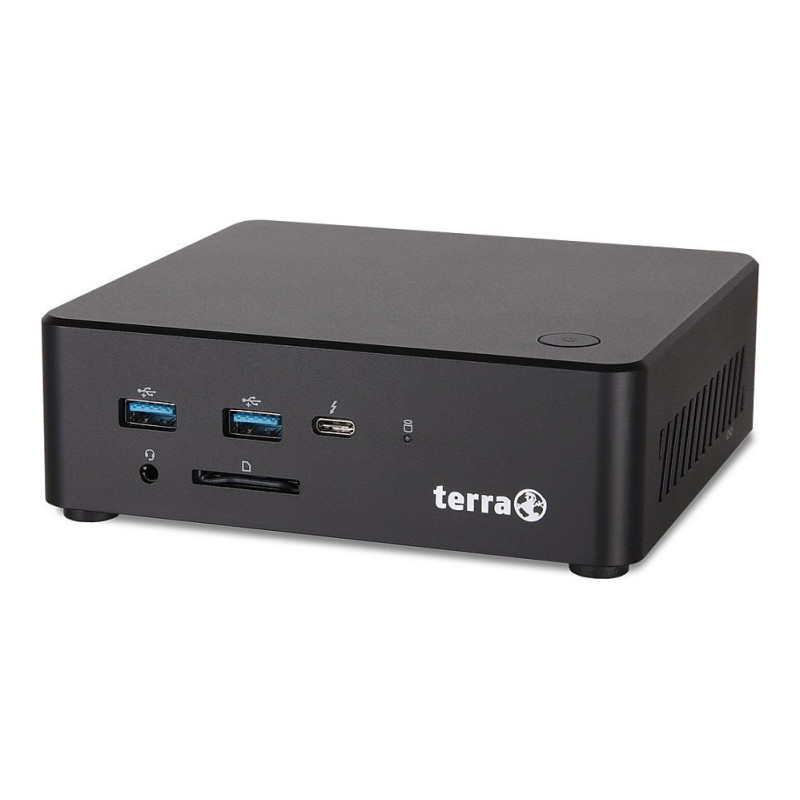

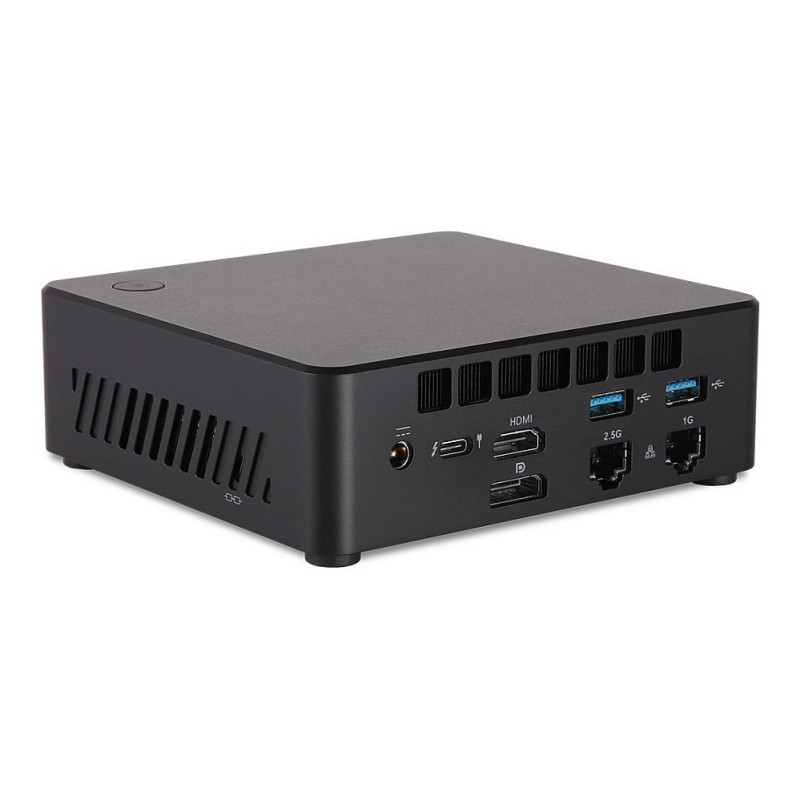

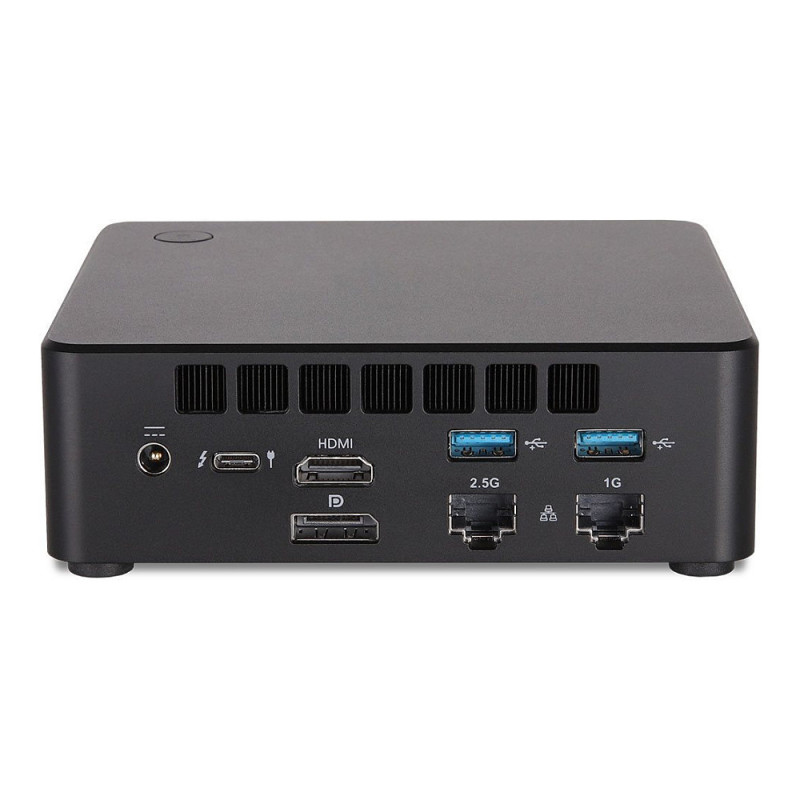

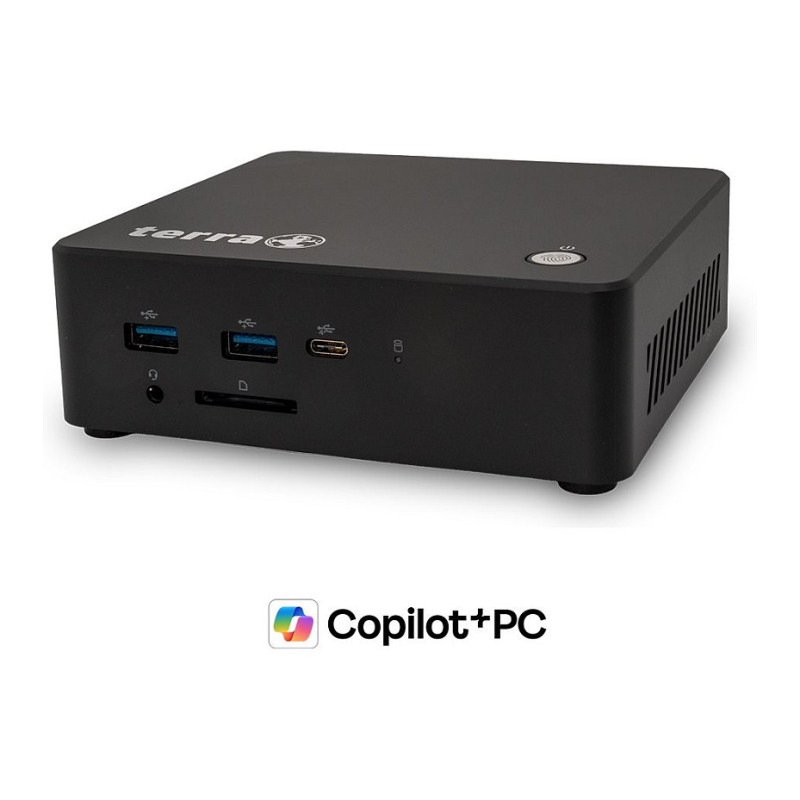

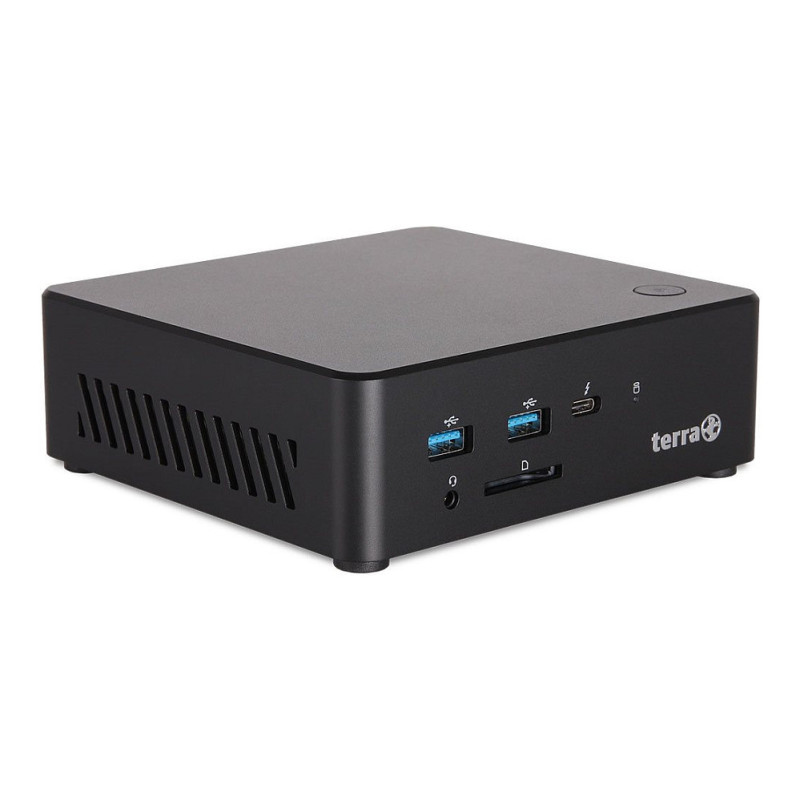

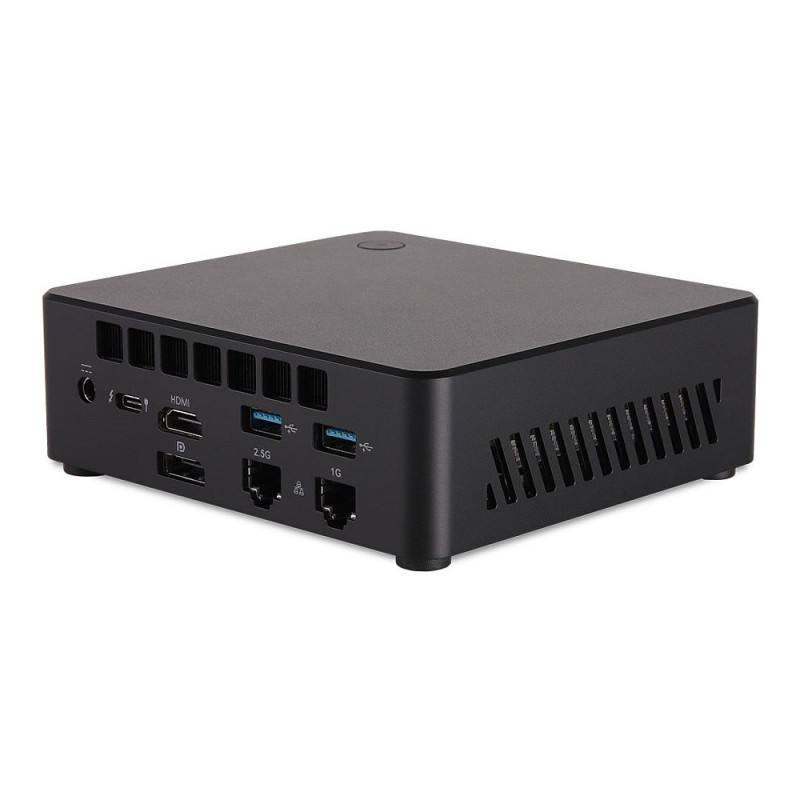

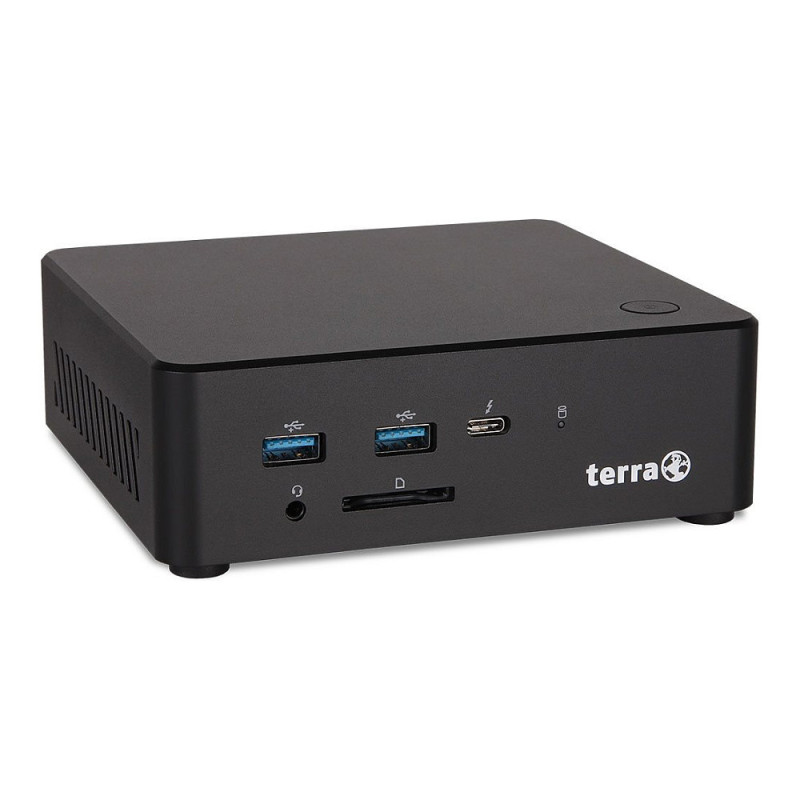

TERRA PC MICRO 7000A

TERRA PC MICRO 7000A. Processor family: AMD Ryzen™ AI 7, Processor model: 350. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 500 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: AMD Radeon 860M. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 65 W. Chassis type: Micro PC. Product type: PC. Product colour: Black

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ AI 7
Processor model: 350
Processor cores: 8
Processor threads: 16
Processor boost frequency: 5 GHz
Performance cores: 4
Efficient cores: 4
Performance-core Max Turbo Frequency: 5 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 2 GHz
L2 cache: 8 MB
L3 cache: 16 MB
Processor cache type: L2 & L3
Number of processors installed: 1
Processor socket: FP8
Processor base power: 28 W
Maximum turbo power: 54 W

Neural processor unit (NPU)

Neural processor unit (NPU): AMD Ryzen AI
Total processor performance up to: 66 TOPs
NPU performance up to: 50 TOPs

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 500 GB
Storage media: SSD
Optical drive type: No
Number of storage drives supported: 2
Total SSDs capacity: 500 GB
Number of SSDs installed: 1
SSD capacity: 500 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Feature: Card reader integrated
Storage options: 2x M.2 2280 PCIe Gen4x4

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 860M
On-board graphics card cores: 8
Resolution description: HDMI 4096x2160 @ 60Hz (4K), Display Port 3840x2160 @ 60Hz (4K)
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 1

Performance

Market positioning: Medical
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
LAN controller: Realtek RTL8111H, Realtek RTL8125-BG
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX210
Feature: Bluetooth
Bluetooth version: 5.2

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
Thunderbolt 4 ports quantity: 2
DisplayPorts quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 2
Feature: Combo headphone/mic port
Feature: DC-in jack

Power

Power supply: 65 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz
Power consumption (typical): 5 W
Power consumption (standby): 0.82 W
Power consumption (off): 0.26 W

Design

Chassis type: Micro PC
Cable lock slot type: Kensington
Product colour: Black
Cooling type: Active

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Audio

Audio system: High Definition Audio

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 75%

Weight & dimensions

Width: 130 mm
Depth: 140 mm
Height: 48.3 mm
Weight: 650 g

Packaging content

Cables included: AC
Feature: VESA mount included
Feature: Manual
Feature: AC adapter included

Other features

Locale: International repository
