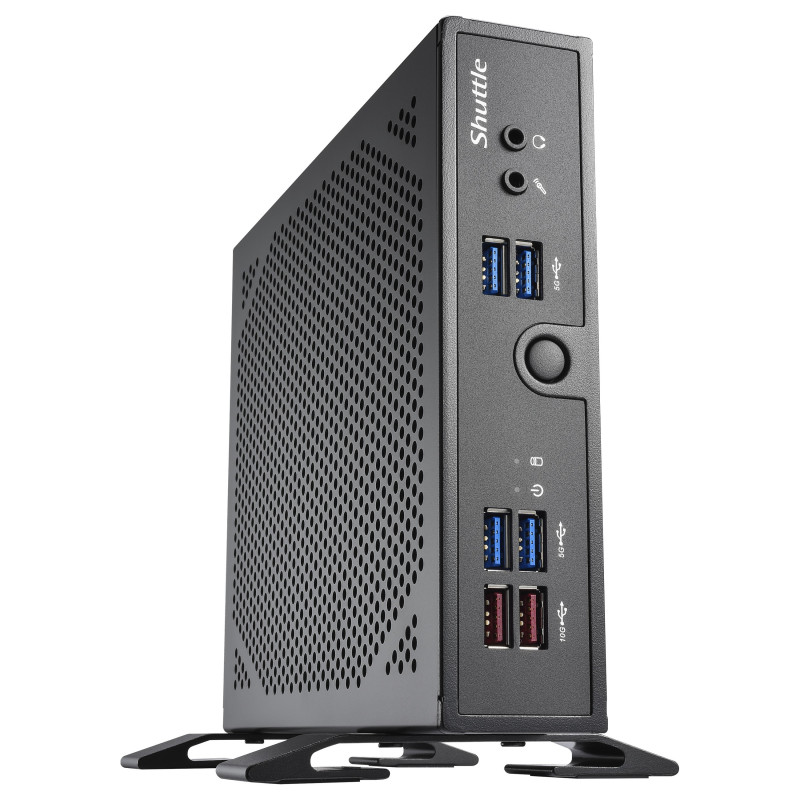

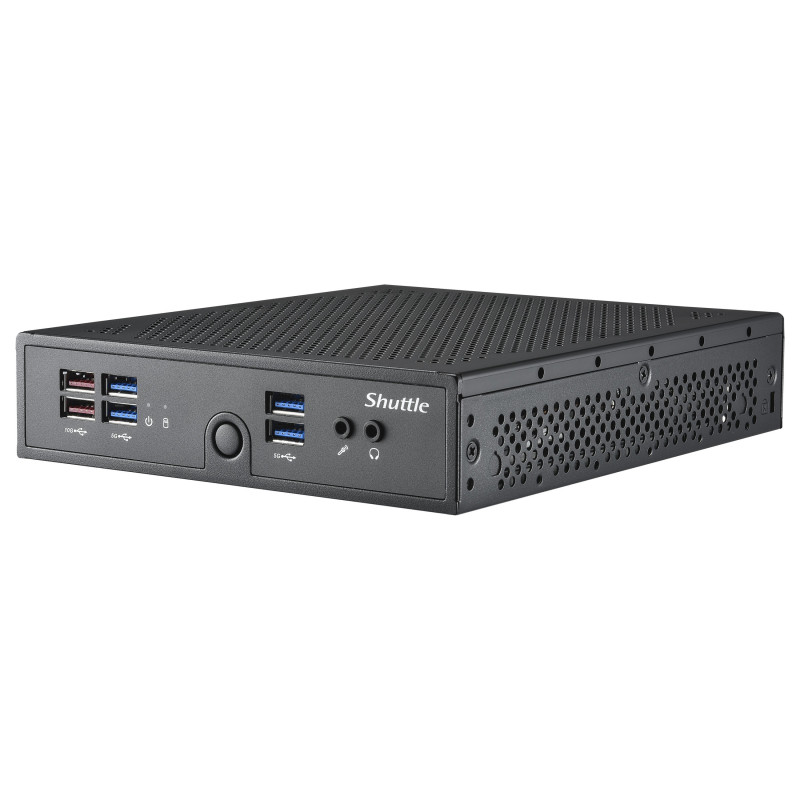

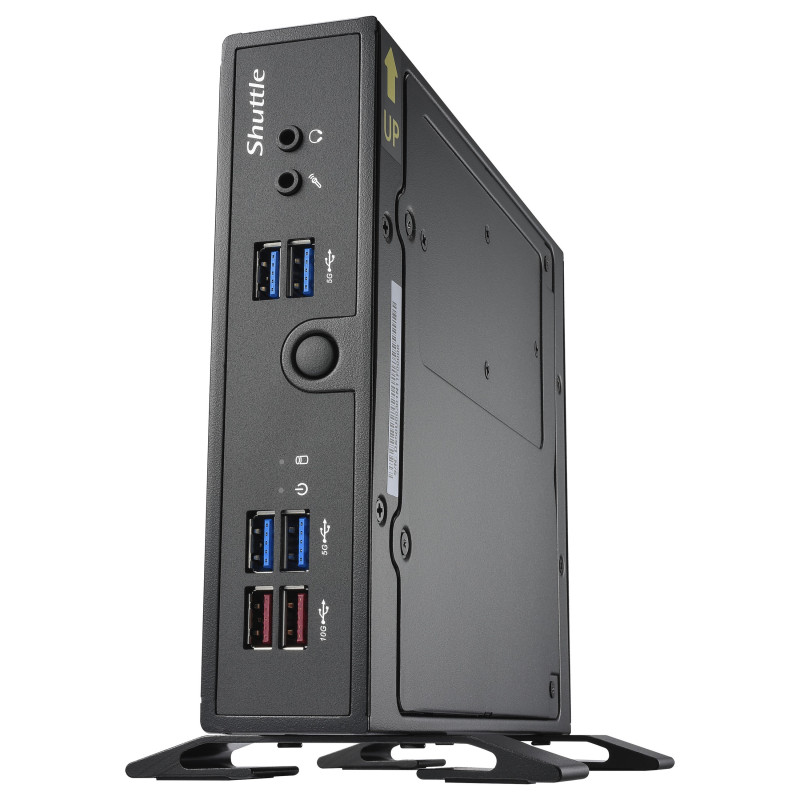

Shuttle DS50U7 asmeninis kompiuteris / darbo stotis su integruotu korpusu

Shuttle XPC slim Barebone DS50U7, i7-1355U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation. Chassis type: 1.3L sized PC, Product type: Mini PC barebone. BIOS type: UEFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Passive. Power supply: 90 W

Fanless Slim PC with integrated ULV processor in industrial design

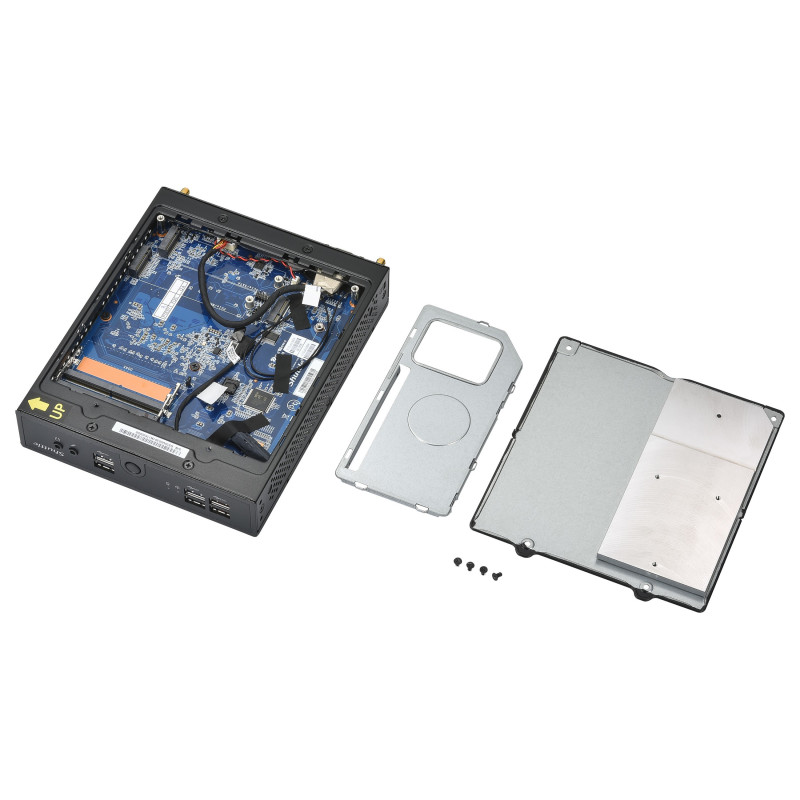

The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.

Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U7 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: 13th gen Intel® Core™ i7
Processor model: i7-1355U
Processor cores: 10
Processor threads: 12
Processor boost frequency: 5 GHz
Performance cores: 2
Efficient cores: 8
Feature: Built-in processor
Performance-core boost frequency: 5 GHz
Efficient-core boost frequency: 3.7 GHz
Processor cache: 12 MB
Thermal Design Power (TDP): 15 W

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 5200 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V

Storage

Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5,M.2
Storage drive interface: PCI Express, Serial ATA III
Feature: NVMe
Number of storage drives supported: 3

Graphics

Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® UHD Graphics

Network

Feature: Ethernet LAN
LAN controller: Intel® I219, Intel I226-LM

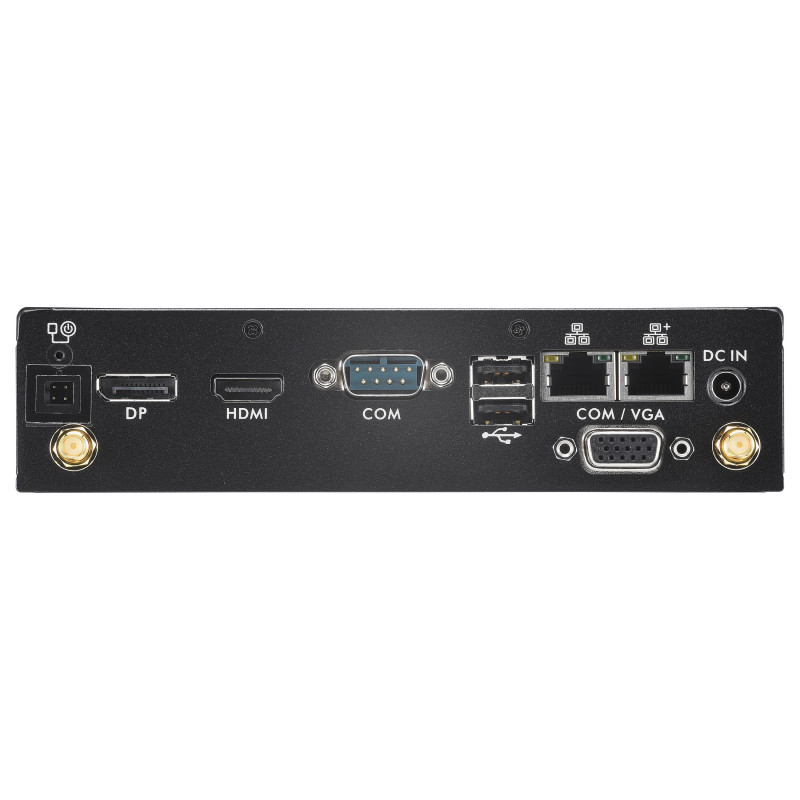

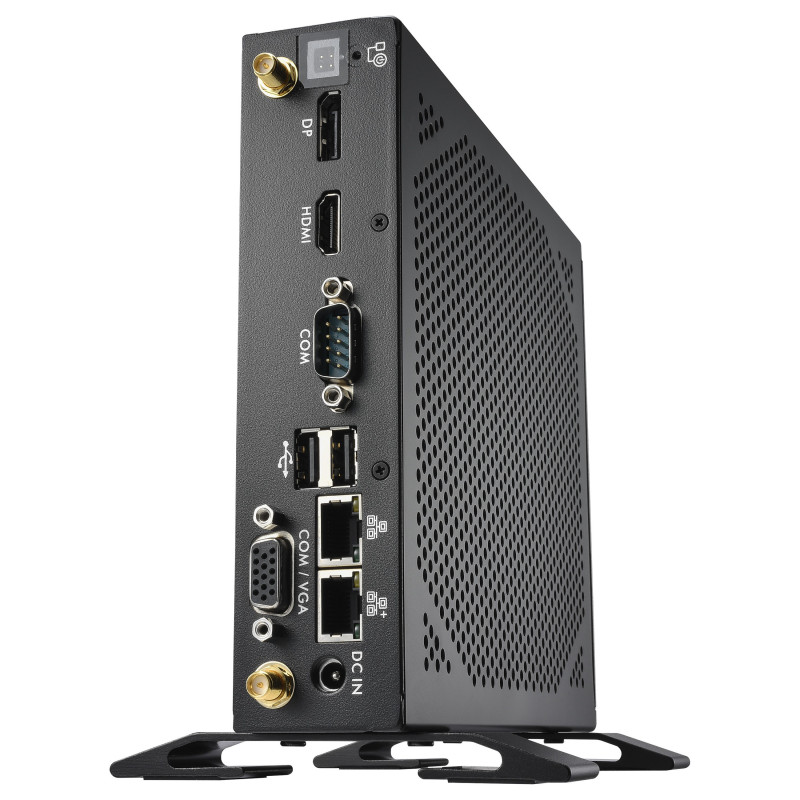

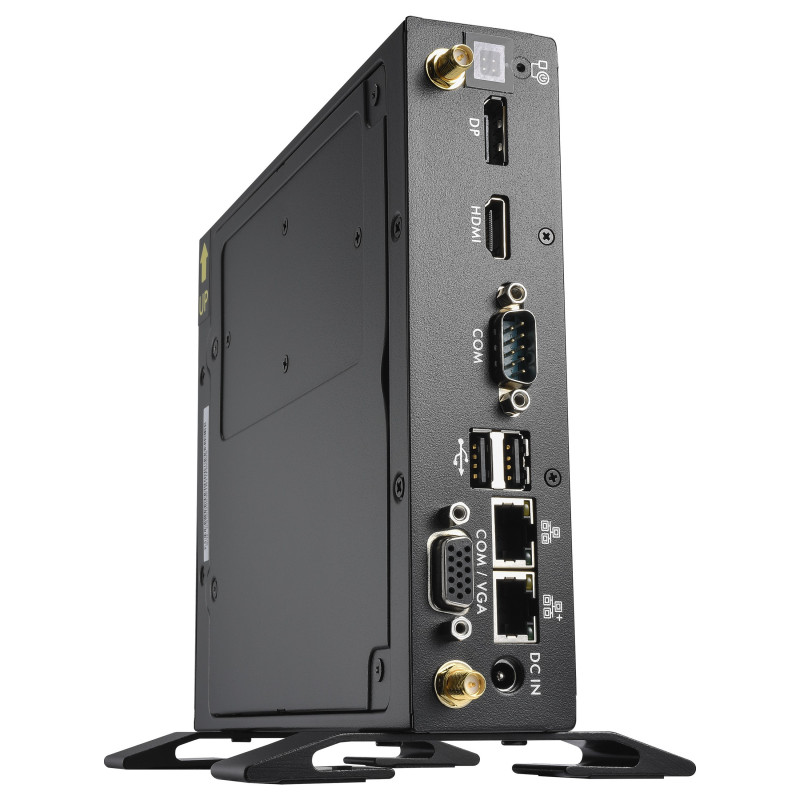

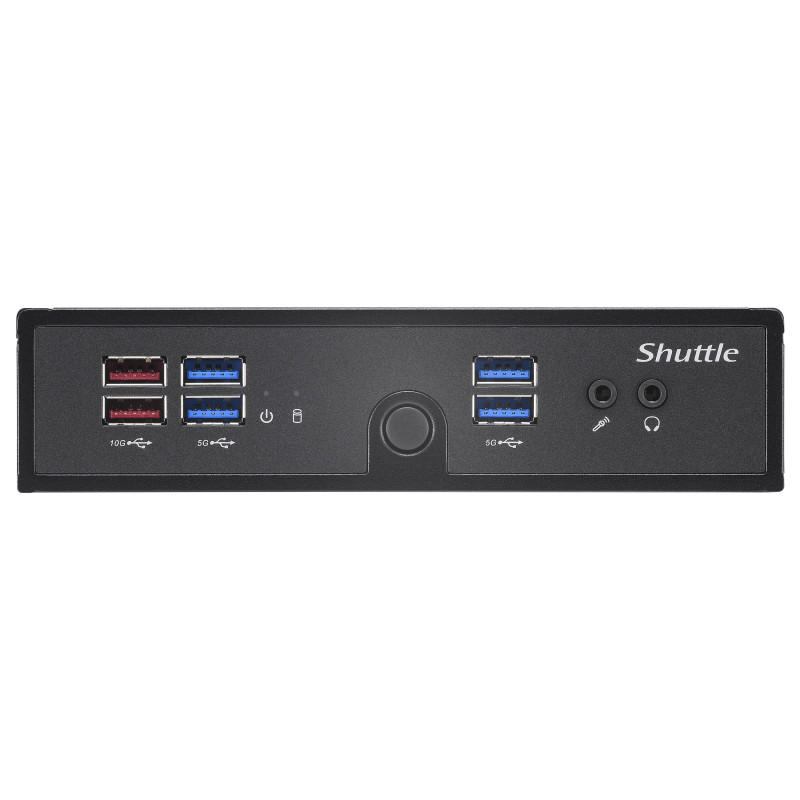

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0b
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
Serial ports quantity: 1
Feature: DC-in jack

Design

Chassis type: 1.3L sized PC
Product colour: Black
Cooling type: Passive
Feature: On/off switch
LED indicators: HDD, Power
Housing material: Steel
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Product type: Mini PC barebone

Performance

Number of processors supported: 1
BIOS type: UEFI AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S

Technical details

Compliance certificates: BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus

Logistics data

Harmonized System (HS) code: 84733080

Software

Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Yes
Operating system installed: No

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, ErP

Power

Power supply type: External AC adapter
Power supply: 90 W
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 1.6 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 200 mm
Depth: 165 mm
Height: 39.5 mm
Weight: 1.6 kg
Package weight: 2.3 kg

Packaging content

Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
