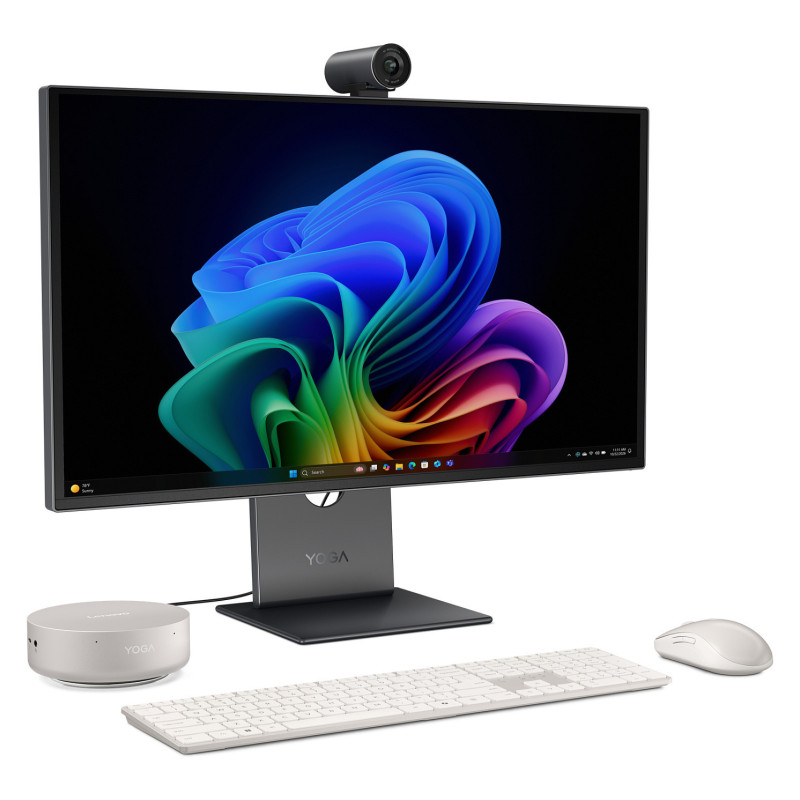

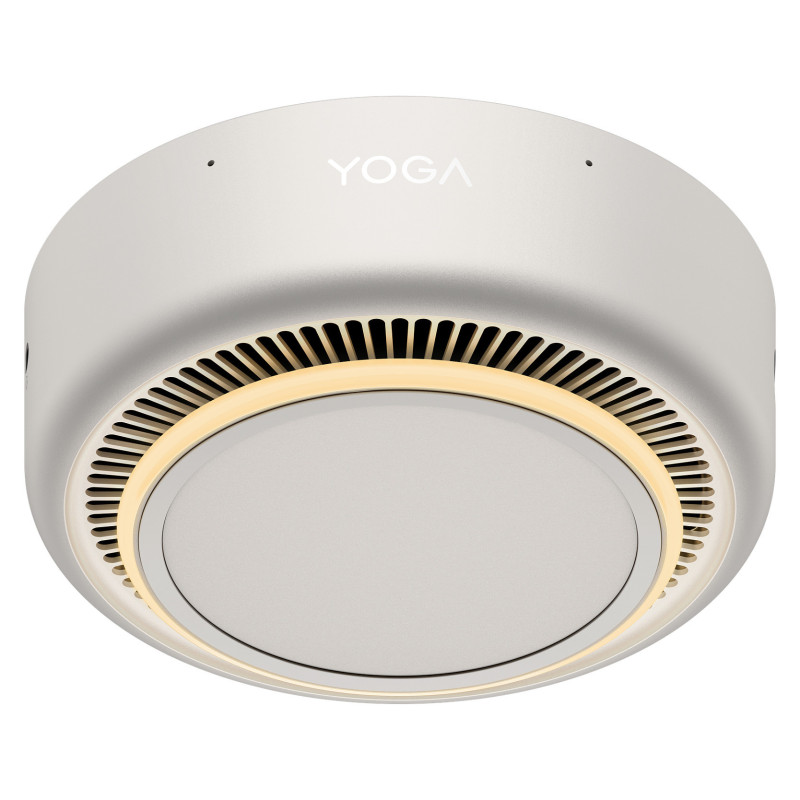

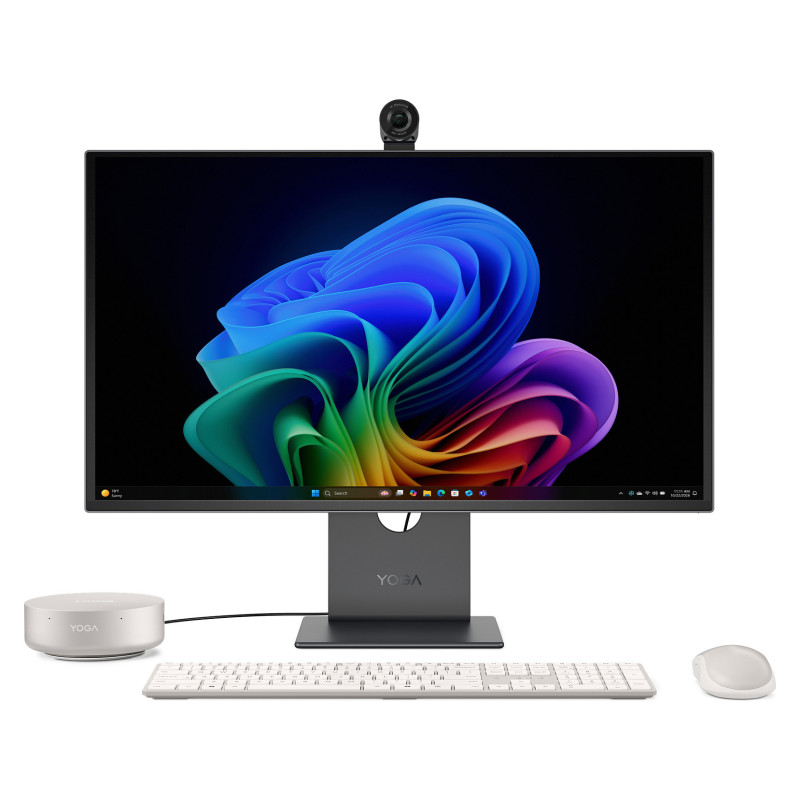

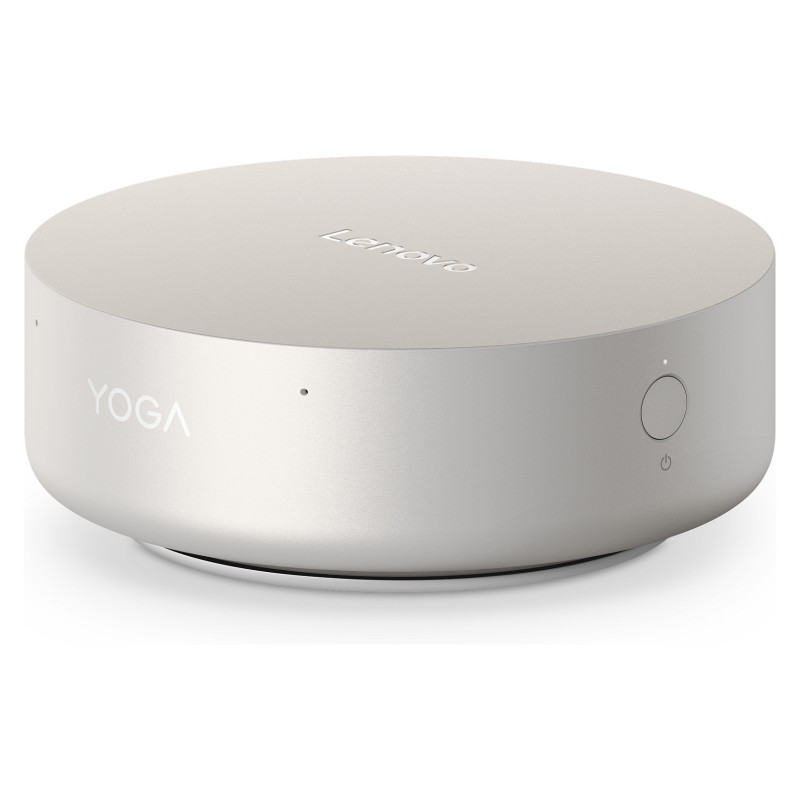

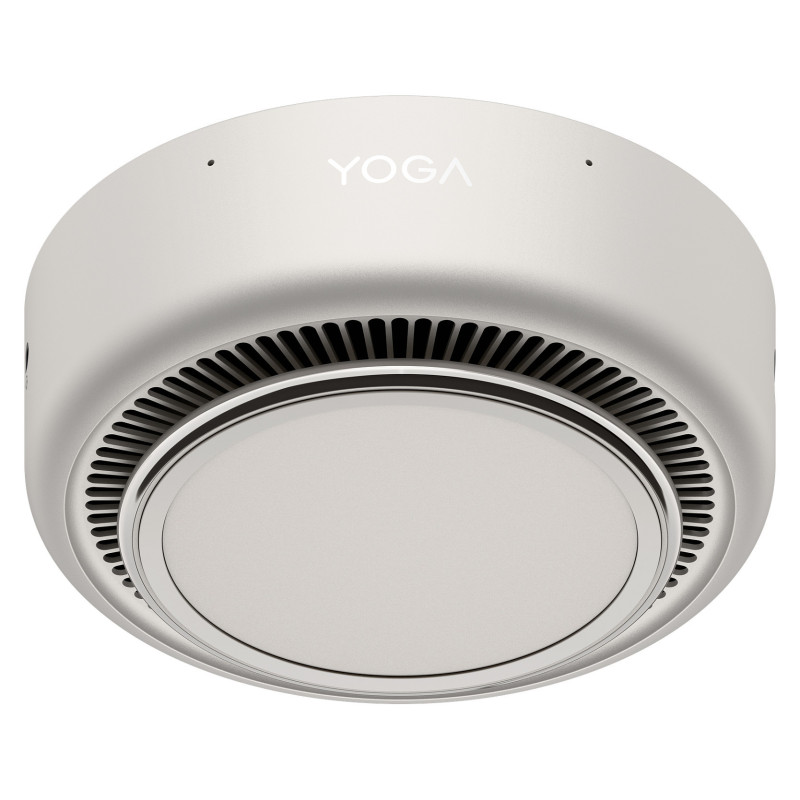

Lenovo Yoga Mini 01IPH11

Lenovo Yoga Mini 01IPH11. Processor family: Intel Core Ultra 5, Processor model: 325. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM, Memory clock speed: 8533 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Home. Power supply: 100 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 600 g. Product colour: Grey

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel® Core™ Ultra (Series 3)
Processor model: 325
Processor cores: 8
Processor threads: 8
Processor boost frequency: 4.5 GHz
Performance cores: 4
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.5 GHz
Low Power Efficient-core Max Turbo Frequency: 3.4 GHz
Performance-core base frequency: 2.1 GHz
Efficient-core base frequency: 1.6 GHz
Low Power Efficient-core Base Frequency: 1600 MHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 25 W
Maximum turbo power: 55 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to: 47 TOPs
GPU performance up to: 40 TOPs

Memory

Internal memory: 16 GB
Maximum internal memory: 16 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 8533 MHz

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel SoC
Feature: Trusted Platform Module (TPM)
Product type: Mini PC

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4

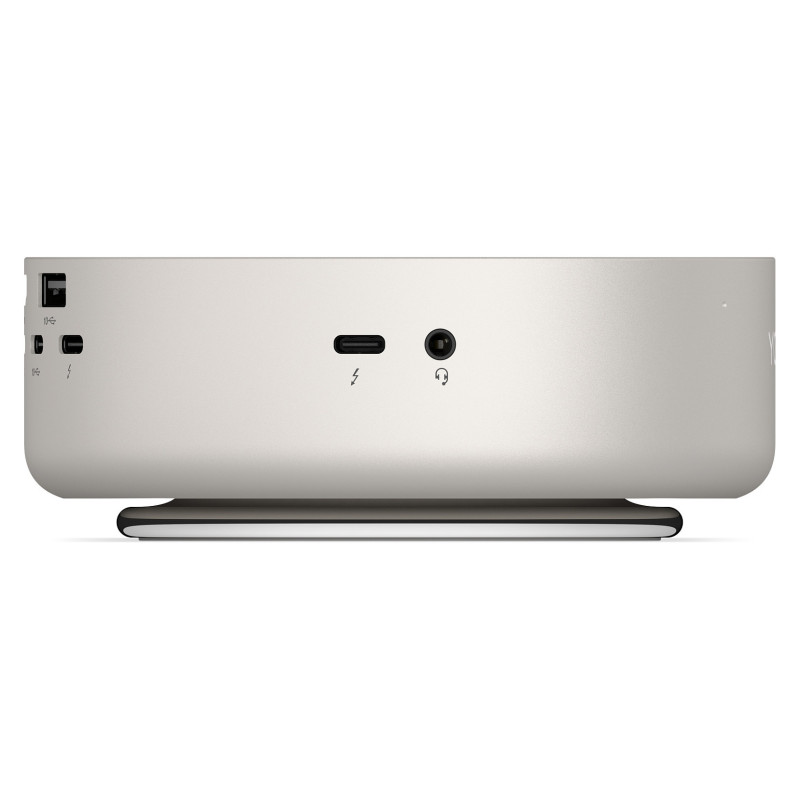

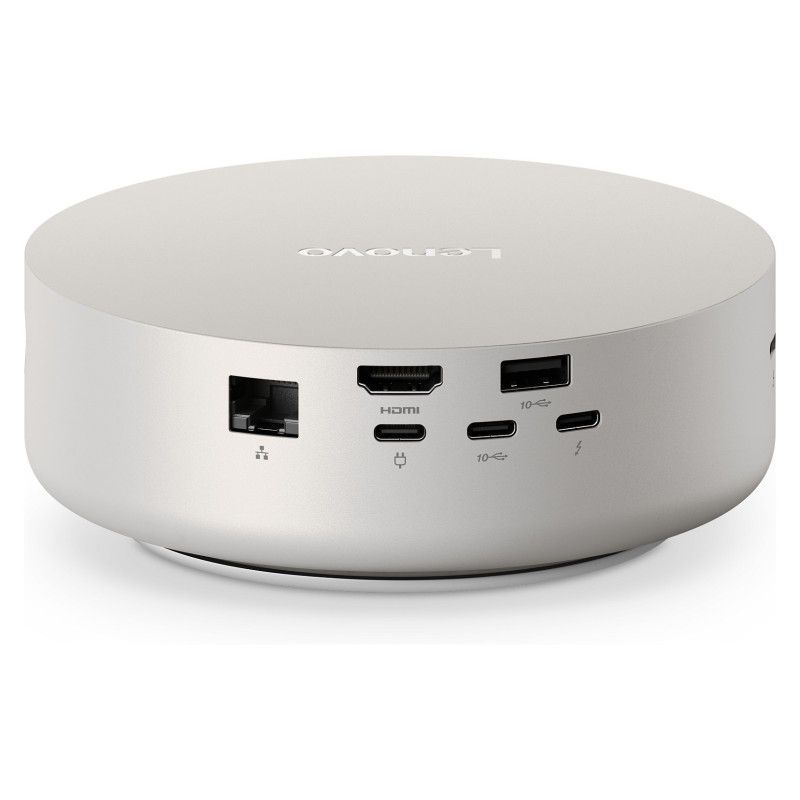

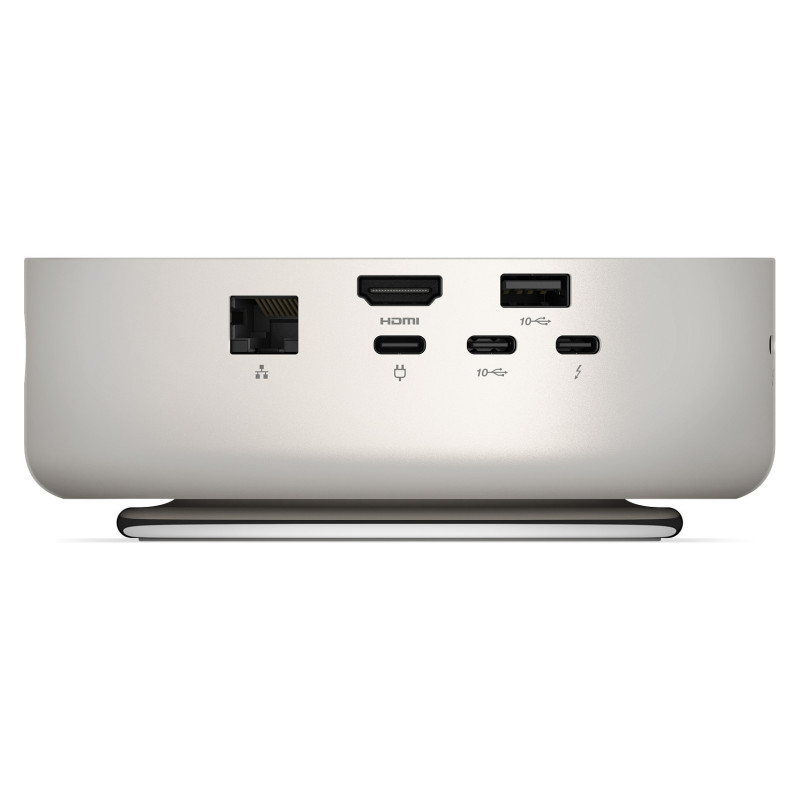

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port

Power

Power supply: 100 W

Design

Chassis type: Mini PC
Colour name: Seashell
Volume: 0.65 L
Product colour: Grey

Software

Operating system language: German
Operating system installed: Windows 11 Home

Audio

Audio chip: Realtek ALC3341S
Audio system: High Definition Audio
Number of speakers: 1

Weight & dimensions

Width: 130 mm
Depth: 130 mm
Height: 48.6 mm
Weight: 600 g

Certificates

Certification: RoHS
