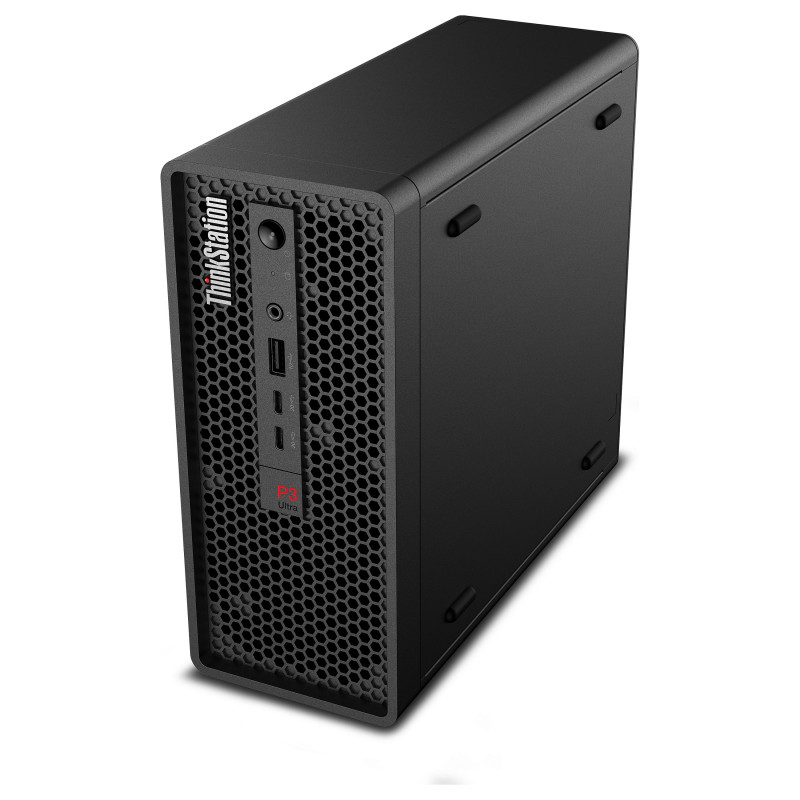

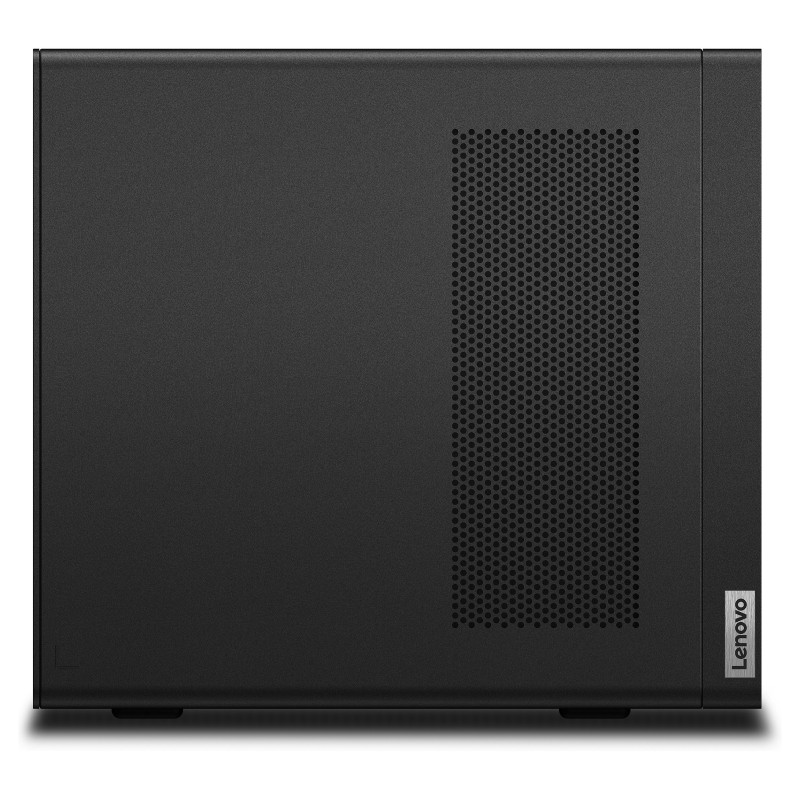

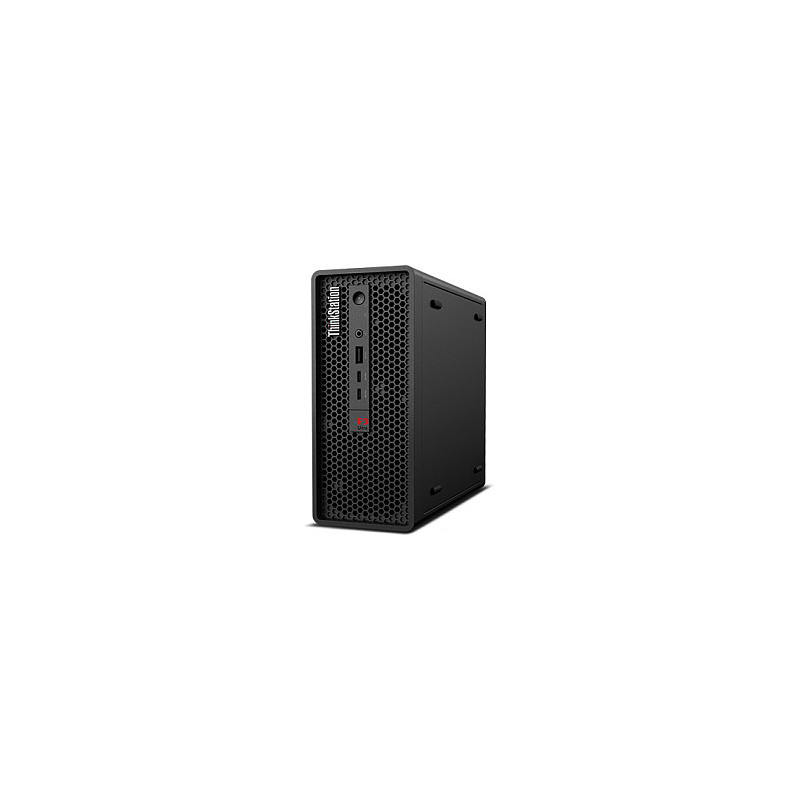

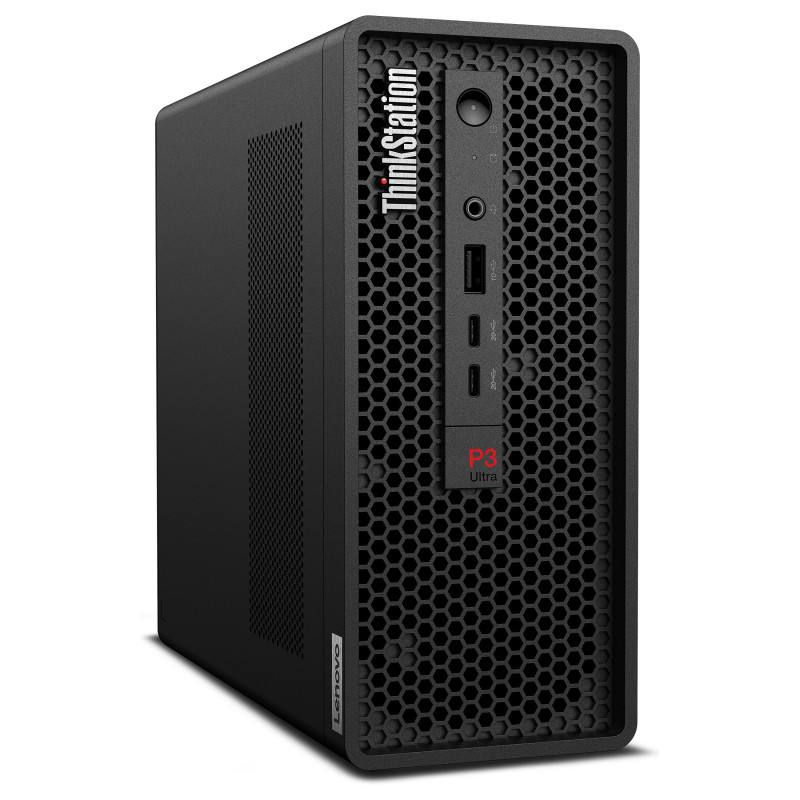

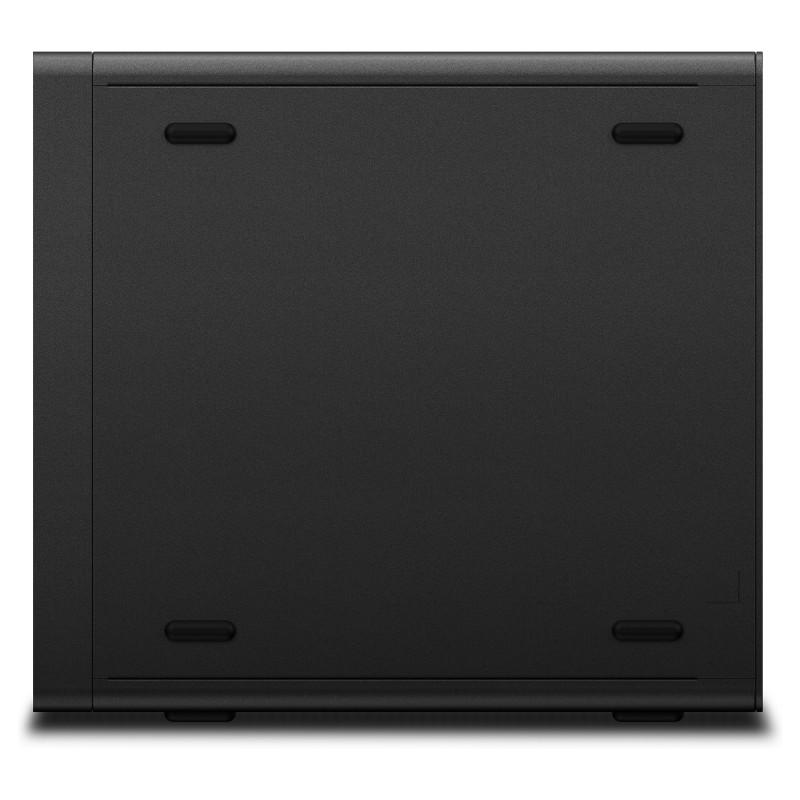

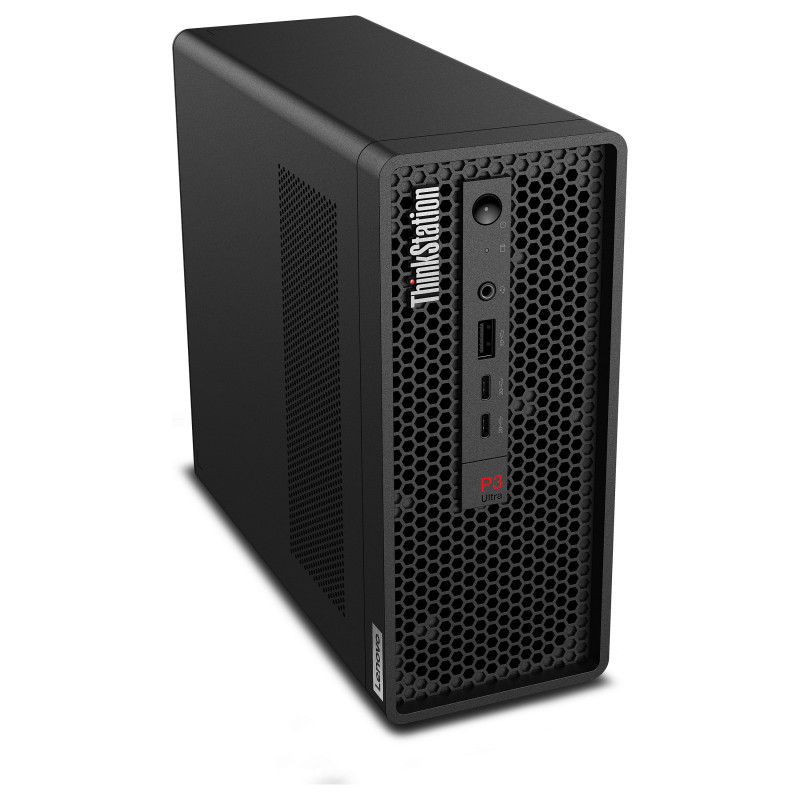

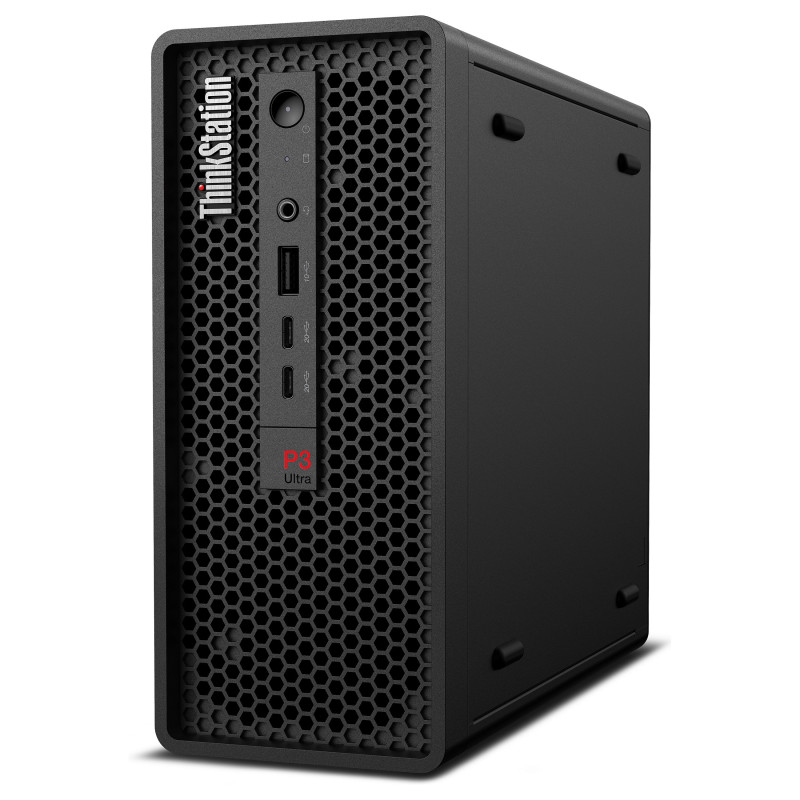

„Lenovo ThinkStation P3 Ultra SFF Gen 2“

Lenovo ThinkStation P3 Ultra SFF Gen 2. Processor family: Intel Core Ultra 5, Processor model: 225. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Power supply: 230 W. Chassis type: Mini Tower. Product type: Workstation. Weight: 3.6 kg. Product colour: Black

LENOVO THINKSTATION P3 ULTRA SFF GEN 2
Redefining the Power of Small
Experience extraordinary performance in an intelligently compact design. Powered by Intel® Core™ Ultra (Series 2) processors with Intel vPro®, with integrated NPU and NVIDIA RTX™ graphics, this workstation breaks new ground by delivering AI-optimized performance and ultimate flexibility in a chassis less than 4L in total volume.

POWERFUL COMBINED AI ACCELERATION
Experience AI-Enhanced Productivity, Creativity & Security
The ThinkStation P3 Ultra SFF Gen 2 workstation combines an integrated Intel® NPU with NVIDIA RTX™ 4000 SFF Ada Generation graphics for unparalleled AI inferencing — totalling up to 335 TOPS of AI horsepower with the CPU and GPU. Handle everything from deep learning models to real-time analytics without sacrificing space or energy efficiency.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications may vary depending upon region / model.

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225
Processor cores: 10
Processor threads: 10
Processor boost frequency: 4.9 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Performance-core base frequency: 3.3 GHz
Efficient-core base frequency: 2.7 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 65 W
Maximum turbo power: 121 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 23 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 4 TOPs

Memory

Internal memory: 32 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 32 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz
Feature: Non-ECC
Memory channels: Single-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Graphics card Mini DisplayPort ports quantity: 4

Performance

Motherboard chipset: Intel W880
Feature: Password protection
Password protection type: BIOS, Power on
Feature: Trusted Platform Module (TPM)
Product type: Workstation
Trusted Platform Module (TPM) version: 2.0
Feature: Built-in speaker(s)

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s

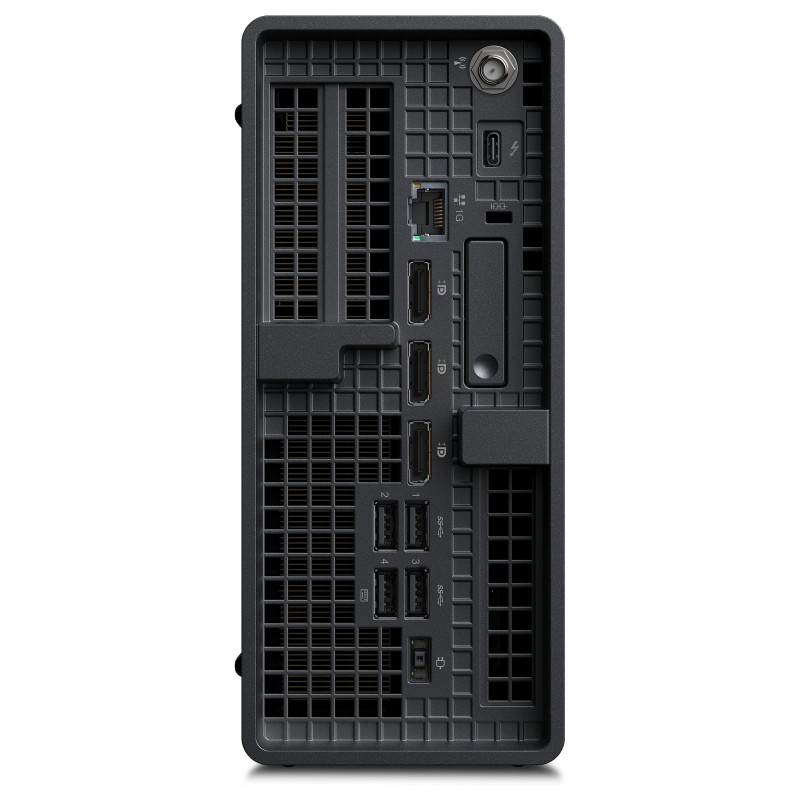

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2x2 Type-C ports quantity: 2
DisplayPorts quantity: 3
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port

Power

Power supply: 230 W
Power supply input voltage: 100 - 240 V

Design

Chassis type: Mini Tower
Volume: 3.9 L

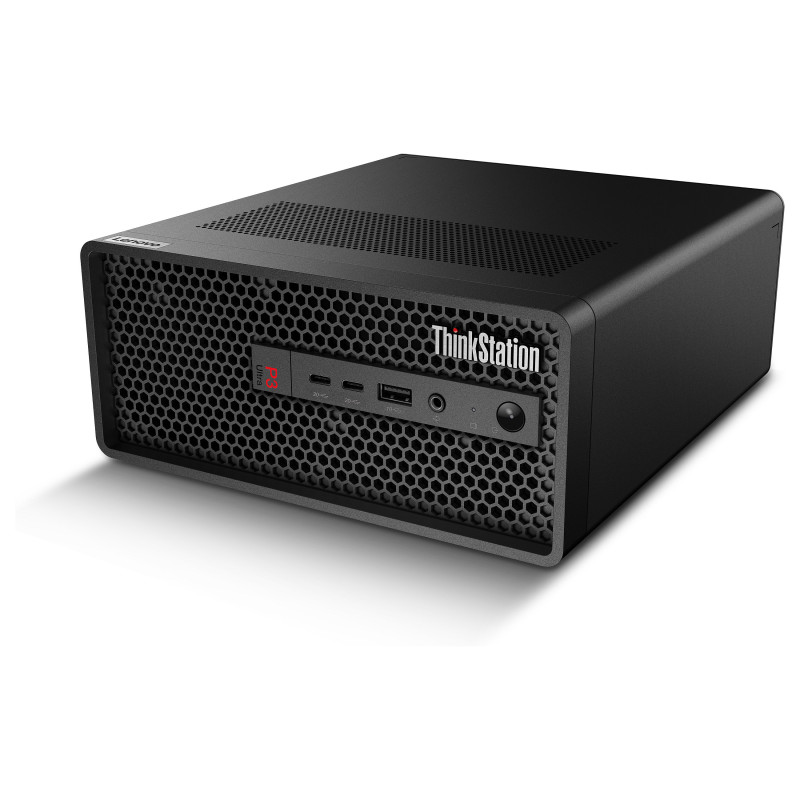

Placement supported: Horizontal/Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system language: German
Operating system installed: Windows 11 Pro

Audio

Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio
Number of speakers: 1

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Weight & dimensions

Width: 87 mm
Depth: 223 mm
Height: 202 mm
Weight: 3.6 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included

Certificates

Compliance certificates: RoHS
Certification: TCO Certified, generation 10MIL-STD-810H

Keyboard

Keyboard connectivity: Wired
