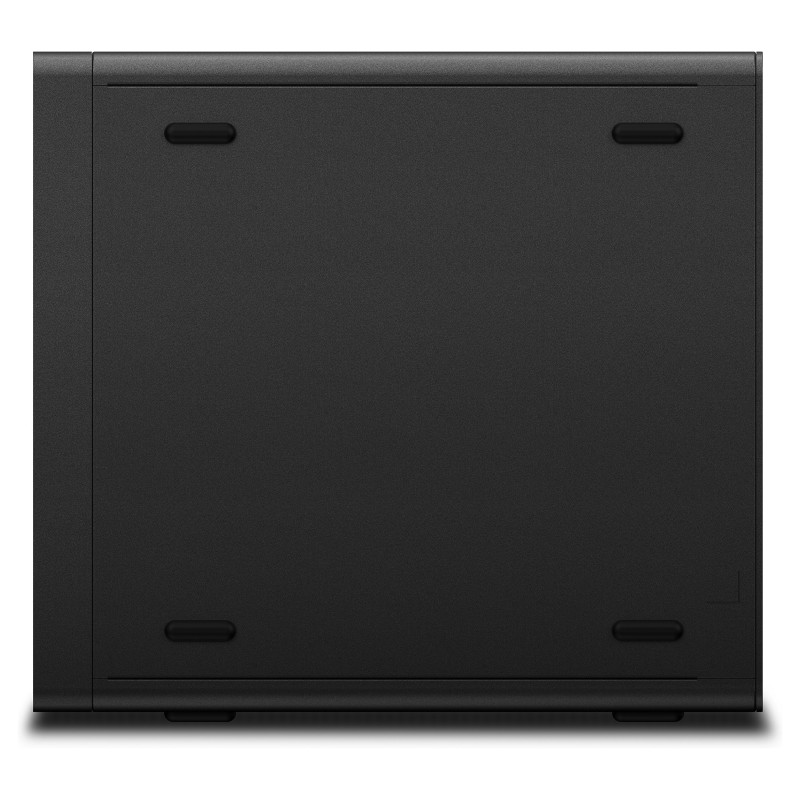

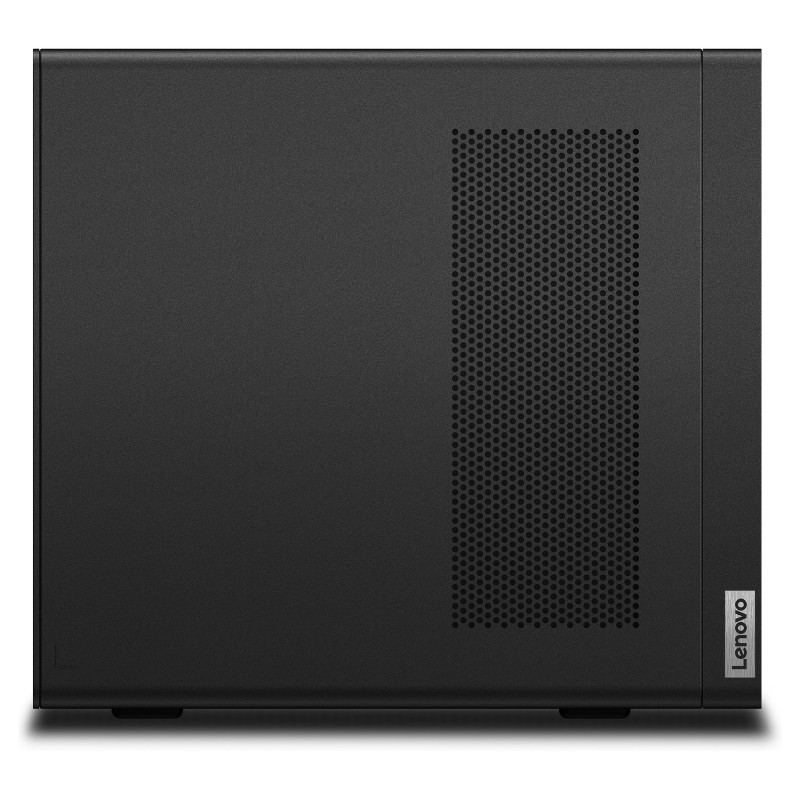

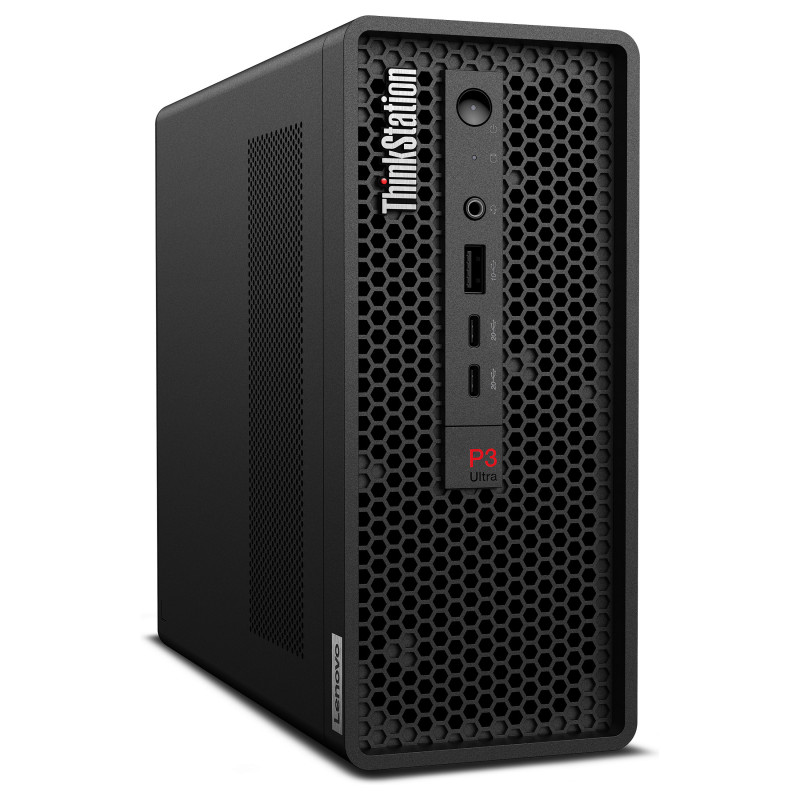

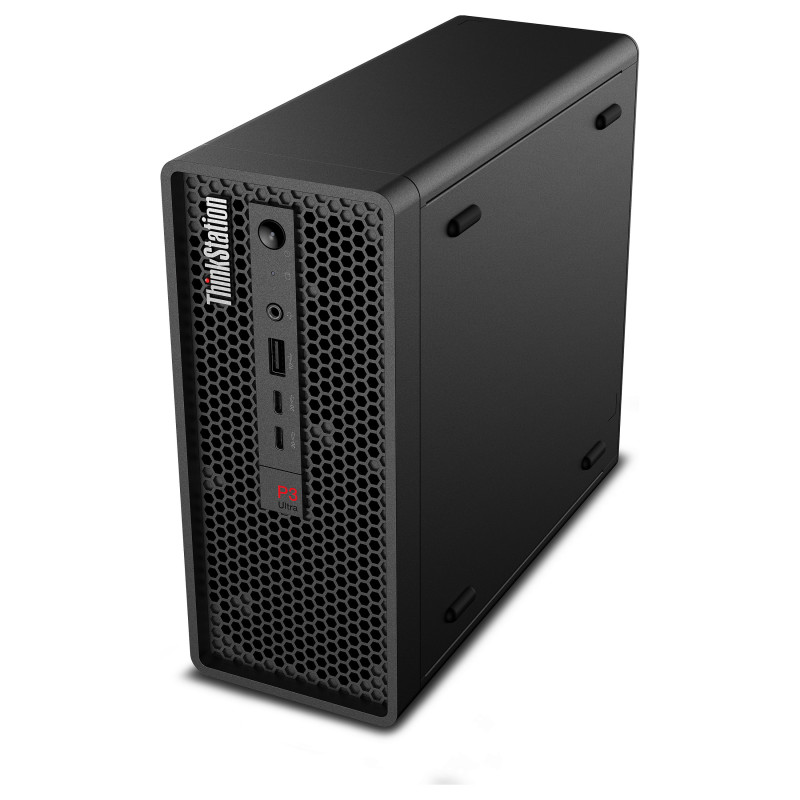

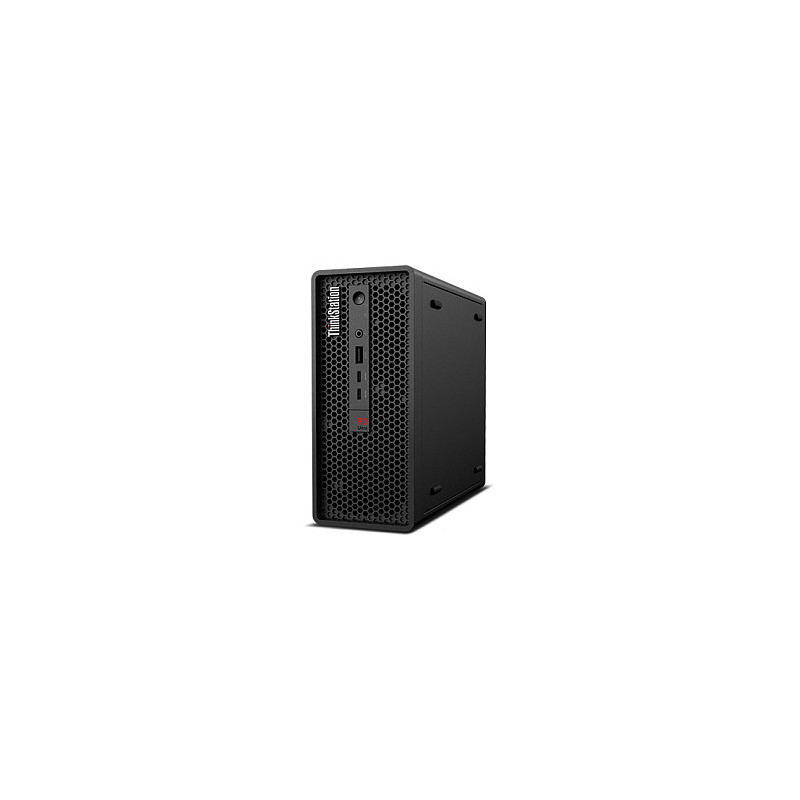

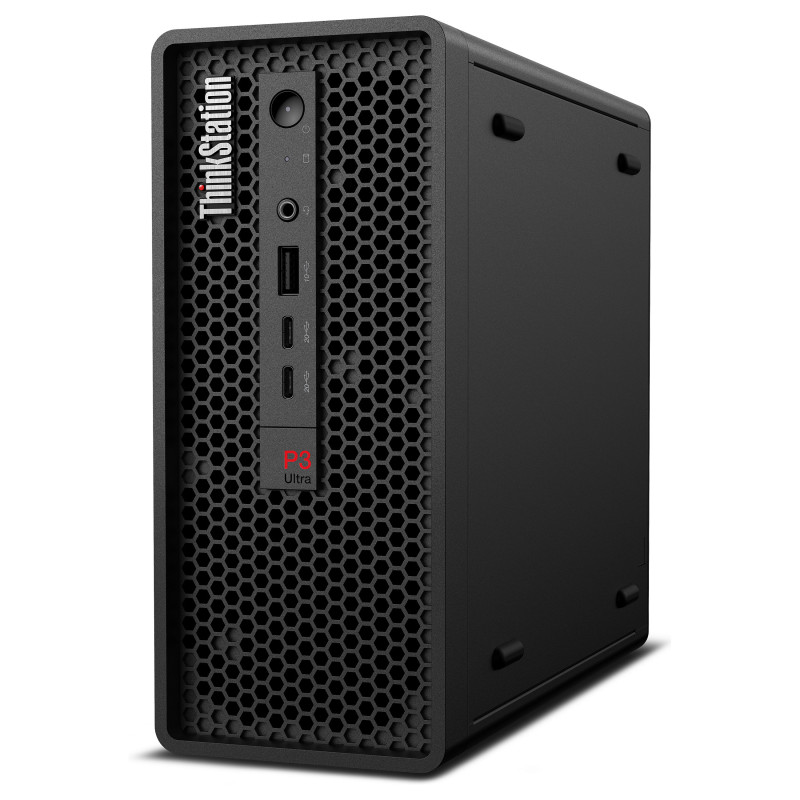

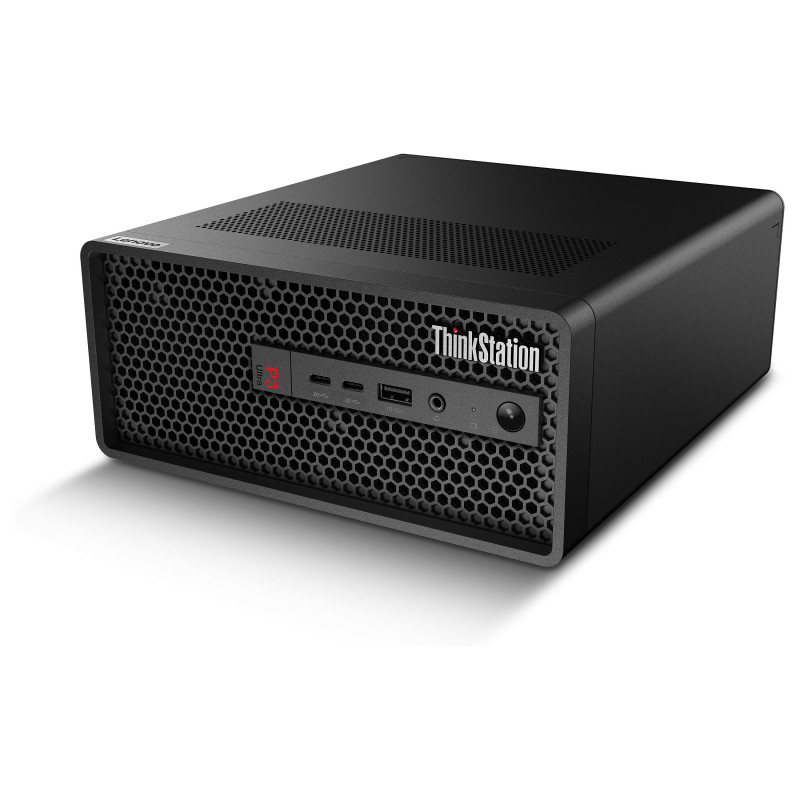

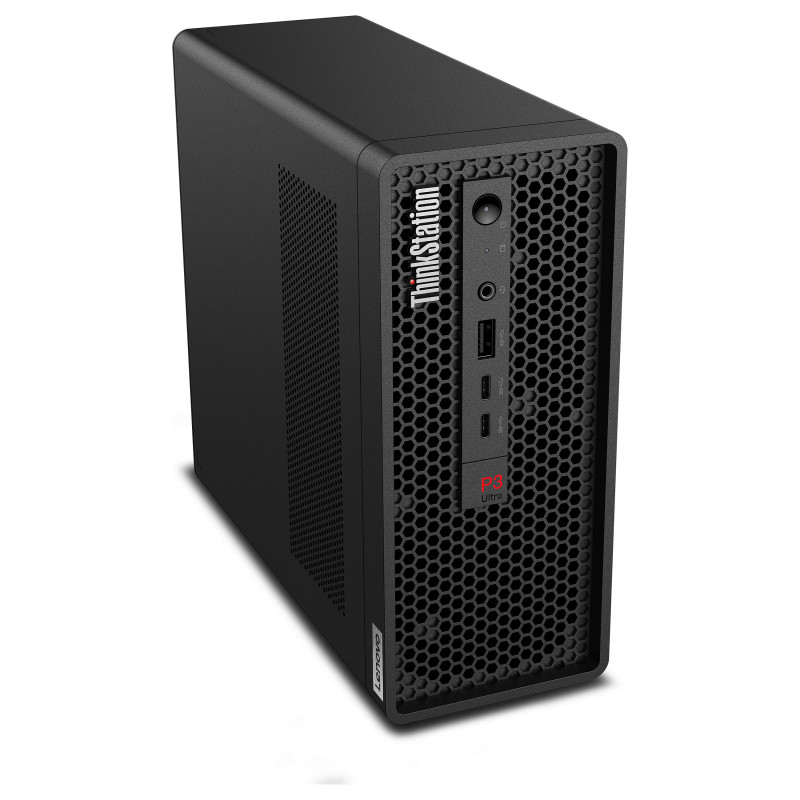

„Lenovo ThinkStation P3 Ultra SFF Gen 2“

Lenovo ThinkStation P3 Ultra SFF Gen 2. Processor family: Intel Core Ultra 5, Processor model: 245K. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA RTX A400. Operating system installed: Windows 11 Pro. Power supply: 330 W. Chassis type: SFF. Product type: Workstation. Weight: 3.6 kg. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 245K
Processor cores: 14
Processor threads: 14
Processor boost frequency: 5.2 GHz
Performance cores: 6
Efficient cores: 8
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 4.2 GHz
Efficient-core base frequency: 3.6 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor base power: 125 W
Maximum turbo power: 159 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 30 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs

Memory

Internal memory: 32 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 32 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: Discrete graphics card
Discrete GPU manufacturer: NVIDIA
Feature: On-board graphics card
Discrete graphics card model: NVIDIA RTX A400
Discrete graphics card memory: 4 GB
Number of discrete graphics cards: 1
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel W880
Feature: Trusted Platform Module (TPM)
Product type: Workstation

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s

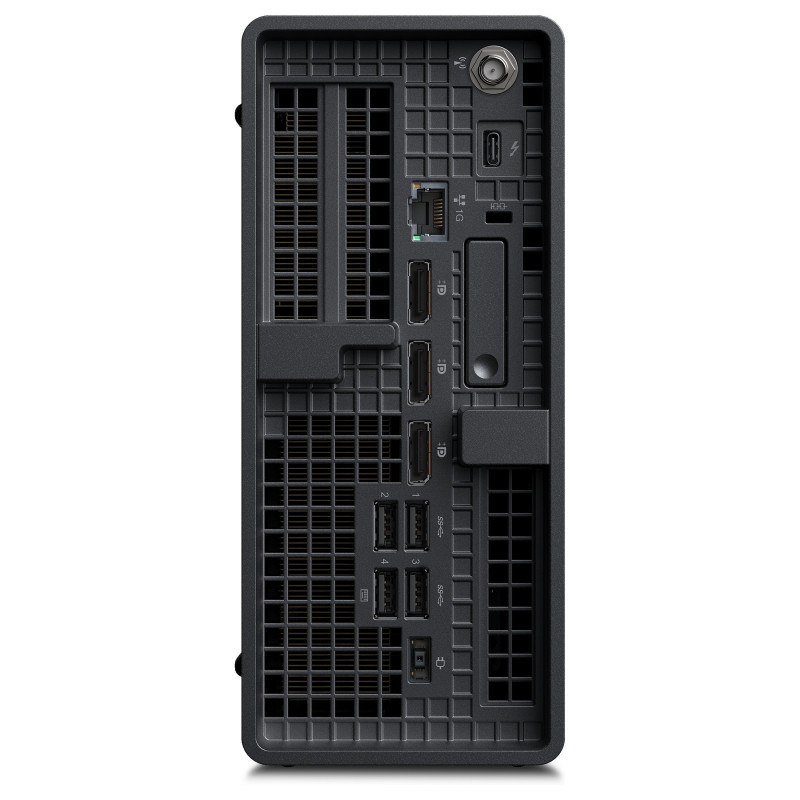

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2x2 Type-C ports quantity: 2
DisplayPorts quantity: 3
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port

Power

Power supply: 330 W

Design

Chassis type: SFF
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system language: German
Operating system installed: Windows 11 Pro

Audio

Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio

Weight & dimensions

Width: 87 mm
Depth: 223 mm
Height: 202 mm
Weight: 3.6 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included

Keyboard

Keyboard connectivity: Wired
