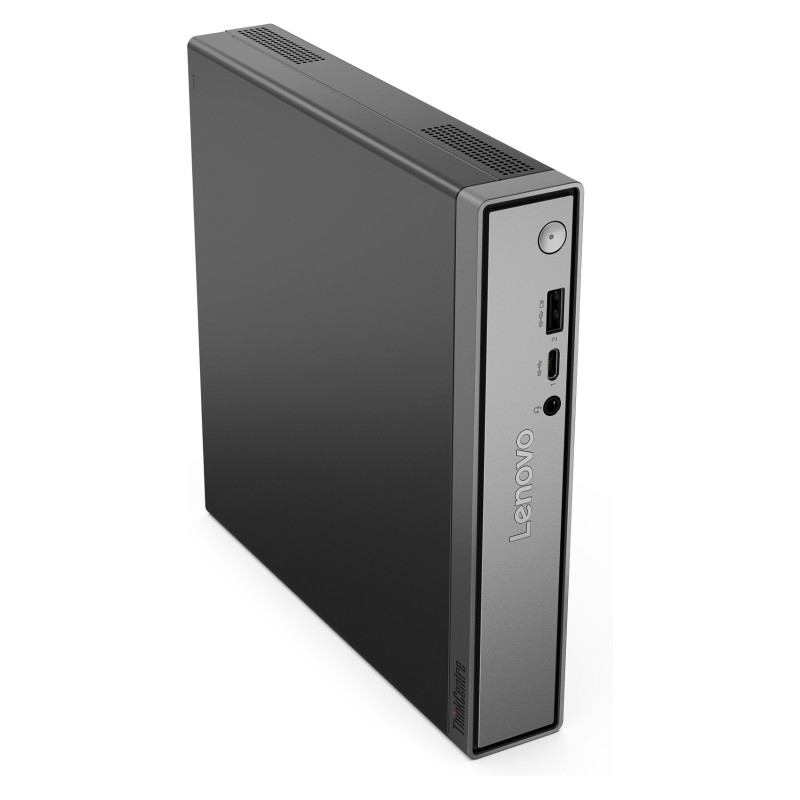

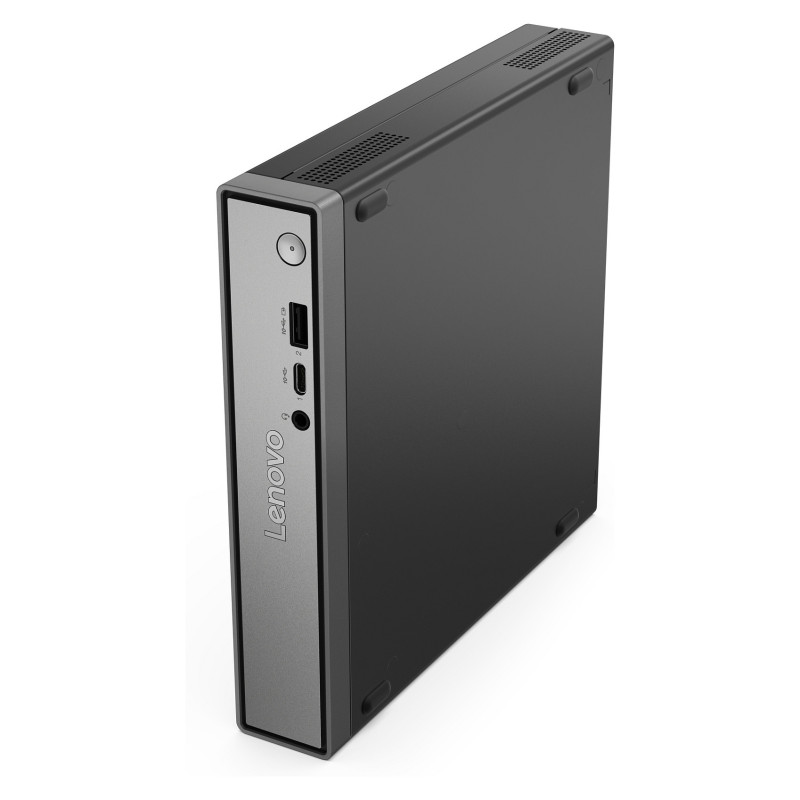

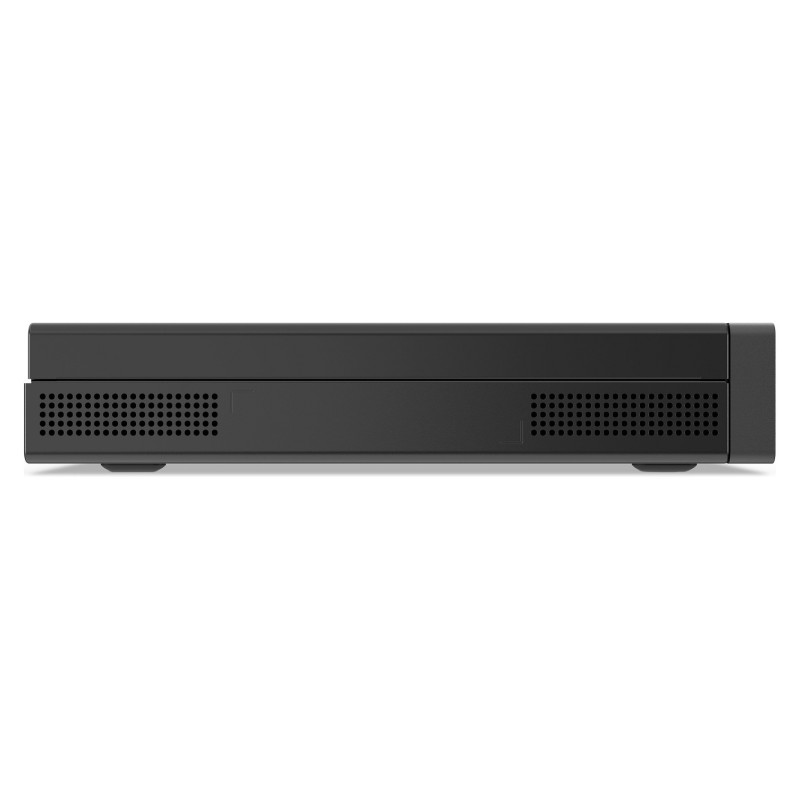

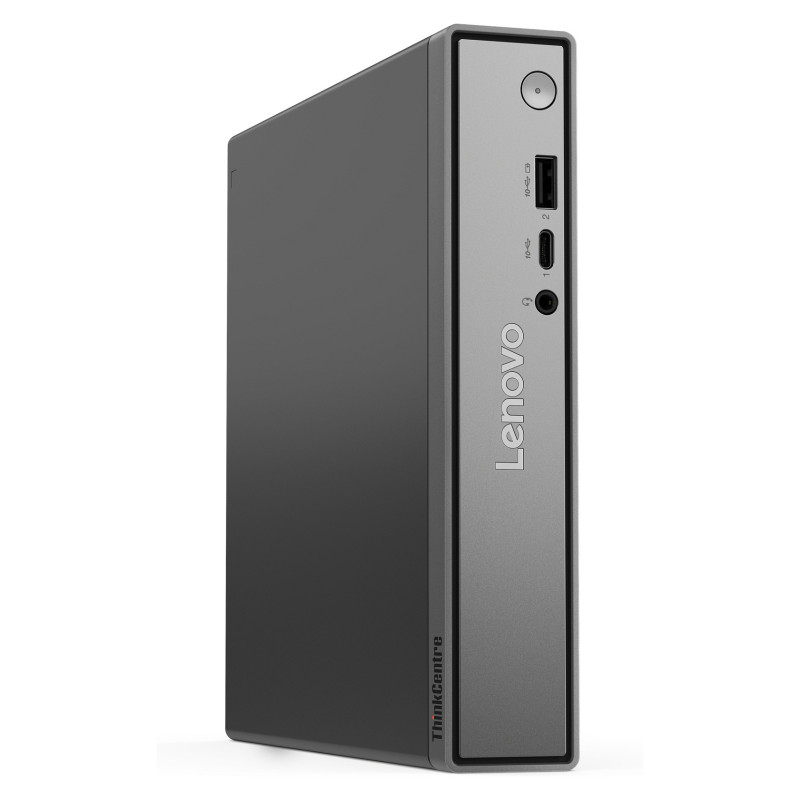

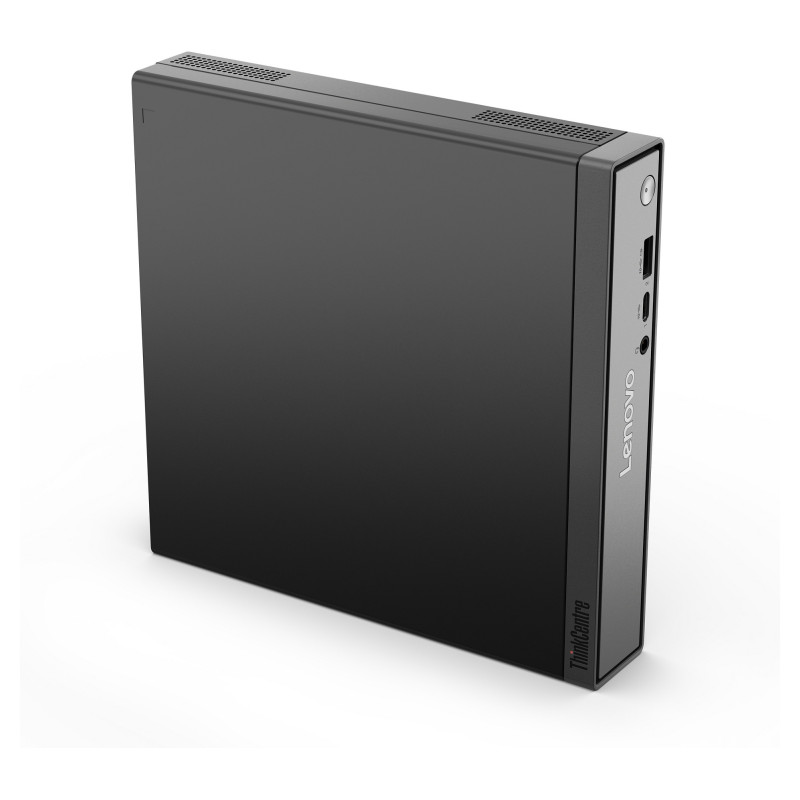

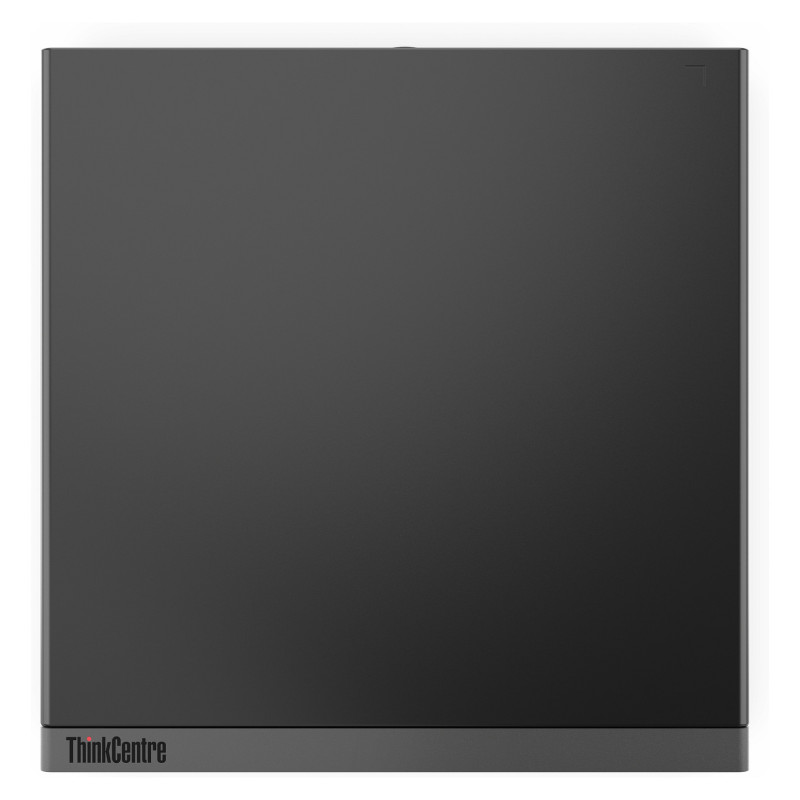

Lenovo ThinkCentre neo 50q Gen 5

Lenovo ThinkCentre neo 50q Gen 5. Processor family: Intel Core 7, Processor model: 240H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro. Power supply: 135 W. Chassis type: Mini PC. Product type: PC. Weight: 1.13 kg. Product colour: Black

TINY PC, MAXIMUM PRODUCTIVITY
Robust Memory, Ample Storage With Intel® Power

Fueled by Intel® Core™ processor, the ThinkCentre Neo 50q Gen 5 Tiny PC manages business reliably. With workload optimization, it delivers peak performance. Moreover, it enhances your creative output and productivity with vast memory and storage — run resource-heavy software while switching between tasks with zero lag.

SAFEGUARD YOUR PC, EMPOWER YOUR BUSINESS
Secured Inside Out

ThinkShield security offers hardware and software solutions with Discrete Trusted Platform Module (dTPM) 2.0 for encryption and RAID 0/1 for quicker recovery and backup. Experience an end-to-end customized security solution and remote manageability for data with ThinkCentre Customization while configuring your device via the Lenovo Device Manager.

CREDIBILITY & COLLABORATION
Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry-leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Processor

Processor manufacturer: Intel
Processor family: Intel Core 7
Processor generation: Intel Core (Series 2)
Processor model: 240H
Processor cores: 10
Processor threads: 16
Processor boost frequency: 5.2 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4 GHz
Performance-core base frequency: 2.5 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 45 W
Maximum turbo power: 115 W

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz
Memory channels: Dual-channel

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel SoC
Feature: Password protection
Password protection type: BIOS, HDD, Supervisor
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Feature: Built-in speaker(s)

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller manufacturer: Realtek
WLAN controller model: Realtek RTL8922AE
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4

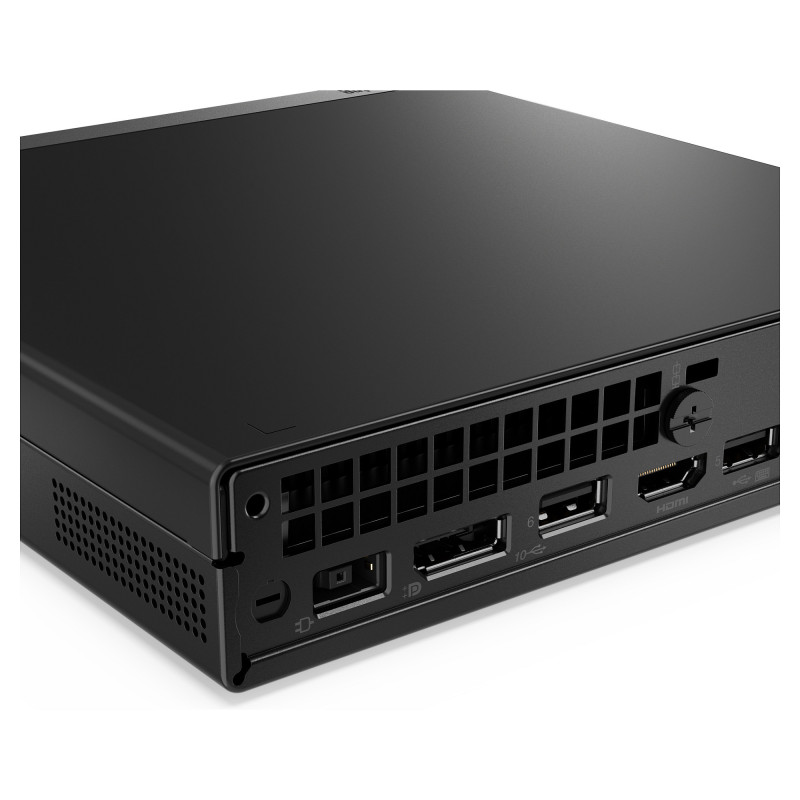

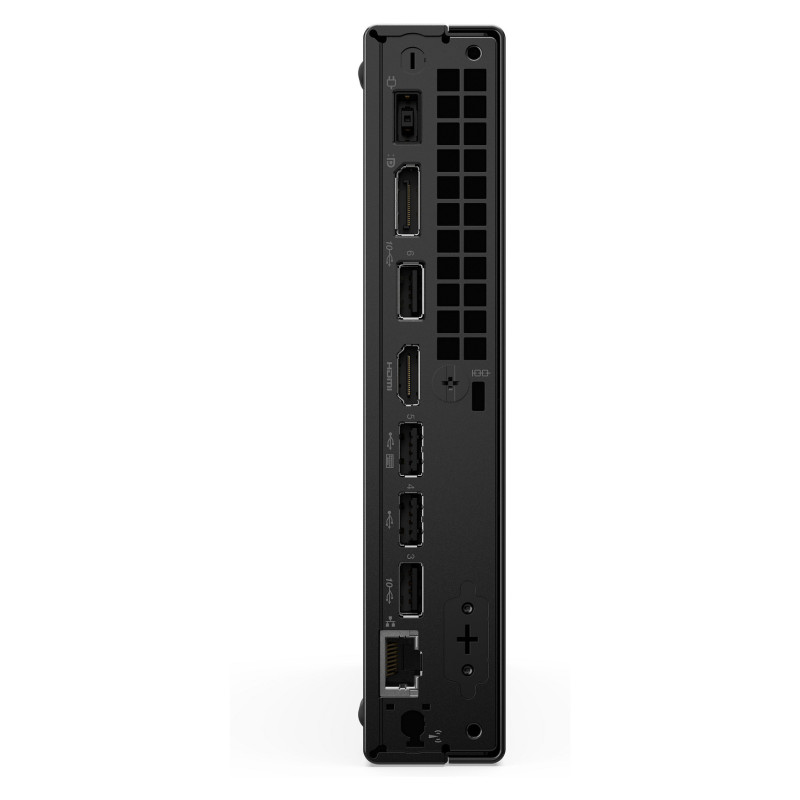

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4b
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port

Power

Power supply: 135 W

Design

Chassis type: Mini PC
Colour name: Black
Volume: 1 L
Placement supported: Horizontal/Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system language: English, Polish
Operating system installed: Windows 11 Pro

Audio

Audio chip: Realtek ALC256
Audio system: High Definition Audio
Number of speakers: 1

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Weight & dimensions

Width: 179 mm
Depth: 182.9 mm
Height: 34.5 mm
Weight: 1.13 kg

Packaging data

Package width: 240 mm
Package depth: 250 mm
Package height: 186 mm
Package weight: 2.03 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included

Certificates

Compliance certificates: RoHS
Certification: ENERGY STAR 9.0RoHS compliantTCO Certified 10.0

Sustainability

Sustainability certificates: ENERGY STAR, TCO

Keyboard

Keyboard connectivity: Wired
