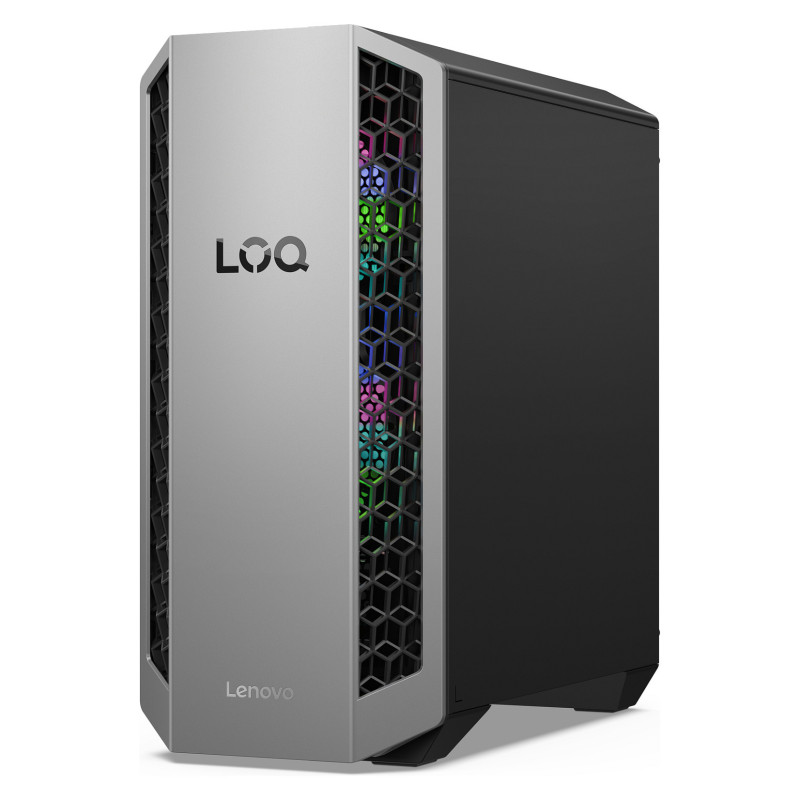

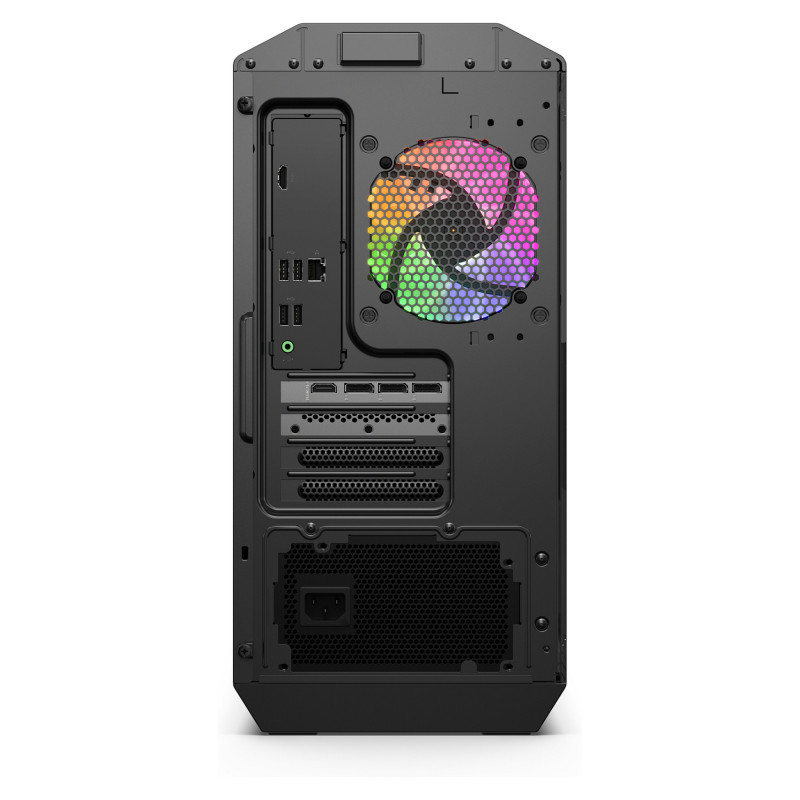

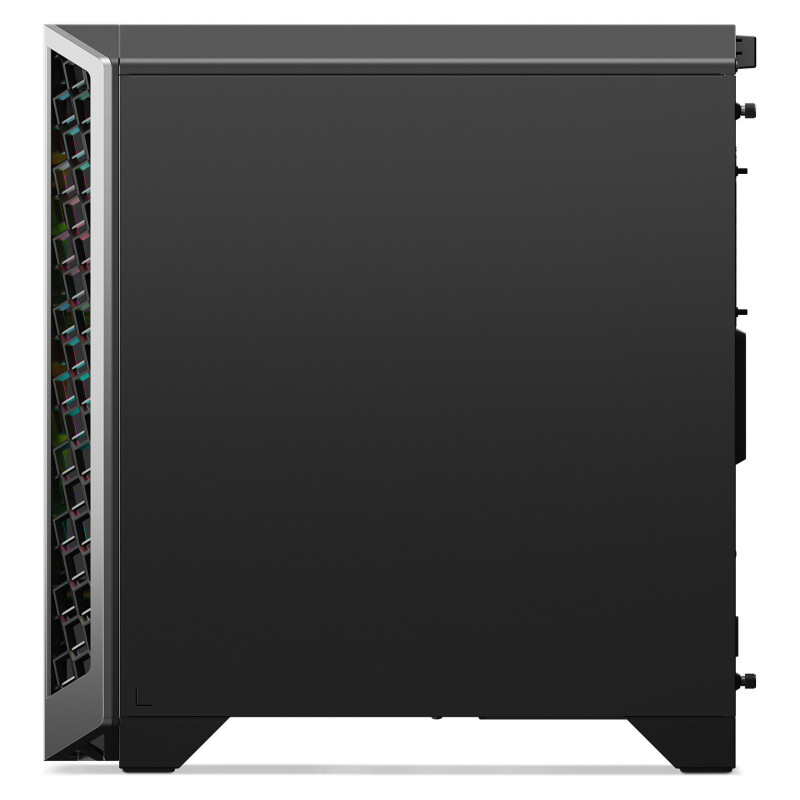

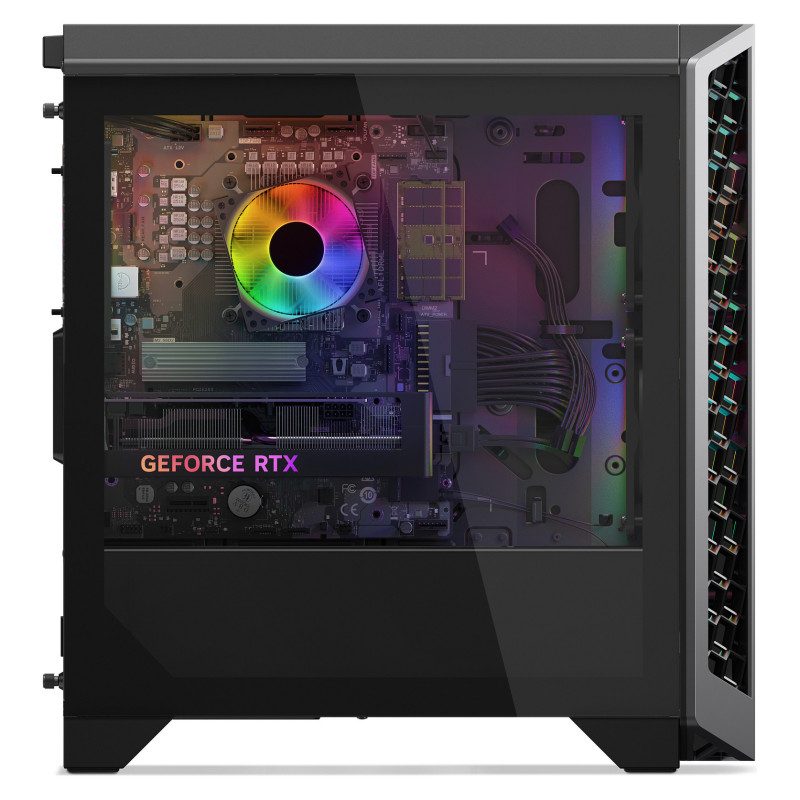

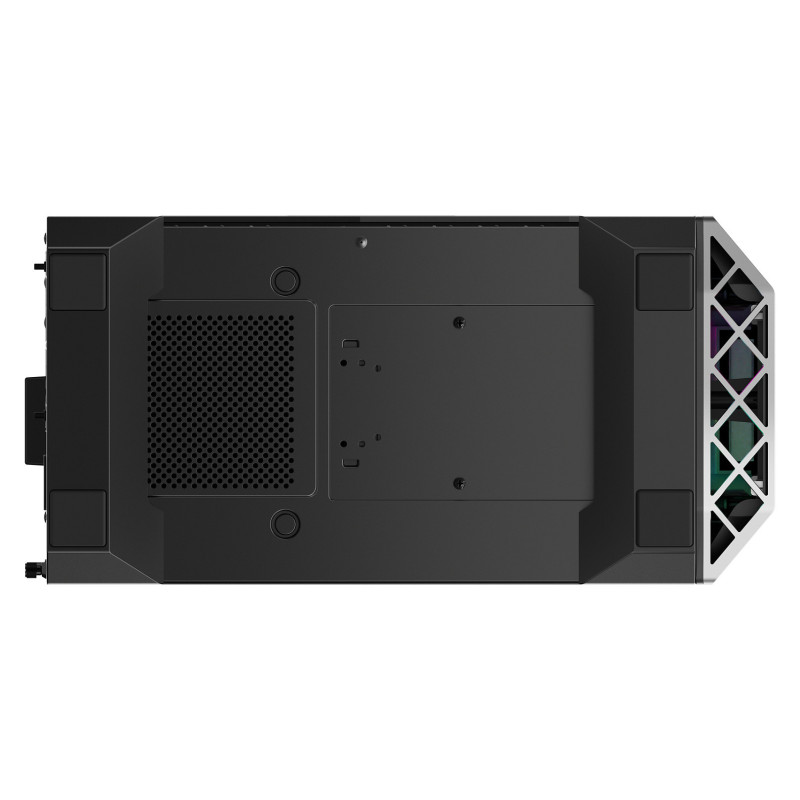

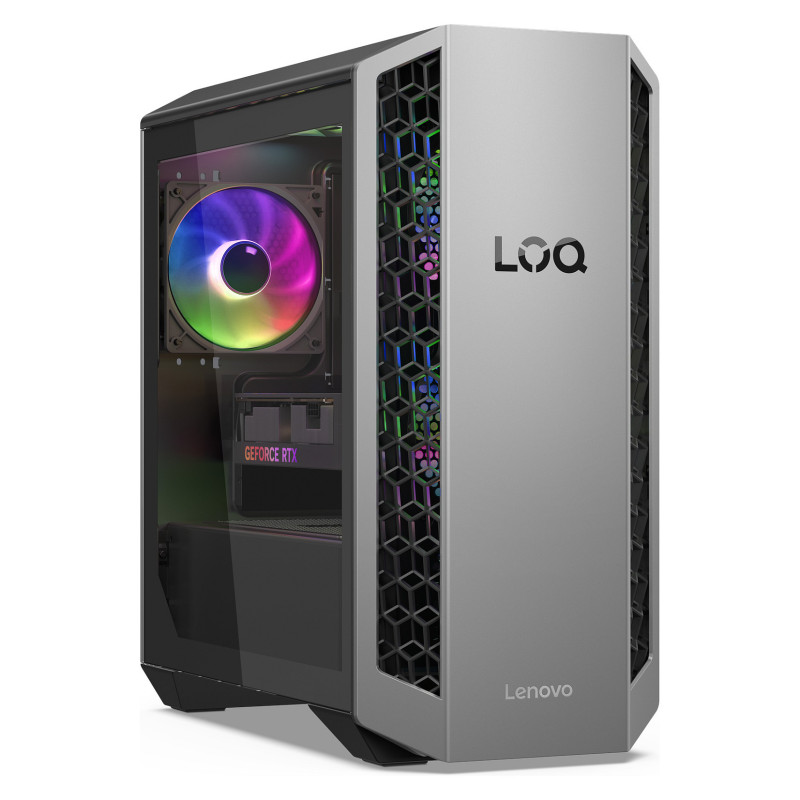

Lenovo LOQ Tower 26ADR10

Lenovo LOQ Tower 26ADR10. Processor frequency: 3.6 GHz, Processor family: AMD Ryzen™ 7, Processor model: 8745HX. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5200 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 610M, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Power supply: 500 W. Chassis type: Tower. Product type: PC

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor model: 8745HX
Processor cores: 8
Processor threads: 16
Processor boost frequency: 5.1 GHz
Processor frequency: 3.6 GHz

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 8 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5200 MHz

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: Discrete graphics card
Discrete GPU manufacturer: NVIDIA
Feature: On-board graphics card
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 610M

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4

Ports & interfaces

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Feature: Combo headphone/mic port

Design

Chassis type: Tower
Colour name: Luna Grey (Front Bezel), Eclipse Black (Chassis)
Volume: 26 L
Product colour: Black

Performance

Motherboard chipset: AMD SoC
Feature: Trusted Platform Module (TPM)
Product type: PC

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Home

Power

Power supply: 500 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Certificates

Certification: ENERGY STAR,RoHS

Weight & dimensions

Width: 205 mm
Depth: 404.5 mm
Height: 437.1 mm
Weight: 10.5 kg

Audio

Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio
