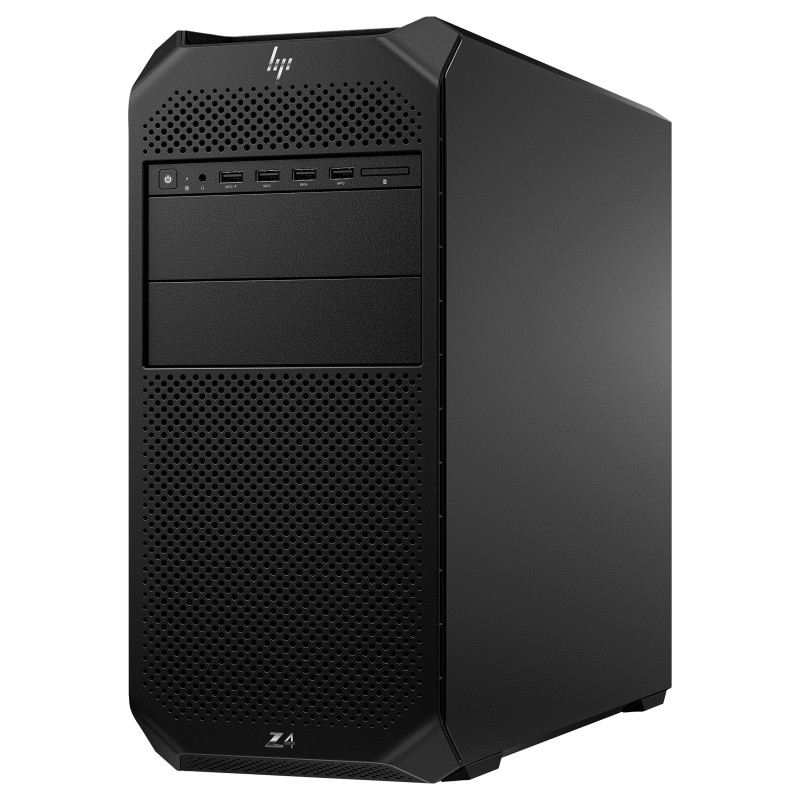

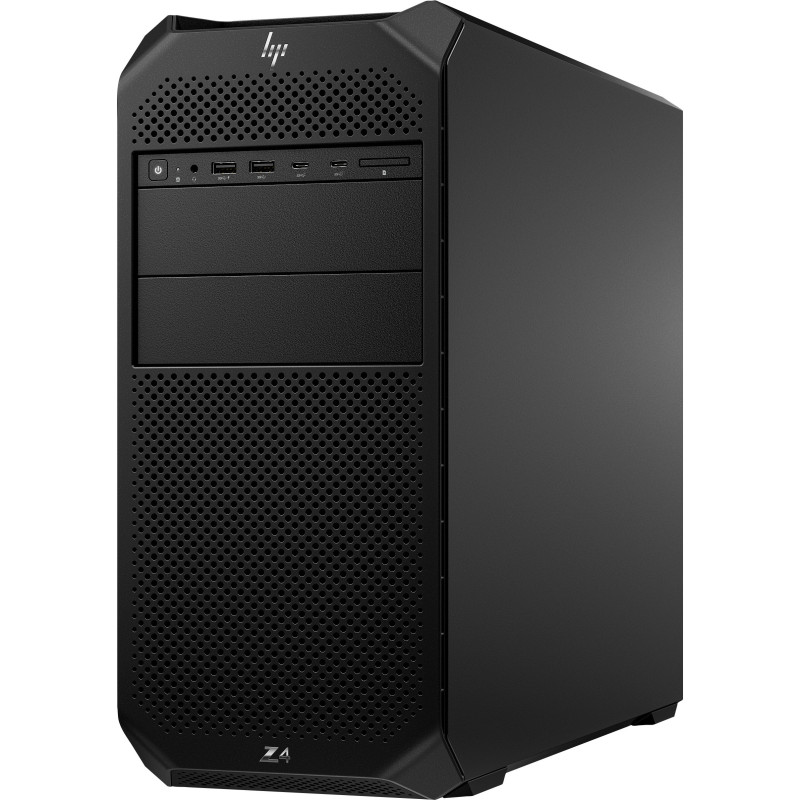

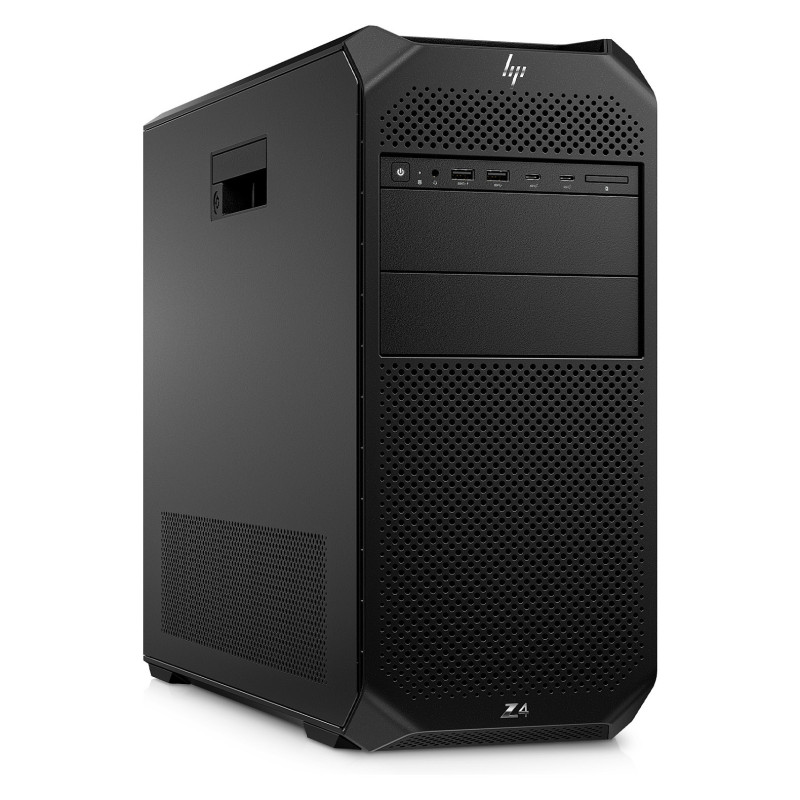

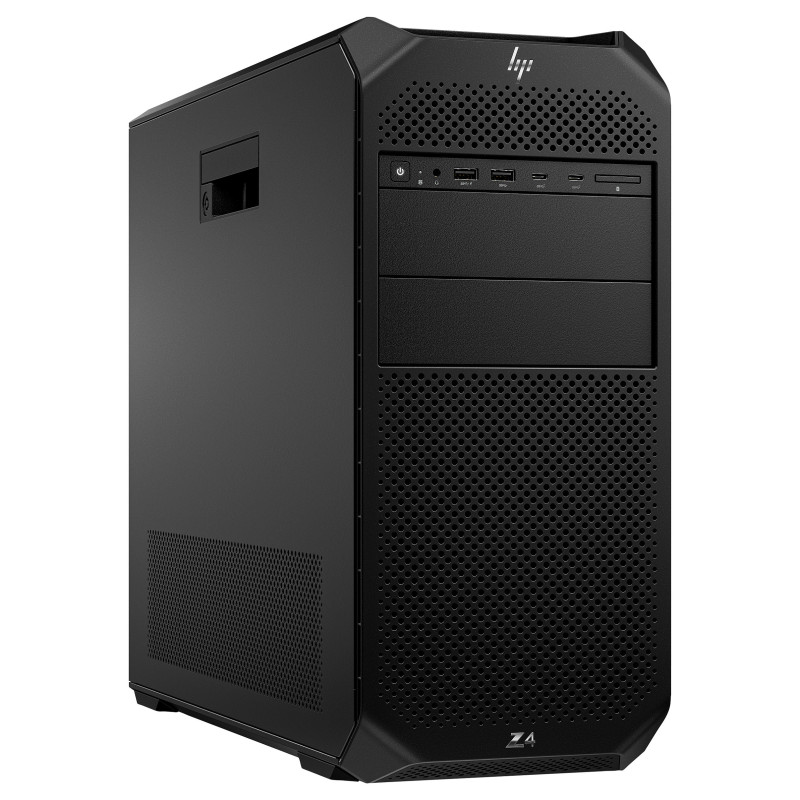

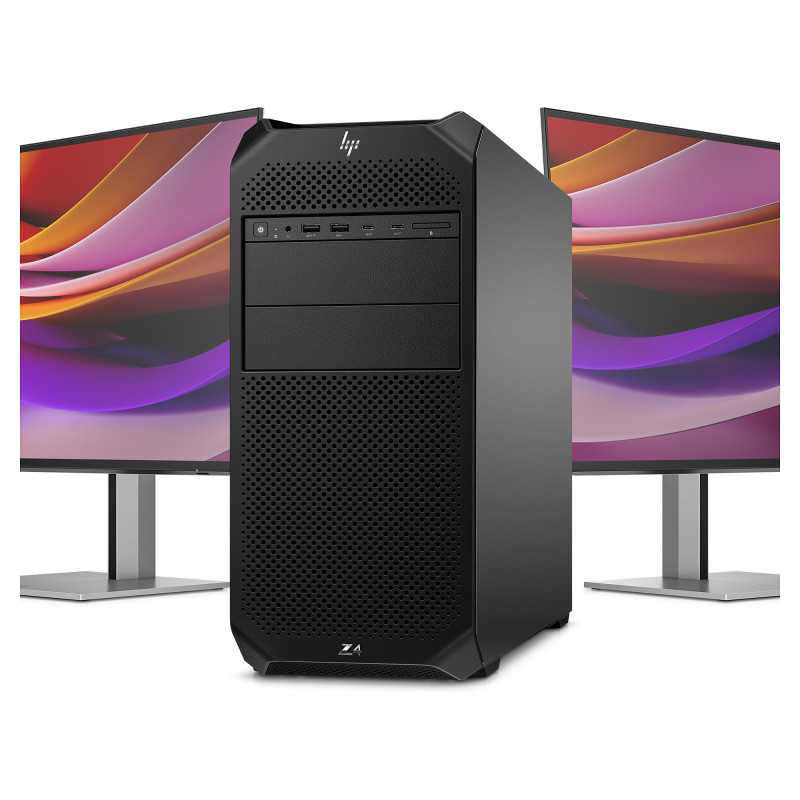

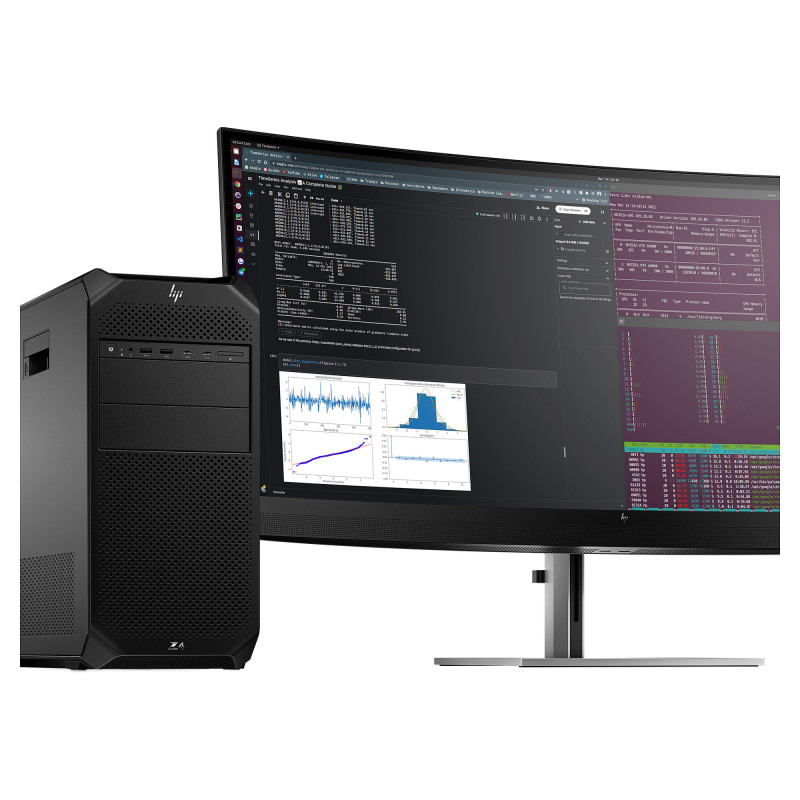

HP Z4 G5

HP Z4 G5. Processor frequency: 3.5 GHz, Processor family: Intel Xeon w3, Processor model: W3-2535. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 1 TB, Storage media: SSD, Optical drive type: DVD±RW. Discrete graphics card model: NVIDIA RTX 4000 Ada. Operating system installed: Windows 11 Pro. Power supply: 1125 W. Chassis type: Tower. Product type: Workstation. Product colour: Black

Power-up to next level pro performance
This high performance desktop workstation does it all. Tackle advanced workflows—from rendering and simulation to advanced video editing and massive dataset preparation. The Z4 AI workstation accelerates workflows across a wide range of professional apps and provides room to expand as work evolves.

Processor

Processor manufacturer: Intel
Processor family: Intel Xeon w3
Processor model: W3-2535
Processor cores: 10
Processor threads: 20
Processor boost frequency: 4.4 GHz
Processor frequency: 3.5 GHz
Performance cores: 10
Processor cache: 22.5 MB
Processor cache type: L3
Processor base power: 185 W
Maximum turbo power: 222 W

Memory

Internal memory: 64 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 32 GB
Memory slots: 8x DIMM
Memory clock speed: 4800 MHz
Memory module type: DIMM
Feature: ECC
Feature: Non-ECC

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: DVD±RW
Number of storage drives installed: 1
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD memory type: TLC
SSD interface: PCI Express 4.0
SSD form factor: M.2

Graphics

Feature: Discrete graphics card
Discrete GPU manufacturer: NVIDIA
Feature: On-board graphics card
Discrete graphics card model: NVIDIA RTX 4000 Ada
Discrete graphics card memory: 20 GB
Discrete graphics memory type: GDDR6
Number of discrete graphics cards: 1
On-board graphics card model: Not available

Performance

Market positioning: Performance
Motherboard chipset: Intel W790
Feature: Password protection
Password protection type: BIOS, Power on
Feature: Trusted Platform Module (TPM)
Product type: Workstation
Trusted Platform Module (TPM) version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)

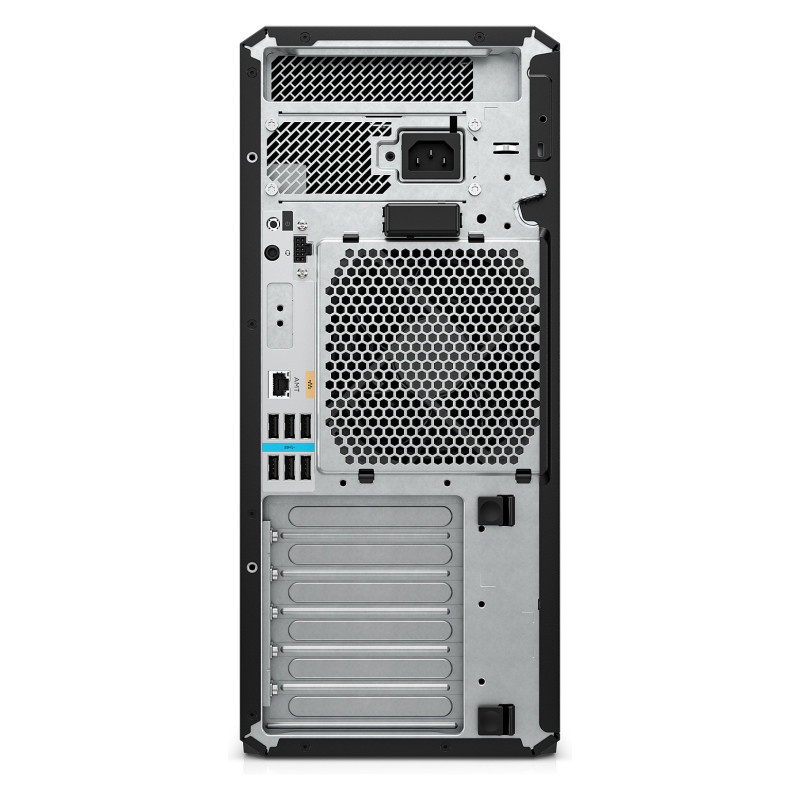

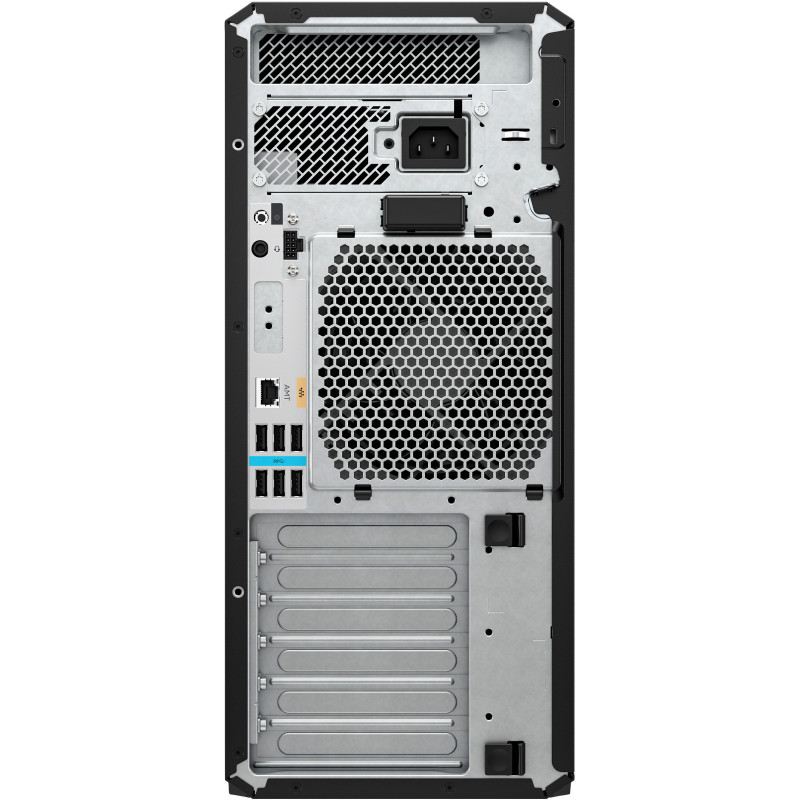

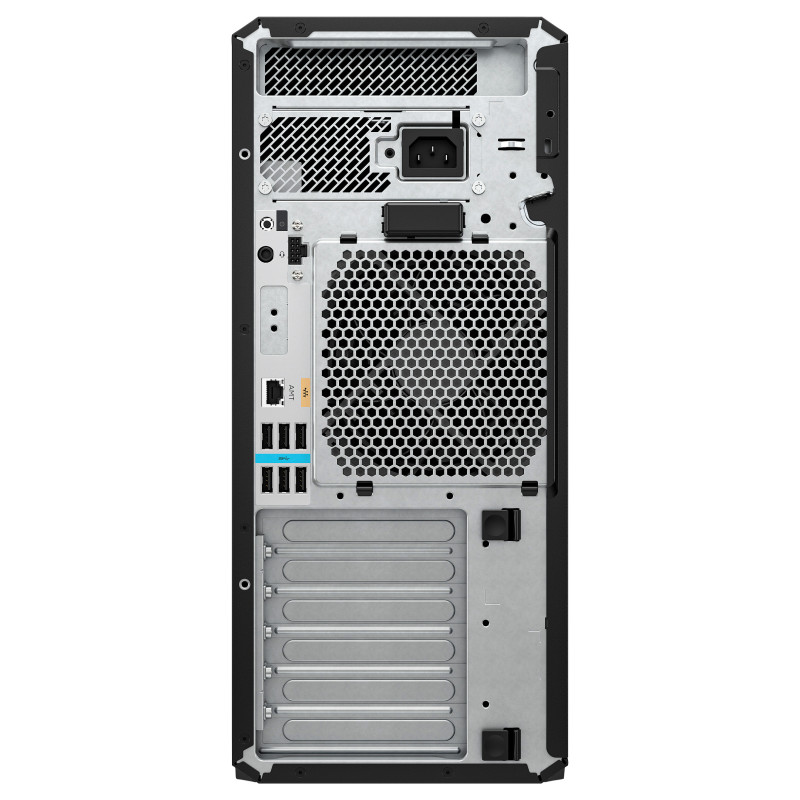

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 2x2 Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB4 Gen 3x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Line-out
Feature: Line-in
Feature: Microphone in

Expansion slots

Number of 3.5" bays: 4
PCI Express x4 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1

Power

Power supply: 1125 W

Design

Chassis type: Tower
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Introduction year: 2024
Country of origin: Czech Republic

Software

Operating system installed: Windows 11 Pro

Processor special features

Intel® Turbo Boost Technology: Yes

Brand-specific features

Feature: HP Support Assistant
HP Management tools: HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support
HP Artificial Intelligence: AI Workstation
HP GTIN (EAN/UPC) with options: (A2N) 198828789006; (ABB) 198828549099; (ABD) 198828549082; (ABU) 821844085974; (ABV) 198828549105; (UUQ) 821844085943
HP GTIN (EAN/UPC): 821844085974
HP segment: Business

Audio

Audio chip: Realtek ALC3205-CG

Weight & dimensions

Width: 168.9 mm
Depth: 444.5 mm
Height: 168.9 mm
Weight: 10.5 kg

Packaging data

Package width: 314 mm
Package depth: 572 mm
Package height: 563 mm
Package weight: 14.3 kg

Packaging content

Feature: Mouse included
Feature: Keyboard included
Input device model: HP Wired 320M Mouse

Certificates

Feature: Low halogen

Sustainability

Feature: Sustainability compliance
Sustainability certificates: EPEAT, TCO

Carbon footprint

Total carbon footprint (kg of CO2e): 610
Carbon emissions, manufacturing (kg of CO2e): 290
Carbon emissions, logistics (kg of CO2e): 5
Carbon emissions, end-of-life (kg of CO2e): 2
Total carbon emissions, w/o use phase (kg of CO2e): 309

Keyboard

Keyboard connectivity: Wired
Keyboard type: USB

Technical details

General Product Safety Regulation (GPSR) URL: https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_6303729_en-US-1.pdf

Other features

UNSPSC-code: 43211515
