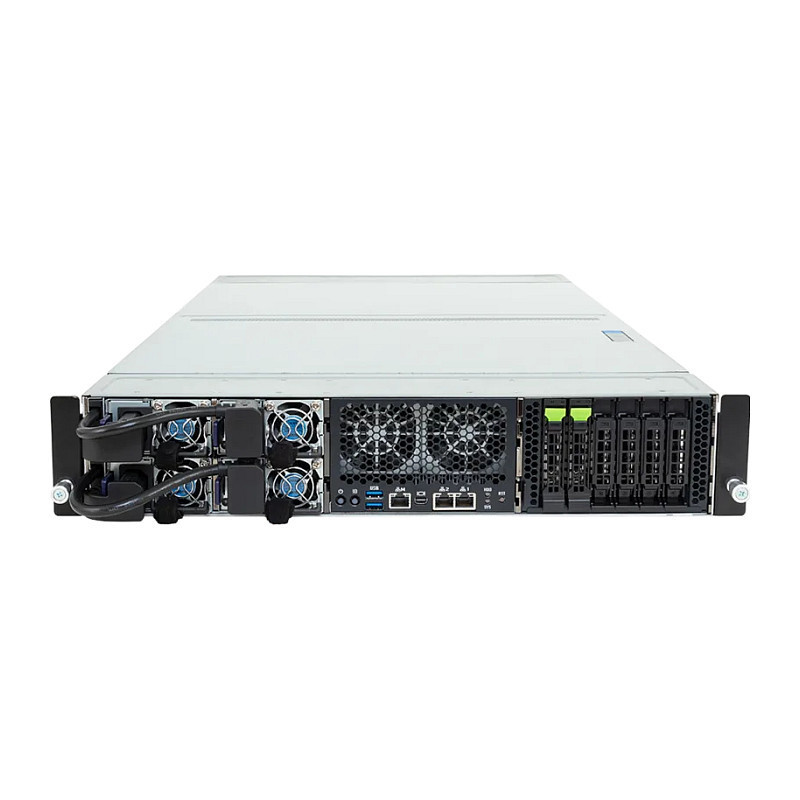

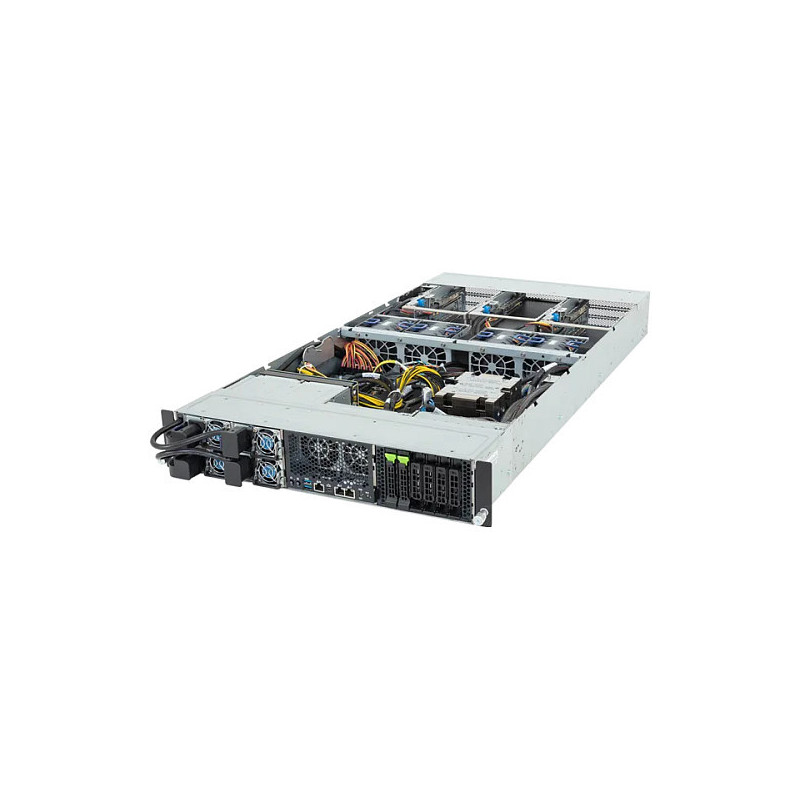

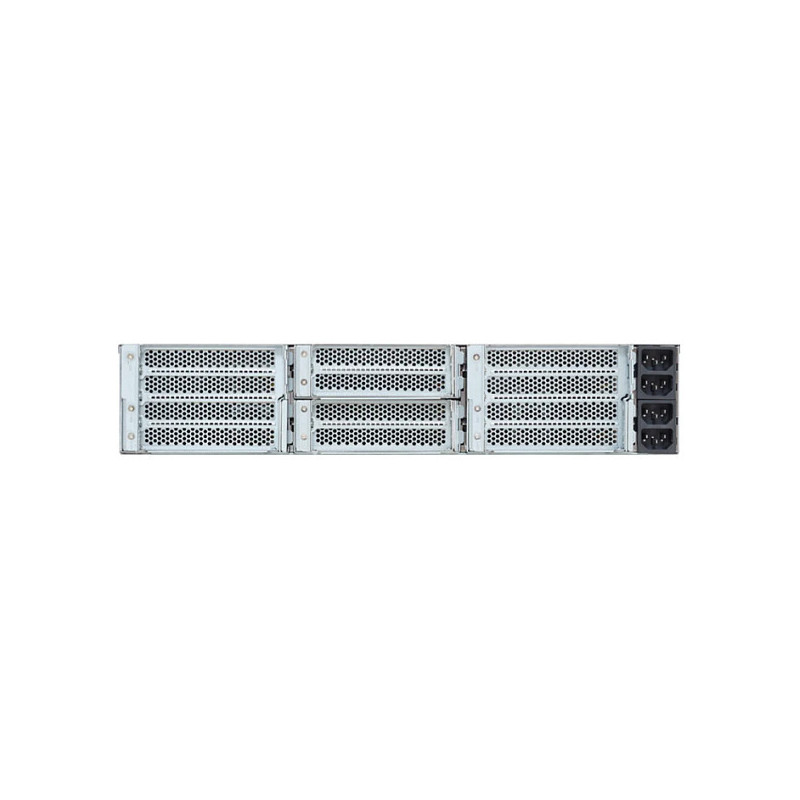

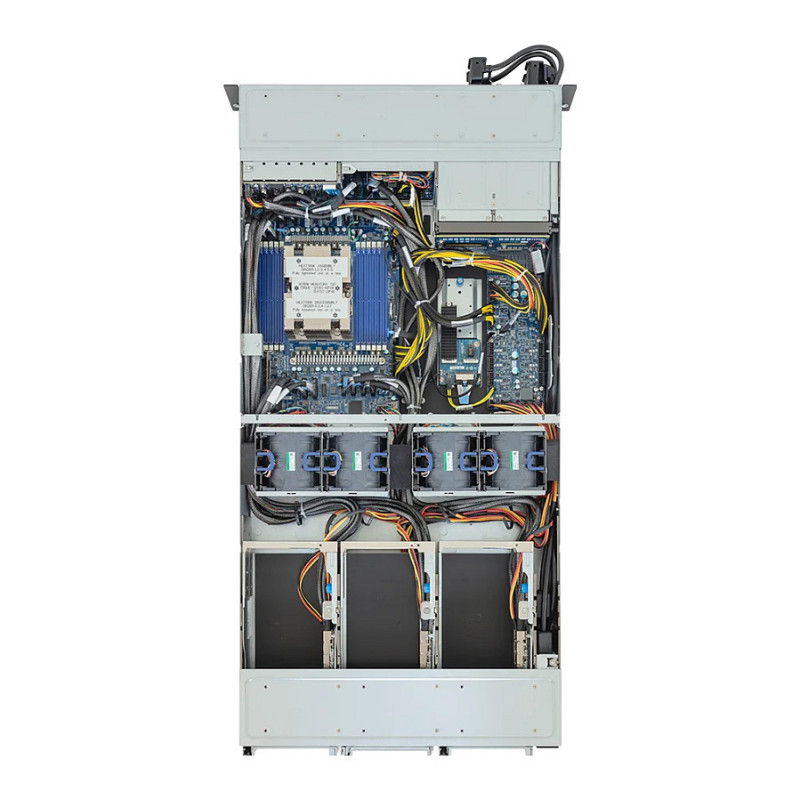

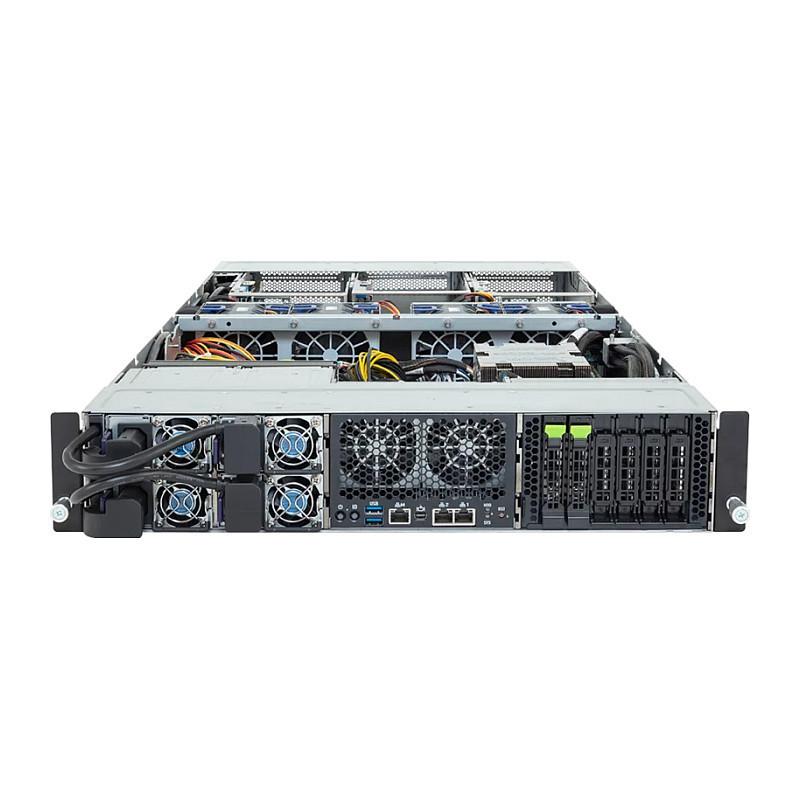

GIGABYTE XV23-ZU0-AAJ1

GIGABYTE XV23-ZU0-AAJ1. Processor socket: LGA 6096, Compatible processor series: AMD EPYC 9004, AMD EPYC 9005. Supported memory types: DDR5-SDRAM, Memory channels: Dodeca-channel. Storage drive sizes supported: 2.5,M.2, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS). On-board graphics card model: Aspeed AST2600. Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® X550-AT2

New AMD EPYC Family of Processors - Same Great SP5 Platform
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD "Zen5" and "Zen5c" core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.

Processor

Built-in processor: No
Processor socket: LGA 6096
Number of processors supported: 1
Compatible processor series: AMD EPYC 9004, AMD EPYC 9005

Memory

Number of DIMM slots: 12
Supported memory types: DDR5-SDRAM
Memory channels: Dodeca-channel

Storage

Number of storage drives supported: 4
Hot-swap HDD bays: Yes
Number of 2.5" bays: 4
Storage drive sizes supported: 2.5,M.2
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card model: Aspeed AST2600

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
LAN controller: Intel® X550-AT2

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Mini DisplayPorts quantity: 1

Expansion slots

Number of M.2 (M) slots: 2

Features

Trusted Platform Module (TPM): Yes
Backplanes support: Yes

Design

Chassis type: Rack (2U)
Product colour: Black, Steel
LED indicators: HDD, LAN, Status
On/off switch: Yes
Reset button: Yes
Cooling type: Active
Number of fans: 6 fan(s)

Power

Power supply: 2000 W
Number of main power supplies: 2
Redundant power supply (RPS) support: Yes
AC input voltage: 110 - 240 V
AC input frequency: 50/60 Hz
Input current: 13 - 10 A
80 PLUS certification: 80 PLUS Titanium

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 8 - 80%
Storage relative humidity (H-H): 20 - 95%

Weight & dimensions

Width: 438 mm
Depth: 900 mm
Height: 87 mm
Weight: 26.5 kg

Packaging data

Packaging content: 1 x XV23-ZU0-AAJ11 x CPU heatsink1 x Mini-DP to D-Sub cable1 x GPU power cable (16-pin, 450mm)1 x GPU power cable (16-pin, 550mm)2 x GPU power cables (16-pin, 750mm)1 x DPU power cable (2x PCIe 8pin, 520mm)1 x 3-Section Rail kit
Package width: 1196 mm
Package depth: 744 mm
Package height: 400 mm
Package weight: 51.6 kg
