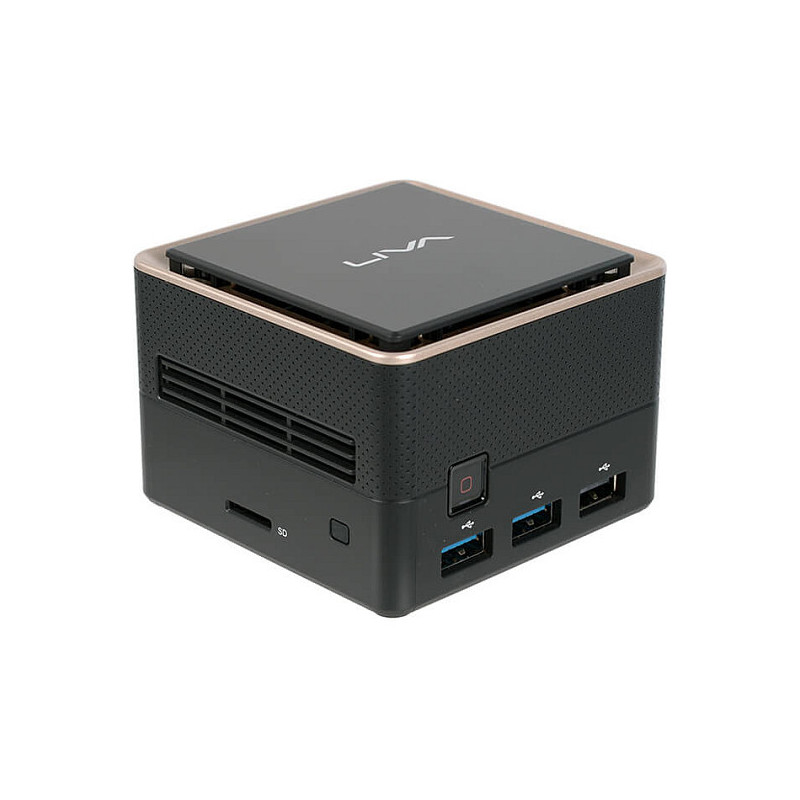

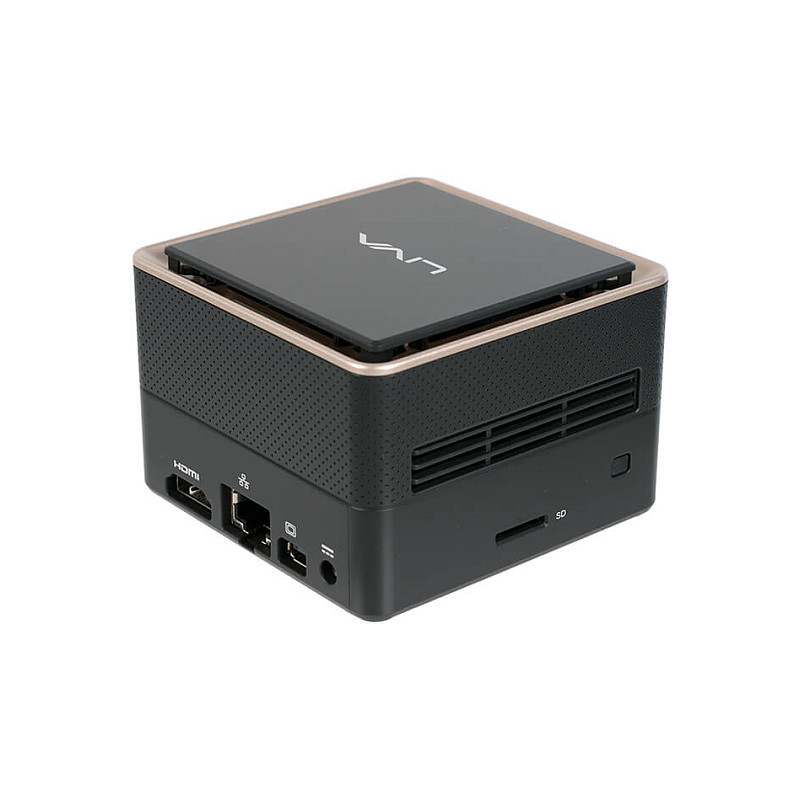

ECS LIVA Q3 Plus

ECS LIVA Q3 Plus. Processor frequency: 2 GHz, Processor family: AMD Ryzen Embedded V1000, Processor model: V1605B. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 128 GB, Storage media: eMMC, Card reader integrated. On-board graphics card model: AMD Radeon Vega 8. Wi-Fi. Chassis type: Mini PC. Product type: Mini PC. Weight: 359 g. Product colour: Black

World's Smallest 15W Pocket-sized Mini PC
Small Outside, Powerful InsideLIVA Q3 Plus
Smaller than a mouse, LIVA Q3 Plus features the AMD Ryzen Embedded V1605B APU. The V1605B is a 4-core/8-thread SoC with 15W thermal design power (TDP) and incredible performance that sets a new standard in processing power for next-generation embedded designs. The internal GPU can offer up to 47% performance improvement compared to competitors' product.

See More, Do MoreLIVA Q3 Plus

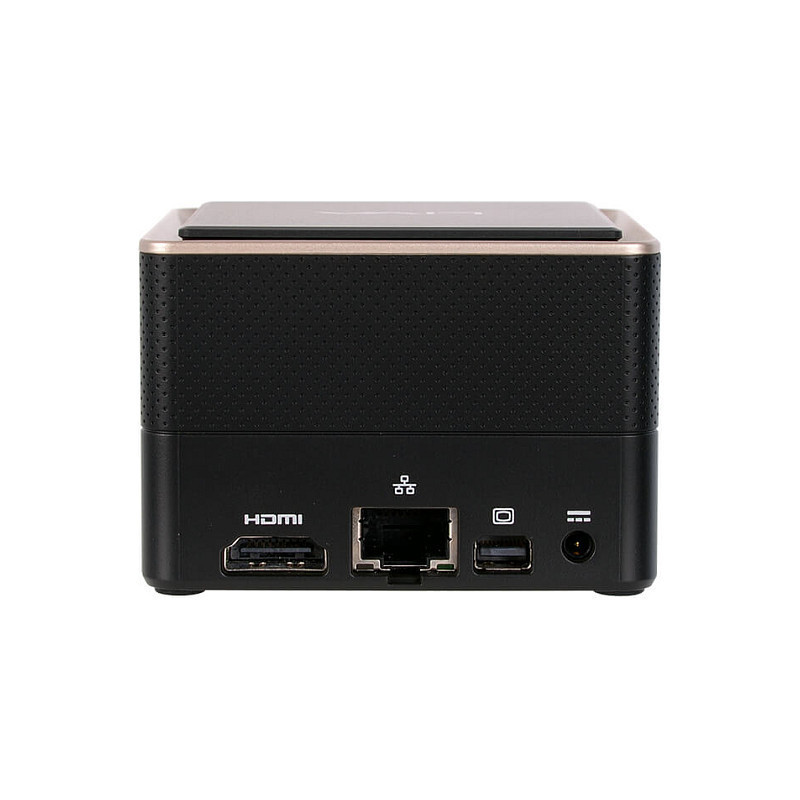

LIVA Q3 Plus supports up to 2 independent displays through its HDMI/ mini DisplayPort. Giving you the flexibility to expand the desktop workspace and multitask on two displays without any limitation.

Stay Cool and ReliableLIVA Q3 Plus
In spite of its compact dimensions, LIVA Q3 Plus designs to feature an internal cooling fan to prevent overheating. It can keep your system stay cool and more reliable.

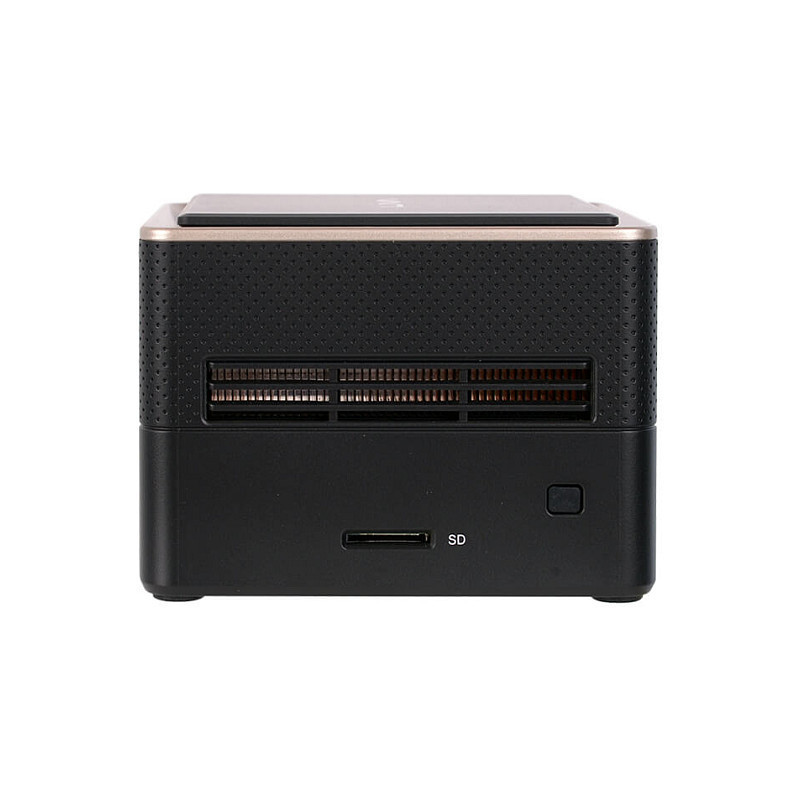

Micro SD Slot for Extend StorageLIVA Q3 Plus
LIVA Q3 Plus offers best C/P Micro SD extend storage solution, you can easily have big space to storage your treasure photos and movies.

Fill Out the Inquiry Form
Thank you for your interest in our product. Please fill out the form below and let us know your needs. Our sales representatives will contact you as soon as possible. thanks.

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen Embedded V1000
Processor model: V1605B
Processor cores: 4
Processor threads: 8
Processor boost frequency: 3.6 GHz
Processor frequency: 2 GHz

Memory

Internal memory: 8 GB
Maximum internal memory: 8 GB
Internal memory type: DDR4-SDRAM

Storage

Total storage capacity: 128 GB
Storage media: eMMC
Optical drive type: No
Feature: Card reader integrated

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon Vega Graphics
On-board graphics card model: AMD Radeon Vega 8

Performance

Product type: Mini PC

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Ports & interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0
Mini DisplayPorts quantity: 1

Power

Power supply input voltage: 100 - 240 V

Design

Chassis type: Mini PC
Feature: VESA mounting
Product colour: Black

Software

Operating system installed: No

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 74 mm
Depth: 74 mm
Height: 52.1 mm
Weight: 359 g

Packaging content

Feature: VESA mount included
Feature: Screws included
