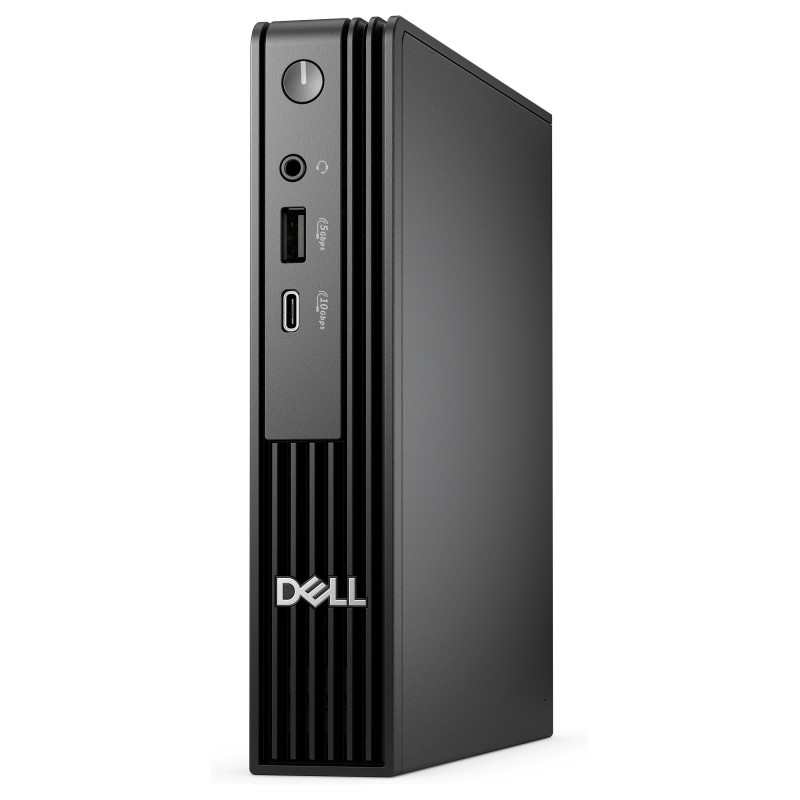

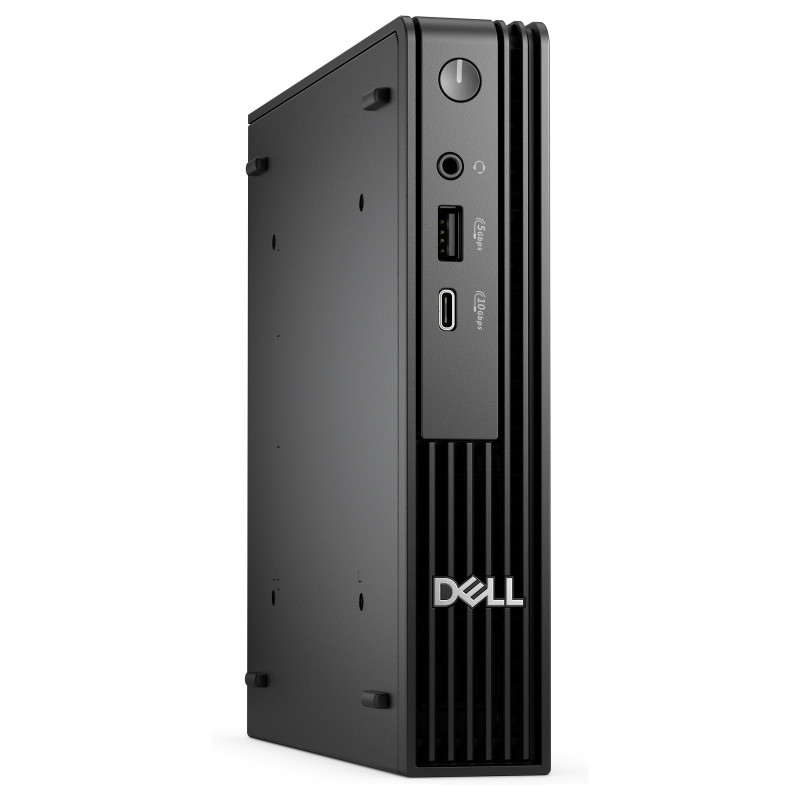

DELL Pro QCM1255

DELL Pro QCM1255. Processor frequency: 3.4 GHz, Processor family: AMD Ryzen™ 5 PRO, Processor model: 8500GE. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 740M. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 65 W. Chassis type: Micro PC. Product type: Mini PC. Weight: 1.39 kg. Product colour: Black

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 5 PRO
Processor generation: AMD Ryzen PRO 8000 Series
Processor model: 8500GE
Processor cores: 6
Processor threads: 12
Processor boost frequency: 5 GHz
Processor frequency: 3.4 GHz
Processor cache: 16 MB
Processor cache type: L3
Number of processors installed: 1
Processor base power: 35 W

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Feature: Non-ECC
Memory data transfer rate: 4800 MT/s

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD memory type: TLC
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 740M

Performance

Motherboard chipset: AMD PRO 665
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 4.0 channels
Feature: Built-in speaker(s)

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller manufacturer: MediaTek
WLAN controller model: MediaTek MT7920
Antenna type: 2x2
Antenna design: Internal
Feature: Bluetooth
Feature: MU-MIMO

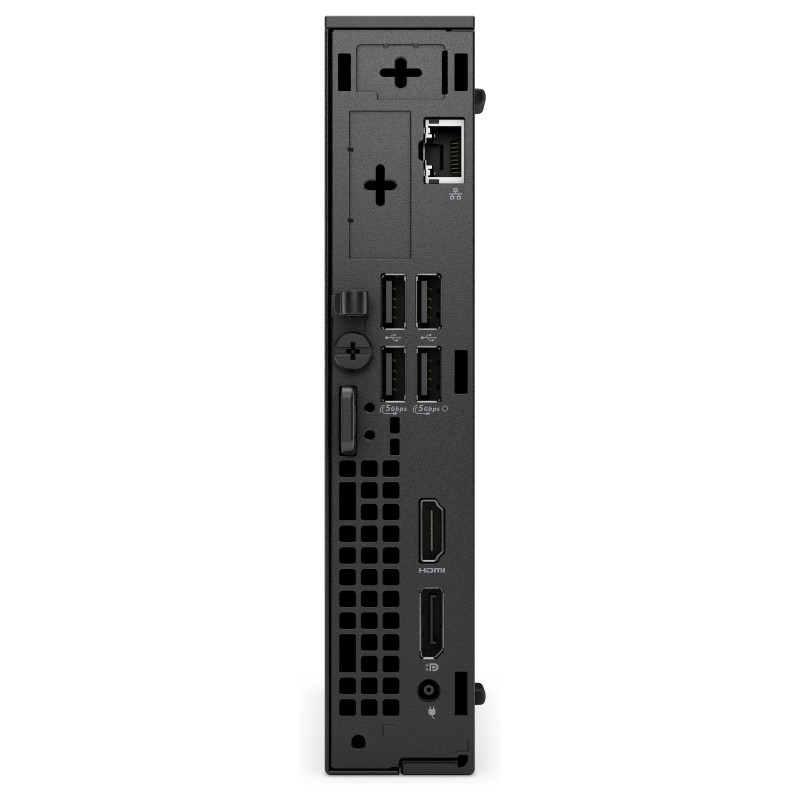

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4a
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: DC-in jack
Power adapter barrel connector: 4.5 mm

Power

Power supply: 65 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Design

Chassis type: Micro PC
Placement supported: Horizontal/Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Trial software: Activate Your Microsoft 365 For A 30 Day Trial

Audio

Audio chip: Realtek ALC3204
Audio system: High Definition Audio

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating vibration: 0.26 G
Non-operating vibration: 1.37 G
Operating shock: 40 G
Non-operating shock: 105 G

Weight & dimensions

Width: 36 mm
Depth: 178 mm
Height: 182 mm
Weight: 1.39 kg

Packaging content

Cables included: AC

Sustainability

Doesn't contain: PVC/BFR

Carbon footprint

Total carbon footprint (kg of CO2e): 92.7
Carbon emissions, manufacturing (kg of CO2e): 46.54
Carbon emissions, logistics (kg of CO2e): 2.22
Carbon emissions, energy usage (kg of CO2e): 43.48
Carbon emissions, end-of-life (kg of CO2e): 0.46
PAIA version: GaBi version 1, 2024
