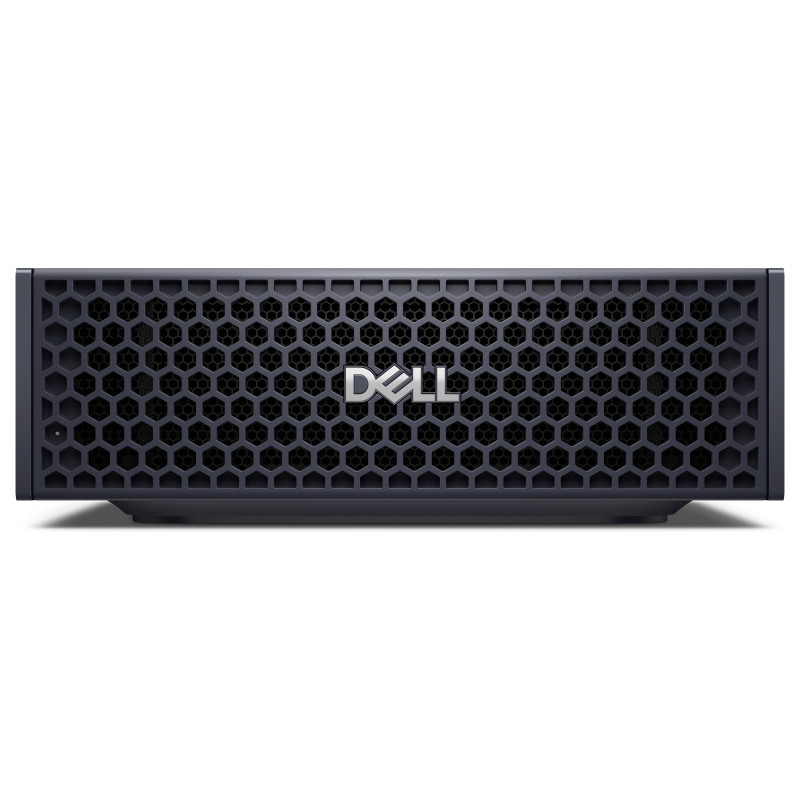

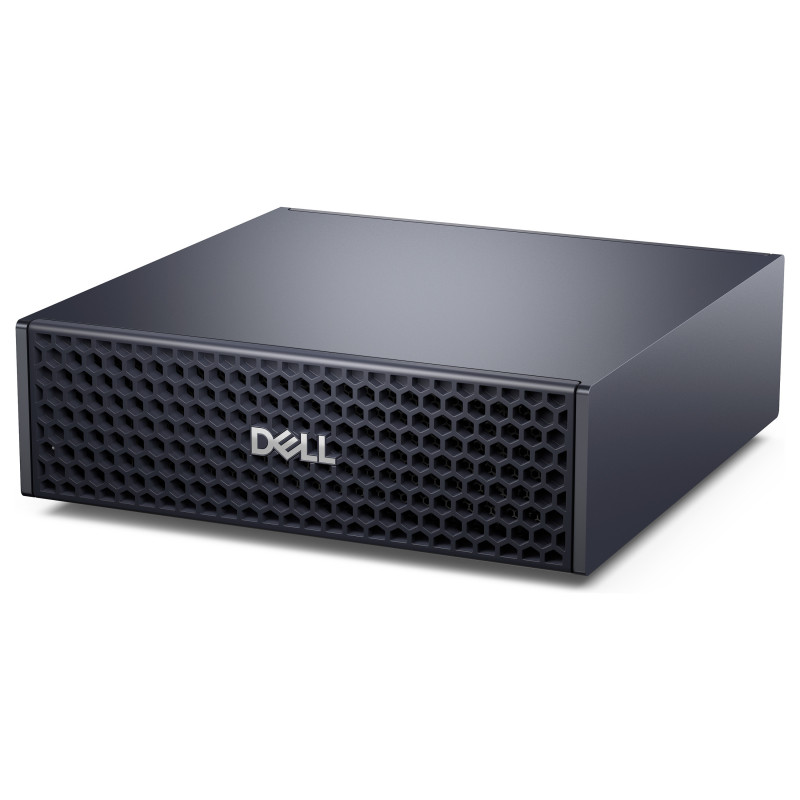

DELL Pro Maks. GB10 FCM1253

DELL Pro Max GB10 FCM1253. Processor model: GB10. Internal memory: 128 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 4 TB, Storage media: SSD. On-board graphics card model: NVIDIA Blackwell. Wi-Fi. Operating system installed: DGX OS. Power supply: 280 W. Product type: Mini PC. Weight: 1.34 kg. Product colour: Black

Processor

Processor manufacturer: Nvidia
Processor model: GB10
Processor cores: 20
Processor cache: 16 MB

Neural processor unit (NPU)

NPU performance up to: 13 TOPs

Memory

Internal memory: 128 GB
Maximum internal memory: 128 GB
Internal memory type: LPDDR5x-SDRAM
Memory data transfer rate: 8533 MT/s

Storage

Total storage capacity: 4 TB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 4 TB
Number of SSDs installed: 1
SSD capacity: 4 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: NVIDIA
On-board graphics card model: NVIDIA Blackwell

Performance

Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
LAN controller: NVIDIA ConnectX-7
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller manufacturer: AzureWare
Feature: Bluetooth

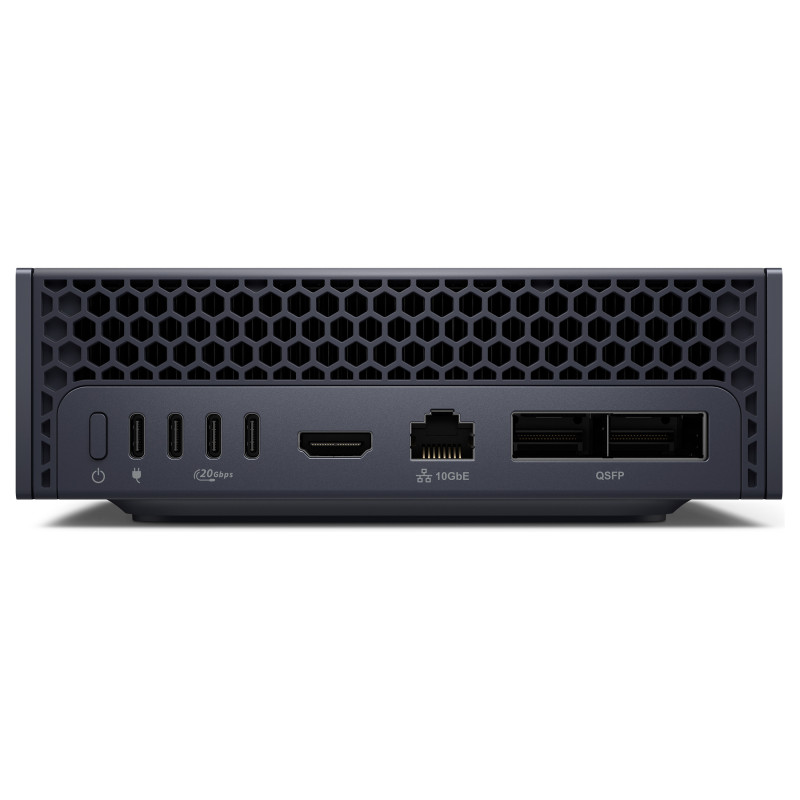

Ports & interfaces

USB 3.2 Gen 2x2 Type-C ports quantity: 3
Feature: USB Type-C DisplayPort Alternate Mode
HDMI ports quantity: 1
HDMI version: 2.1a
Ethernet LAN (RJ-45) ports: 1

Power

Power supply: 280 W
Power supply input voltage: 100 - 240 V

Design

Product colour: Black

Software

Operating system installed: DGX OS

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating vibration: 0.66 G
Non-operating vibration: 1.3 G
Operating shock: 110 G
Non-operating shock: 160 G

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 51 mm
Weight: 1.34 kg

Packaging content

Box contents: E5 Power Cord 1M for Europe

Sustainability

Doesn't contain: PVC/BFR

Carbon footprint

Total carbon footprint (kg of CO2e): 427
Total carbon emissions, standard deviation (kg of CO2e): 110
Carbon emissions, manufacturing (kg of CO2e): 258.76
Carbon emissions, logistics (kg of CO2e): 61.49
Carbon emissions, energy usage (kg of CO2e): 99.06
Carbon emissions, end-of-life (kg of CO2e): 7.69
PAIA version: PAIA 1.5.1, 2025
