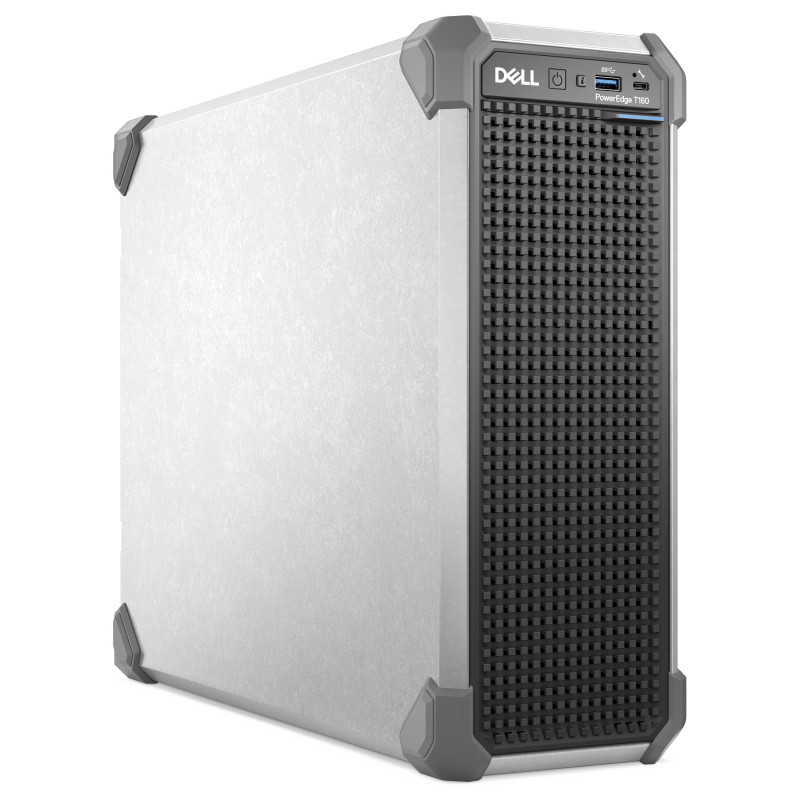

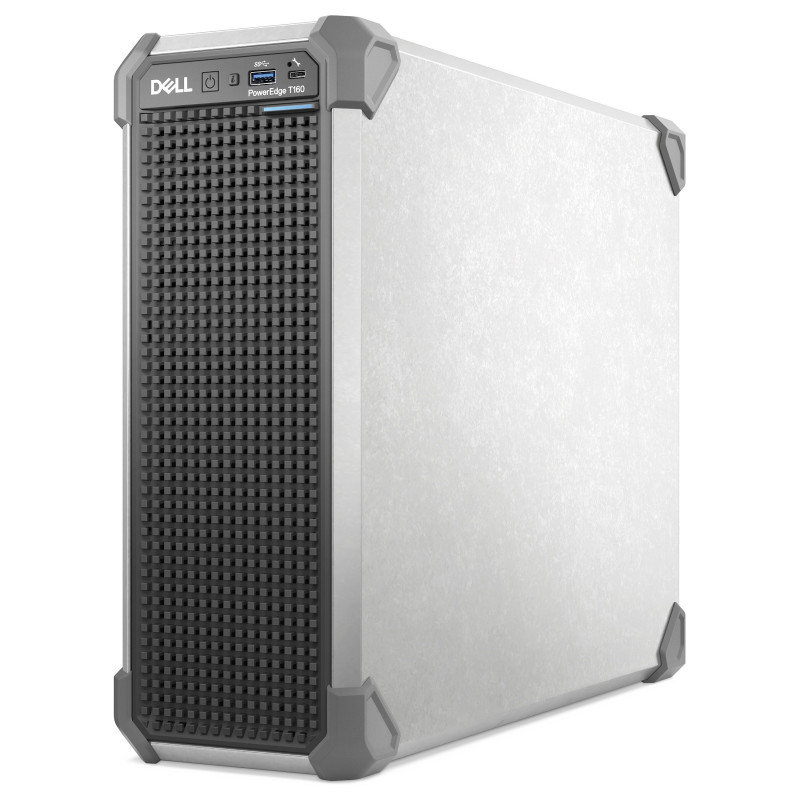

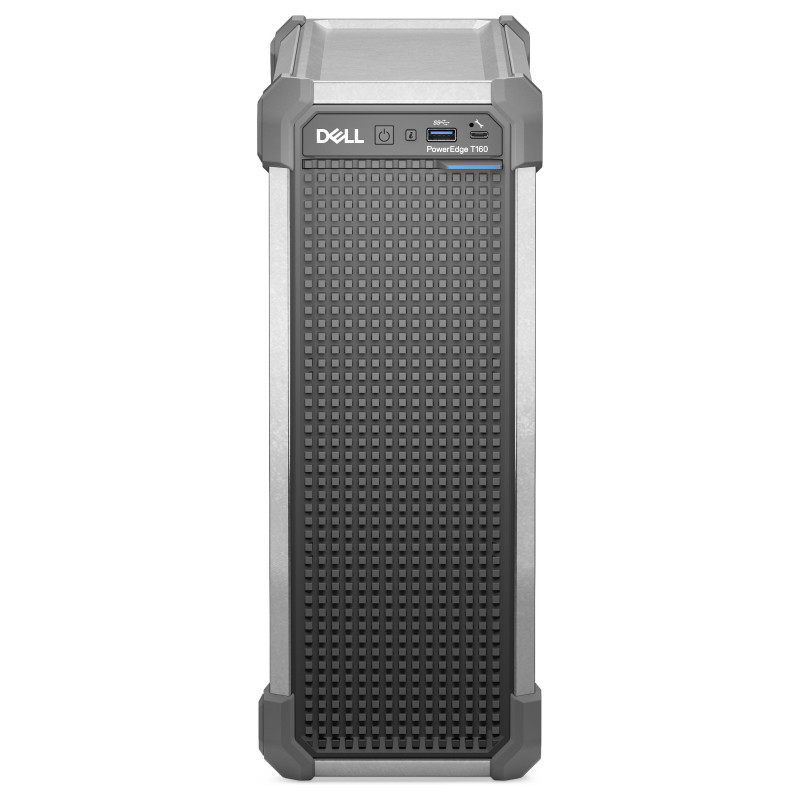

DELL PowerEdge T160 server

DELL PowerEdge T160. Processor family: Intel Xeon 6, Processor frequency: 2.8 GHz, Processor model: 6315P. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 480 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 300 W. Chassis type: Tower (3U)

Processor

Processor manufacturer: Intel
Processor family: Intel Xeon 6
Processor model: 6315P
Processor frequency: 2.8 GHz
Processor boost frequency: 5.2 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Number of processors installed: 1
Thermal Design Power (TDP): 55 W
Processor threads: 4
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 4800 MHz

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory slots: 4x DIMM
Feature: ECC
Maximum internal memory: 128 GB

Storage

Total storage capacity: 480 GB
Number of SSDs installed: 1
SSD capacity: 480 GB
SSD interface: SATA III
SSD size: 2.5"
Supported SSD sizes: 2.5", 3.5"
Number of SSDs supported: 5
Optical drive type: No
Drive writes per day (DWPD): 3
Feature: Storage drive adapter included
Storage drive adapter type: 2.5" - 3.5"

Network

Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1

Design

Chassis type: Tower (3U)
Product colour: Grey

Software

Operating system installed: No

Power

Power supply: 300 W
Number of main power supplies: 1

Operational conditions

Storage temperature (T-T): -40 - 65 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12000 m

Carbon footprint

Total carbon footprint (kg of CO2e): 1182
Total carbon emissions, standard deviation (kg of CO2e): 924
Carbon emissions, manufacturing (kg of CO2e): 319.14
Carbon emissions, logistics (kg of CO2e): 130.02
Carbon emissions, energy usage (kg of CO2e): 709.2
Carbon emissions, end-of-life (kg of CO2e): 23.64
PAIA version: Not available

Weight & dimensions

Width: 132.5 mm
Height: 332.5 mm

Other features

Data transfer rate: 6 Gbit/s
Bytes per sector: 512e
Target workload: Read Intensive (RI)
