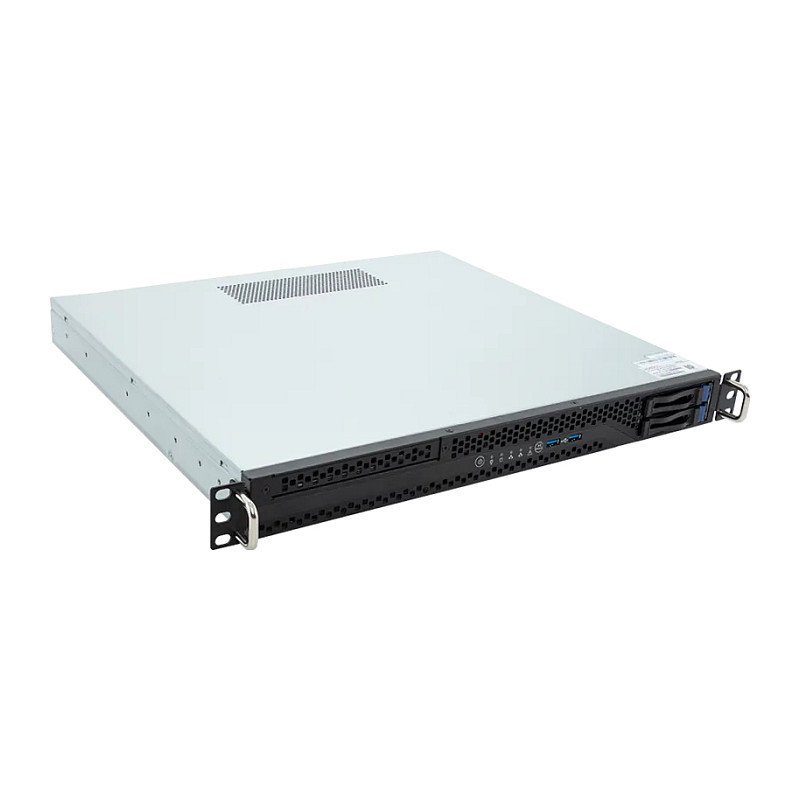

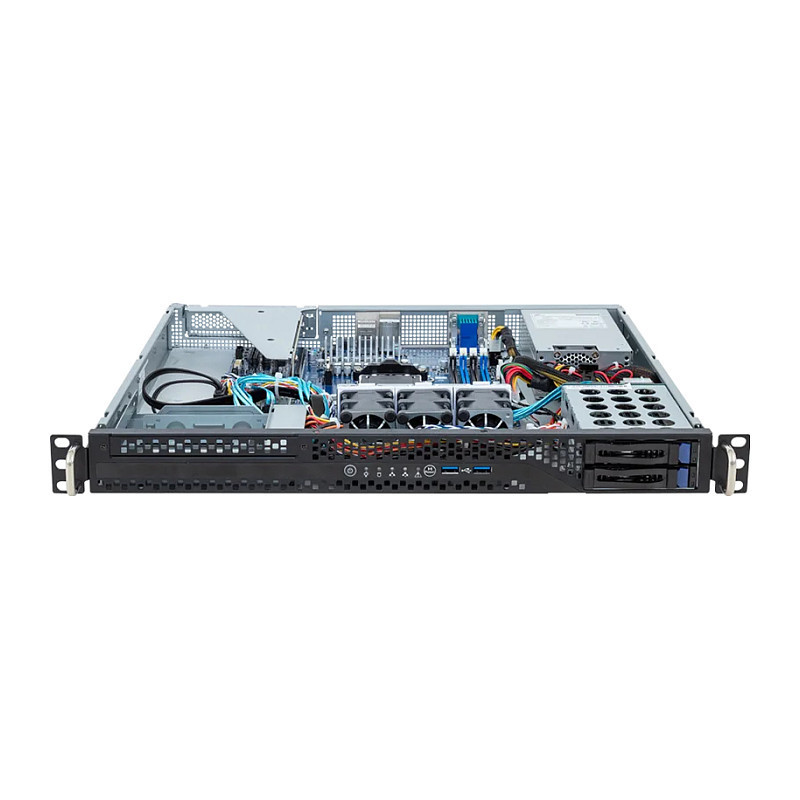

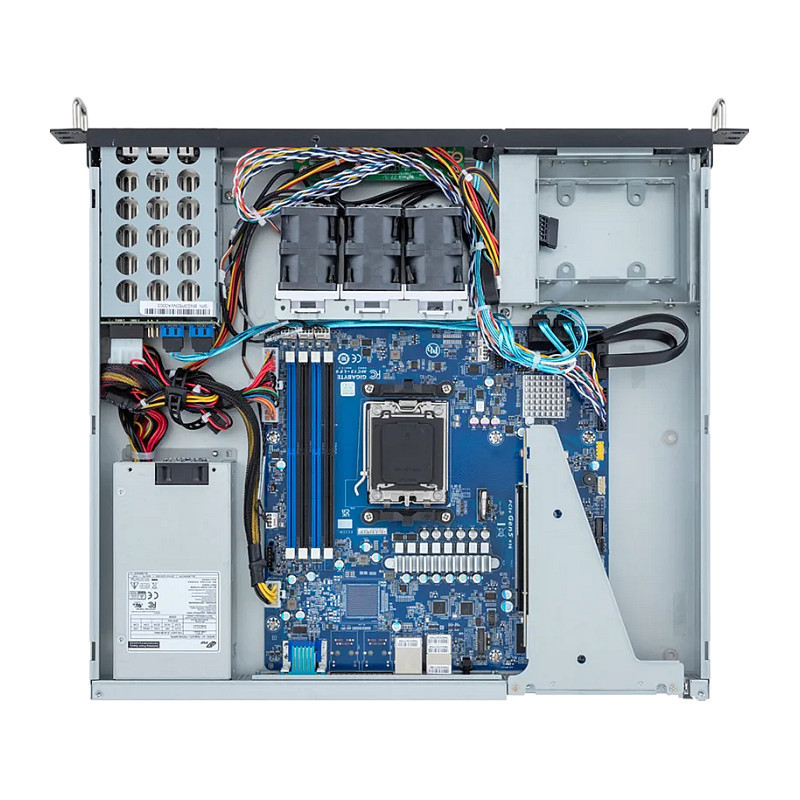

GIGABYTE R113-C10-AA02

GIGABYTE R113-C10-AA02. Motherboard chipset: AMD B650E, Processor socket: Socket AM5, Compatible processor series: AMD EPYC™ 4005 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Memory channels: Dual-channel. Storage drive sizes supported: 2.5,M.2, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, PCI Express 5.0. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® I210-AT

AMD EPYC™ CPUs for 24x7 Business Growth and Manageability
AMD EPYC™ 4004 Series Processors were a welcome addition to the 4th Gen AMD EPYC™ processor family, and now the 4005 Series comes out of a new processor family with "Zen 5" core architecture - lowering the threshold for businesses and hosting services that have been wanting to move to a platform with a server OS and other enterprise features, yet at an optimal price point in GIGABYTE solutions. SMB and hosting services rely on server-grade reliability so they can continue running 24x7. At the same time, they need to have a higher degree of manageability than what is found at the consumer level. On top of validating, GIGABYTE provides GIGABYTE Management Console (GMC) for system management and GIGABYTE Server Management (GSM) software for monitoring multiple servers.

Processor

Motherboard chipset: AMD B650E
Processor socket: Socket AM5
Number of processors supported: 1
Compatible processor series: AMD EPYC™ 4005 Series, AMD Ryzen 9000 Series

Memory

Number of DIMM slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Feature: ECC
Feature: Non-ECC

Storage

Number of storage drives supported: 5
Feature: Hot-swap HDD bays
Number of 2.5" bays: 4
Storage drive sizes supported: 2.5,M.2
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, PCI Express 5.0
RAID levels: 0, 1, 10
SSD form factor: M.2

Graphics

On-board graphics card model: Aspeed AST2600

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
LAN controller: Intel® I210-AT

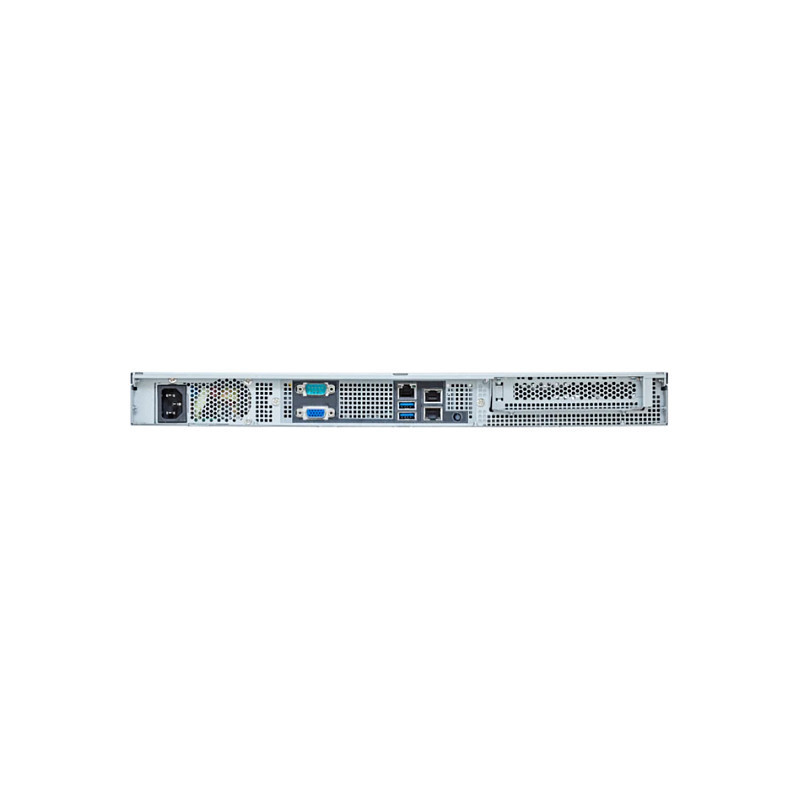

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 1

Features

Feature: Trusted Platform Module (TPM)
Compatible operating systems: Ubuntu 22.04Ubuntu 24.04; Windows Server 2022; Windows Server 2025; Windows 10 21H2; Windows 11

Design

Chassis type: Rack (1U)
Product colour: Black, Steel
LED indicators: LAN, HDD, SSD, Status
Feature: On/off switch
Feature: Reset button
Cooling type: Active
Feature: Heat sink included
Number of fans: 3 fan(s)
Fan diameter: 4 cm

Power

Power supply: 400 W
Number of main power supplies: 1
Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 3 - 6 A
DC output current (+5 V): 16 A
DC output current (+12 V): 33 A
80 PLUS certification: 80 PLUS Gold

Operational conditions

Operating temperature (T-T): 10 - 30 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 8 - 80%
Storage relative humidity (H-H): 20 - 95%

Weight & dimensions

Width: 430 mm
Depth: 393.2 mm
Height: 43.5 mm
Weight: 6.25 kg

Packaging data

Packaging content: 1 x R113-C10-AA02; 1 x CPU heatsink
Package width: 599 mm
Package depth: 535 mm
Package height: 161 mm
Package weight: 11.2 kg
