„Supermicro“ superdarbo stotis 7049A-T

Supermicro SuperWorkstation 7049A-T. Motherboard chipset: Intel® C621, Processor socket: LGA 3647 (Socket P), System bus rate: 10.4 GT/s. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Maximum RDIMM memory: 512 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2500. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s

SuperServers are Your Best Choice!

SuperServer Benefits:
- Uncompromising Quality Control
- The most Comprehensive Line of Servers, Storage Systems, and Subsystems
- Widest Variety of Application Optimized Solutions, from High End Clusters to MicroServers
- Best Performance per-Watt, per-Square-Foot, and per-Dollar
- Superior Product Design Based in Silicon Valley
- Consistently First-to-Market
- Best Total Cost of Ownership (TCO)
- Highest Quality Components and Materials
- 3-Year Limited Warranty
- 24-Hour Support and Global Services
- Redfish API support

These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end server/storage industry. Supermicro provides the most outstanding product line in the industry, ranging from single Atom and dual Xeon to quad Xeon MP systems. Their proven high level of quality and performance has made SuperServers the platform of choice for HPC, enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.

Processor

Motherboard chipset: Intel® C621
Processor socket: LGA 3647 (Socket P)
Number of processors supported: 2
System bus rate: 10.4 GT/s
Compatible processor series: Intel® Xeon®

Memory

Number of DIMM slots: 16
Supported memory types: DDR4-SDRAM
Maximum internal memory: 2 TB
Maximum RDIMM memory: 512 GB
Supported RDIMM clock speeds: 2133,2400,2666 MHz
Feature: ECC

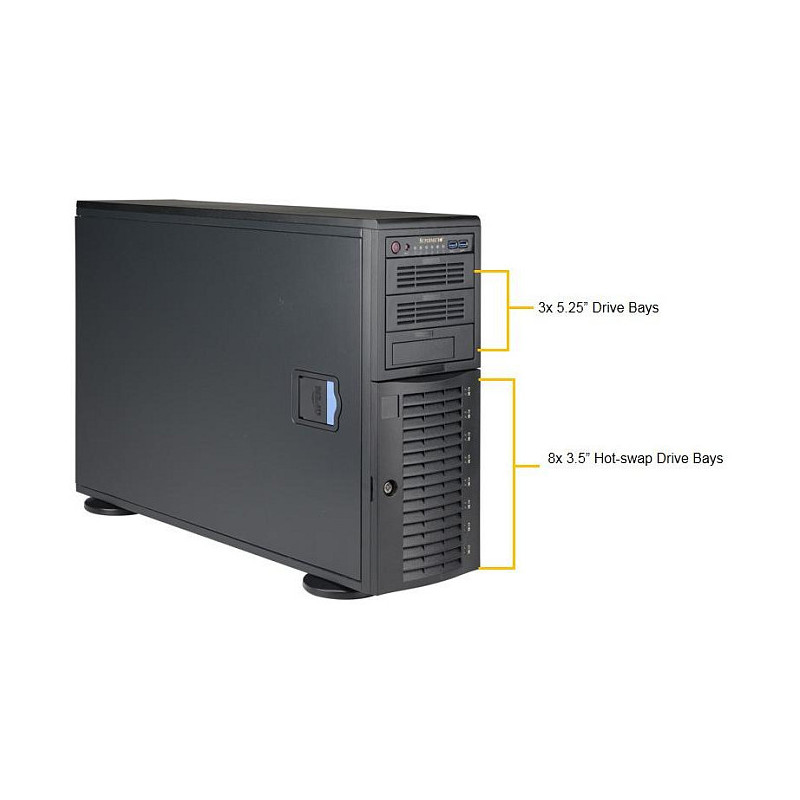

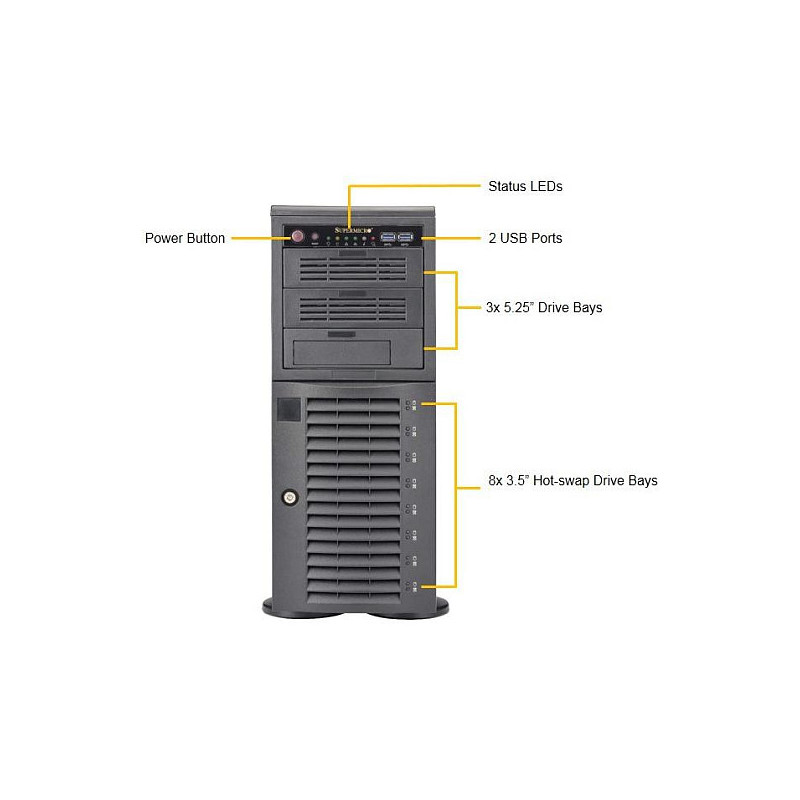

Storage

Feature: Hot-swap HDD bays
Number of 3.5" bays: 8
Storage drive sizes supported: 3.5"
Supported storage drive interfaces: Serial ATA III
RAID levels: 0, 1, 5, 10

Graphics

On-board graphics card model: Aspeed AST2500

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

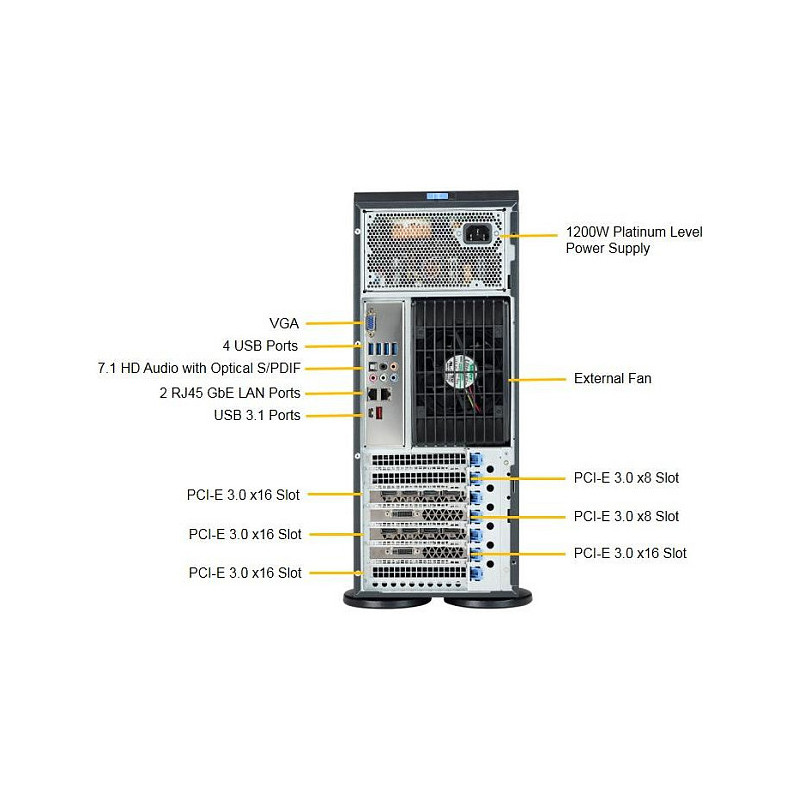

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Number of SATA III connectors: 10

Expansion slots

PCI Express slots version: 3.0
PCI Express x8 slots: 2
PCI Express x16 slots: 4

Features

PC health monitoring: CPU, Fan, Temperature
Feature: Backplanes support

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 84714100

BIOS

BIOS type: UEFI
BIOS memory size: 128 Mbit

Design

Chassis type: Rack (4U)
Product colour: Black
LED indicators: HDD, Heating, Network, Power
Feature: On/off switch
Number of fans: 3 fan(s)

Power

Power supply: 1200 W

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 8 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 178 mm
Depth: 648 mm
Height: 452 mm
Weight: 32.2 kg
