ASUS V500 SFF V501SV-03100U012W

ASUS V500 SFF V501SV-03100U012W. Processor family: Intel Core 3, Processor model: 100U. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: SFF. Product type: PC. Weight: 5.06 kg. Product colour: White

Optimal performance, enhanced productivity
ASUS V500 SFF is the ideal PC for families, ready to elevate everyday tasks from research and study to the latest in modern entertainment and gaming. Powered by an up to Intel® Core™ i7 processor, NVIDIA® RTX™ A400 discrete graphics and fast DDR5 memory, it delivers exceptional performance. Superior thermal technology ensures optimal performance under any workload, while advanced AI noise-canceling technology creates a distraction-free environment. Built to last, ASUS V500 SFF 's all-solid capacitor design guarantees years of durable and reliable computing — ready to power through work and play.

Processor

Processor manufacturer: Intel
Processor family: Intel Core 3
Processor generation: Intel Core (Series 1)
Processor model: 100U
Processor cores: 6
Processor threads: 8
Processor boost frequency: 4.7 GHz
Performance cores: 2
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Performance-core base frequency: 1.2 GHz
Processor cache: 10 MB
Processor cache type: Smart Cache
Processor base power: 15 W
Maximum turbo power: 55 W

Memory

Internal memory: 8 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Market positioning: Business
Feature: Password protection
Password protection type: BIOS, User, HDD
Feature: Trusted Platform Module (TPM)
Product type: PC
Audio output channels: 7.1 channels

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel WGI219V
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4

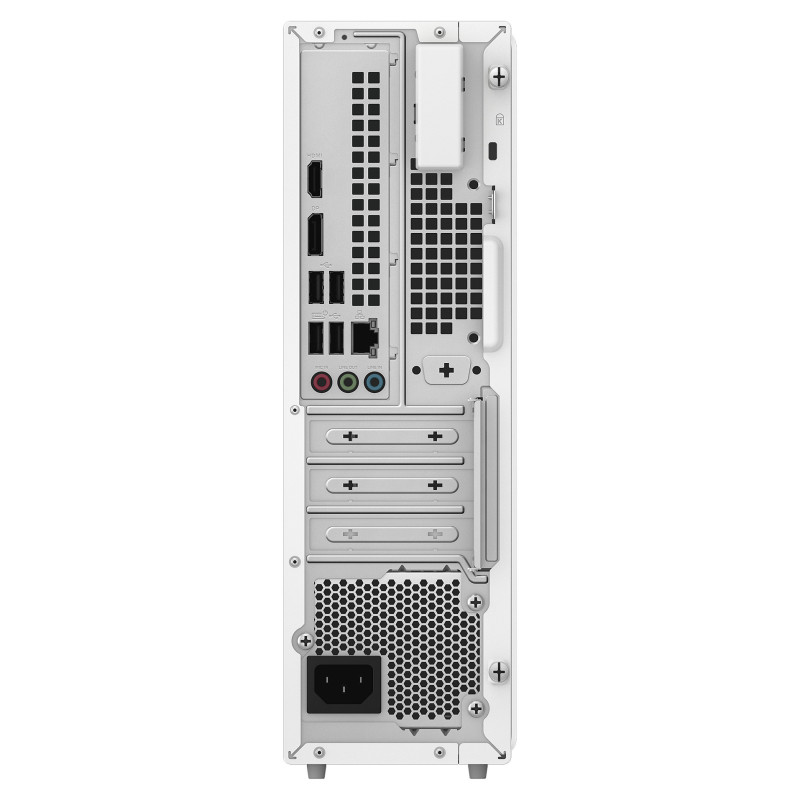

Ports & interfaces

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 1.4
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Line-out
Feature: Line-in
Feature: Microphone in

Expansion slots

Number of 3.5" bays: 1
PCI Express x16 (Gen 4.x) slots: 1

Power

Power supply: 180 W
80 PLUS certification: 80 PLUS Bronze

Design

Chassis type: SFF
Colour name: White
Volume: 8.6 L
Placement supported: Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: White

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Home
Trial software: 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days

Audio

Audio system: High Definition Audio

Weight & dimensions

Width: 94.6 mm
Depth: 294.3 mm
Height: 308.6 mm
Weight: 5.06 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Mouse included on selected markets: Y
Feature: Keyboard included
Keyboard included on selected markets: Y

Certificates

Compliance certificates: REACH

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT Silver

Keyboard

Keyboard connectivity: Wired
