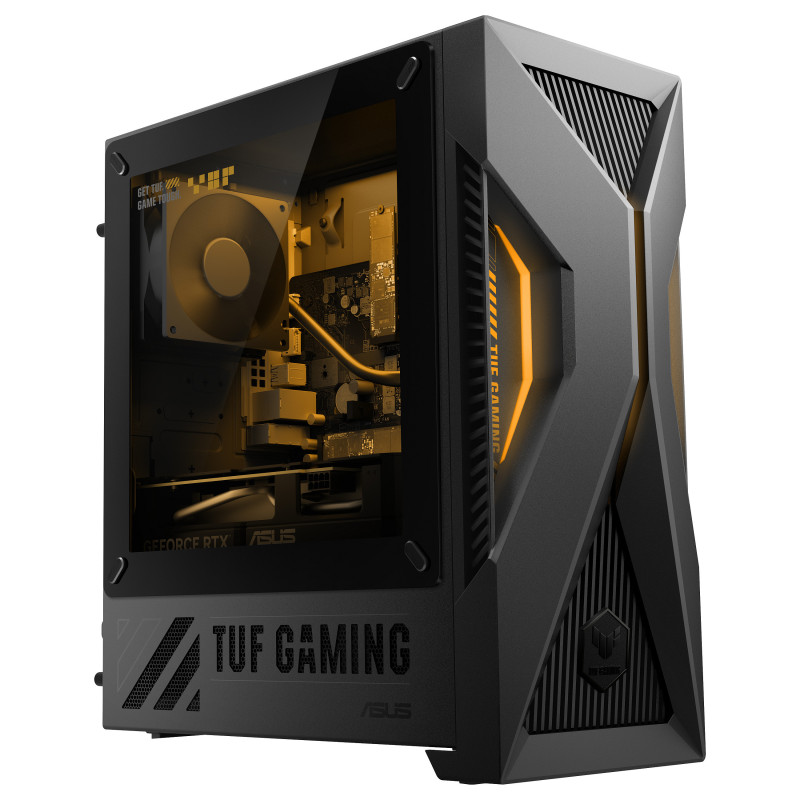

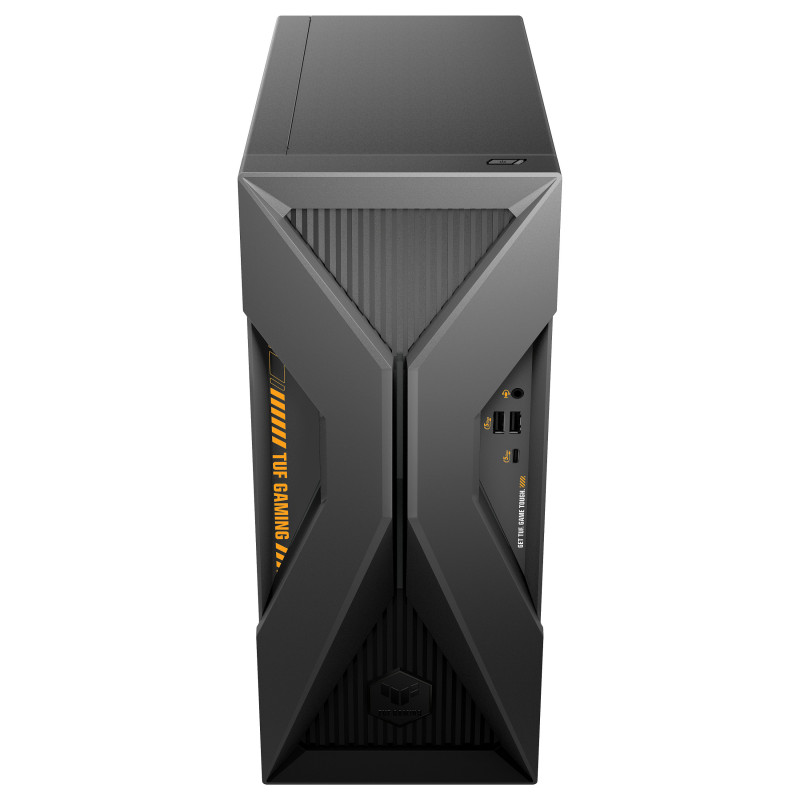

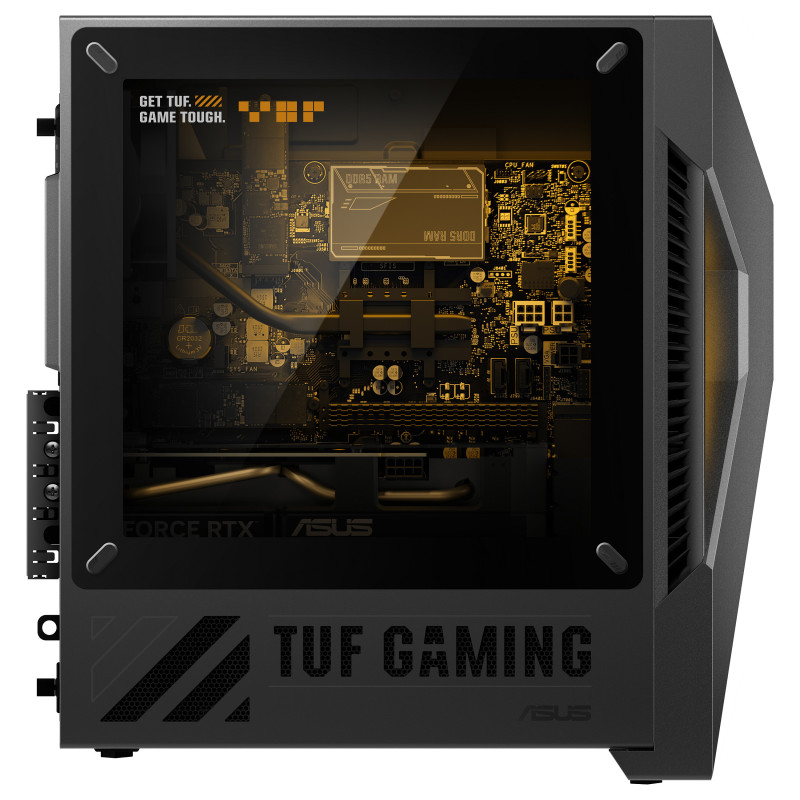

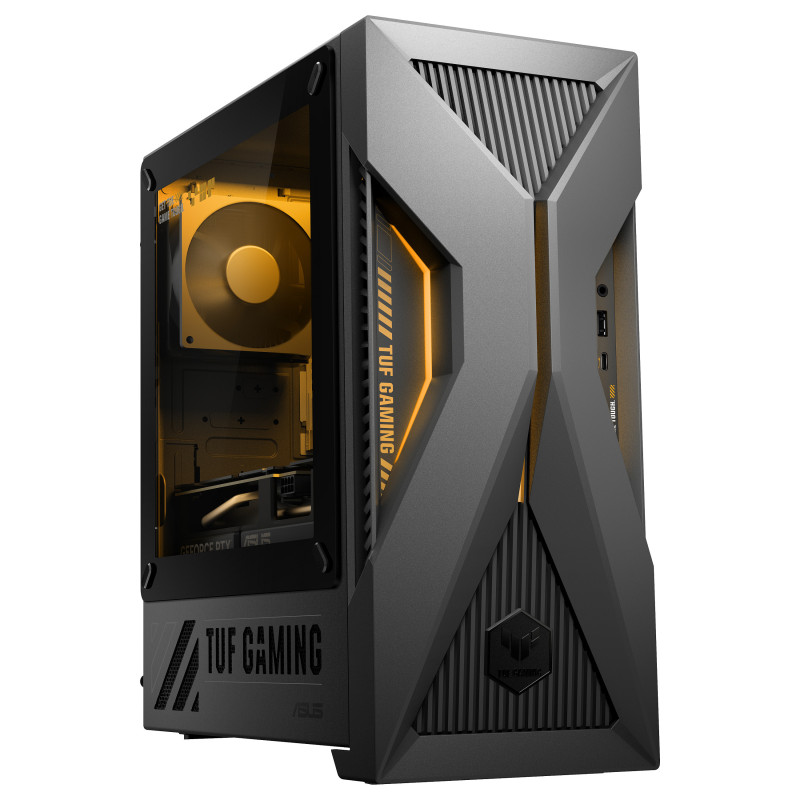

ASUS TUF Gaming T500 TM500MH-0R7260040W

ASUS TUF Gaming T500 TM500MH-0R7260040W. Processor frequency: 3.8 GHz, Processor family: AMD Ryzen™ 7, Processor model: 260. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 780M, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Power supply: 330 W. Chassis type: Mini Tower. Product type: PC. Product colour: Grey

ASUS TUF GAMING TM500
Built for combat

Time-tested quality
ASUS made its name on PC components like motherboards and graphics cards, so we know what a quality PC looks like. We carefully designed this entire system from the ground up, rigorously tested it for rock-solid stability and reliability, and tuned it for incredible power efficiency, and thermal performance.

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor generation: AMD Ryzen 200 Series
Processor model: 260
Processor cores: 8
Processor threads: 16
Processor boost frequency: 5.1 GHz
Processor frequency: 3.8 GHz
L2 cache: 8 MB
L3 cache: 16 MB
Processor cache type: L2 & L3

Neural processor unit (NPU)

Neural processor unit (NPU): AMD Ryzen AI
Total processor performance up to: 38 TOPs
NPU performance up to: 16 TOPs

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Memory data transfer rate: 5600 MT/s

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: Discrete graphics card
Discrete GPU manufacturer: AMD
Feature: On-board graphics card
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon Graphics
On-board graphics card model: AMD Radeon 780M
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 3

Performance

Market positioning: Gaming
Feature: Password protection
Password protection type: HDD, User
Feature: Trusted Platform Module (TPM)
Product type: PC
Audio output channels: 7.1 channels

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000,10,100 Mbit/s
LAN controller: Intel WGI219V
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1b
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Line-out
Feature: Line-in
Feature: Microphone in
Number of SATA III connectors: 2

Expansion slots

Number of 3.5" bays: 1
PCI Express x16 (Gen 4.x) slots: 1

Power

Power supply: 330 W
80 PLUS certification: 80 PLUS Platinum

Design

Chassis type: Mini Tower
Colour name: Solar Eclipse Gray
Volume: 15 L
Placement supported: Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Grey

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Home

Weight & dimensions

Width: 155.5 mm
Depth: 296.4 mm
Height: 347 mm
Weight: 5.9 kg

Certificates

Compliance certificates: REACH
