ASUS ROG NUC 14 RNUC14SRKU7168A2I

ASUS ROG NUC 14 RNUC14SRKU7168A2I. Processor family: Intel Core Ultra 7, Processor model: 155H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA GeForce RTX 4060. Wi-Fi. Operating system installed: Windows 11 Home. Power supply: 330 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black

ROG NUC
Compact Gaming Power
ASUS redefines gaming with the first-ever ROG NUC. Featuring up to Intel® Core™ Ultra 9 processors and NVIDIA® RTX™ 4070 discrete graphics, this compact powerhouse delivers unmatched gaming experiences. With the performance hybrid architecture of Intel® Core™ Ultra processors, gamers have the freedom to chat, browse, stream, edit, record, and play without skipping a beat. The 2.5-liter chassis is designed for quick system access, making upgrades and cleaning quick and easy. Compatible with the Raikiri Pro controller, the ROG NUC is the ultimate choice for gamers seeking uncompromised performance and flexibility in a compact form factor.

Game Without Compromise
Super charge modern gaming with NVIDIA® GeForce RTX™ 4070/4060. It's built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more. Plus, every system offers up to 64GB dual-channel DDR5 memory, three M.2 PCIe slots and the latest in wireless connectivity with Intel® Killer™ Wi-Fi 6E and Bluetooth® 5.3. Gamers can also connect at will with one Thunderbolt™ 4, four USB 3.2 Gen2, two USB 2.0 ports.

No-compromise connectivity
Ultra-small and ultra-powerful, ROG NUC Mini PCs built for the next generation of gaming, with an unparalleled combination of superior performance, riveting visuals, and fast and flexible connectivity.

Space-saving and customizable chassis
Ultra-Small—only 2.5 liters in size and packed with the same I/Os as a desktop system 10 times the size.

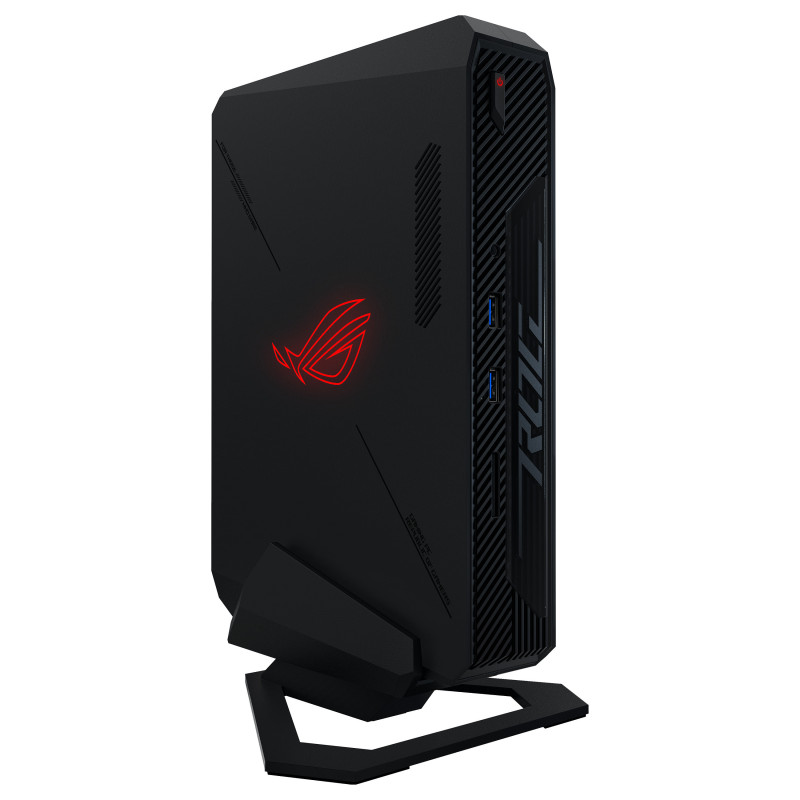

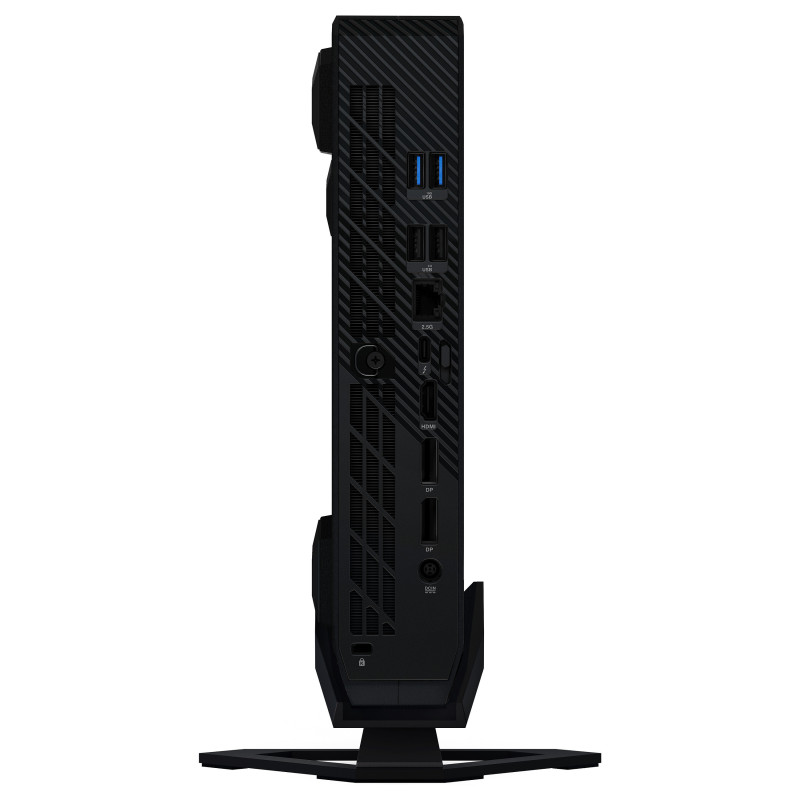

Vapor chamber and heat pipe thermal design allows the system to be placed vertically or horizontally for discrete placement or for space-saving in tight locations.

AI Capability at its Best
Experience Intel's first integrated NPU purpose-built for efficient client AI, ideal for sustained AI processing and offloading, and common-sense development. From image processing and AI video editing to Generative AI, streaming, and gaming, the Intel® Core™ Ultra processor's built-in AI capabilities keep the ROG NUC on the cutting edge of AI possibilities.

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 155H
Processor cores: 16
Processor threads: 22
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.8 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 1.4 GHz
Efficient-core base frequency: 0.9 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 28 W
Maximum turbo power: 115 W

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 8 GB
Memory slots: 2x SO-DIMM
Memory channels: Dual-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Number of storage drives supported: 3
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
SSD form factor: M.2
Feature: Card reader integrated
Compatible memory cards: SD

Graphics

Feature: Discrete graphics card
Discrete GPU manufacturer: NVIDIA
Feature: On-board graphics card
Discrete graphics card model: NVIDIA GeForce RTX 4060
Discrete graphics memory type: GDDR6
Number of discrete graphics cards: 1
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics

Performance

Product type: Mini PC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Killer
Feature: Bluetooth
Bluetooth version: 5.3

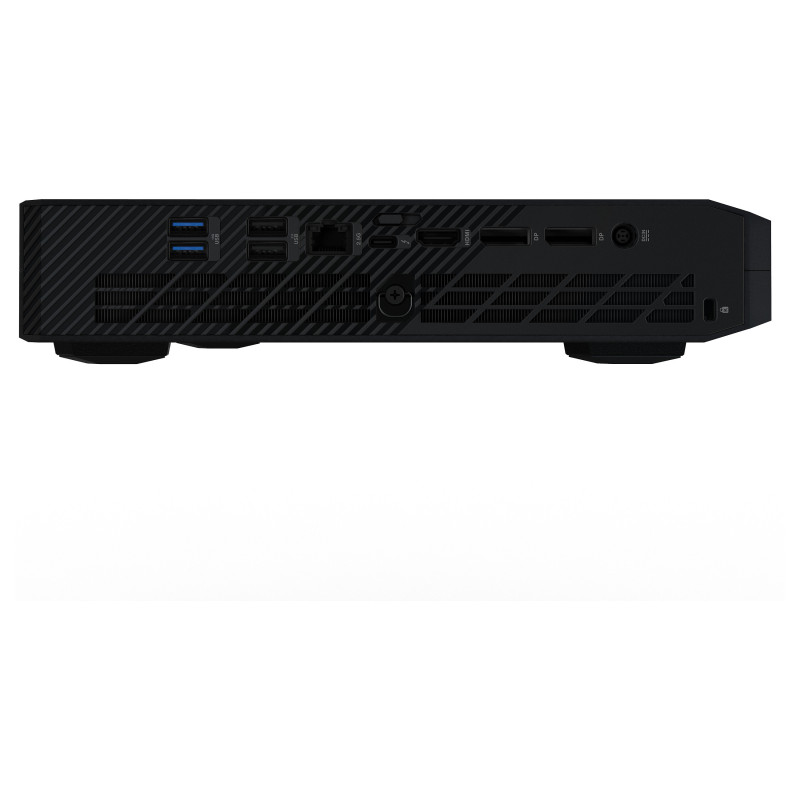

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 1
DisplayPorts quantity: 2
DisplayPort version: 1.4a
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Headphone outputs: 1
Feature: Line-out
Feature: DC-in jack
Number of rear USB ports: 4
Number of front USB ports: 2

Power

Power supply: 330 W

Design

Chassis type: Mini PC
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system installed: Windows 11 Home

Weight & dimensions

Width: 270 mm
Depth: 180 mm
Height: 50 mm
