ASUS NUC RNUC14LNKU5073H2

ASUS NUC RNUC14LNKU5073H2. Processor family: Intel Core Ultra 5, Processor model: 226V. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM, Memory clock speed: 8533 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 500 g. Product colour: Black

World's first Mini PC Powered by the Intel® Core™ Ultra processor (Series 2, formerly 'Lunar Lake'), featuring Copilot+, Bluetooth® 5.4, voice commands, and fingerprint recognition with Secure Boot for enhanced security.

Create, achieve, and stay secure with AI Innovation
The World's First AI Mini PC,powered by the Intel® Core™ Ultra processor (Series 2, formerly Lunar Lake), delivering advanced AI capabilities in a compact <0.6L design. it features Copilot+ button, Wi-Fi 7, Bluetooth 5.4, voice command, and fingerprint recognition with Secure Boot for enhanced security, plus effortless tool-free installation. This revolutionary device sets a new benchmark for mini PC innovation, providing unparalleled performance across business, entertainment, and industrial applications.

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 226V
Processor cores: 8
Processor threads: 8
Processor boost frequency: 4.5 GHz
Performance cores: 4
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.5 GHz
Low Power Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core base frequency: 2.1 GHz
Low Power Efficient-core Base Frequency: 2100 MHz
Processor cache: 8 MB
Processor cache type: Smart Cache
Processor base power: 17 W
Maximum turbo power: 37 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 97 TOPs
NPU performance up to: 40 TOPs
GPU performance up to: 53 TOPs

Memory

Internal memory: 16 GB
Maximum internal memory: 16 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 8533 MHz
Memory channels: Dual-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics 130V

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,1000,2500,100 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel I226-V
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 7 BE201
Bluetooth: Yes
Bluetooth version: 5.4

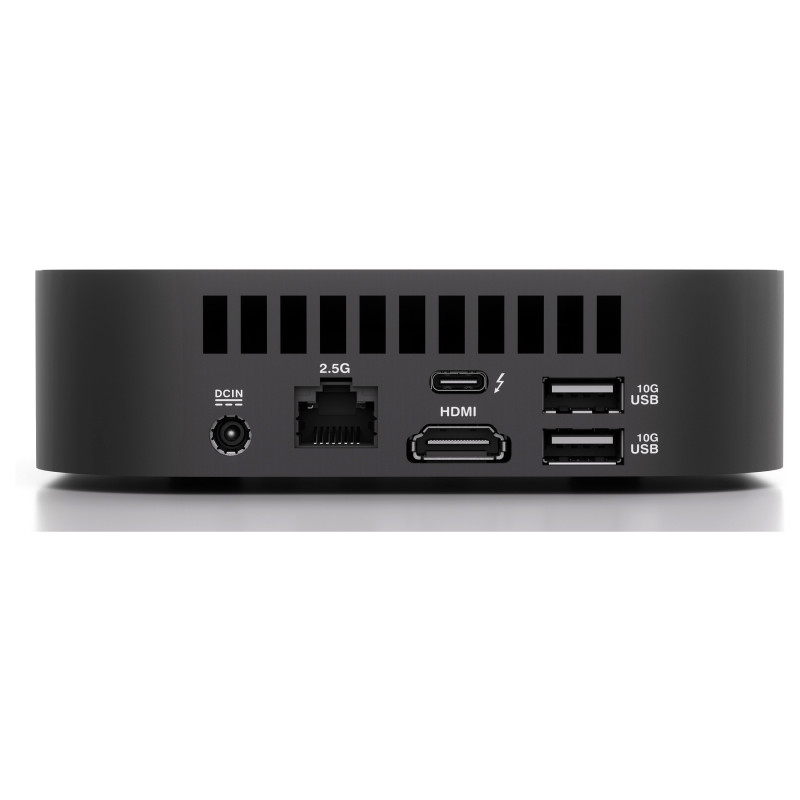

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB Type-C DisplayPort Alternate Mode: Yes
Intel® Thunderbolt 4: Yes
Thunderbolt 4 ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
DC-in jack: Yes

Design

Chassis type: Mini PC
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Performance

Audio chip: Realtek ALC3288
Trusted Platform Module (TPM): Yes
Product type: Mini PC

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Home

Power

Power supply: 120 W

Weight & dimensions

Width: 130 mm
Depth: 130 mm
Height: 34 mm
Weight: 500 g

Display

Display included: No
