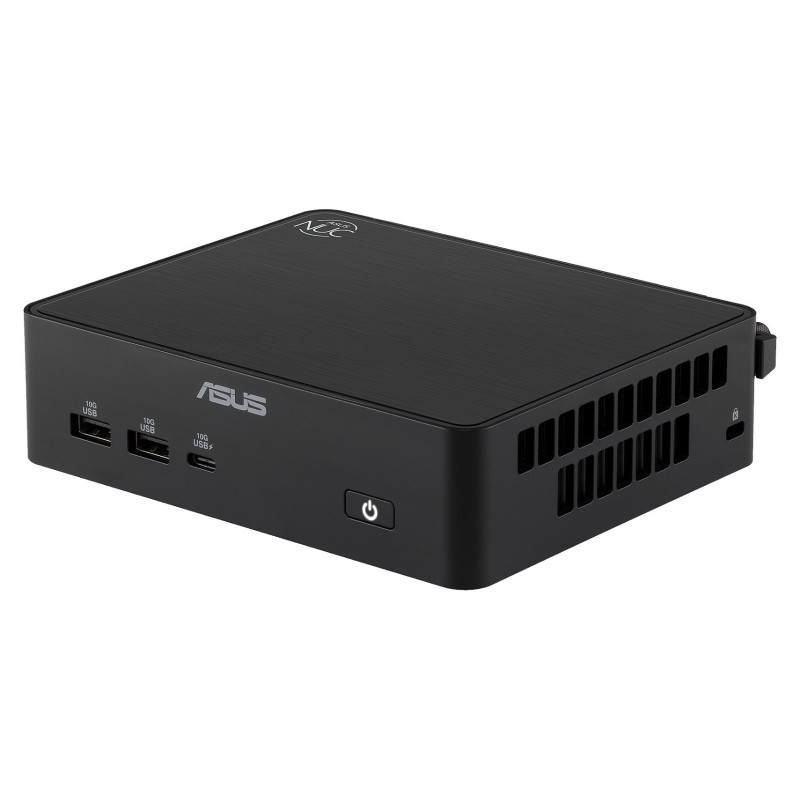

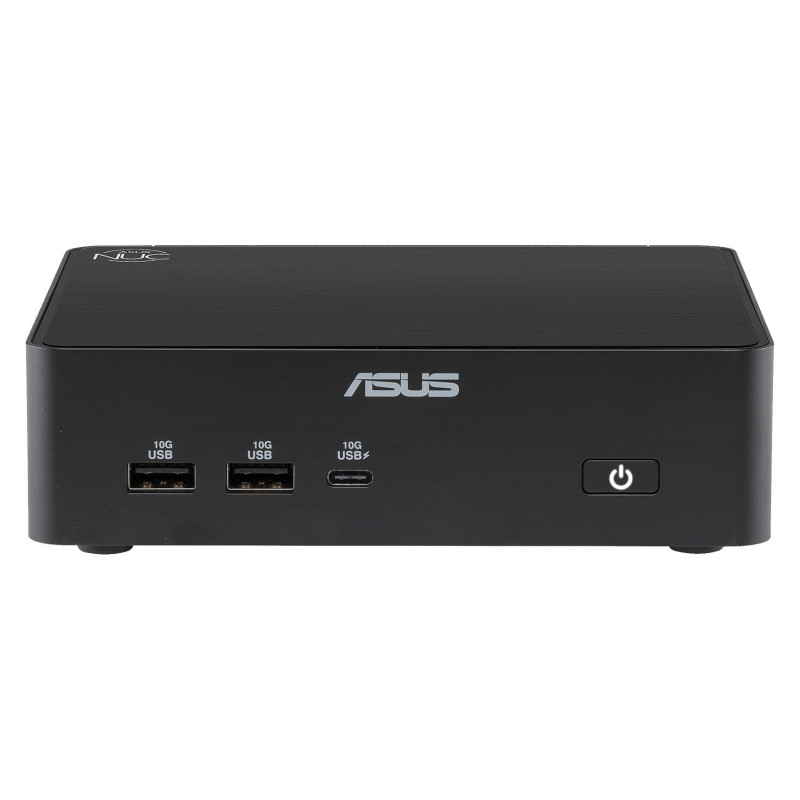

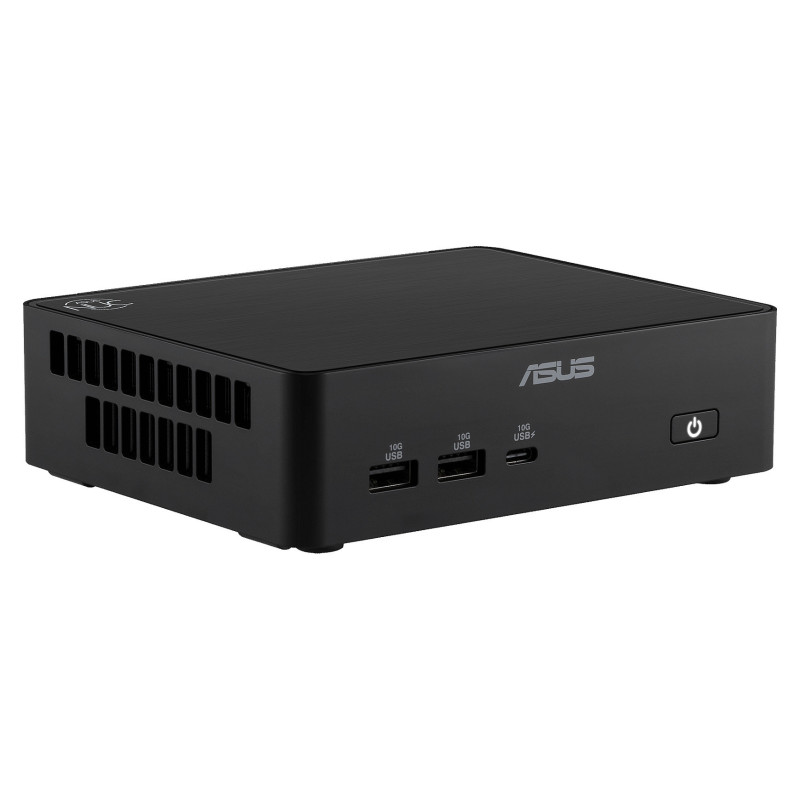

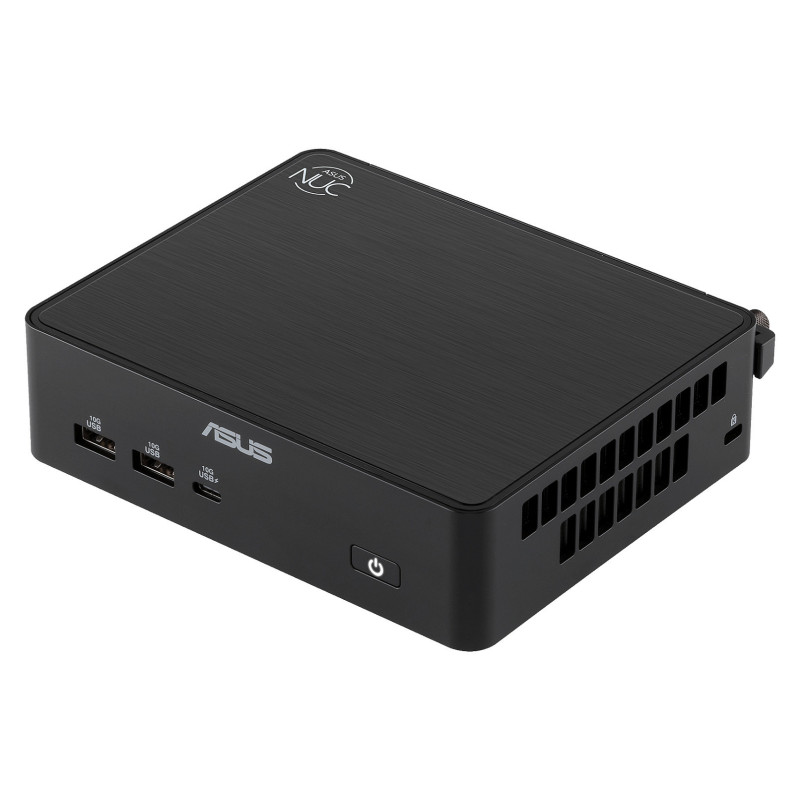

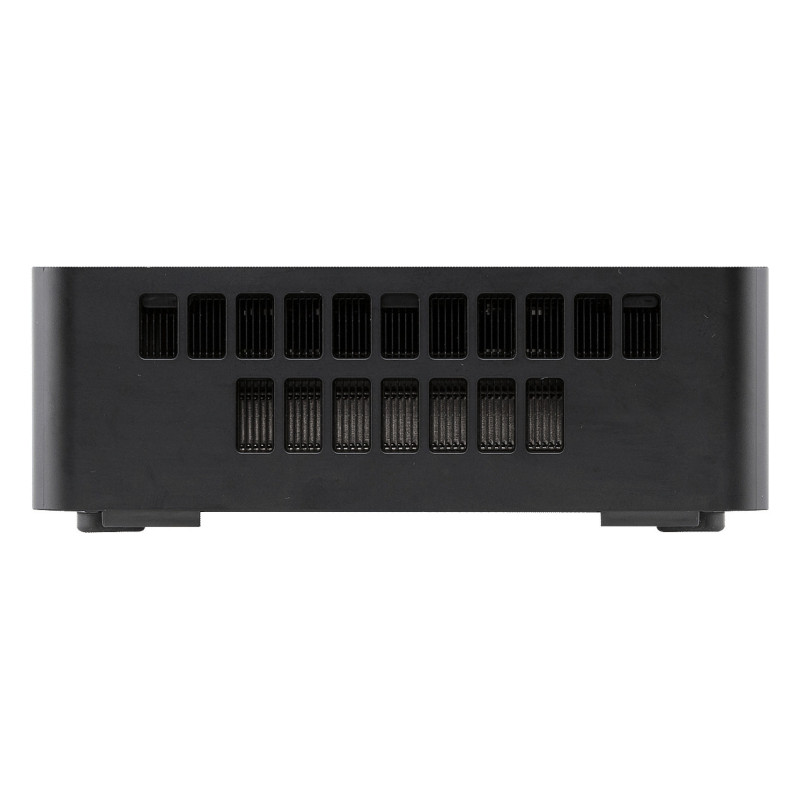

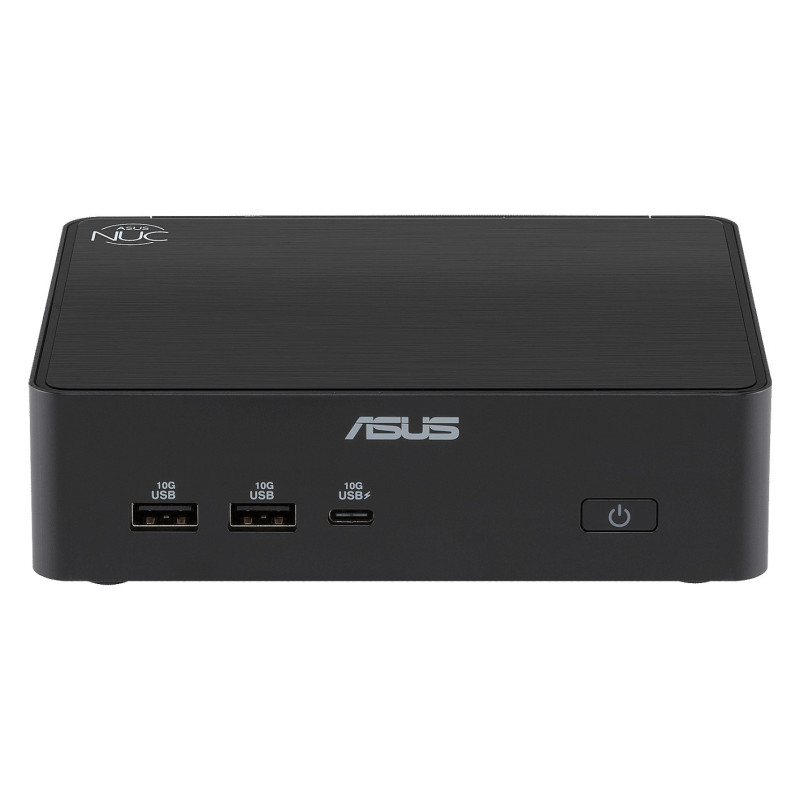

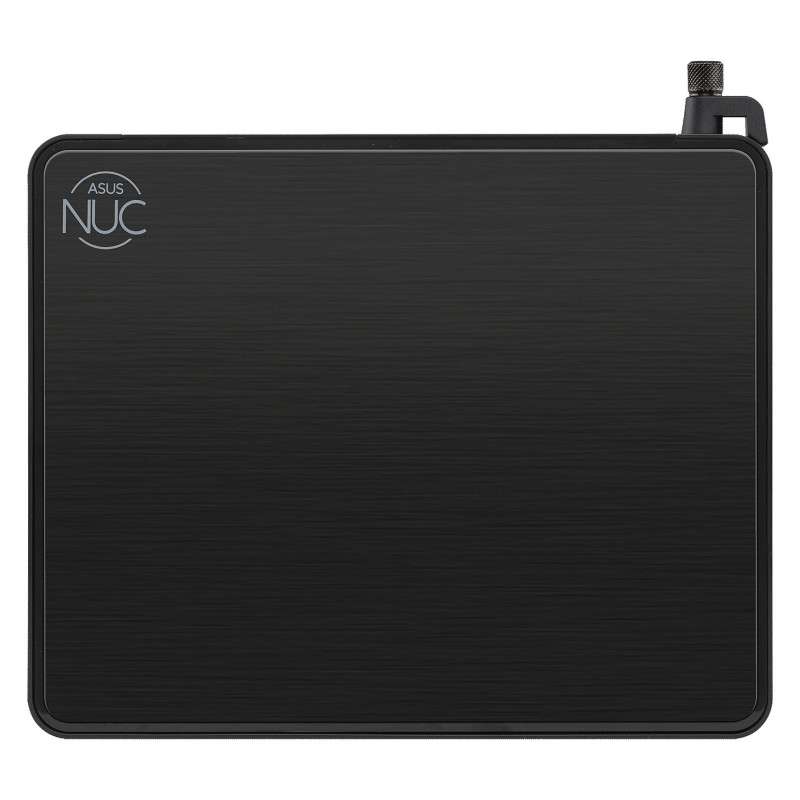

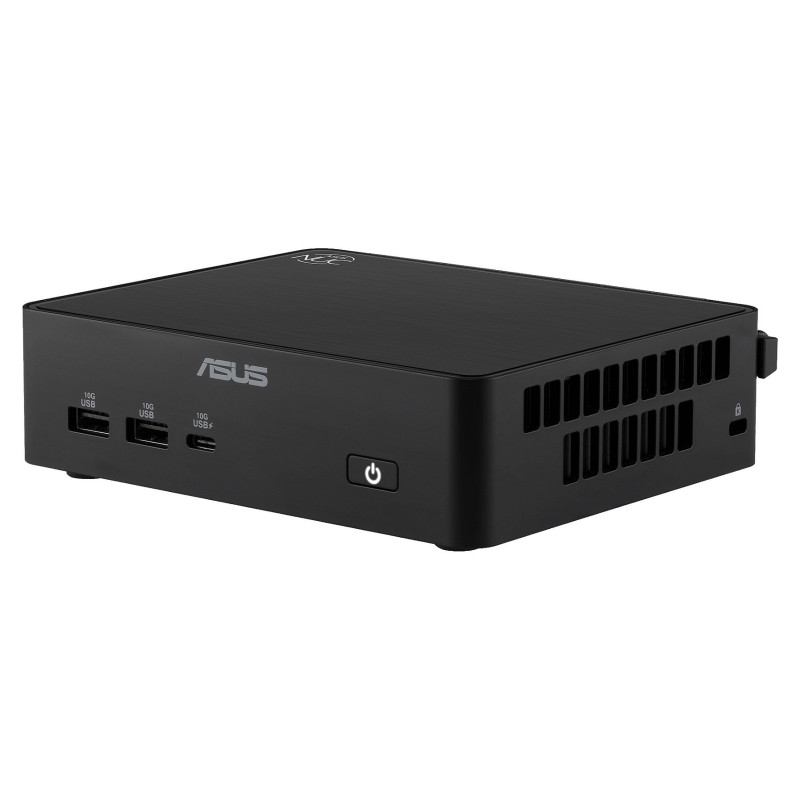

ASUS NUC RNUC16WCKC3072C2

ASUS NUC RNUC16WCKC3072C2. Processor family: Intel Core 3, Processor model: 304. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 585.6 g. Product colour: Black

Faster, Smarter, More Secure
For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.

Processor

Processor manufacturer: Intel
Processor family: Intel Core 3
Processor generation: Intel Core (Series 3)
Processor model: 304
Processor cores: 5
Processor threads: 5
Processor boost frequency: 4.3 GHz
Performance cores: 1
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.3 GHz
Low Power Efficient-core Max Turbo Frequency: 3.3 GHz
Performance-core base frequency: 1.5 GHz
Low Power Efficient-core Base Frequency: 1400 MHz
Processor cache: 6 MB
Processor cache type: Smart Cache
Processor base power: 15 W
Maximum turbo power: 35 W

Neural processor unit (NPU)

Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to: 15 TOPs
GPU performance up to: 9 TOPs

Memory

Internal memory: 16 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM

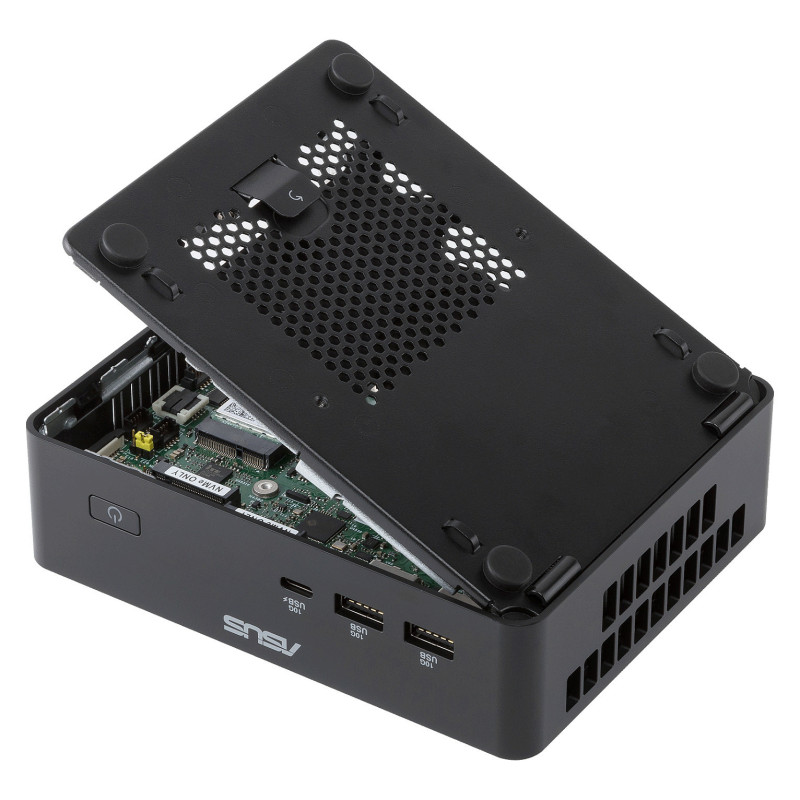

Memory slots: 2x SO-DIMM

Storage

Total storage capacity: 256 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Market positioning: Home & office
Product type: Mini PC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 2500 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 6.0

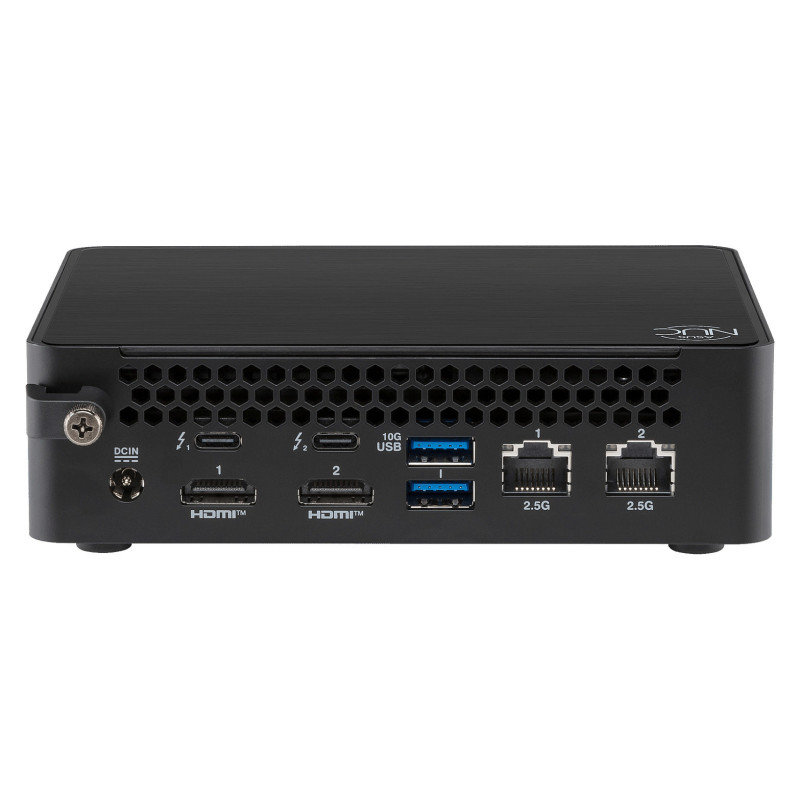

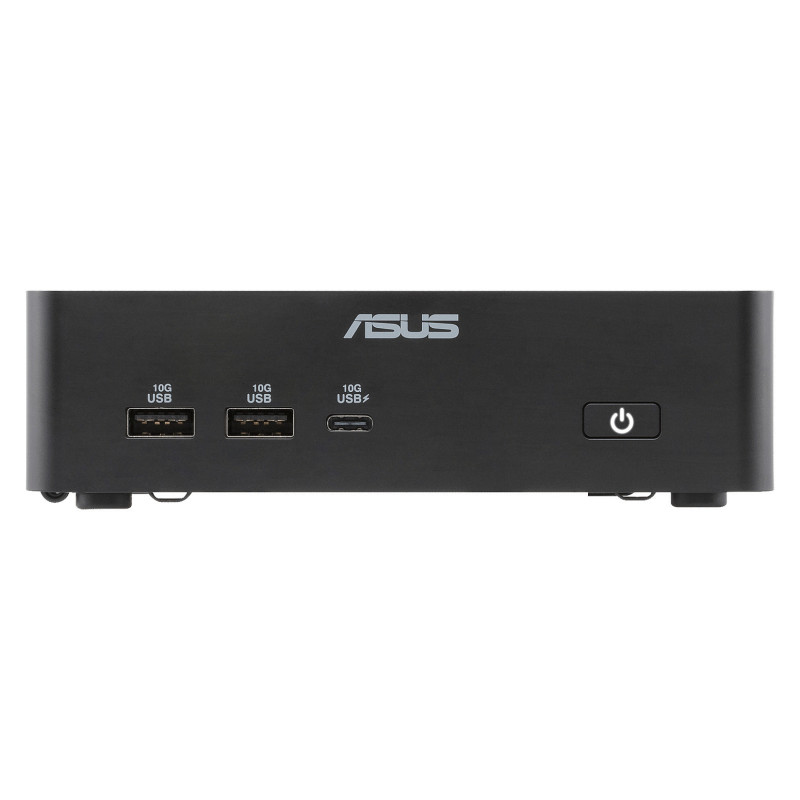

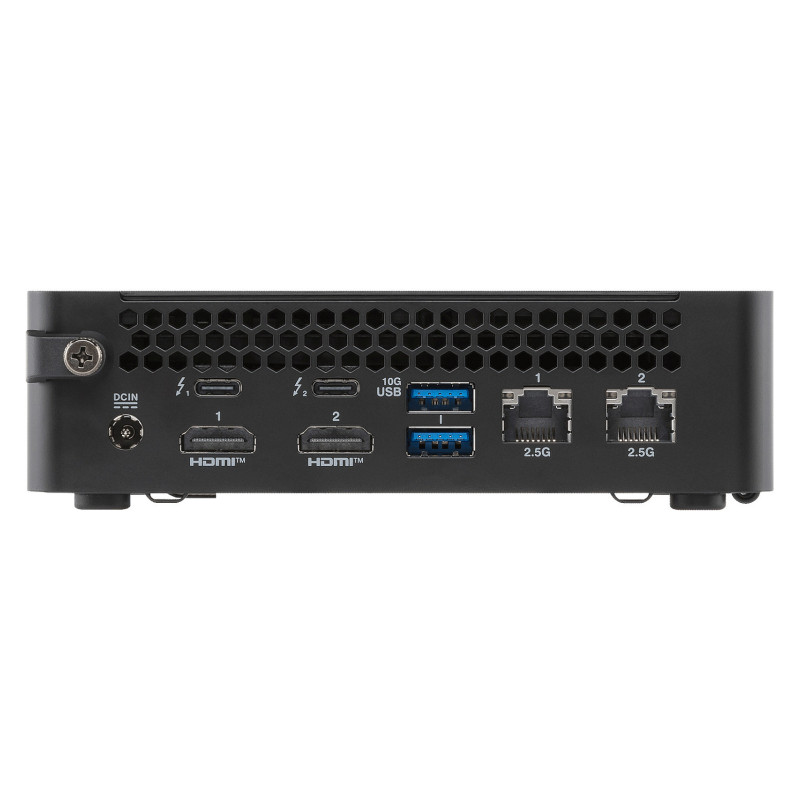

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 2

Design

Chassis type: Mini PC
Colour name: Black

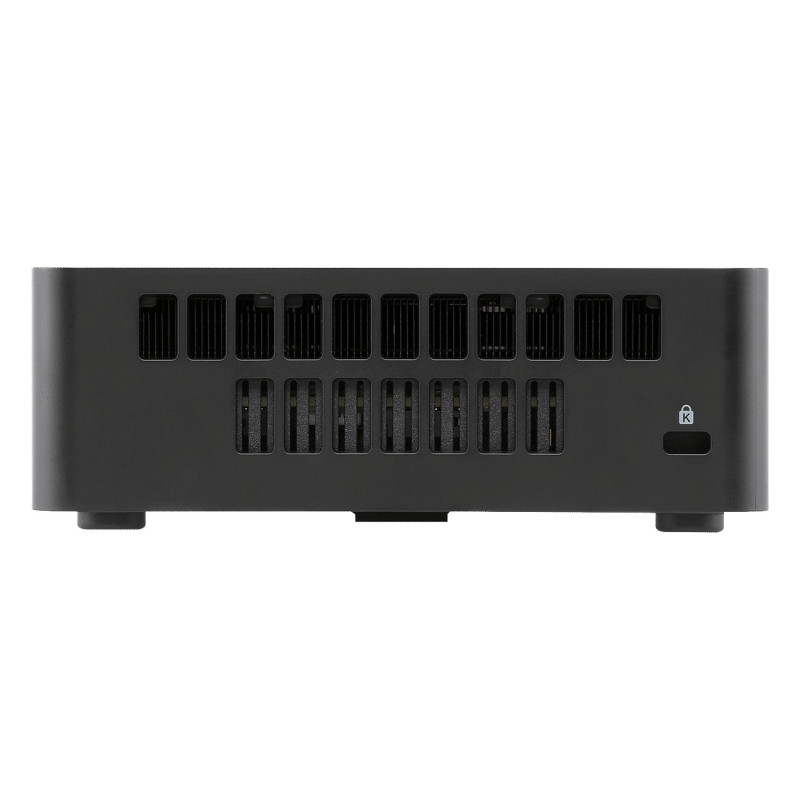

Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Introduction year: 2026

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Weight & dimensions

Width: 144 mm
Depth: 117 mm
Height: 42 mm
Weight: 585.6 g

Packaging data

Package width: 183 mm
Package depth: 151 mm
Package height: 127 mm
Package weight: 1.4 kg
