ASUS NUC 15 Pro+ RNUC15CRSU500002

ASUS NUC 15 Pro+ RNUC15CRSU500002. Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 192 GB. Supported storage drive types: SSD, Storage drive interface: M.2, Maximum storage capacity: 2000 TB. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 5.4. Cooling type: Active. Power supply: 120 W

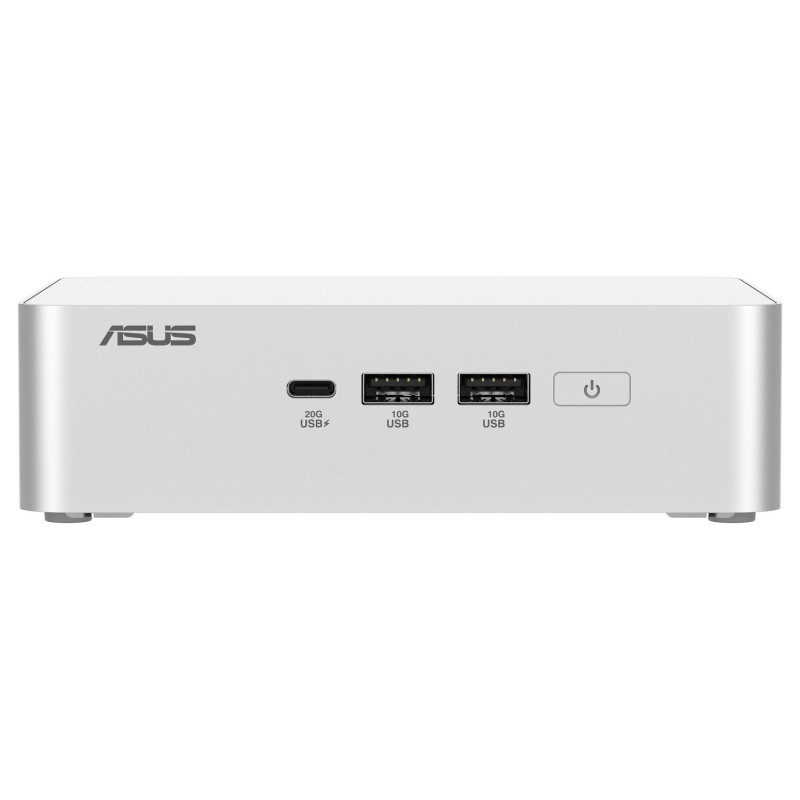

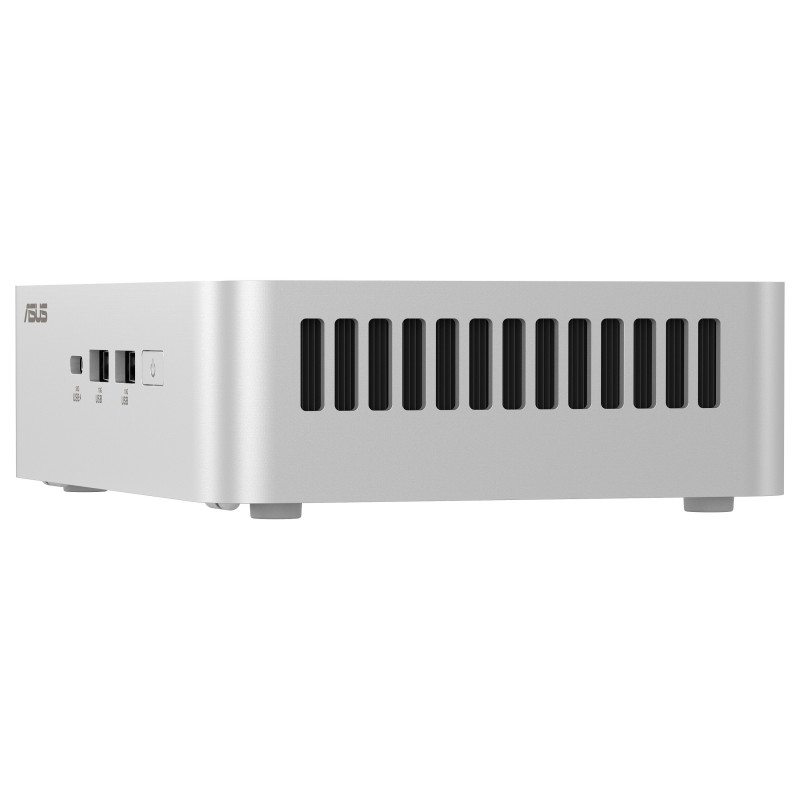

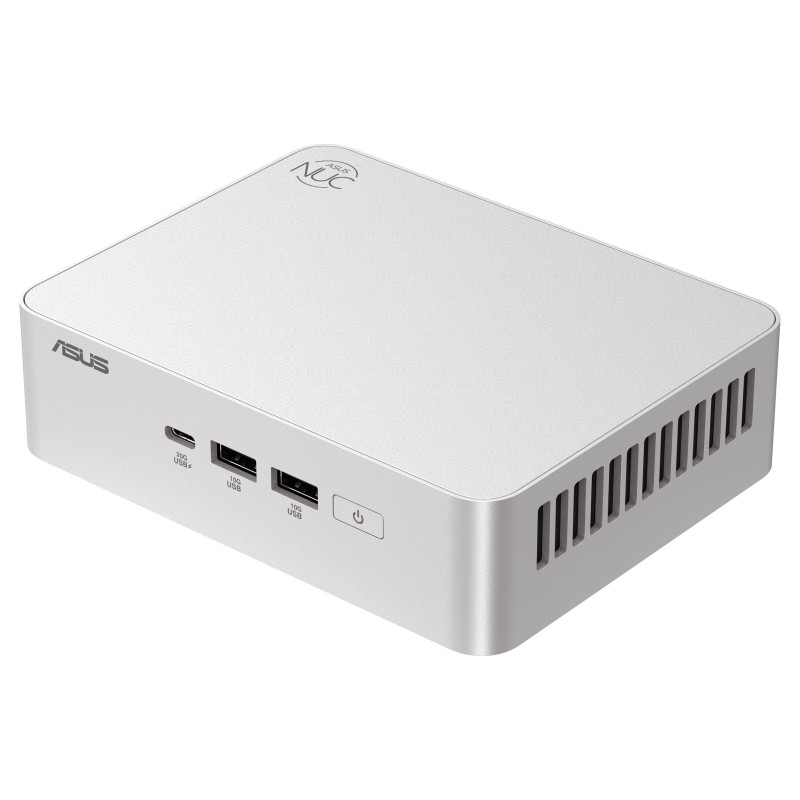

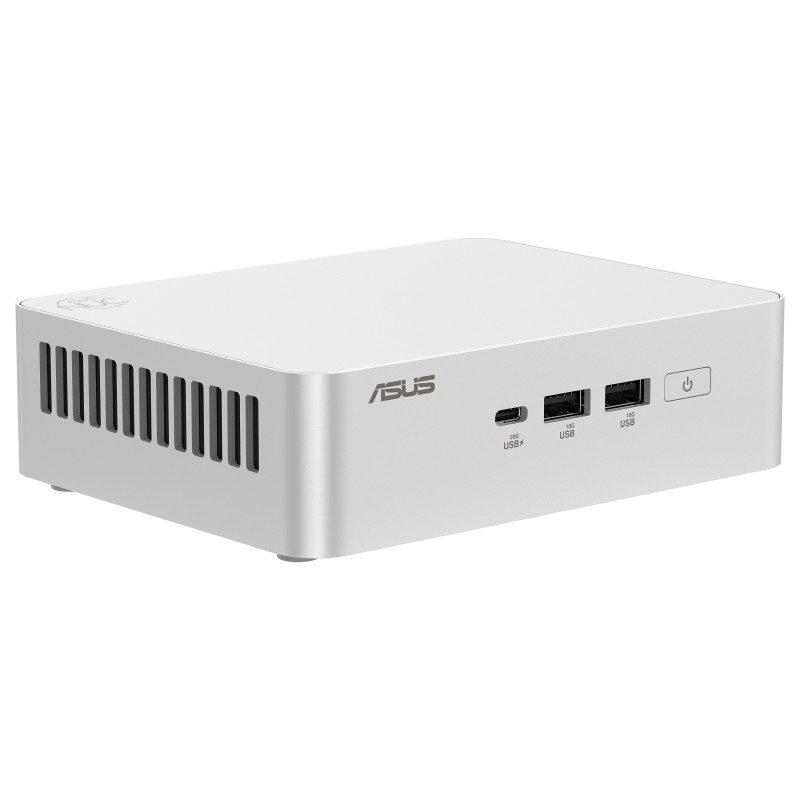

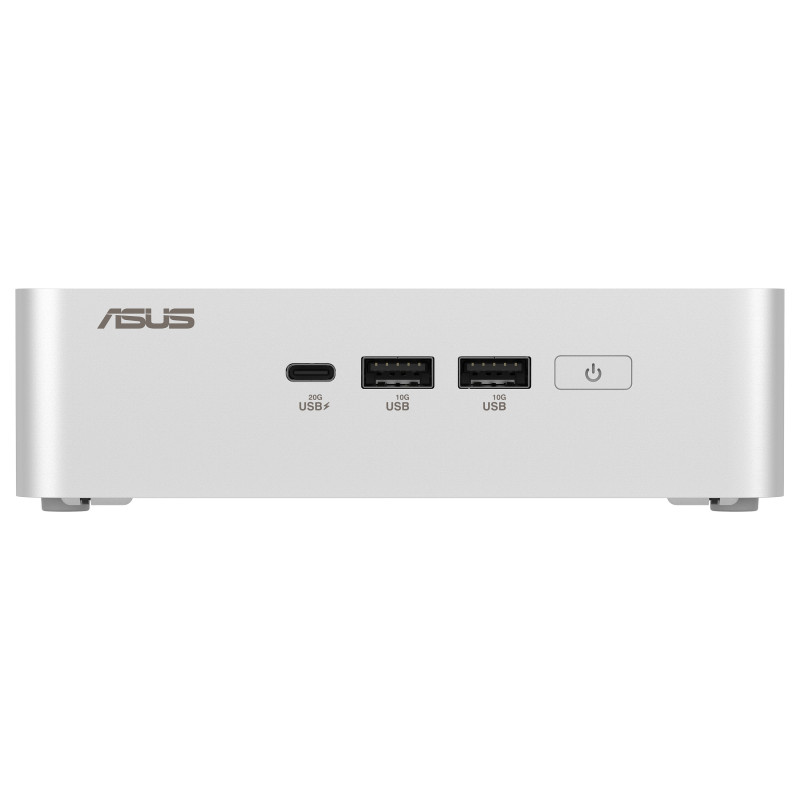

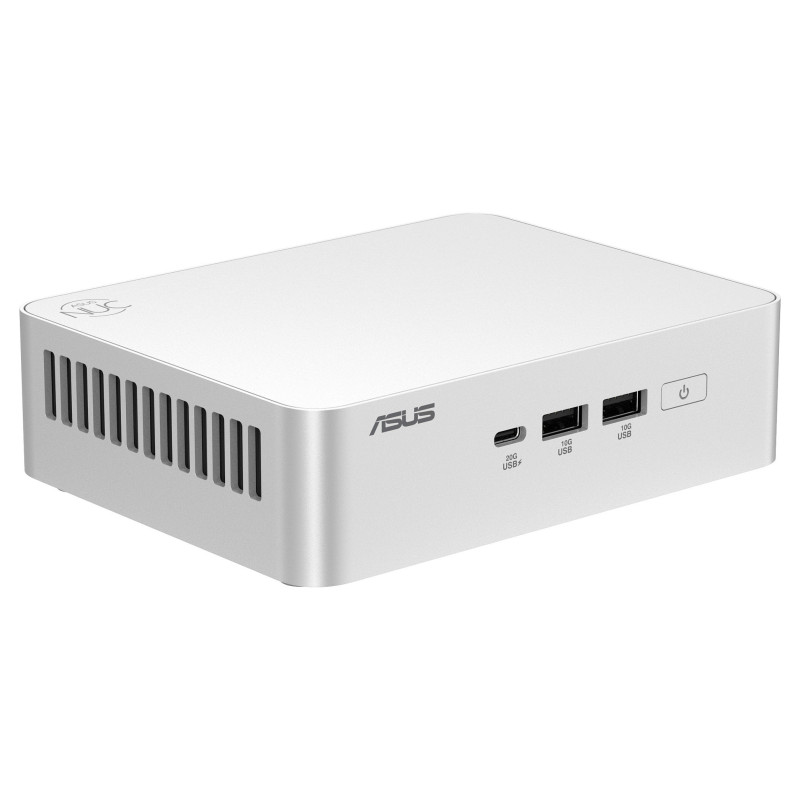

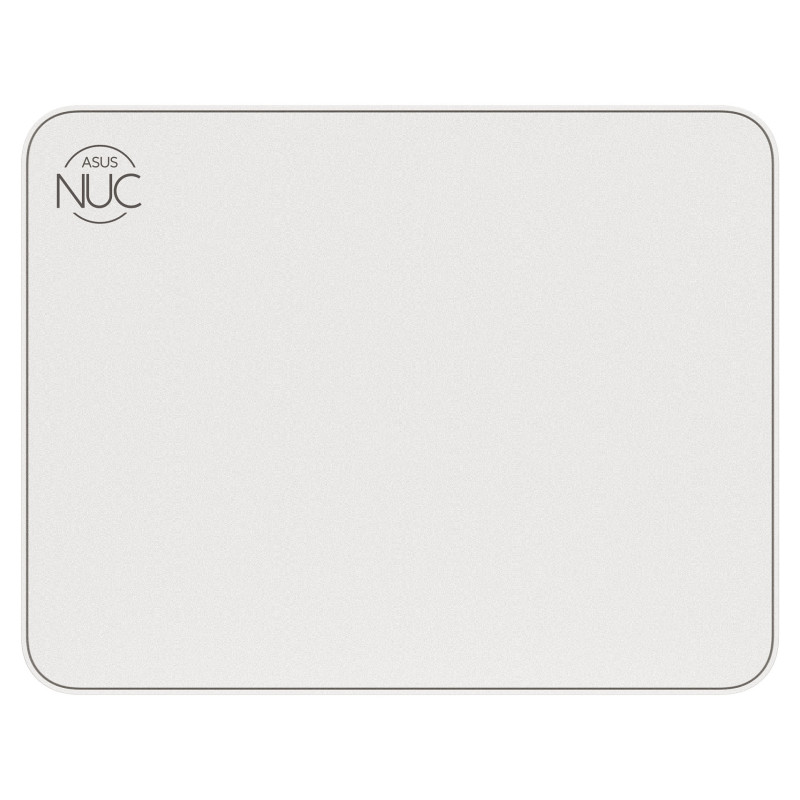

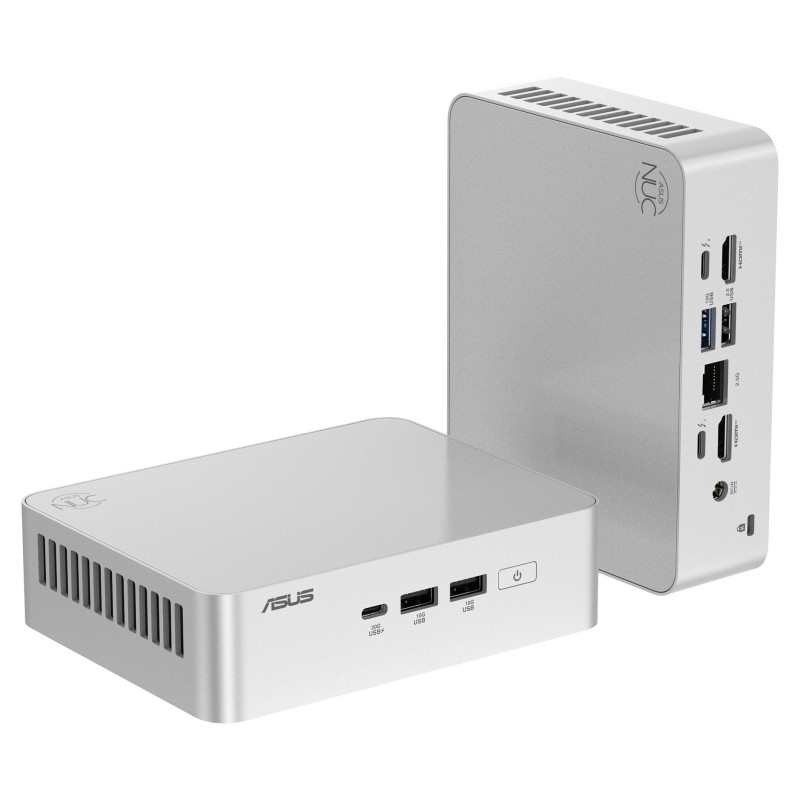

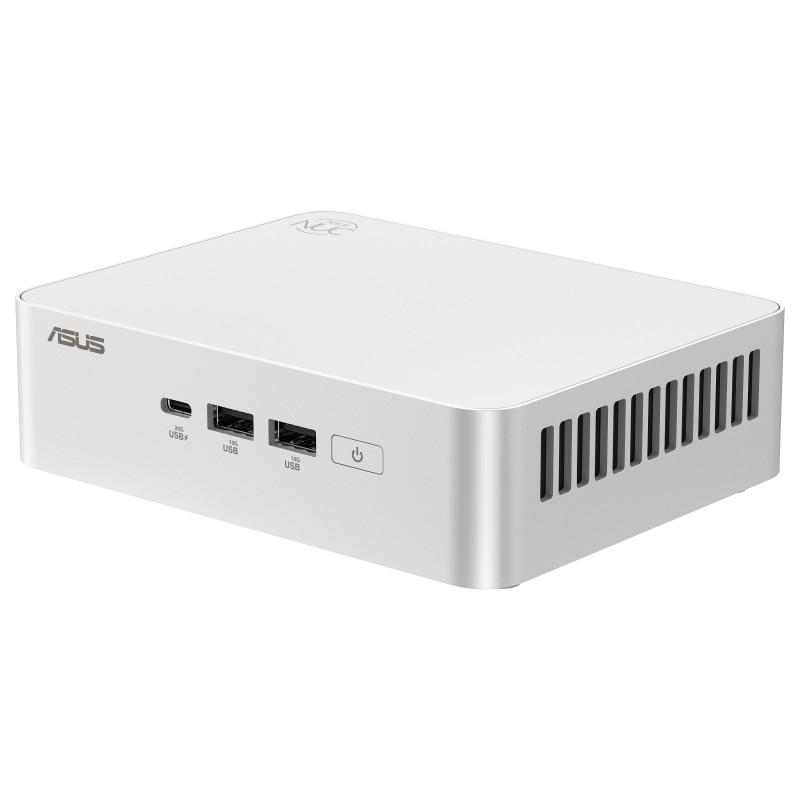

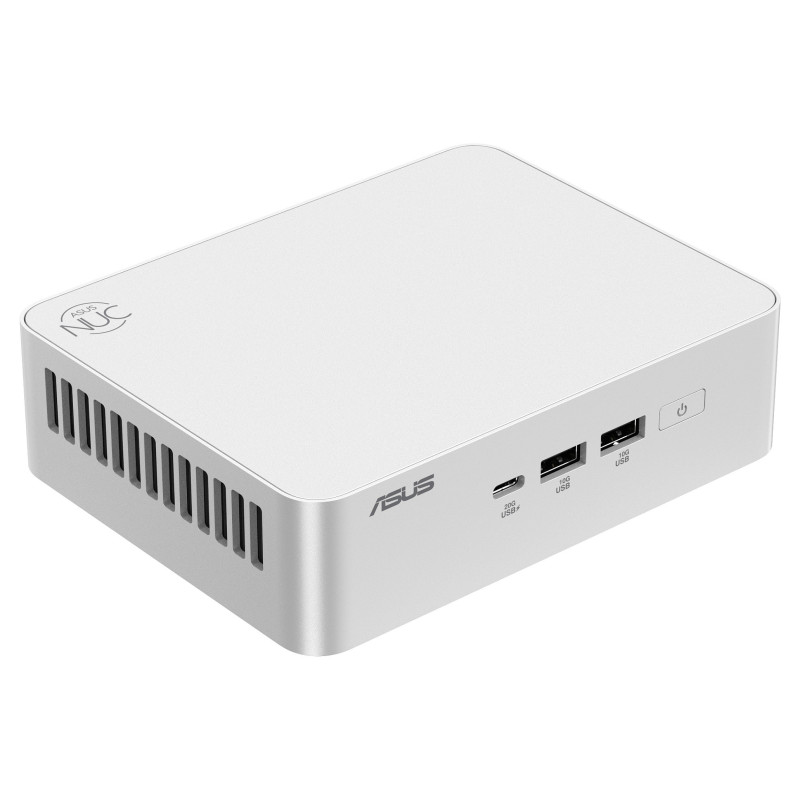

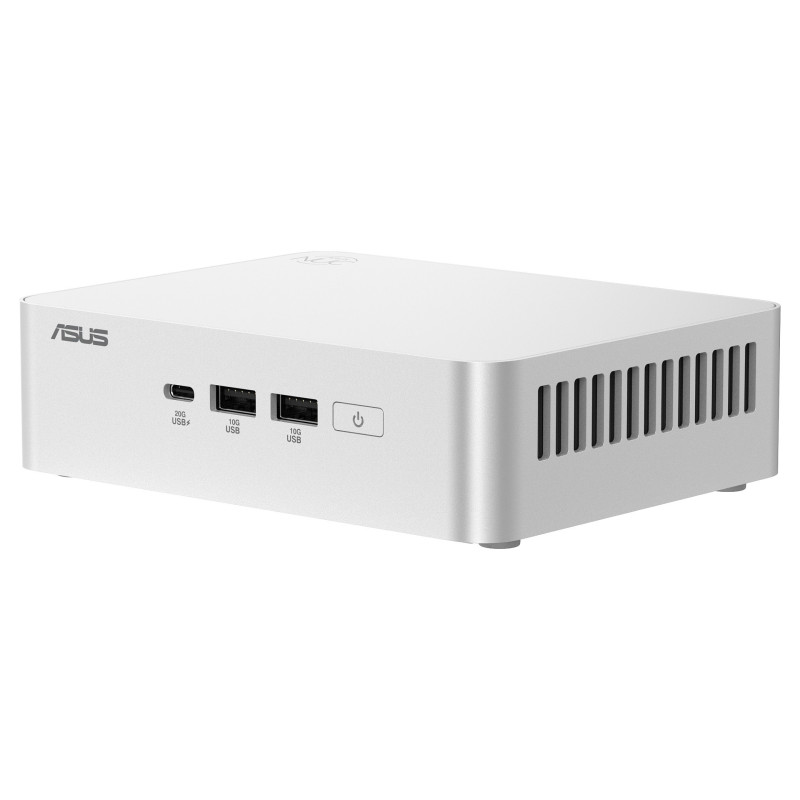

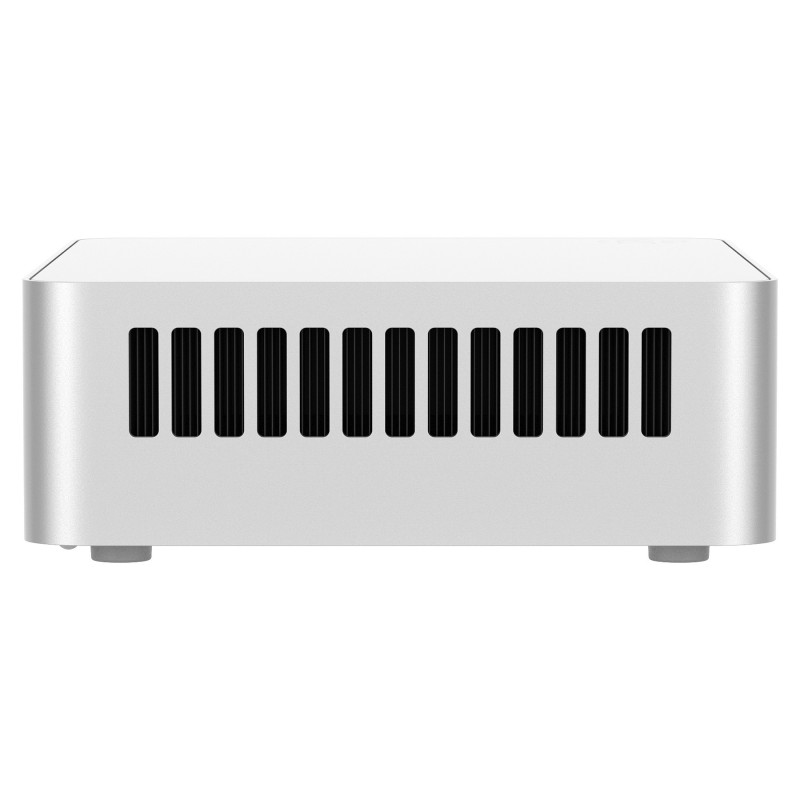

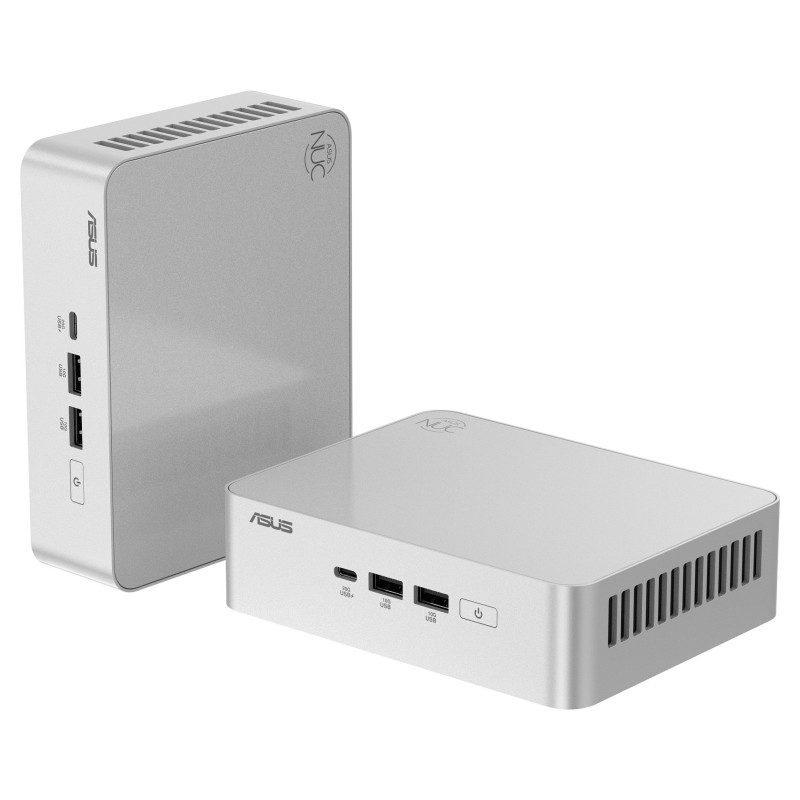

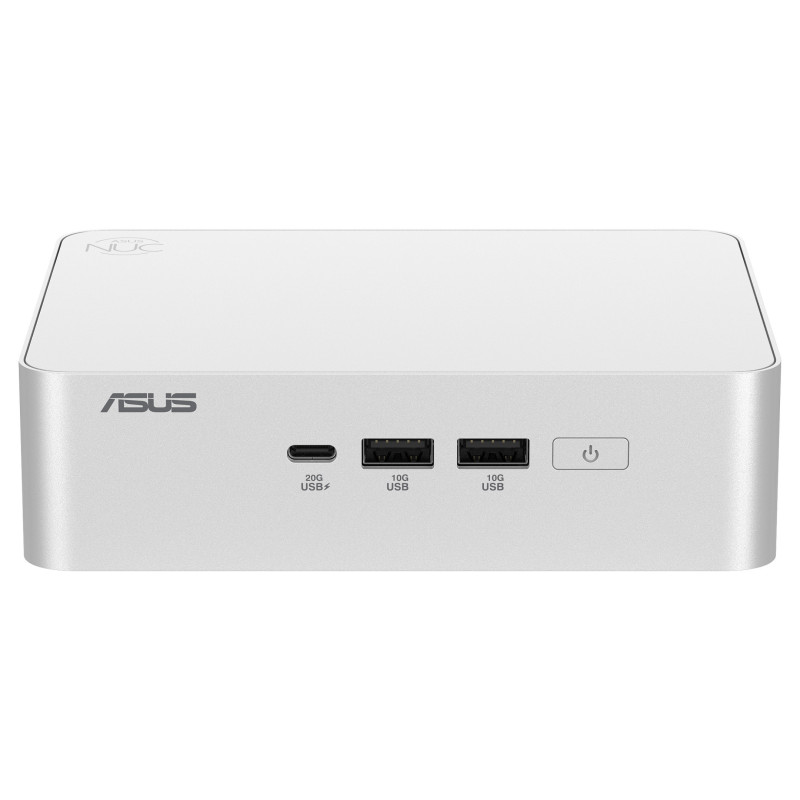

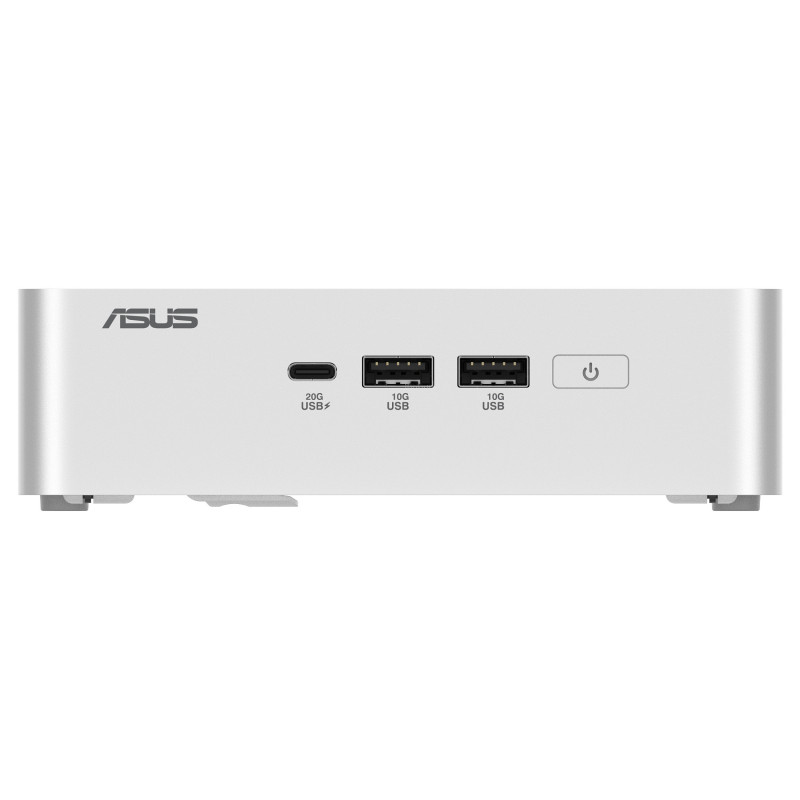

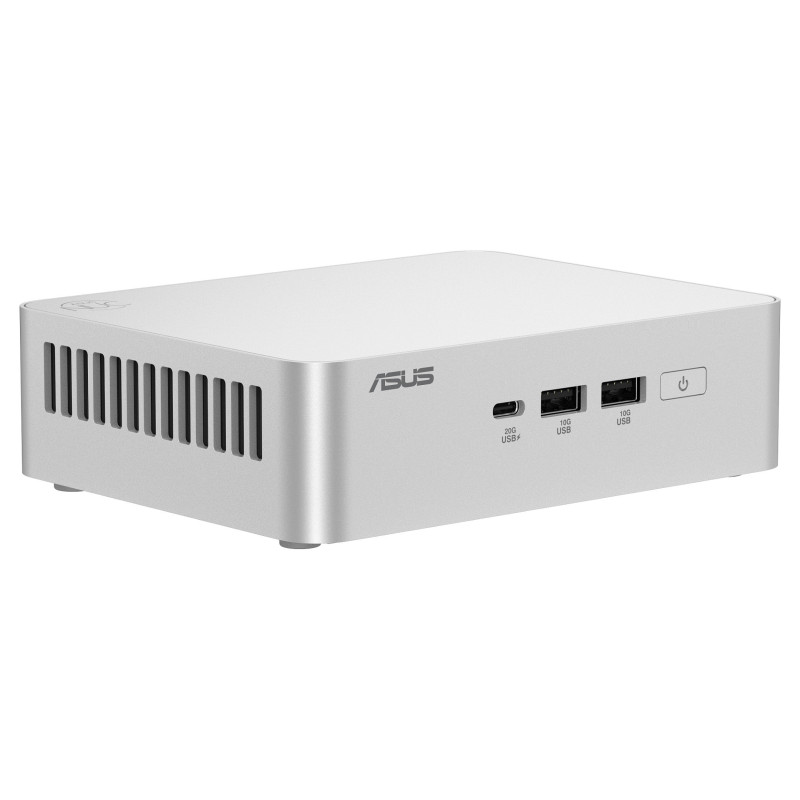

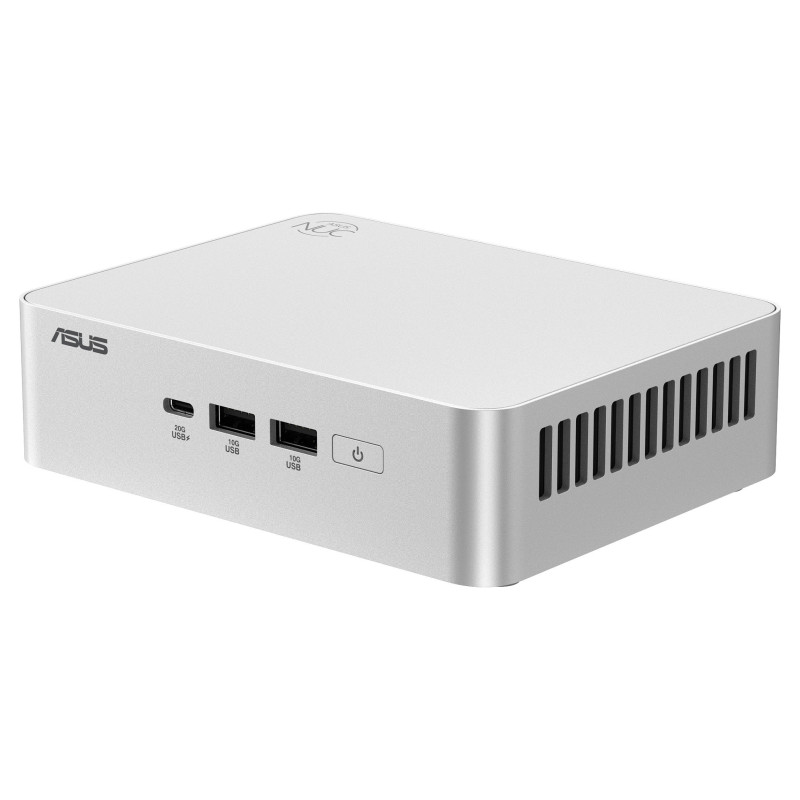

ASUS NUC 15 Pro+
Unleash Ultra Power, Embrace Intelligence
ASUS NUC 15 Pro+ offers a perfect blend of cutting-edge performance and sophisticated design. Powered by the latest-generation Intel® Core™ Ultra 9 processor (Series 2) and Intel Arc™ graphics, NUC 15 Pro+ delivers unparalleled speed and stunning visuals, all in a sleek and compact metal chassis.

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225H
Processor cores: 14
Processor threads: 14
Processor boost frequency: 4.9 GHz
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.3 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 1.7 GHz
Efficient-core base frequency: 1.3 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Built-in processor: Yes
Processor cache: 18 MB

Memory

Internal memory installed: No
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 192 GB
Supported memory clock speeds: 6400 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel

Storage

Storage drives installed: No
Supported storage drive types: SSD
Storage drive sizes supported: M.2
Storage drive interface: M.2
Number of storage drives supported: 1
Maximum storage capacity: 2000 TB

Graphics

On-board graphics card: Yes
Graphics card family: Intel
On-board graphics card model: Intel Arc 130T

Audio

Built-in speaker(s): No

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: Intel Wi-Fi 7 BE201
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth: Yes
Bluetooth version: 5.4

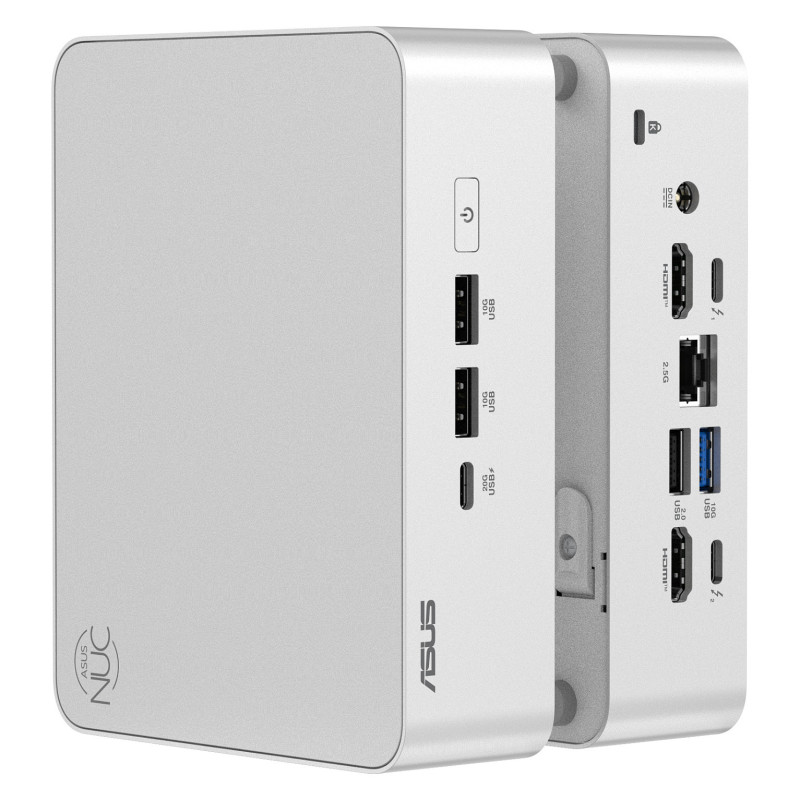

Ports & interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Thunderbolt 4 ports quantity: 2
DC-in jack: Yes

Design

Product colour: White
Cooling type: Active
On/off switch: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington
Product type: Mini PC barebone

Power

Power supply type: External AC adapter
Power supply: 120 W
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A

Weight & dimensions

Width: 144 mm
Depth: 112 mm
Height: 42 mm
Weight: 600 g
