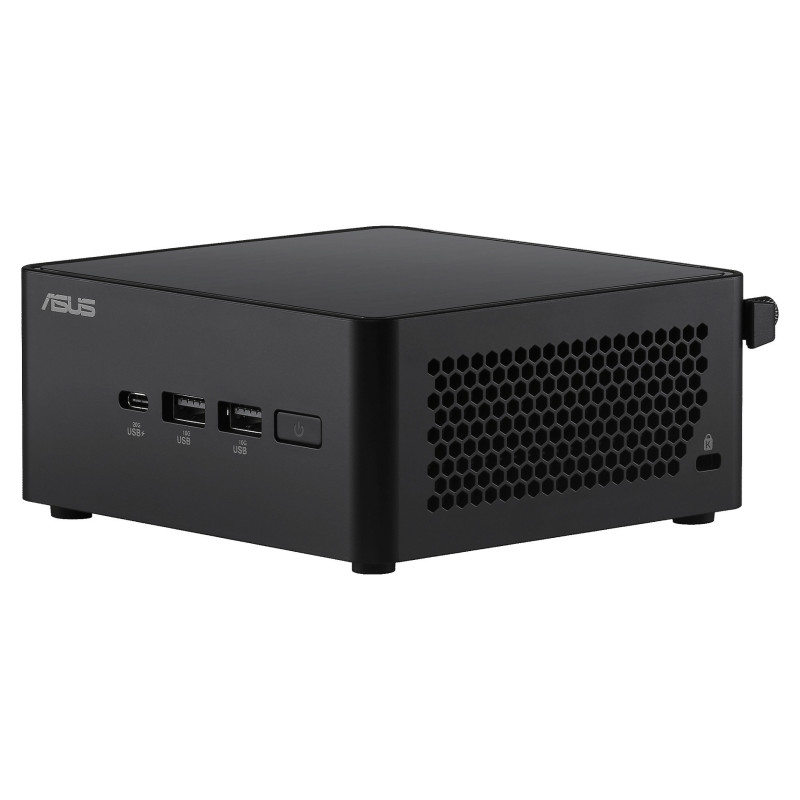

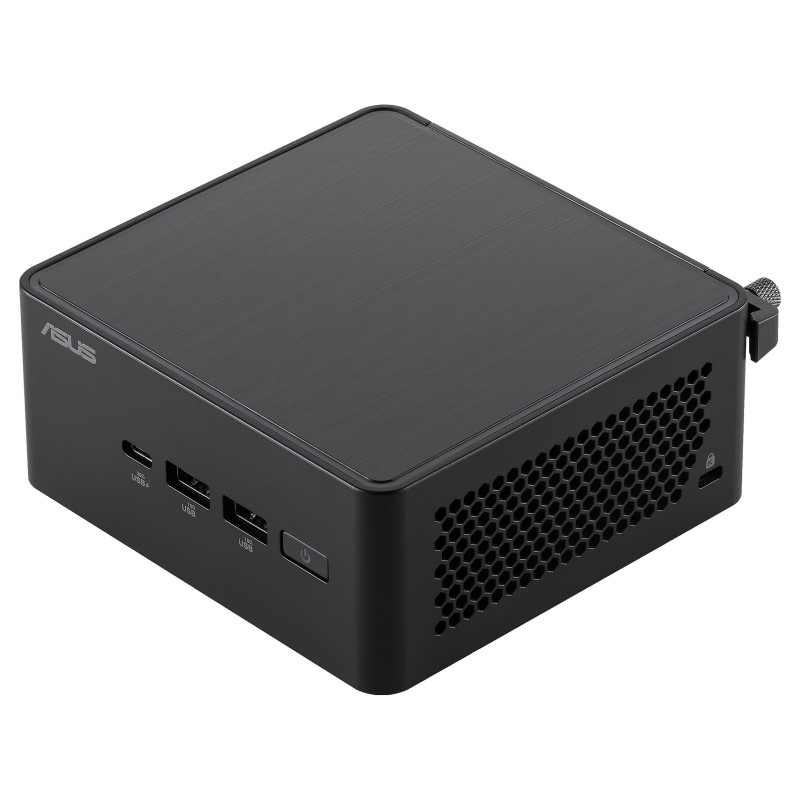

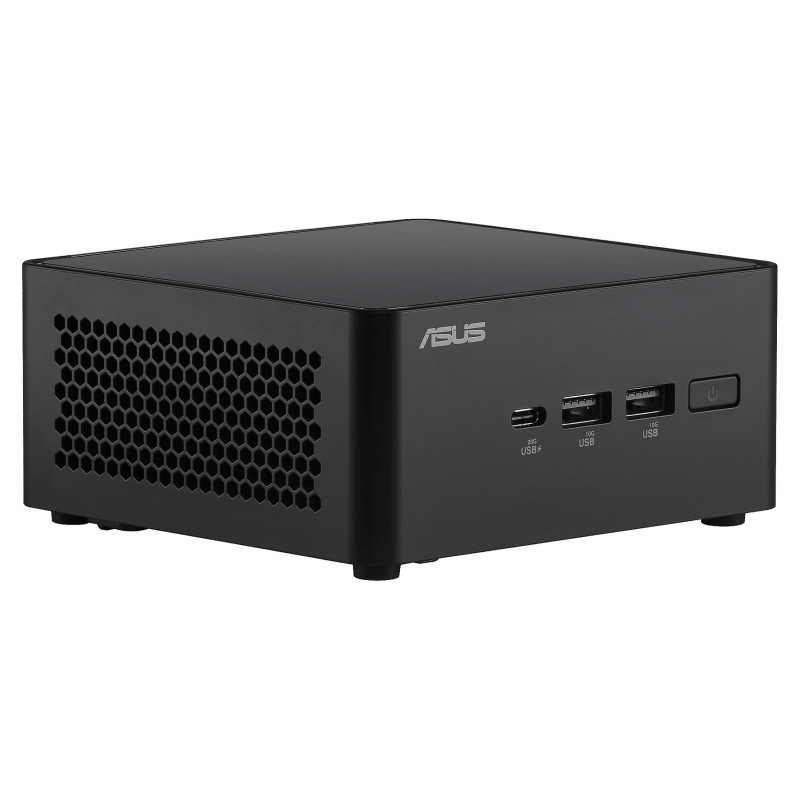

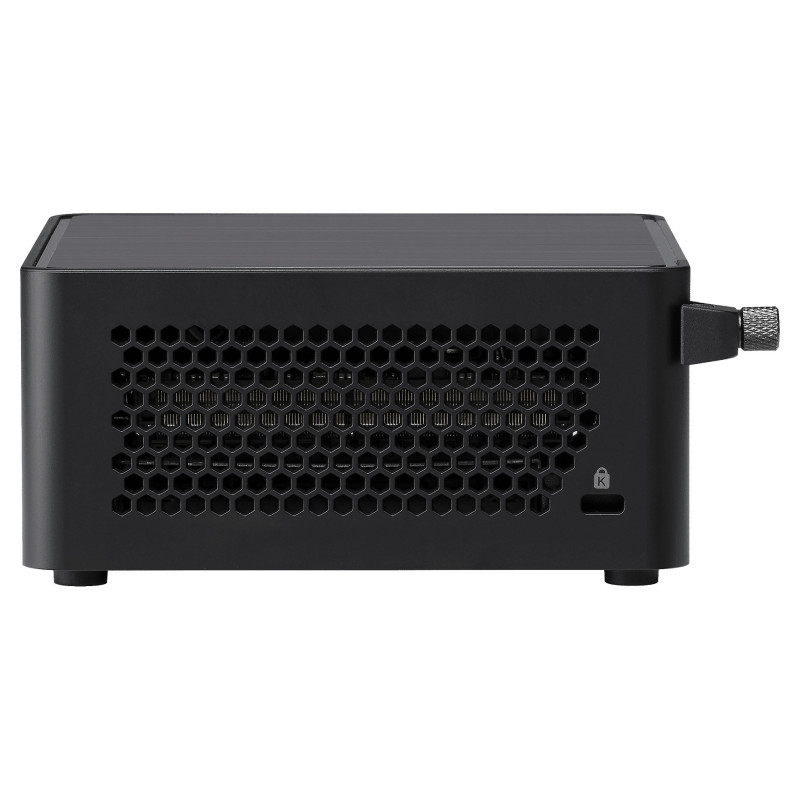

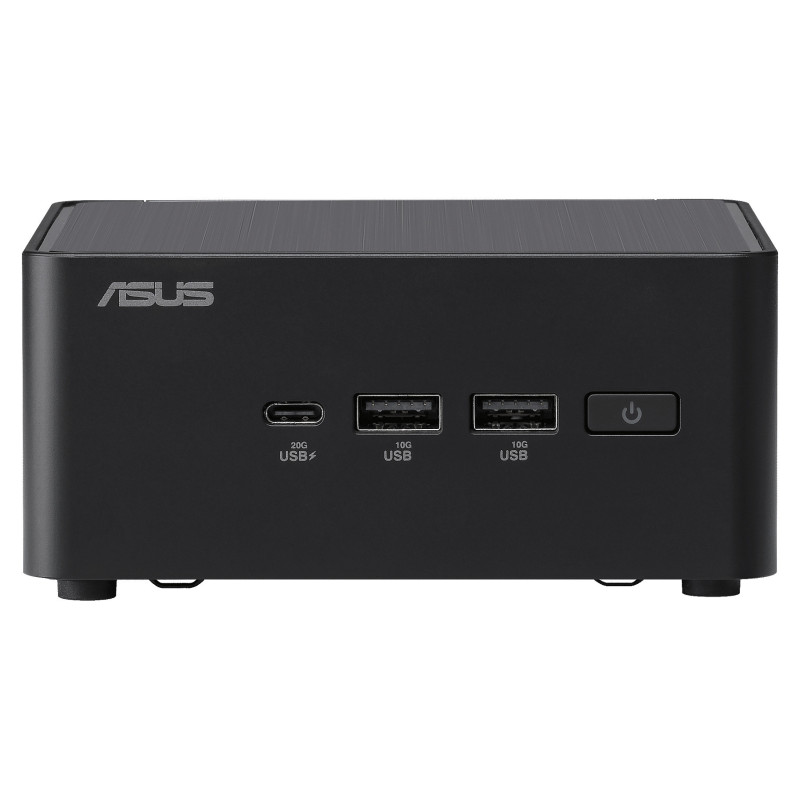

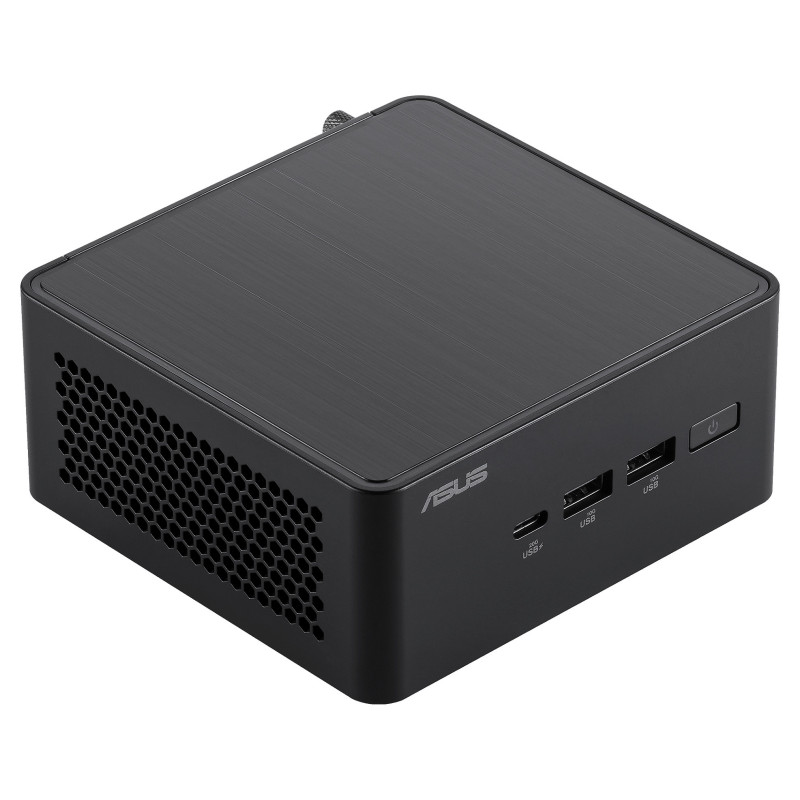

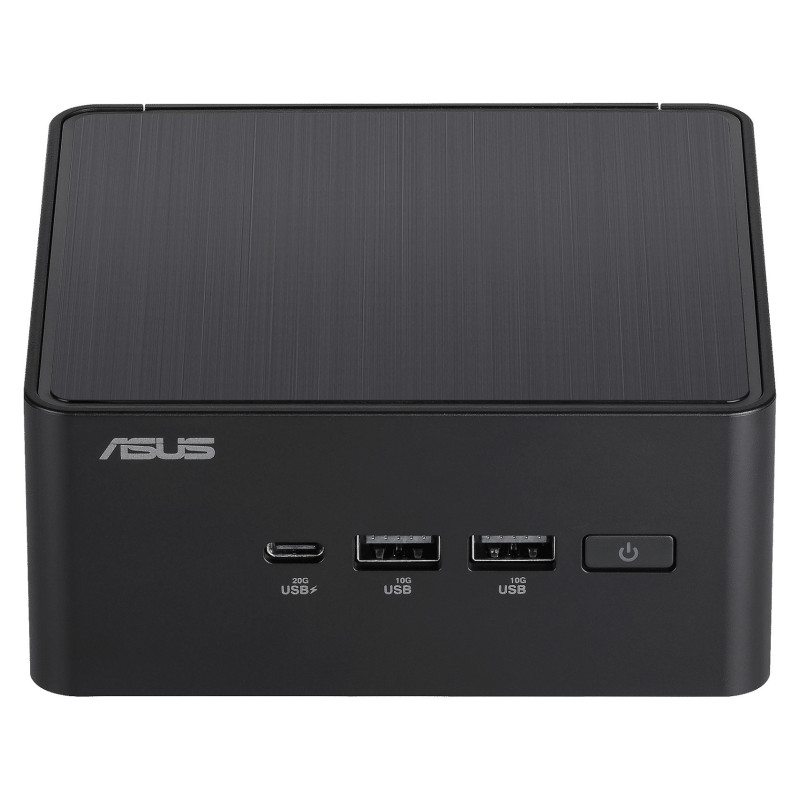

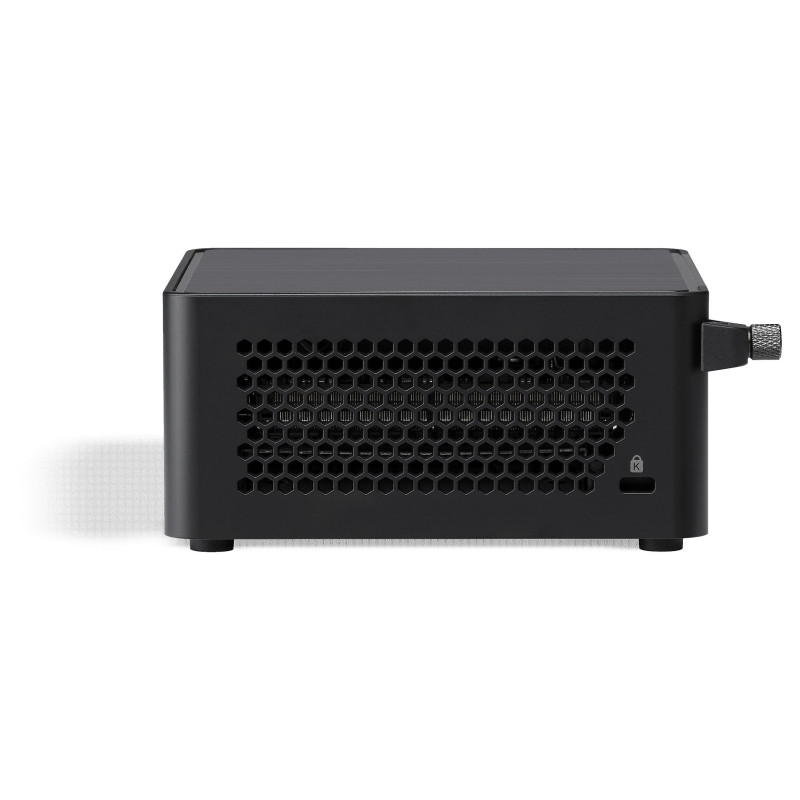

ASUS NUC 14 Pro Tall Mini PC RNUC14RVHU5068C0I

ASUS NUC 14 Pro Tall Mini PC RNUC14RVHU5068C0I. Processor family: Intel Core Ultra 5, Processor model: 125H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: UCFF. Product type: Mini PC. Weight: 750 g. Product colour: Black

Compact Power, Intelligent Performance

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.

With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

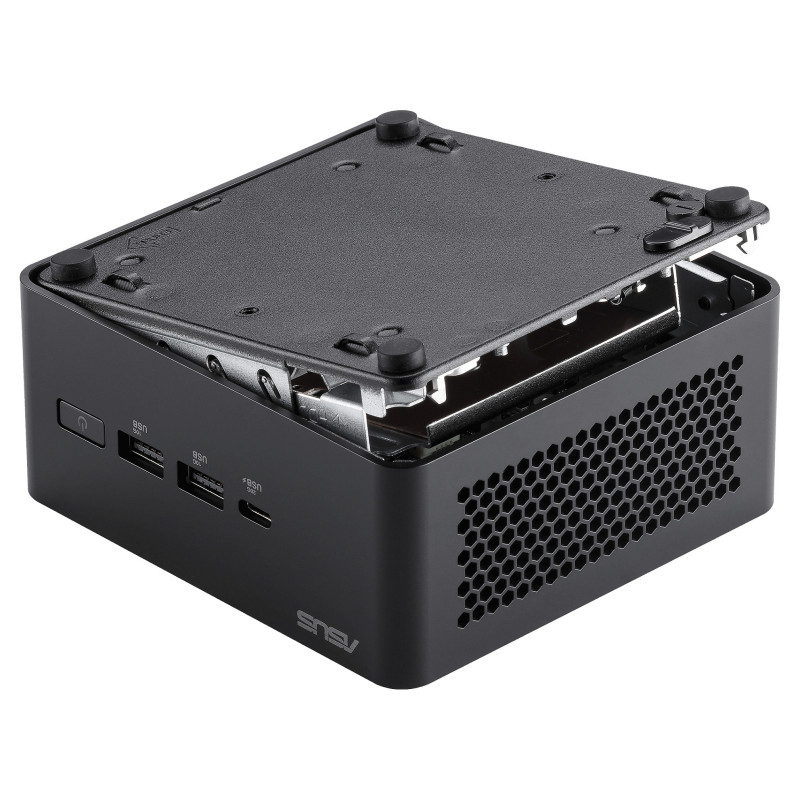

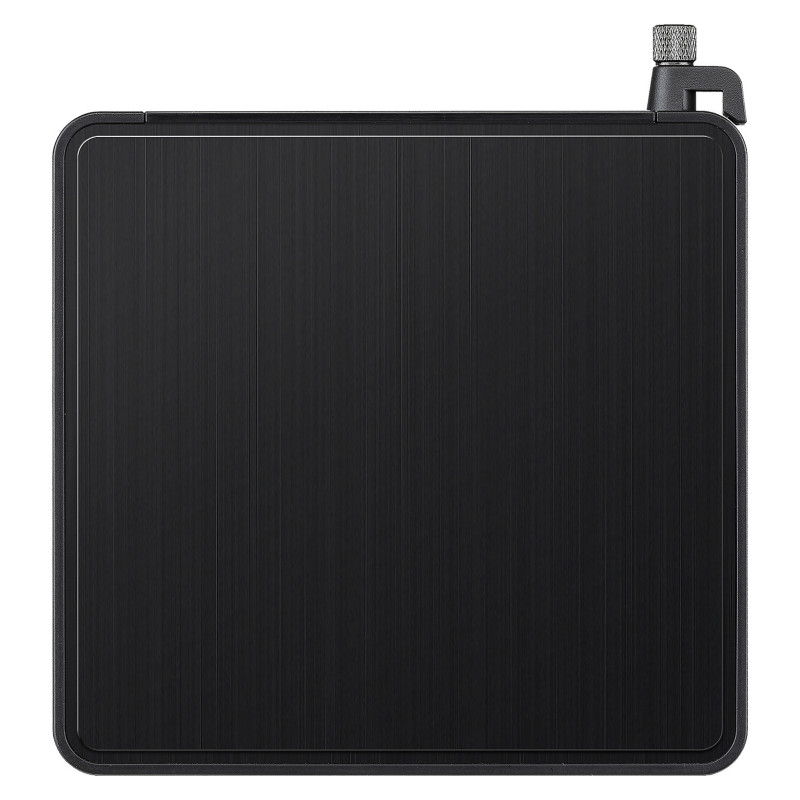

Toolless Design
ASUS NUC 14 Pro offers toolless access to make it easy to open up the chassis to assess the M.2 PCIe SSD module for easy upgrades.

Certified Bluetooth
dongle-free experience
A certified Bluetooth dongle offers hassle-free operation, cost savings, and resolves ITDM issues. It eliminates concerns such as lost dongles, PC Bluetooth compatibility, and USB port limitations on NUC.

The dongle-free approach simplifies pairing, enhances audio quality, and improves control in video collaboration calls.

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 125H
Processor cores: 14
Processor threads: 18
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.5 GHz
Efficient-core Max Turbo Frequency: 3.6 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 1.2 GHz
Efficient-core base frequency: 0.7 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 18 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 28 W
Maximum turbo power: 115 W

Memory

Internal memory: 16 GB
Maximum internal memory: 96 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz
Memory channels: Dual-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,1000,2500,100 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3

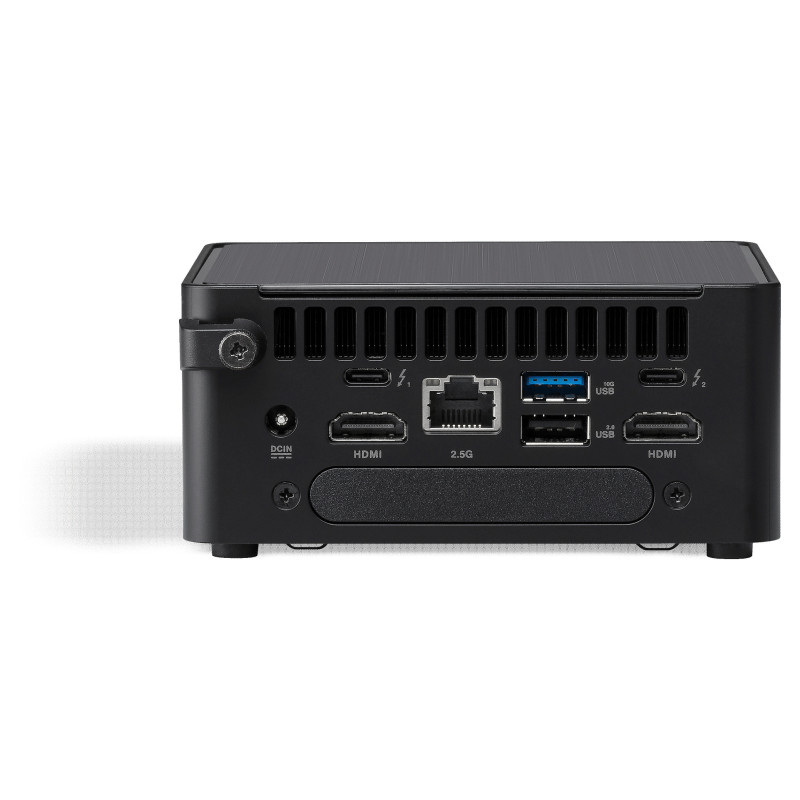

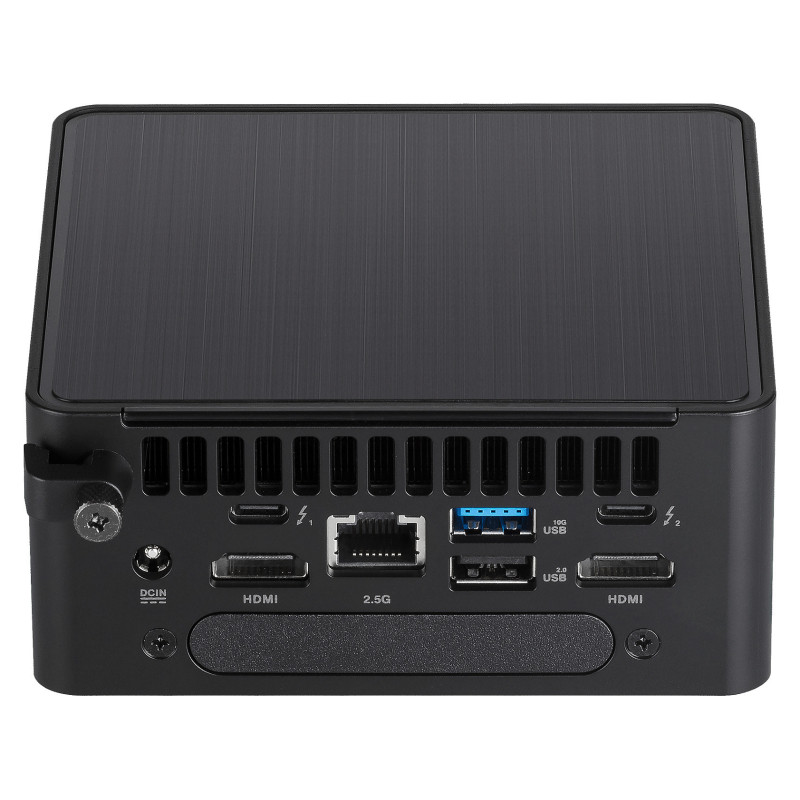

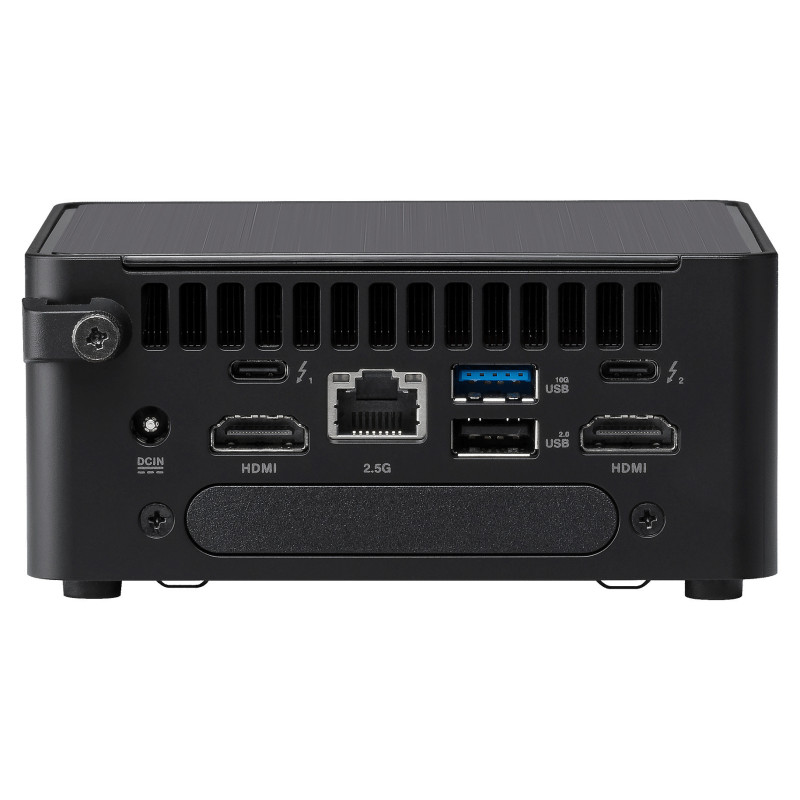

Ports & interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Design

Chassis type: UCFF
Feature: VESA mounting
Number of 2.5" bays: 1
Product colour: Black

Performance

Product type: Mini PC

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Power

Power supply: 120 W

Weight & dimensions

Width: 117 mm
Depth: 112 mm
Height: 54 mm
Weight: 750 g
