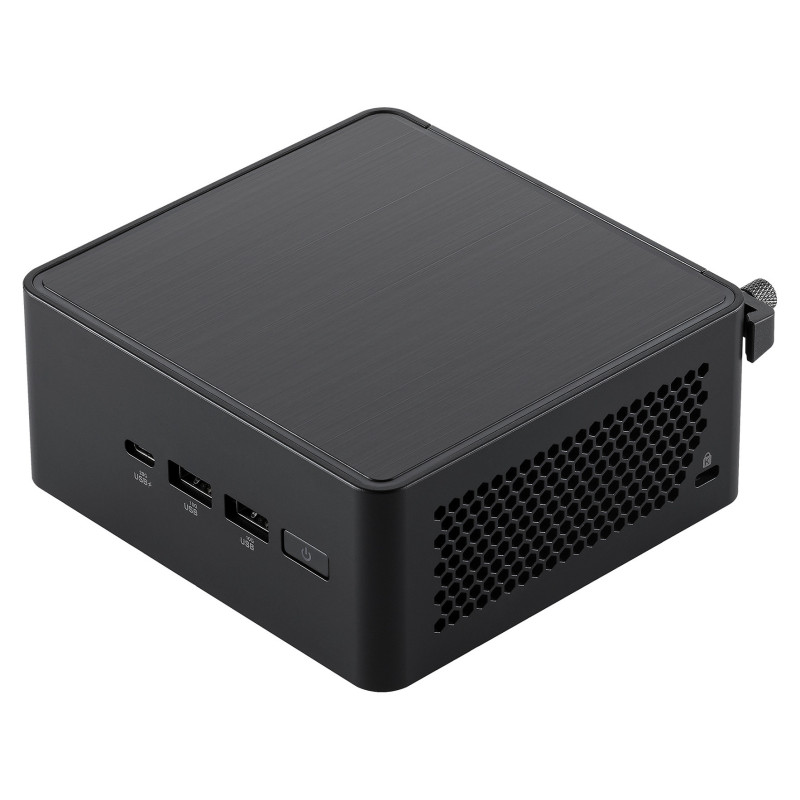

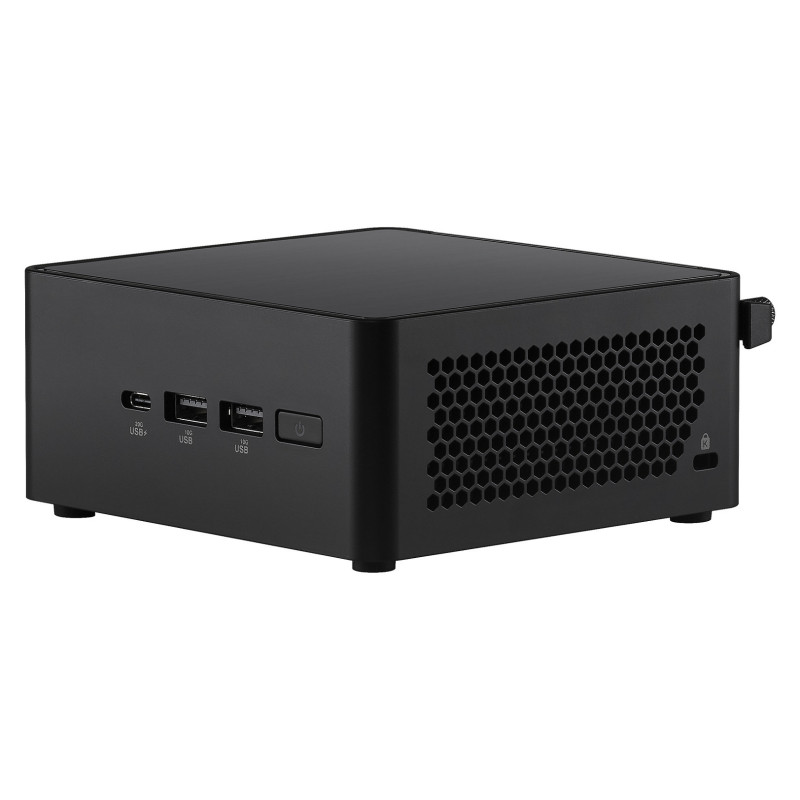

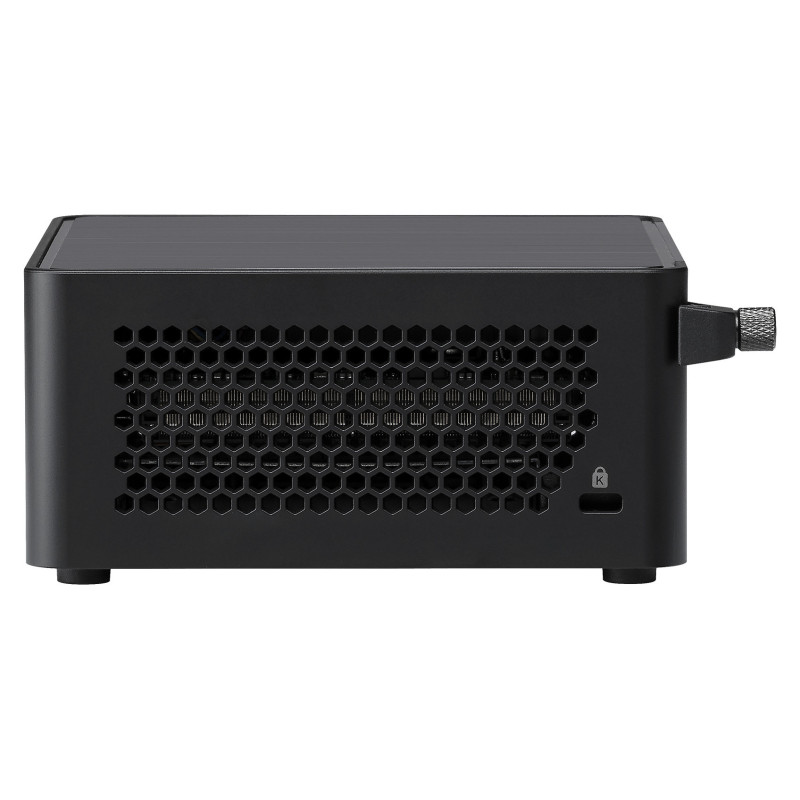

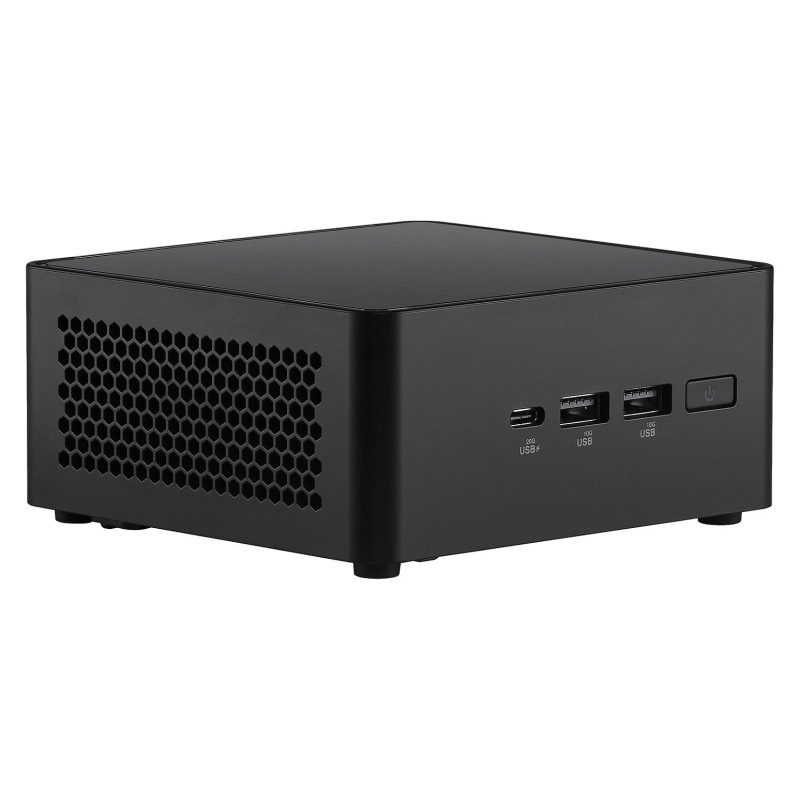

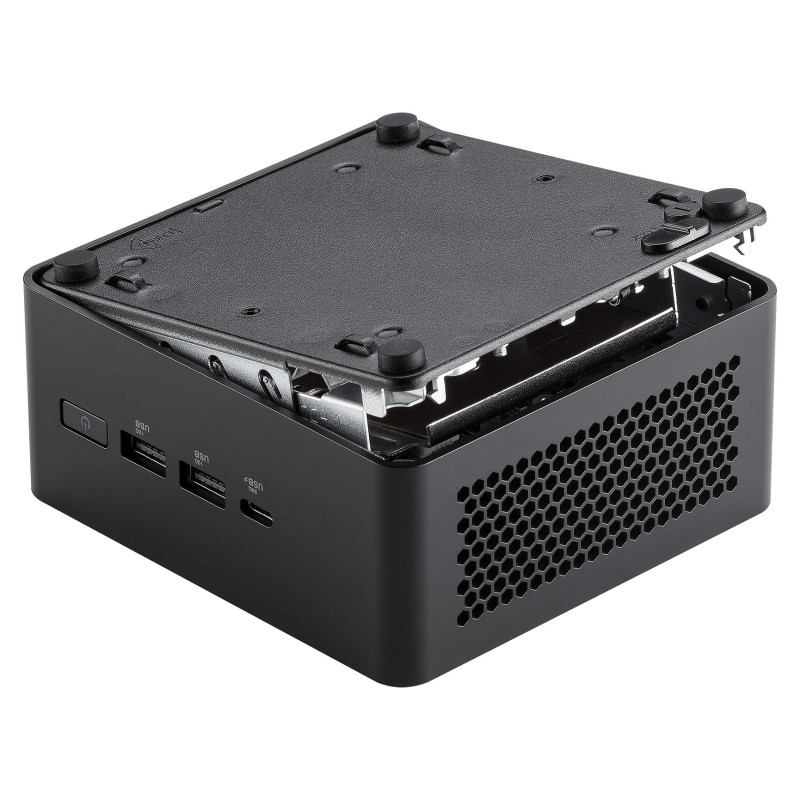

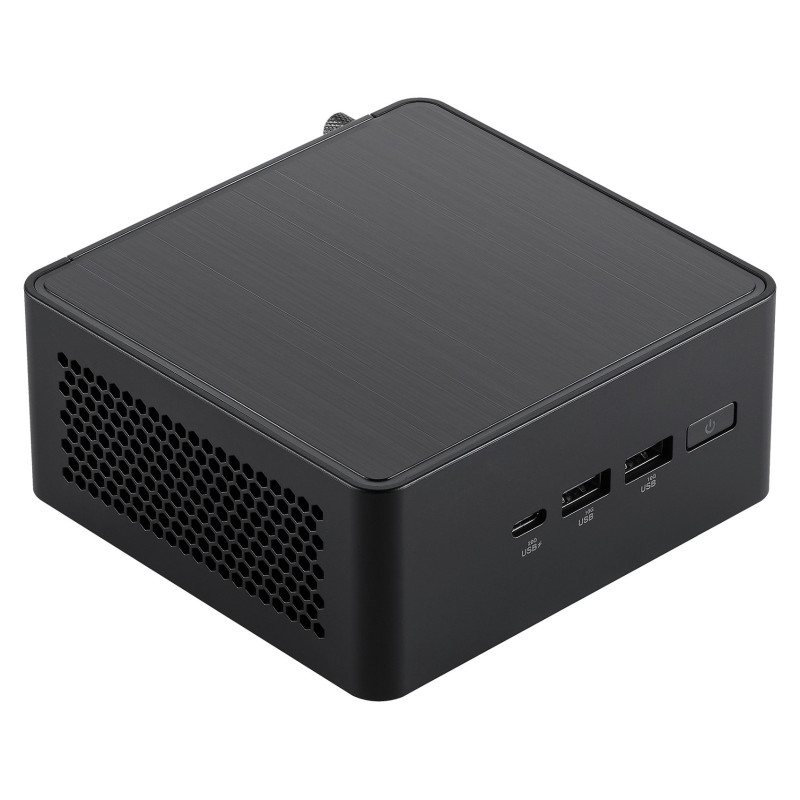

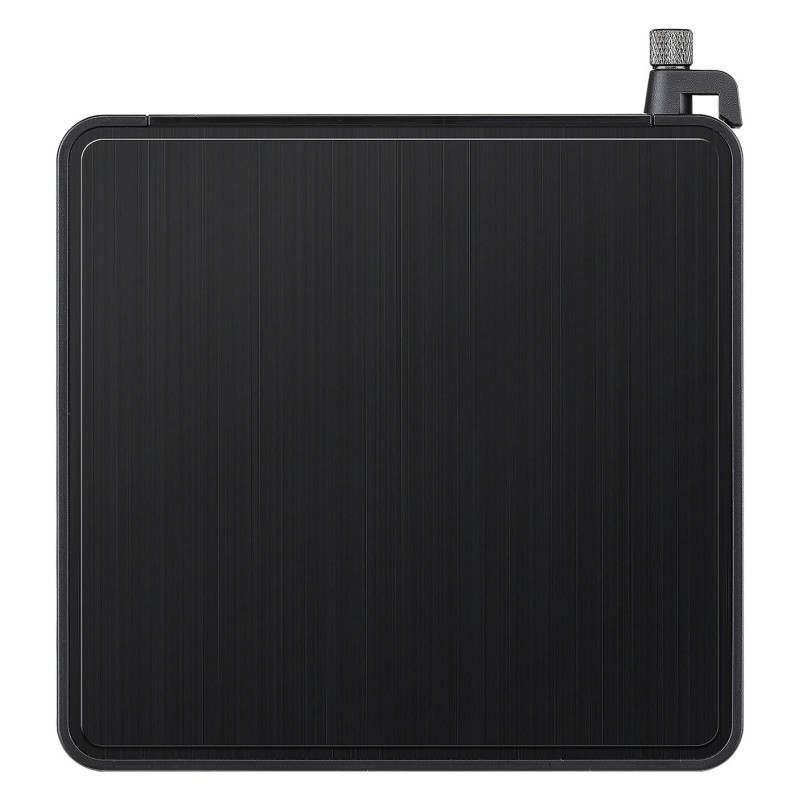

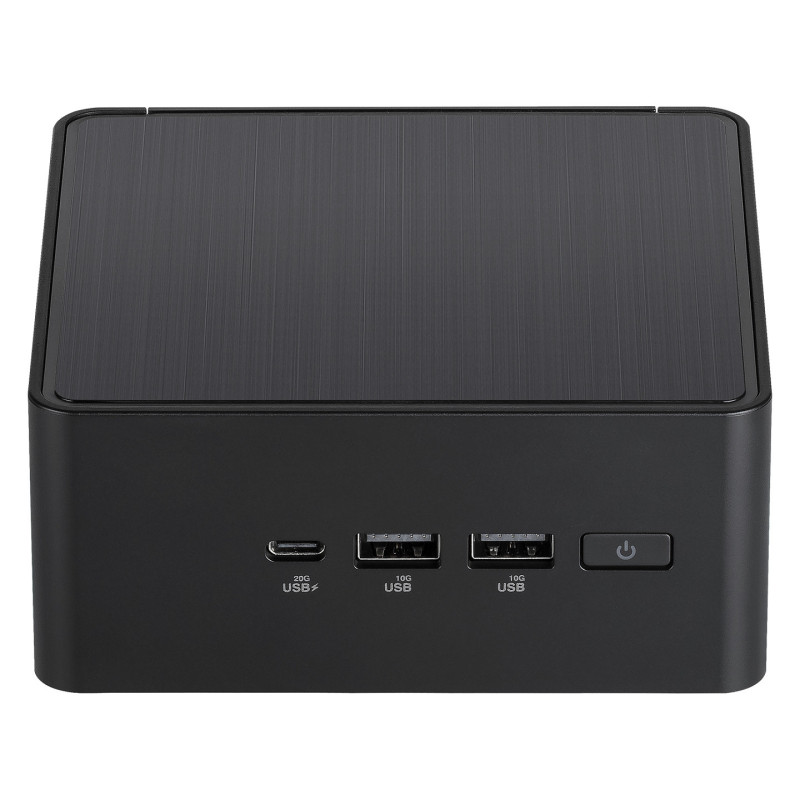

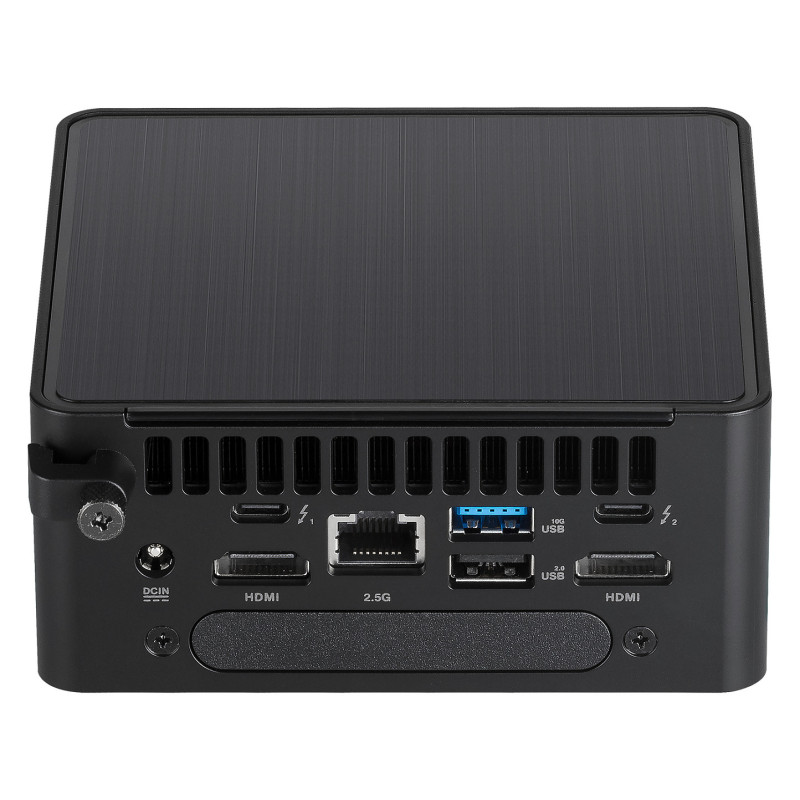

ASUS NUC 14 Pro NUC14RVHi3

ASUS NUC 14 Pro NUC14RVHi3. Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: HDD & SSD. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.

With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Processor

Processor manufacturer: Intel
Processor family: Intel Core 3
Processor generation: Intel Core (Series 1)
Processor model: 100U
Processor cores: 6
Processor threads: 8
Performance cores: 2
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Performance-core base frequency: 1.2 GHz
Efficient-core base frequency: 0.9 GHz
Feature: Built-in processor
Processor cache: 10 MB

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 96 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM

Storage

Supported storage drive types: HDD & SSD
Storage drive sizes supported: M.2,2.5
SSD form factor: M.2
Feature: NVMe

Graphics

Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel Graphics

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Ethernet LAN
Feature: Wi-Fi
Feature: Bluetooth
Bluetooth version: 5.3

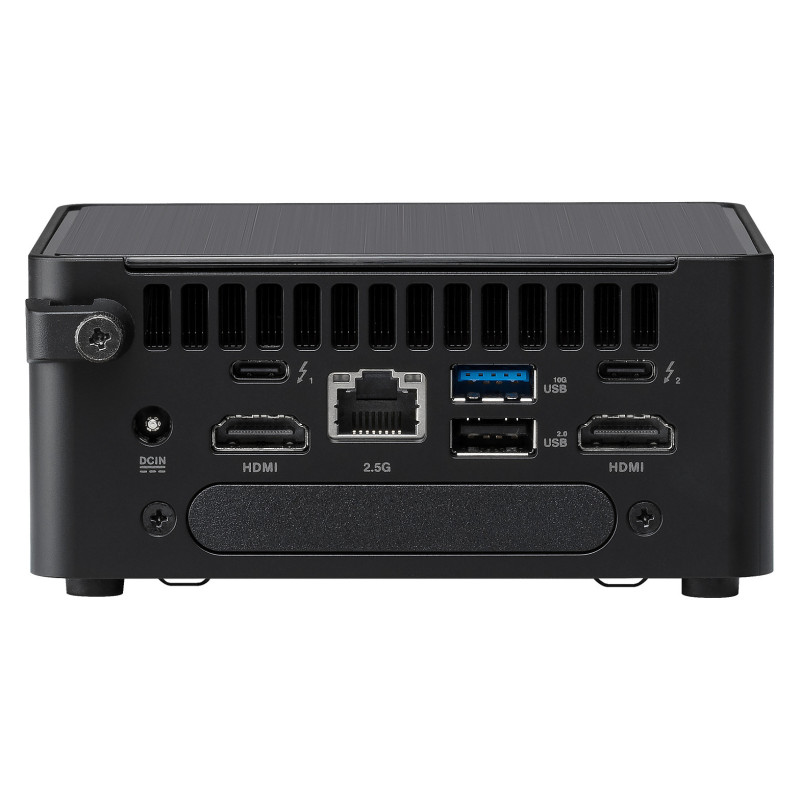

Ports & interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Thunderbolt 4 ports quantity: 2
Feature: DC-in jack

Design

Product colour: Black
Cooling type: Active
Feature: On/off switch
Product type: Mini PC barebone

Software

Windows operating systems supported: Windows 11
Linux operating systems supported: Yes

Power

Power supply type: External AC adapter

Weight & dimensions

Width: 144 mm
Depth: 112 mm
Height: 54 mm
Weight: 570 g
