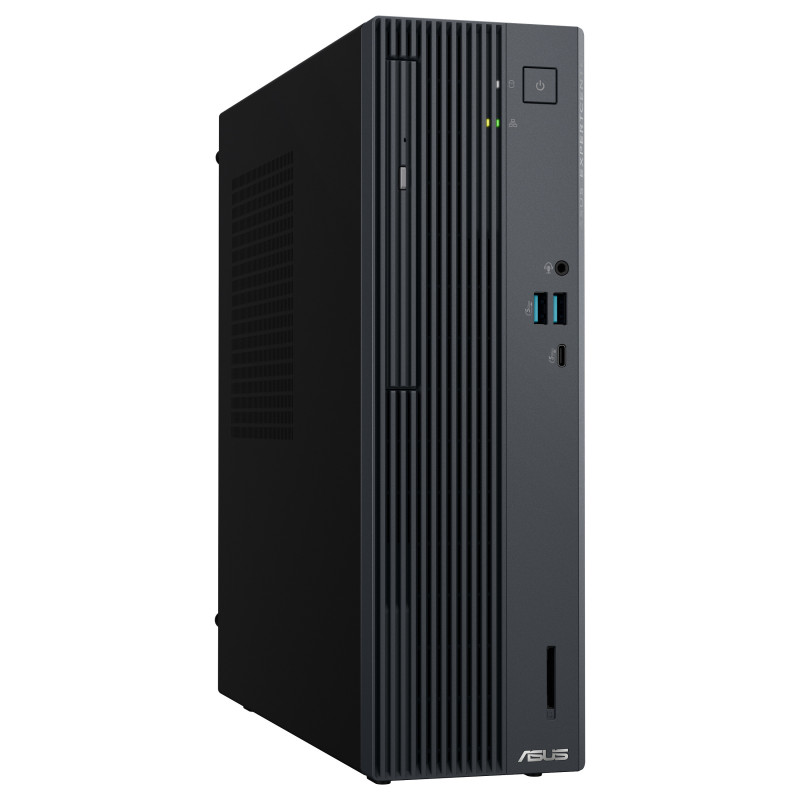

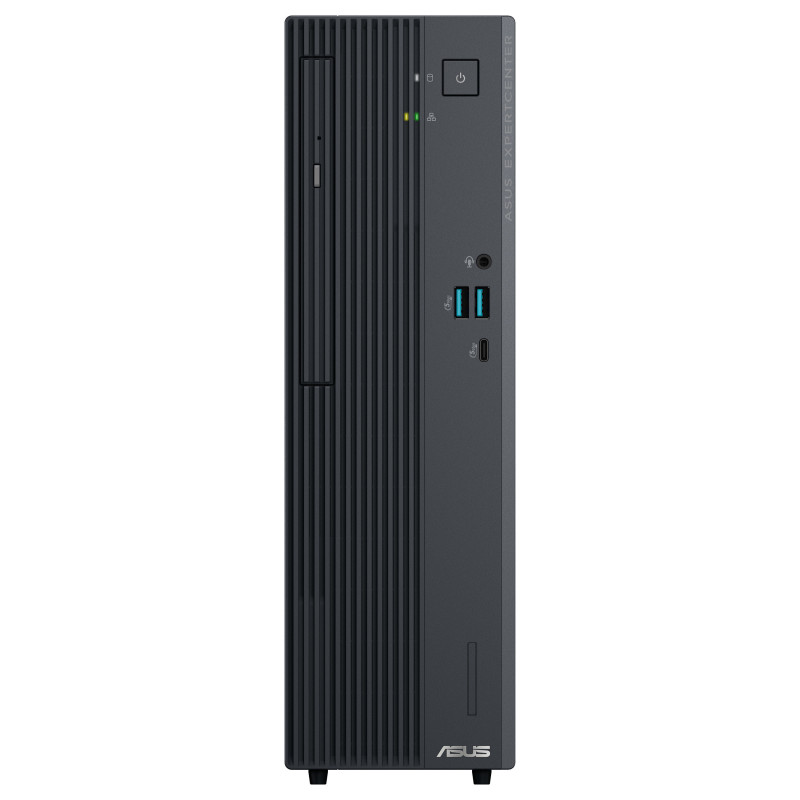

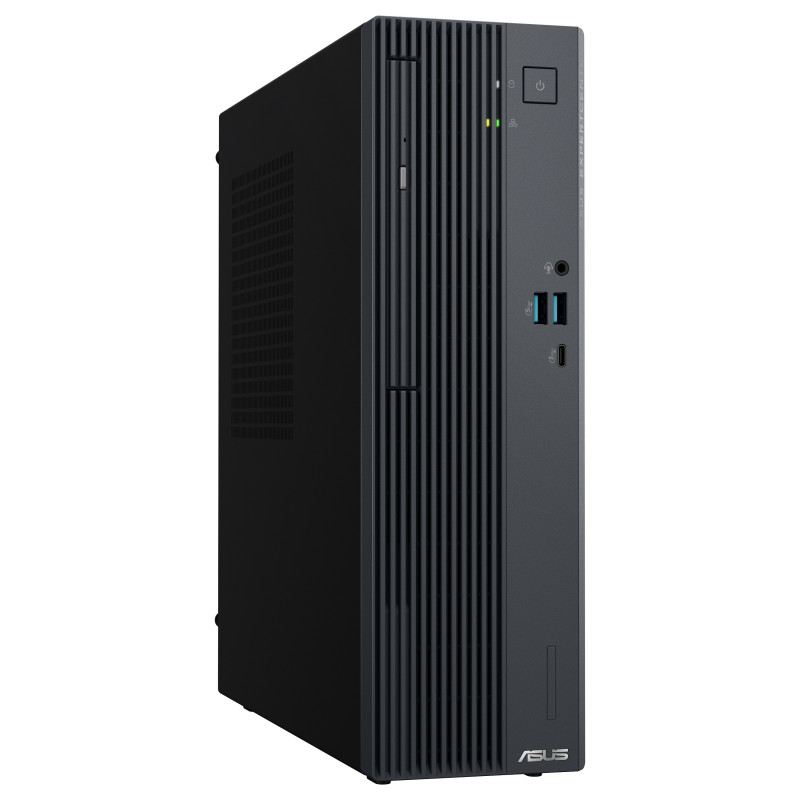

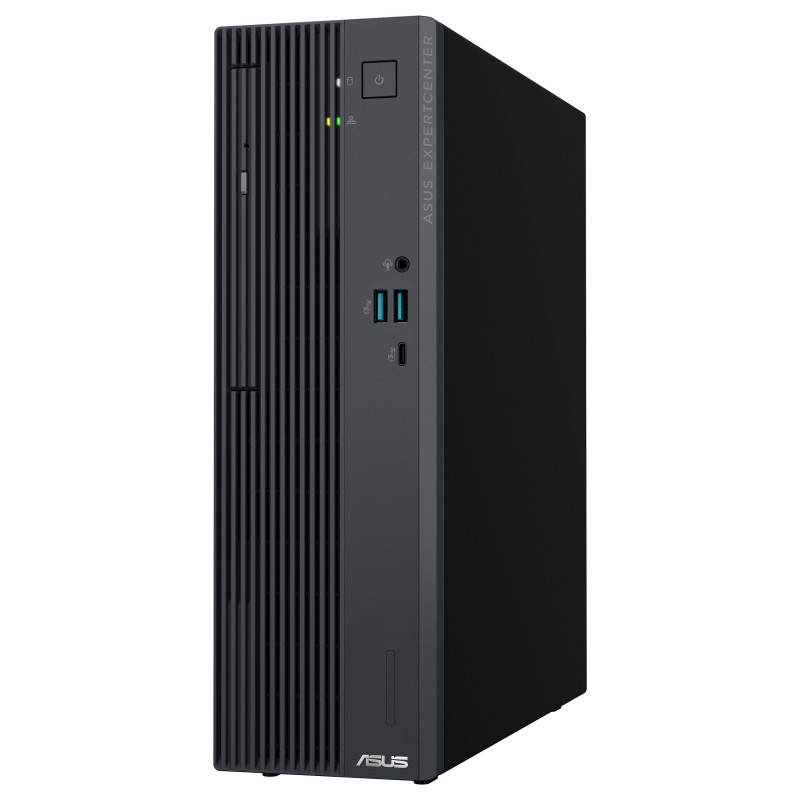

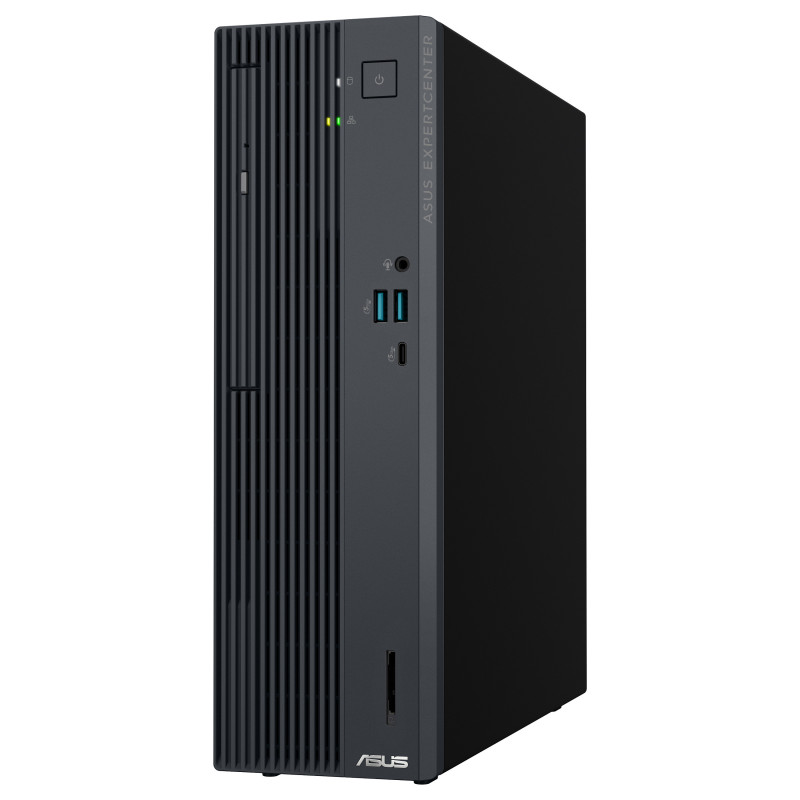

ASUS ExpertCenter P500 SFF P500SV-07240H013X

ASUS ExpertCenter P500 SFF P500SV-07240H013X. Processor family: Intel Core 7, Processor model: 240H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: SFF. Product type: PC. Weight: 5.06 kg. Product colour: Grey

Exceptional Value and Performance for Businesses
ASUS ExpertCenter P500 SFF combines high-performance, business-grade security, and commercial-class services features in a compact and sleek design, providing budget-conscious small and medium business users with a flexible and organized workspace. Designed to withstand tough conditions and meet MIL-STD-810H US military standards1, it features a tool-free and expandable chassis, ensuring prolonged reliability and convenient upgrades for professionals.

Processor

Processor manufacturer: Intel
Processor family: Intel Core 7
Processor generation: Intel Core (Series 2)
Processor model: 240H
Processor cores: 10
Processor threads: 16
Processor boost frequency: 5.2 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4 GHz
Performance-core base frequency: 2.5 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor base power: 45 W
Maximum turbo power: 115 W

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x DIMM

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Market positioning: Business
Password protection: Yes
Password protection type: HDD, User
Trusted Platform Module (TPM): Yes
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 7.1 channels

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.4

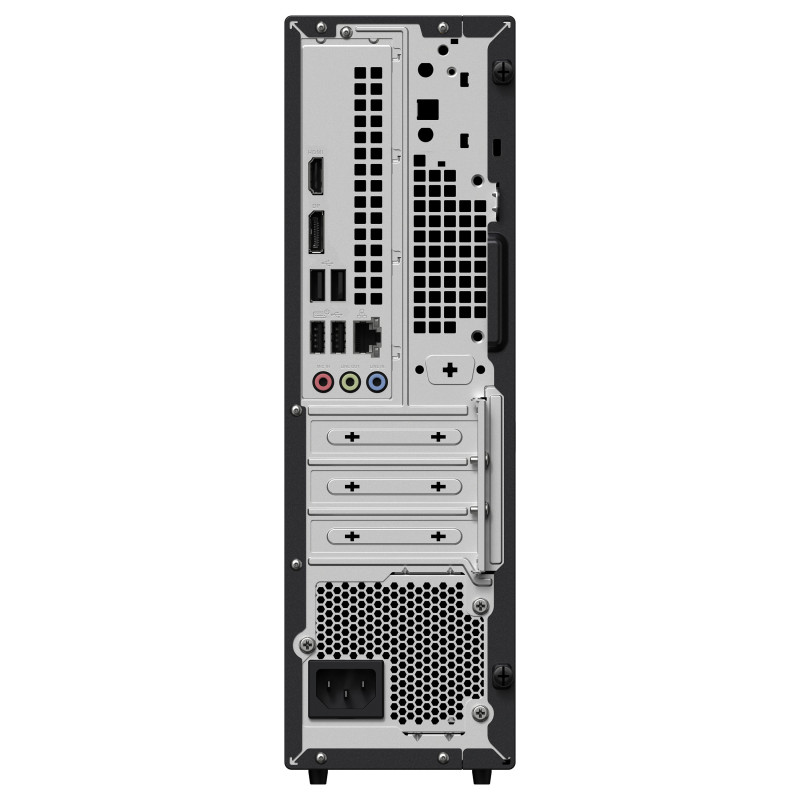

Ports & interfaces

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 1.4
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
Line-out: Yes
Line-in: Yes
Number of rear USB ports: 4
Number of front USB ports: 3
Number of front audio ports: 1
Number of rear audio ports: 3
Number of SATA III connectors: 2

Expansion slots

Number of 3.5" bays: 1
PCI Express x16 (Gen 4.x) slots: 1

Power

Power supply: 180 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50 - 60 Hz
80 PLUS certification: 80 PLUS Bronze

Design

Chassis type: SFF
Colour name: Grey
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Grey
Introduction year: 2025

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Display

Display included: No

Audio

Audio system: High Definition Audio

Weight & dimensions

Width: 93 mm
Depth: 296 mm
Height: 309 mm
Weight: 5.06 kg

Packaging data

Package width: 490 mm
Package depth: 168 mm
Package height: 510 mm

Packaging content

Mouse included: No
Keyboard included: No

Certificates

Compliance certificates: REACH

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT Silver
