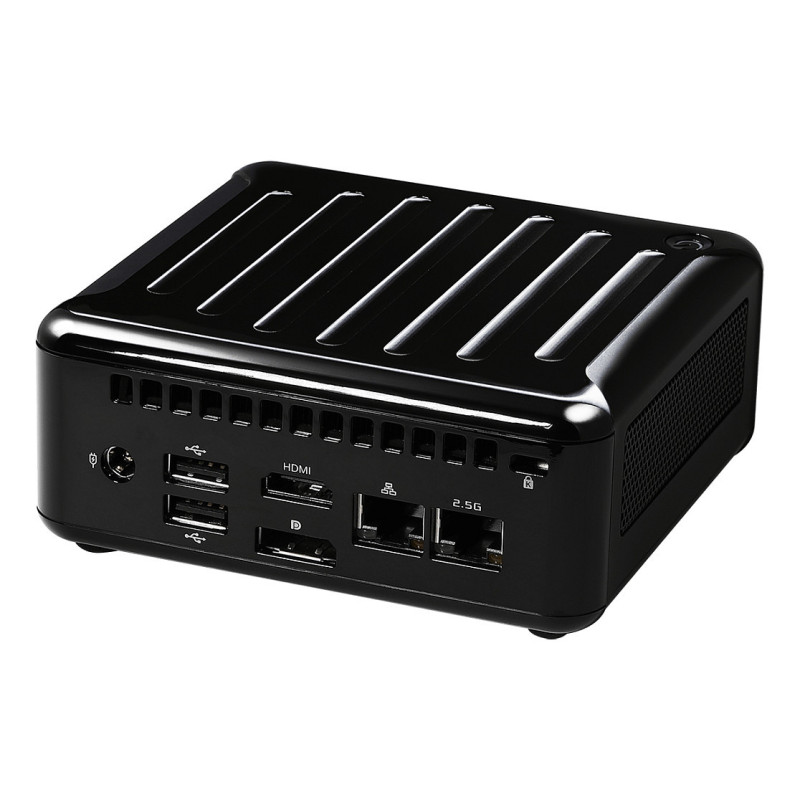

Asrock 4X4 BOX-4800U

Asrock 4X4 BOX-4800U. Product type: Embedded PC barebone. BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2, PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor model: 4800U
Processor cores: 8
Processor boost frequency: 4.2 GHz
Processor frequency: 1.8 GHz
Built-in processor: Yes

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 3200 MHz
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel

Storage

Supported storage drive types: HDD & SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: M.2, PCI Express, Serial ATA III

Graphics

On-board graphics card: Yes
Graphics card family: AMD
On-board graphics card model: AMD Radeon

Performance

BIOS type: AMI
BIOS memory size: 128 Mbit
Trusted Platform Module (TPM): Yes
Audio chip: Realtek ALC233

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller model: Intel Wi-Fi 6 AX200
Ethernet LAN: Yes
Wi-Fi: Yes

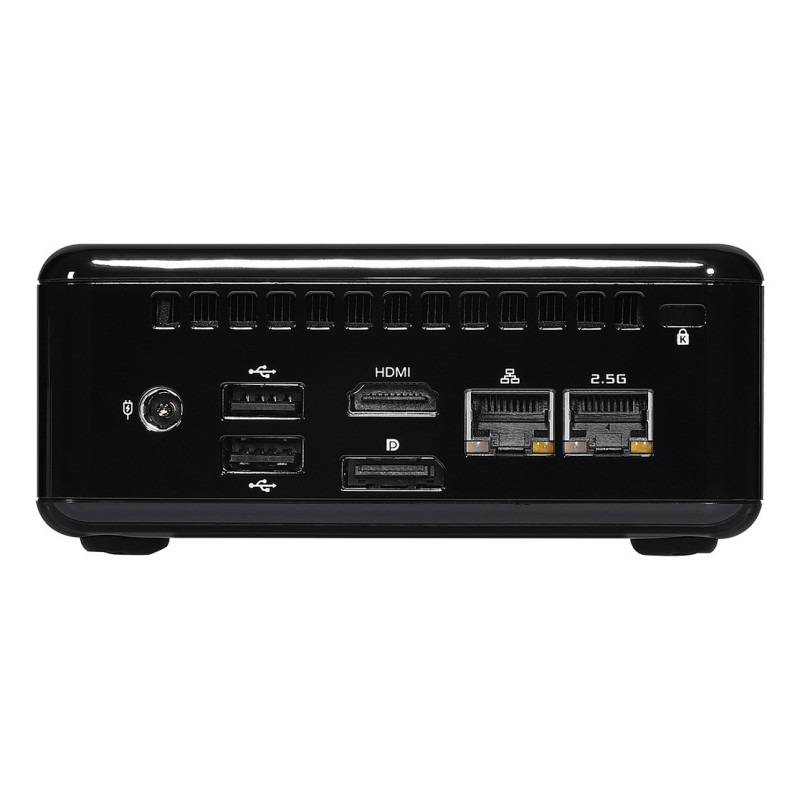

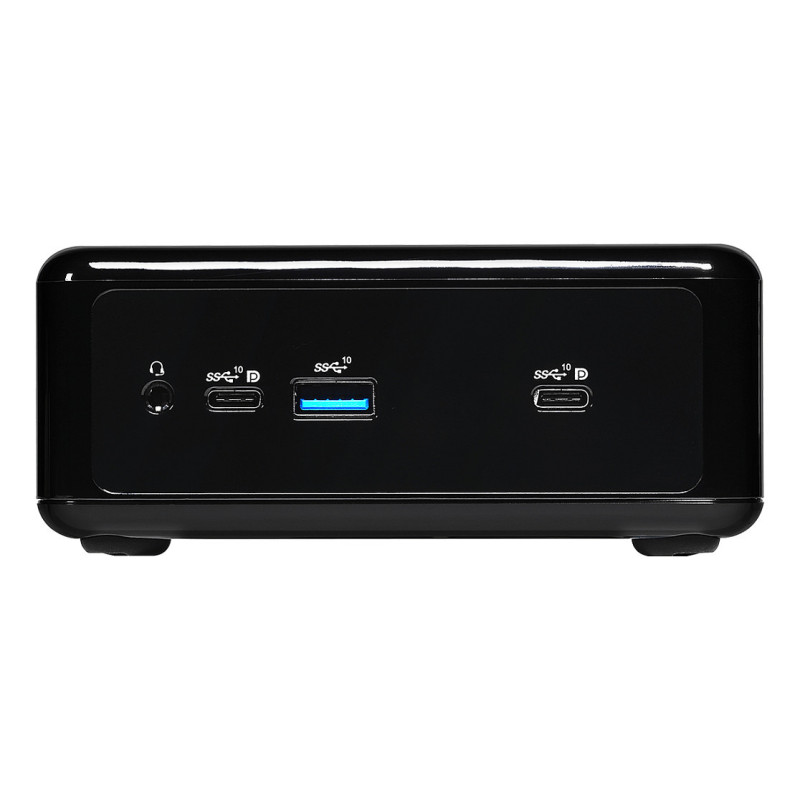

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0a
DisplayPorts quantity: 1
DisplayPort version: 1.2a
Ethernet LAN (RJ-45) ports: 2
DC-in jack: Yes

Expansion slots

Number of M.2 (M) slots: 1

Design

Product colour: Black
Housing material: Plastic
VESA mounting: Yes
Product type: Embedded PC barebone

Logistics data

Harmonized System (HS) code: 84713000

Power

Power supply type: External AC adapter
AC adapter output voltage: 19 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 110 mm
Depth: 117.5 mm
Height: 47.9 mm
Weight: 1 kg
