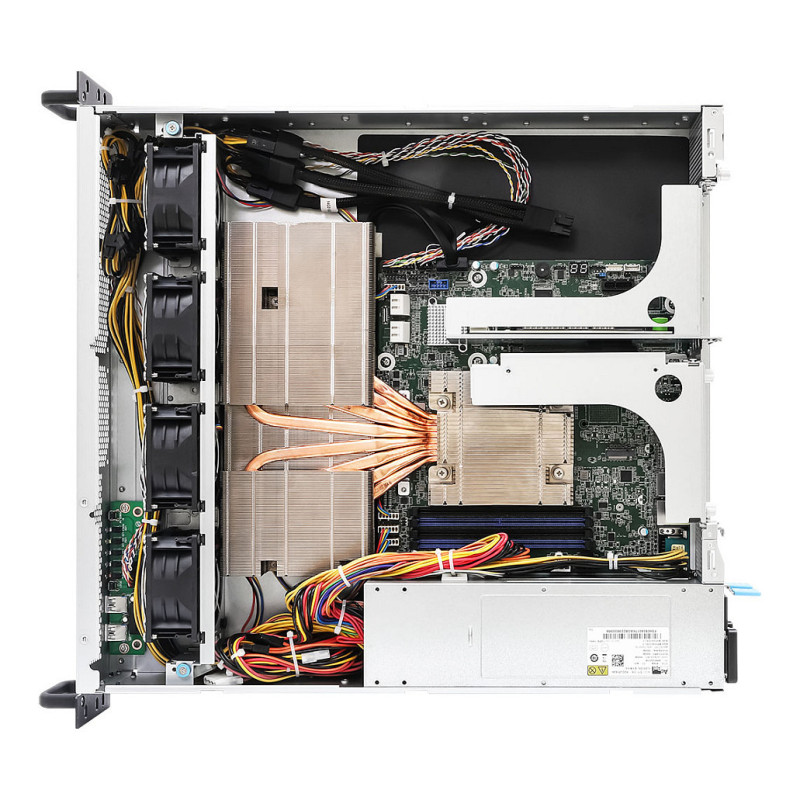

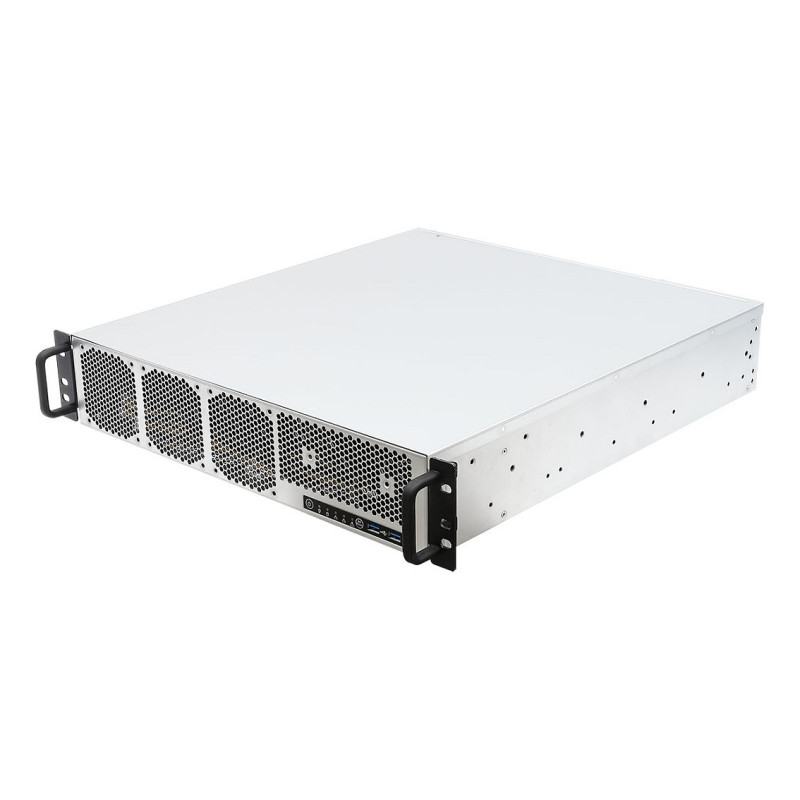

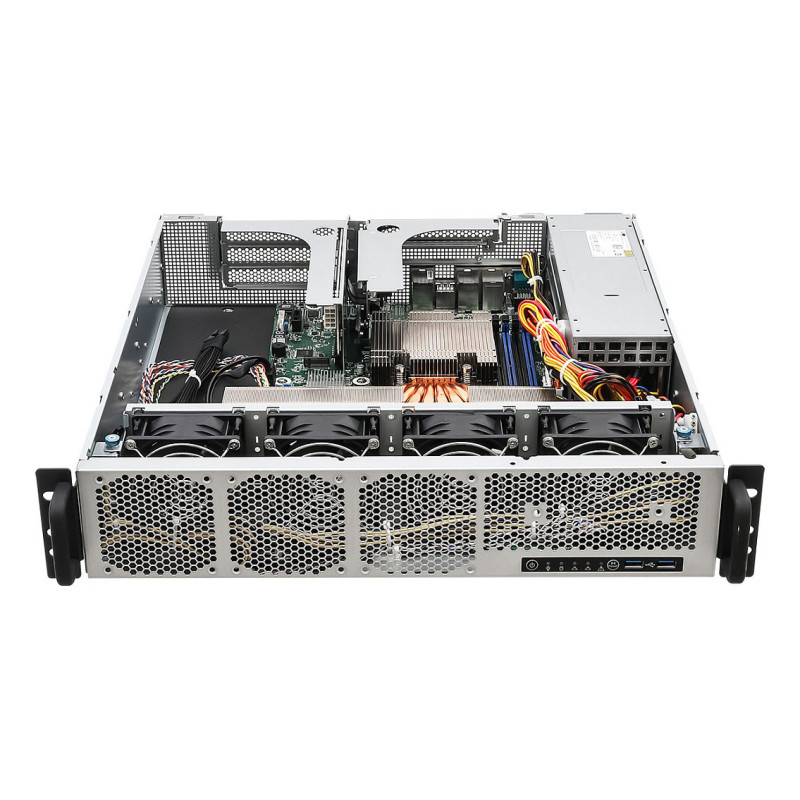

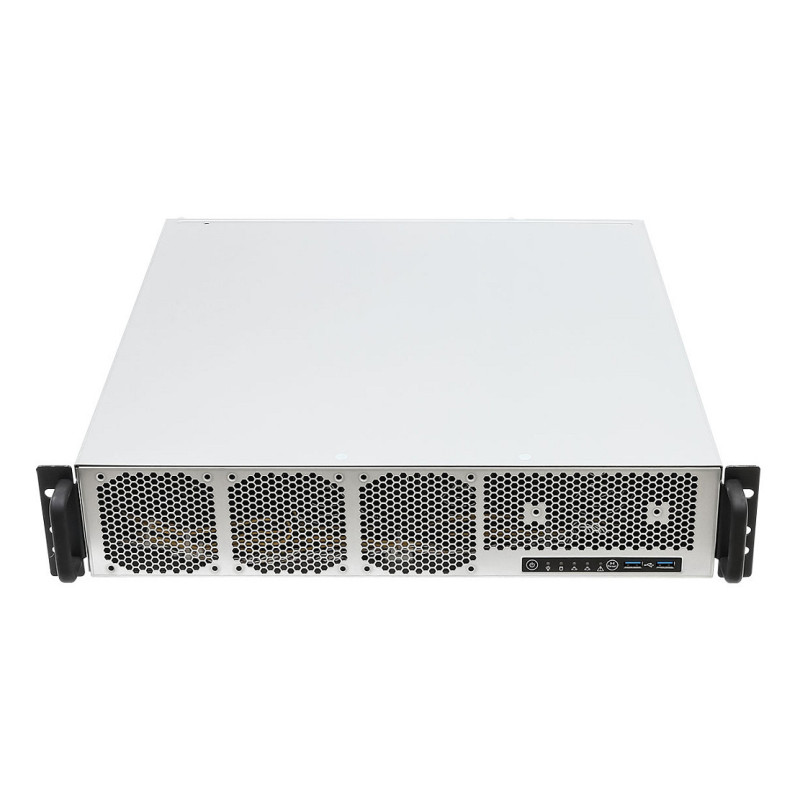

„Asrock 2U1G-B650“ / EVAC serverio „baregone“ plokštė

Asrock 2U1G-B650/EVAC. Motherboard chipset: AMD B650E, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 48 GB, Memory form factor: 288-pin DIMM. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I210. BIOS type: UEFI AMI, BIOS memory size: 256 Mbit

Processor

Motherboard chipset: AMD B650E
Processor socket: Socket AM5

Memory

Number of DIMM slots: 4
Supported memory types: DDR5-SDRAM
Maximum internal memory: 48 GB
Memory form factor: 288-pin DIMM
Memory voltage: 1.1 V
Feature: ECC
Feature: Non-ECC

Storage

Number of storage drives supported: 2
Feature: Hot-swap HDD bays
Number of 2.5" bays: 2

Graphics

On-board graphics card model: Aspeed AST2600

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I210

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
HDMI ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5

Design

Chassis type: Rack (2U)

Power

Power supply: 1200 W

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 430.4 mm
Depth: 477.7 mm
Height: 88 mm
