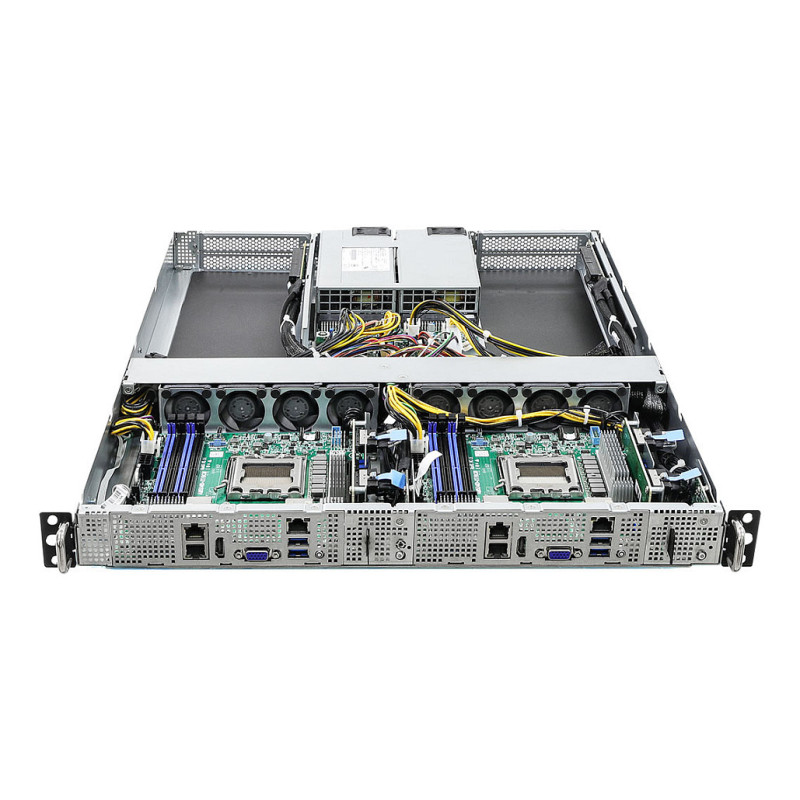

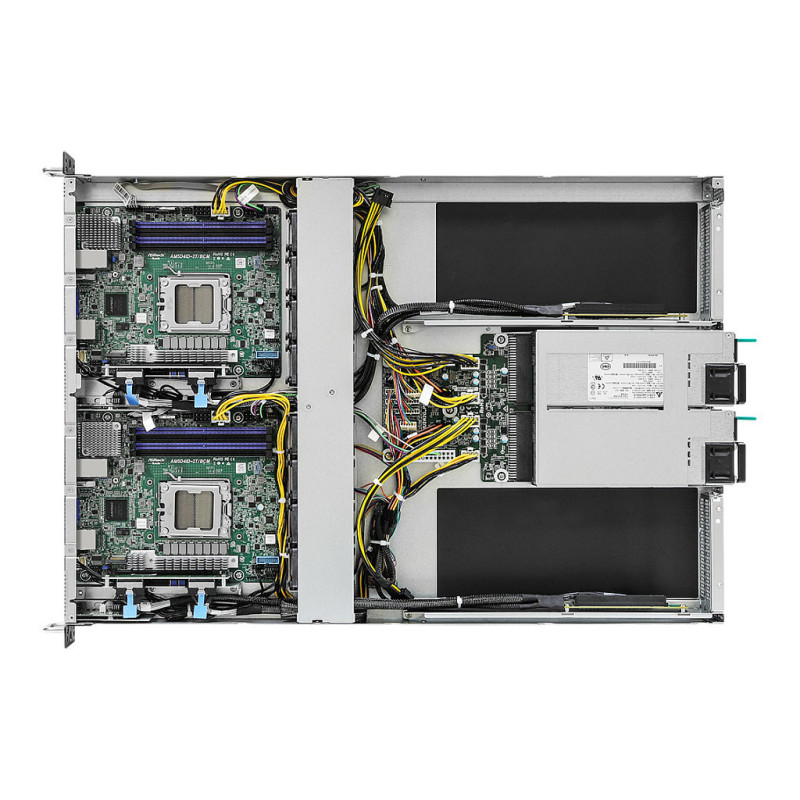

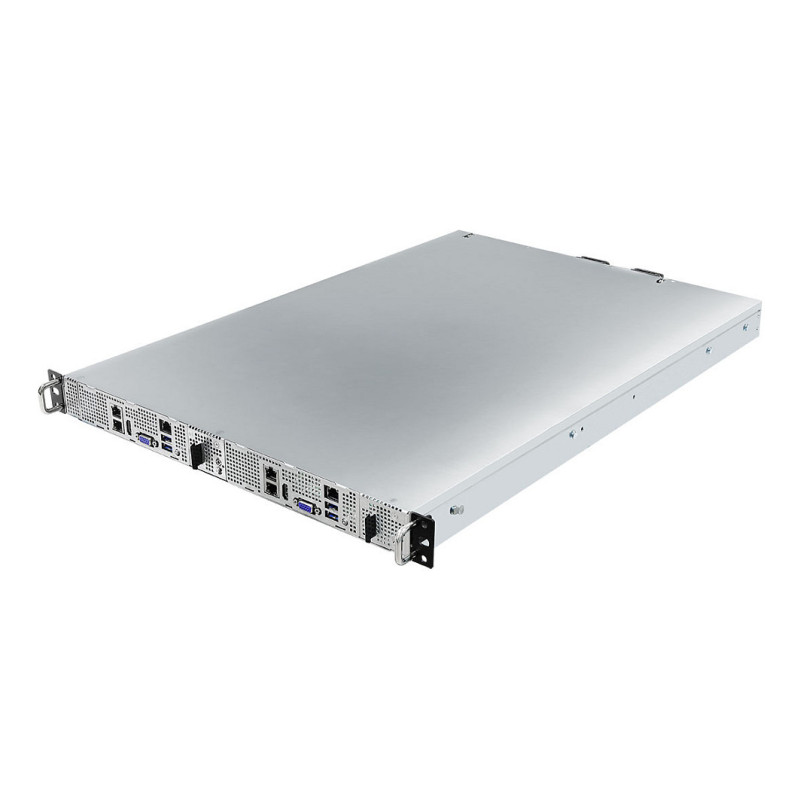

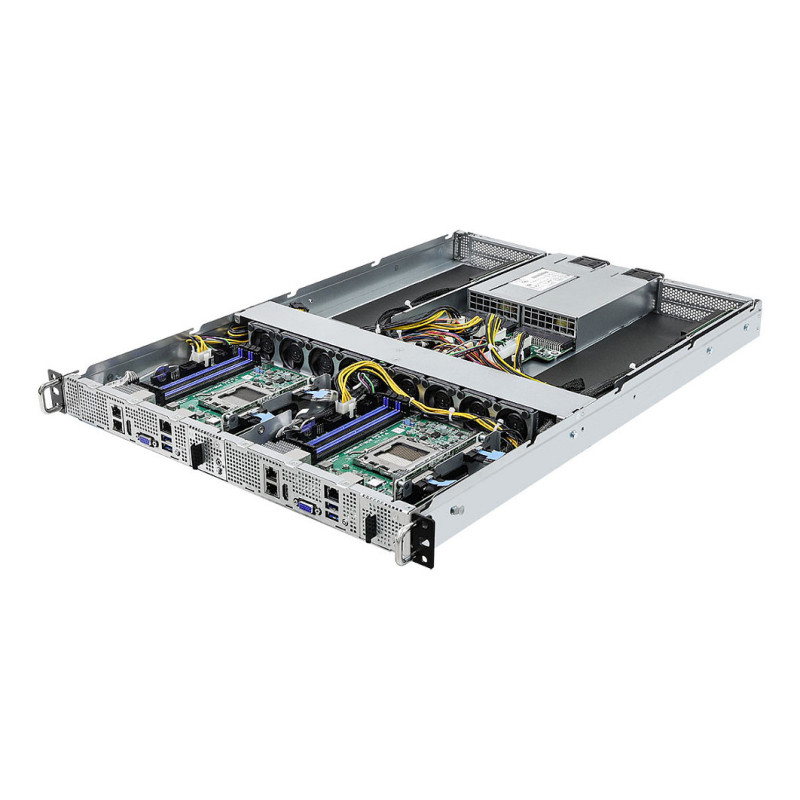

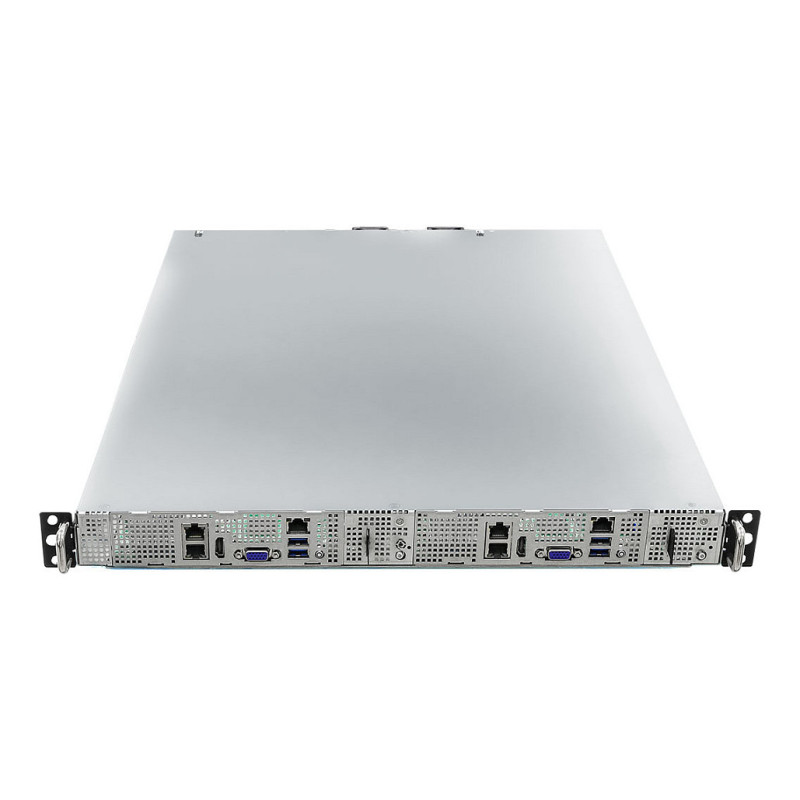

„Asrock 1U2N2G-AM5 / 2T“ serverio pagrindas

Asrock 1U2N2G-AM5/2T. Processor socket: LGA 1718. Supported memory types: DDR5-SDRAM, Maximum internal memory: 48 GB, Memory form factor: 288-pin DIMM. On-board graphics card model: Aspeed AST2600. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Broadcom BCM57416. BIOS type: UEFI AMI, BIOS memory size: 256 Mbit

Processor

Processor socket: LGA 1718

Memory

Number of DIMM slots: 4
Supported memory types: DDR5-SDRAM
Maximum internal memory: 48 GB
Memory form factor: 288-pin DIMM
Memory voltage: 1.1 V
Feature: ECC
Feature: Non-ECC

Graphics

On-board graphics card model: Aspeed AST2600

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Broadcom BCM57416

Ports & interfaces

USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.1
System Management BIOS (SMBIOS) version: 2.3
Feature: Plug and Play

Design

Chassis type: Rack (1U)

Power

Power supply: 1600 W

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 438 mm
Depth: 650 mm
Height: 43.5 mm
