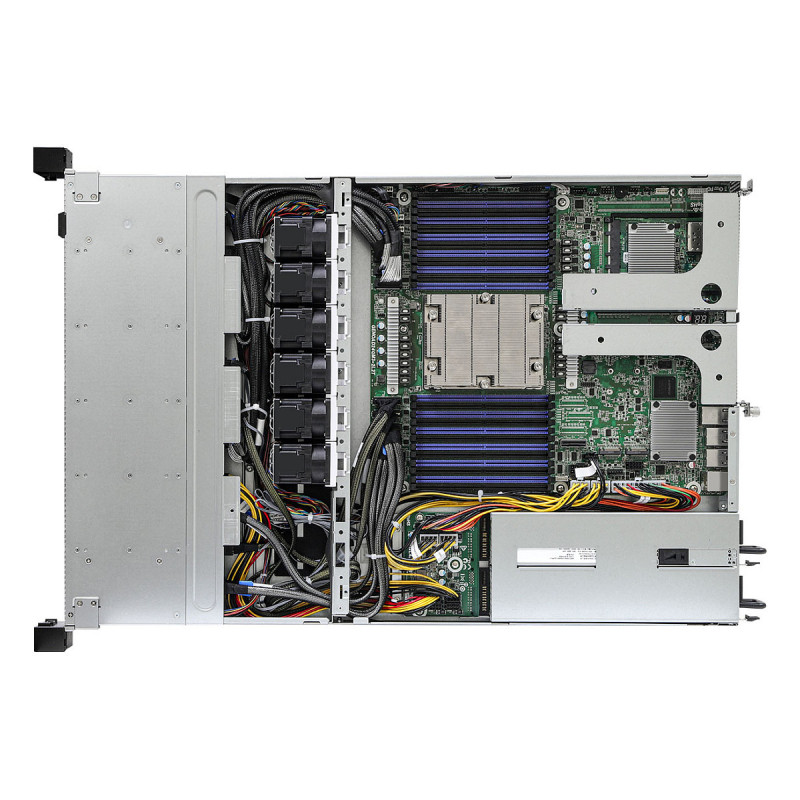

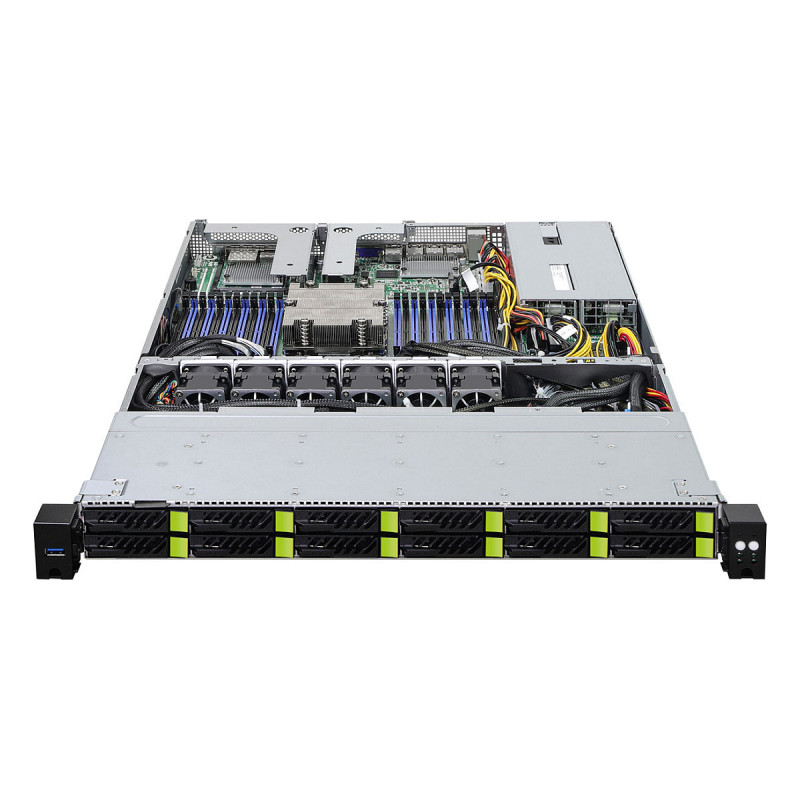

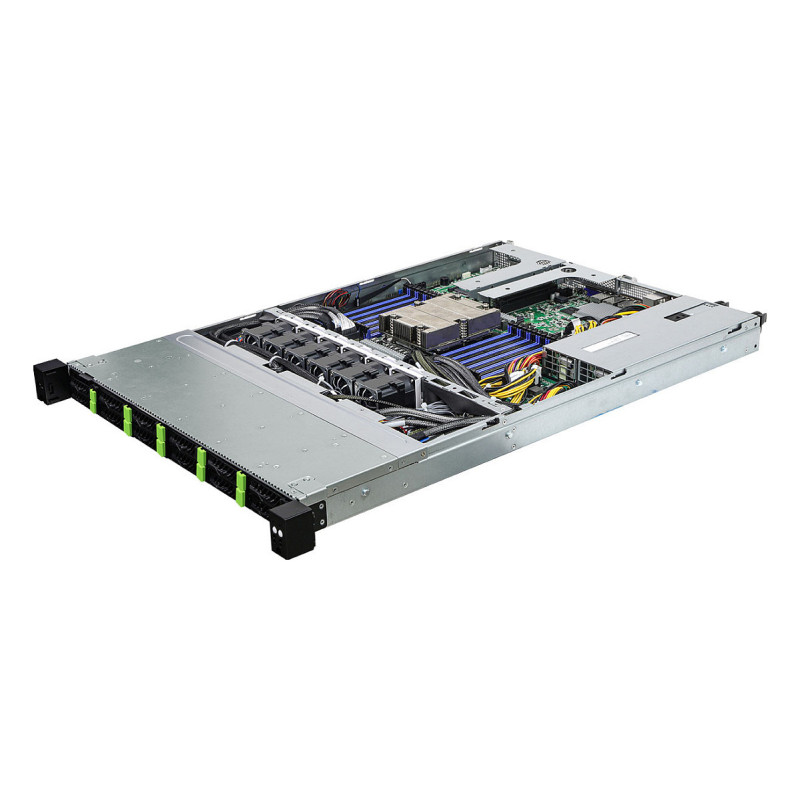

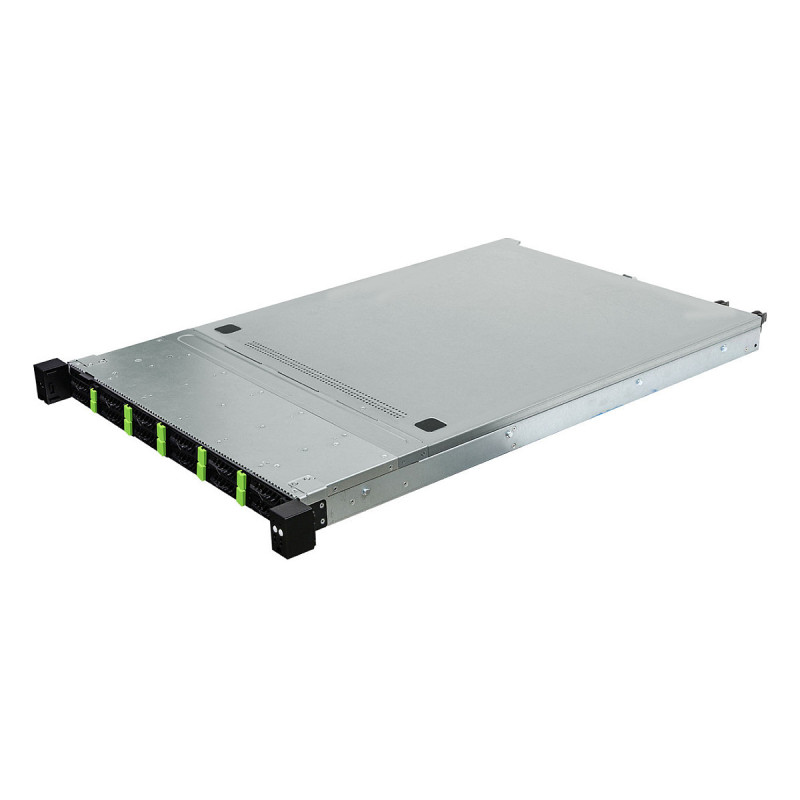

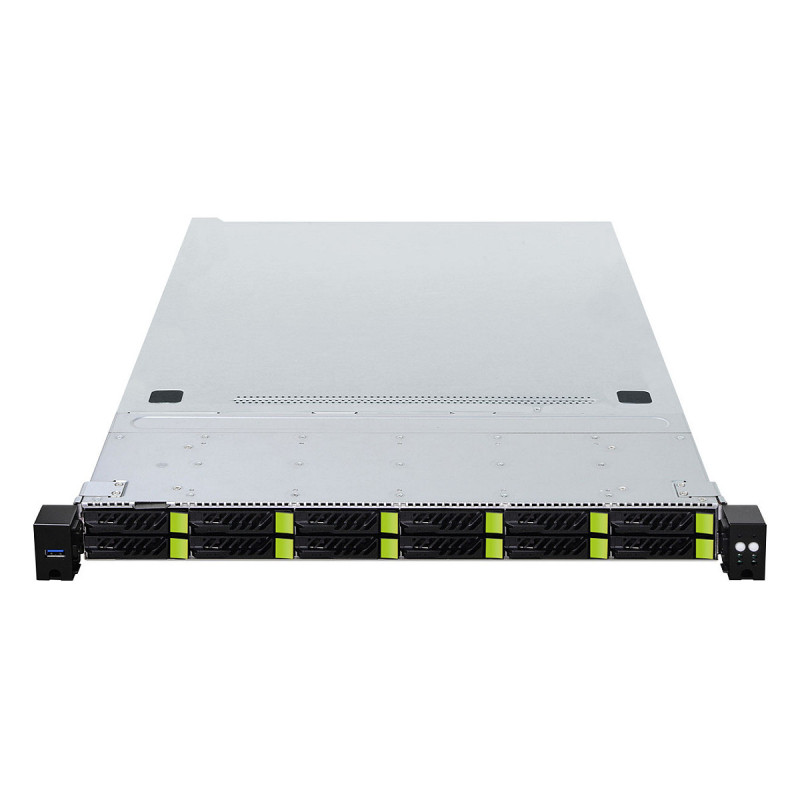

„Asrock 1U12E-GENOA / 2L2T“ serverio pagrindas

Asrock 1U12E-GENOA/2L2T. Motherboard chipset: AMD SoC, Processor socket: LGA 6096, Compatible processor series: AMD EPYC 9004. Supported memory types: DDR5-SDRAM, Supported RDIMM clock speeds: 3600,4000,4800 MHz, Memory form factor: 288-pin DIMM. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: PCI Express, Serial ATA III. On-board graphics card model: Aspeed AST2600. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Broadcom BCM57416, Intel I210

Processor

Motherboard chipset: AMD SoC
Processor socket: LGA 6096
Number of processors supported: 1
Compatible processor series: AMD EPYC 9004

Memory

Number of DIMM slots: 24
Supported memory types: DDR5-SDRAM
Supported RDIMM clock speeds: 3600,4000,4800 MHz
Memory form factor: 288-pin DIMM
Memory voltage: 1.1 V

Storage

Number of storage drives supported: 14
Feature: Hot-swap HDD bays
Number of 2.5" bays: 12
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: PCI Express, Serial ATA III

Graphics

On-board graphics card model: Aspeed AST2600

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
LAN controller: Broadcom BCM57416, Intel I210

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 4
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 2

Features

PC health monitoring: Voltage, Fan, Temperature

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5

Design

Chassis type: Rack (1U)
Product colour: Grey
LED indicators: LAN, Power, System
Feature: On/off switch
Feature: Reset button
Cooling type: Active
Number of fans: 6 fan(s)
Feature: Hot-swap fan module

Power

Power supply: 1000 W
Number of main power supplies: 2
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
80 PLUS certification: 80 PLUS Platinum

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 676.5 mm
Depth: 438 mm
Height: 43.4 mm
