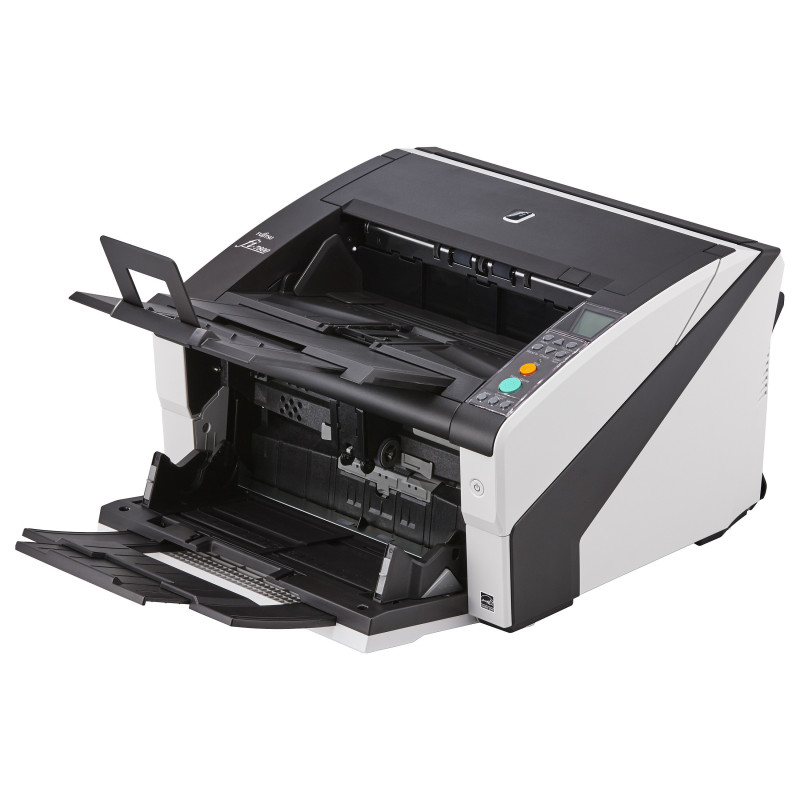

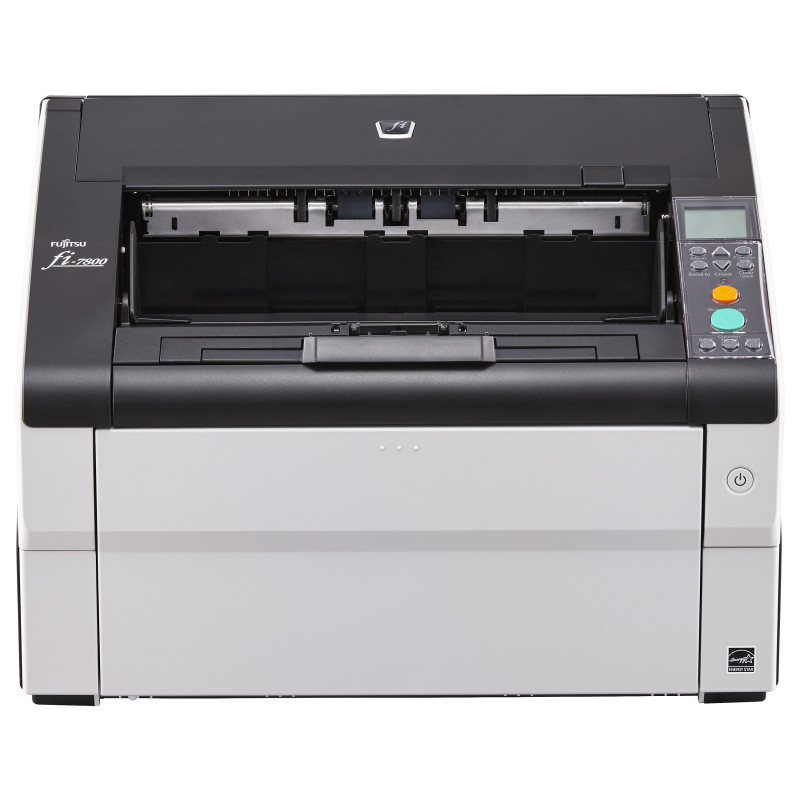

Ricoh fi-7800

Ricoh fi-7800. Maximum scan size: 304.8 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: ADF + Manual feed scanner, Product colour: Black, Grey. Sensor type: Dual CCD, Daily duty cycle (max): 100000 pages, Light source: White LED (4x). Auto document feeder (ADF) input capacity: 500 sheets. Maximum ISO A-series paper size: A3, ISO A-series sizes (A0...A9): A3, A4, A5, A6, ISO B-series sizes (B0...B9): B5, B6

The fi-7800 achieves scanning speeds of 110 ppm/220 ipm (A4 landscape, color, 200/300 dpi), is capable of scanning up to as many as 100,000 sheets a day, and is highly optimized for centralized scanning.

The scanner is designed with operator usability as its first priority. It provides high quality technology for reliable scanning, a user-friendly design inherited from our high-end scanners, as well as enhanced image processing functions. Users can enjoy comfortable scanning while improving their work efficiency significantly.

Scanning

Maximum scan size: 304.8 x 5588 mm
Optical scanning resolution: 600 x 600 DPI
Feature: Colour scanning
Feature: Duplex scanning
Output colour depth: 24 bit
Output greyscale depth: 8 bit
Output monochrome depth: 1 bit
Black/white scanning colour modes: Grayscale, Monochrome

Design

Scanner type: ADF + Manual feed scanner
Product colour: Black, Grey
Feature: Built-in display

Performance

Sensor type: Dual CCD
Light source: White LED (4x)
Scan file formats: BMP, JPEG, PDF, TIFF
Daily duty cycle (max): 100000 pages
Scan drivers: ISIS, TWAIN, WIA
Feature: Scanner error detection
Feature: Ultrasonic double sheet detection

Input capacity

Auto document feeder (ADF) input capacity: 500 sheets

Paper handling

Multi feed detection: Yes
Feature: Long-paper mode
Maximum ISO A-series paper size: A3
ISO A-series sizes (A0...A9): A3, A4, A5, A6
ISO B-series sizes (B0...B9): B5, B6
Feature: Letter
Feature: Legal
Auto Document Feeder (ADF) media weight: 20 - 209 g/m²
Maximum scan length: 5.59 m
Maximum scan area (ADF): 304.8 x 431.8 mm
Minimum scan area (ADF): 52 x 74 mm

Ports & interfaces

Feature: USB port
USB version: 2.0
USB connector type: USB Type-B
Socket connector type: C13
Standard interfaces: USB 2.0

Power

Power supply type: AC
Power consumption (typical): 200 W
Power consumption (off): 0.3 W
Feature: Sleep mode
Power consumption (sleep): 3.2 W

Weight & dimensions

Width: 460 mm
Depth: 430 mm
Height: 310 mm
Weight: 32 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 548 mm
Package depth: 642 mm
Package height: 618 mm
Package weight: 39 kg

Packaging content

Feature: Software CD
Feature: Warranty card
Cables included: AC, USB
Feature: Drivers included

Sustainability

Sustainability certificates: ENERGY STAR

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 7

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 20 - 80%

Other features

Compliance certificates: RoHS
Feature: Selectable background colour
Background colours: Black, White

Technical details

PC connection: USB 2.0

Logistics data

Country of origin: Japan
Pallet gross length: 70 cm
Pallet gross width: 130 cm
Harmonized System (HS) code: 8471607000
Paper packaging weight: 2.4 kg
Metal packaging weight: 0 g
Wood packaging weight: 0 g
Plastic packaging weight: 15 g
Products per pallet (air): 4 pc(s)
Products per pallet (sea): 6 pc(s)
Pallet height (sea): 187 cm
Pallet height (air): 129 cm
Cardboard packaging weight: 1.2 kg
Foil packaging weight: 15 g
Polystyrene (EPS/EPP) packaging weight: 200 g
Glass packaging weight: 0 g
