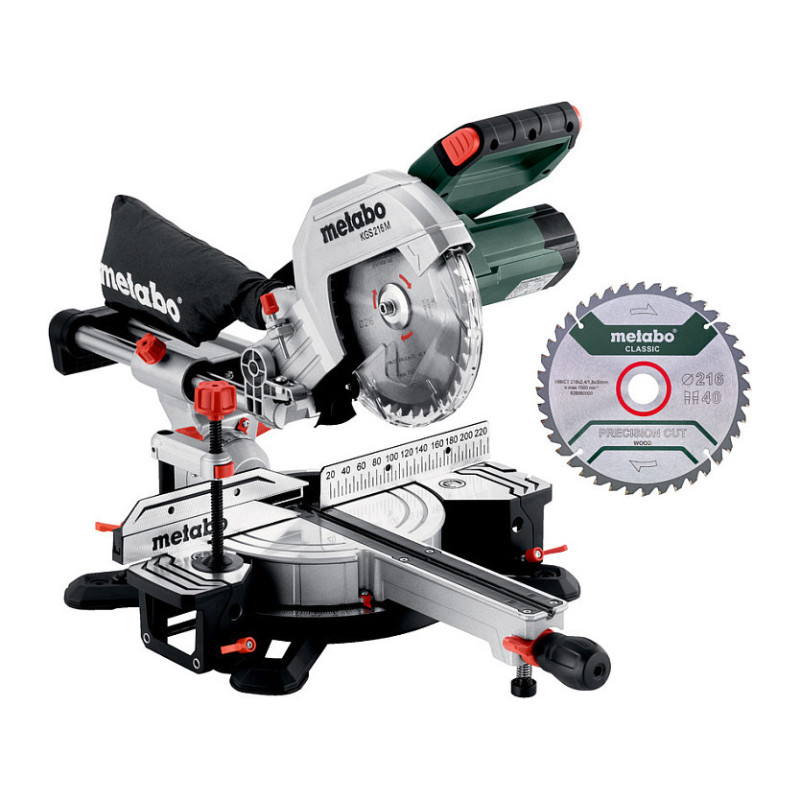

Metabo KGS 216 M RINKINYS

Metabo KGS 216 M SET. Bevel type: Double bevel. Idle speed (max): 5000 RPM, Idle speed (min): 3750 RPM, Mitre setting (left): 47°. Power source: AC, Input power: 1200 W, AC input voltage: 220-240 V. Width: 710 mm, Depth: 476 mm, Height: 512 mm. Blade diameter: 21.6 cm, Blade thickness: 3 cm

- Order no.: 613216900 EAN: 4061792225916
- Compare Products Add to wish list Data Sheet (.pdf) Images (.zip)
- Maximum cutting width 90°/45°:305 / 215 mm // 12 / 8 1/2 "
- Maximum cutting depth at 90°/45°:70 / 40 mm // 2 3/4 / 1.57 "
- Rated input power:1200 W
- Rated input power S1 100%:1200 W
- Rated input power S6 20%:1500 W
- MANUAL SPARE-PARTS LIST
- Description
- Technical data
- Scope of delivery
- Accessories
- Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly

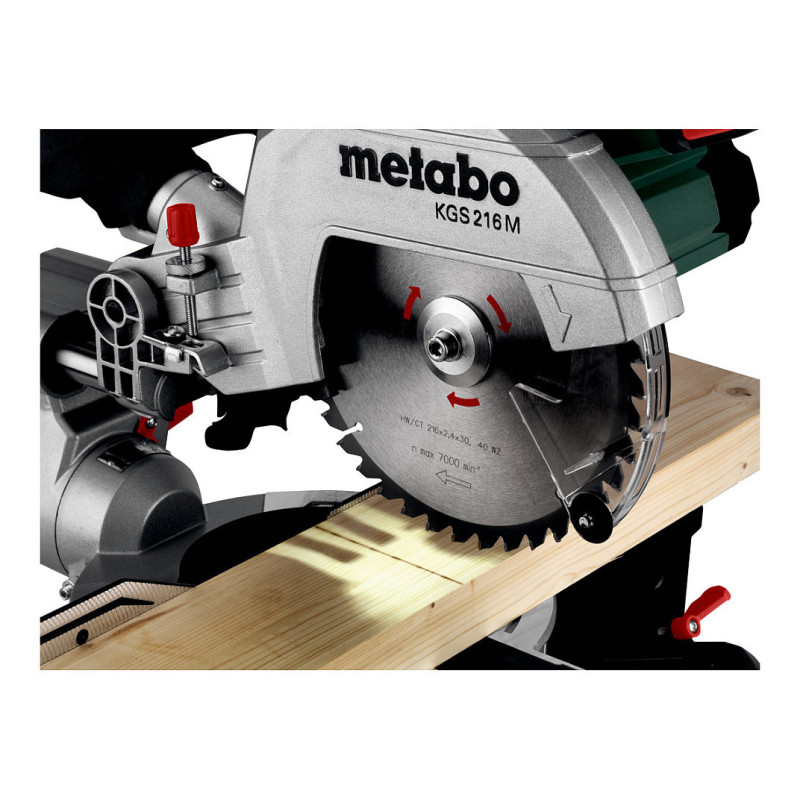

- Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
- Large cutting capacity thanks to sliding function for wide work pieces
- Turntable with fast, precise setting of common angles using stop points
- Saw blade inclination from -2 to 47°, therefore also suited for undercuts
- Robust die-cast aluminium design for the highest demands

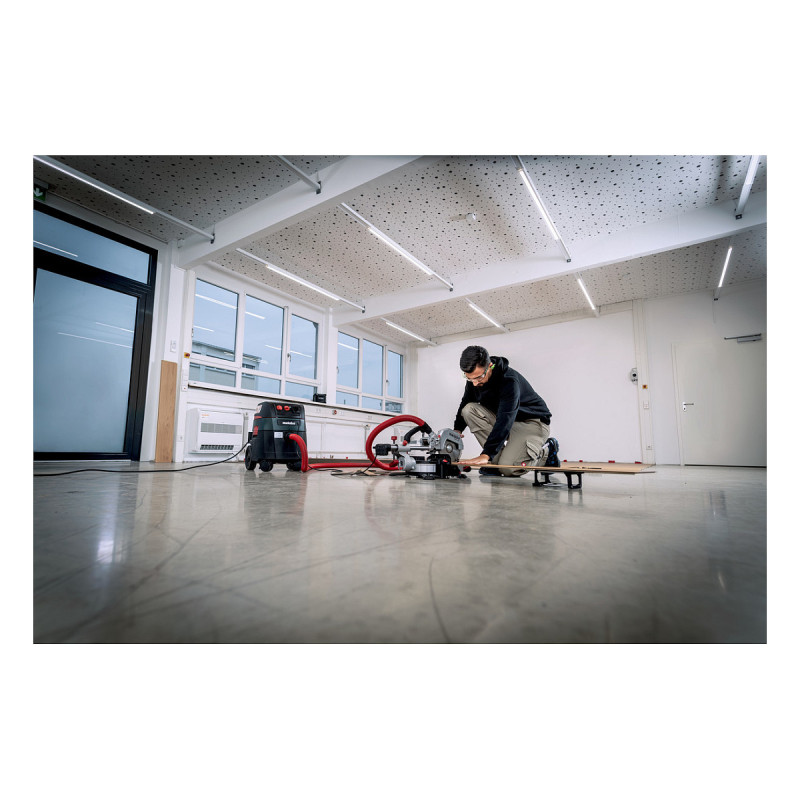

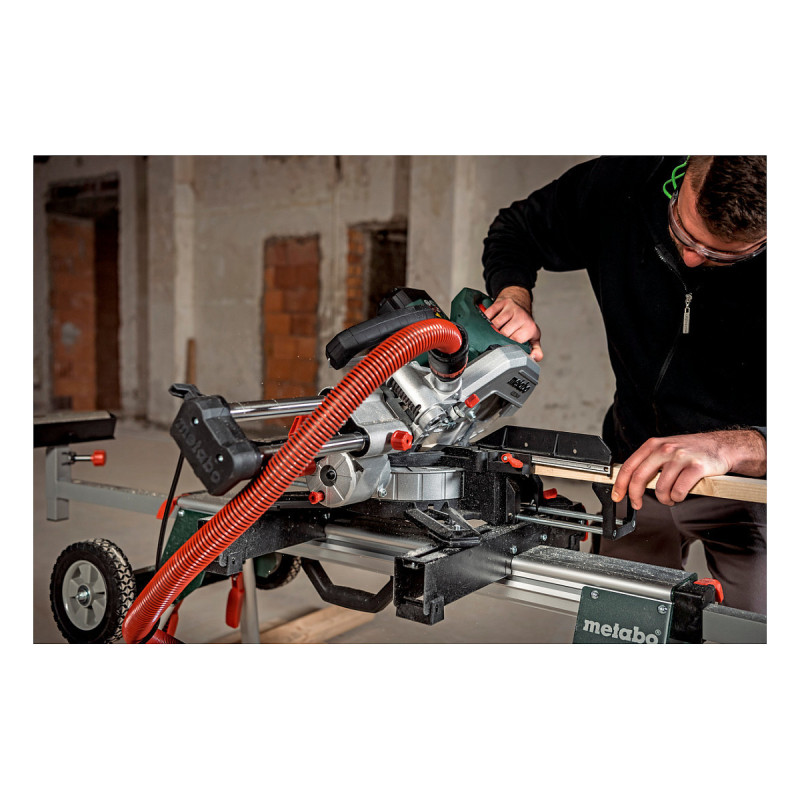

- Effective dust extraction via integrated dust scoop
- Soft start for long service life of motor and drive

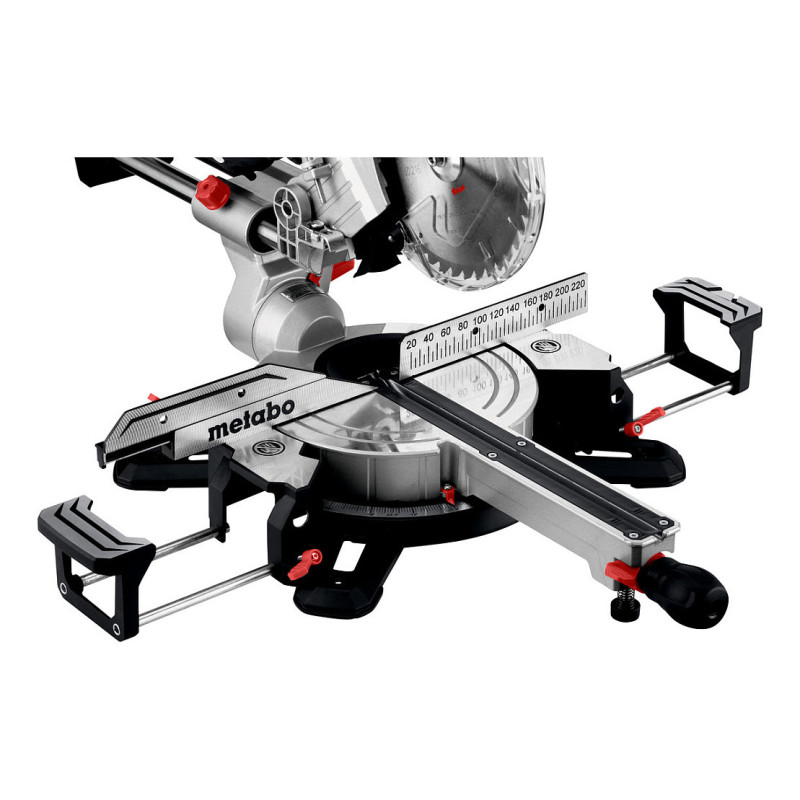

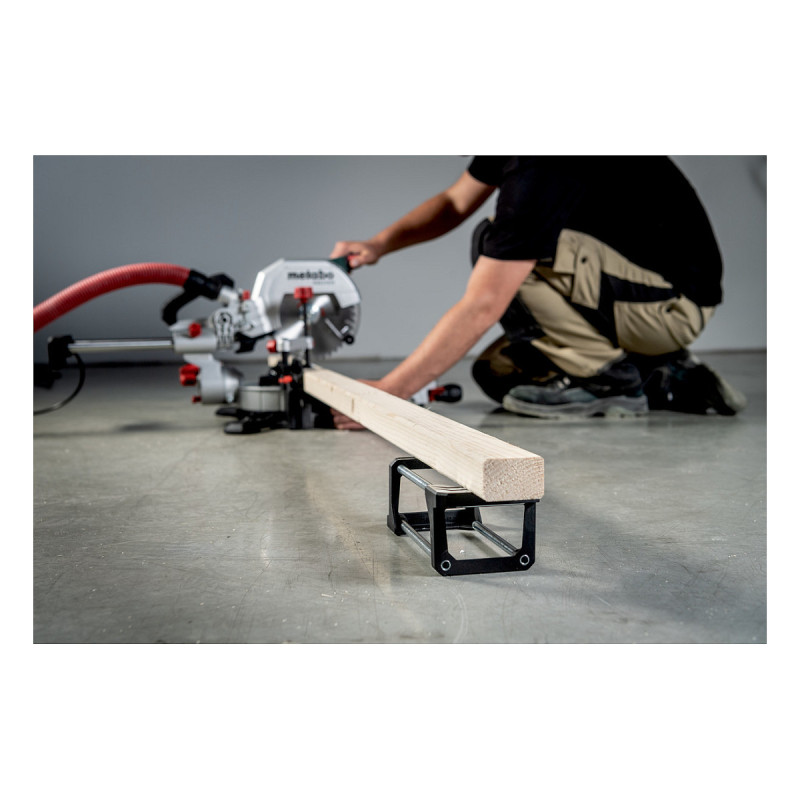

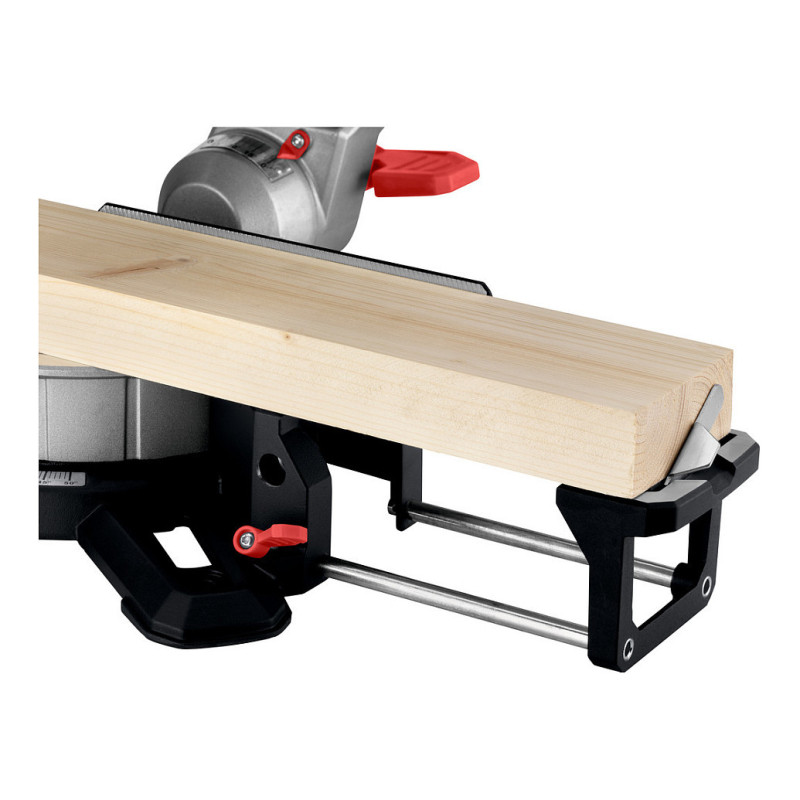

- Extendable table width extensions, also removable to put underneath extremely long work pieces

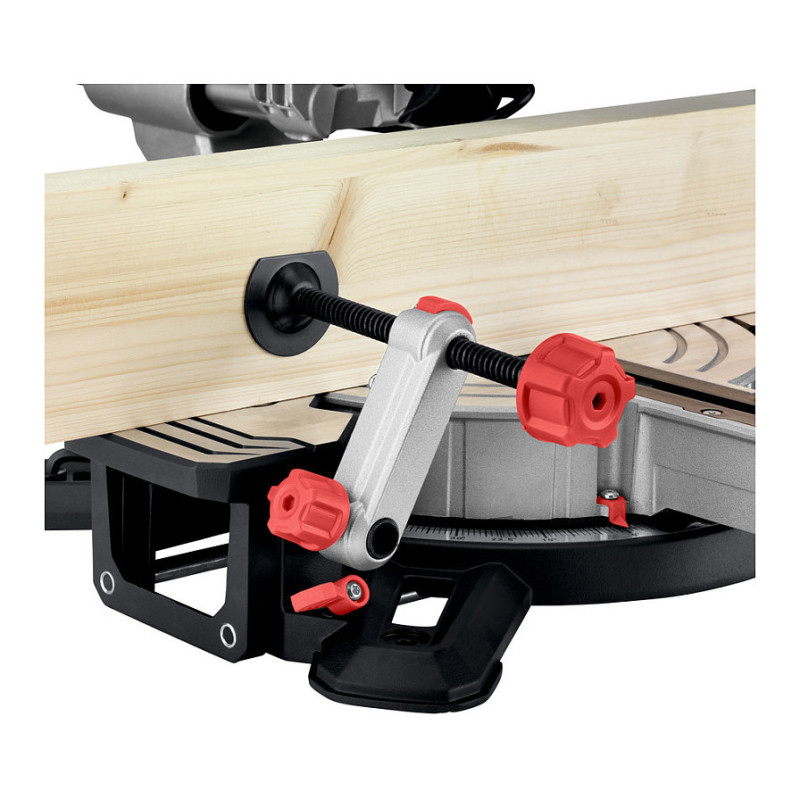

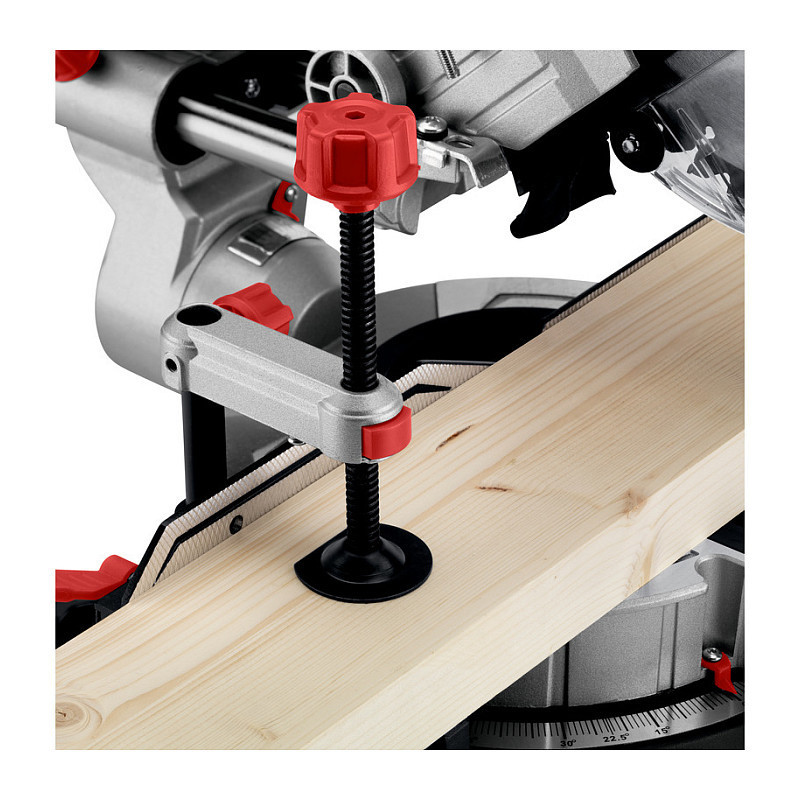

- Quick-action clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- All scales and operating elements are visible from the working position and can be operated intuitively

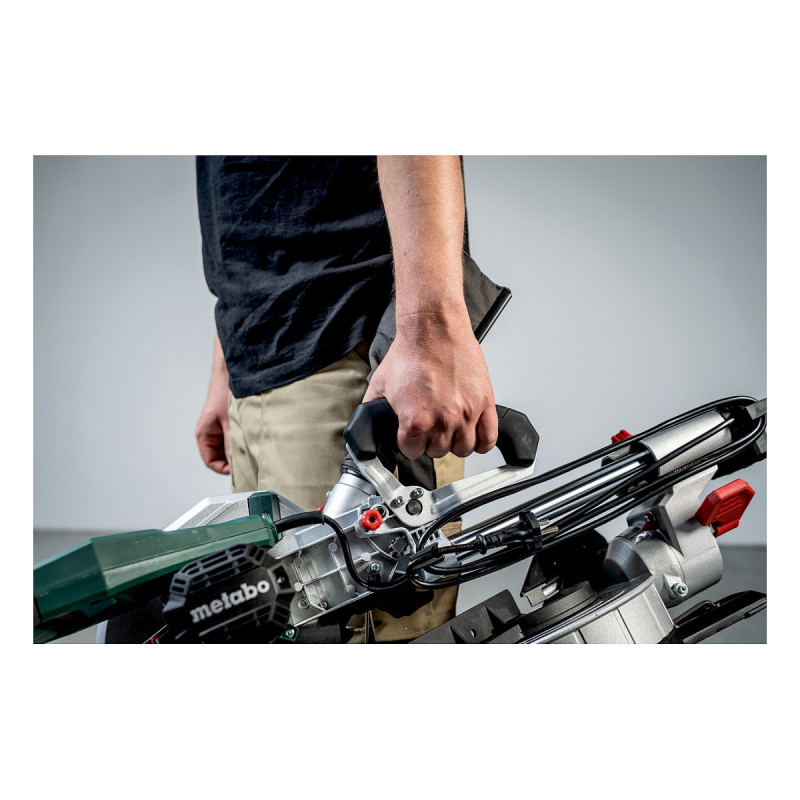

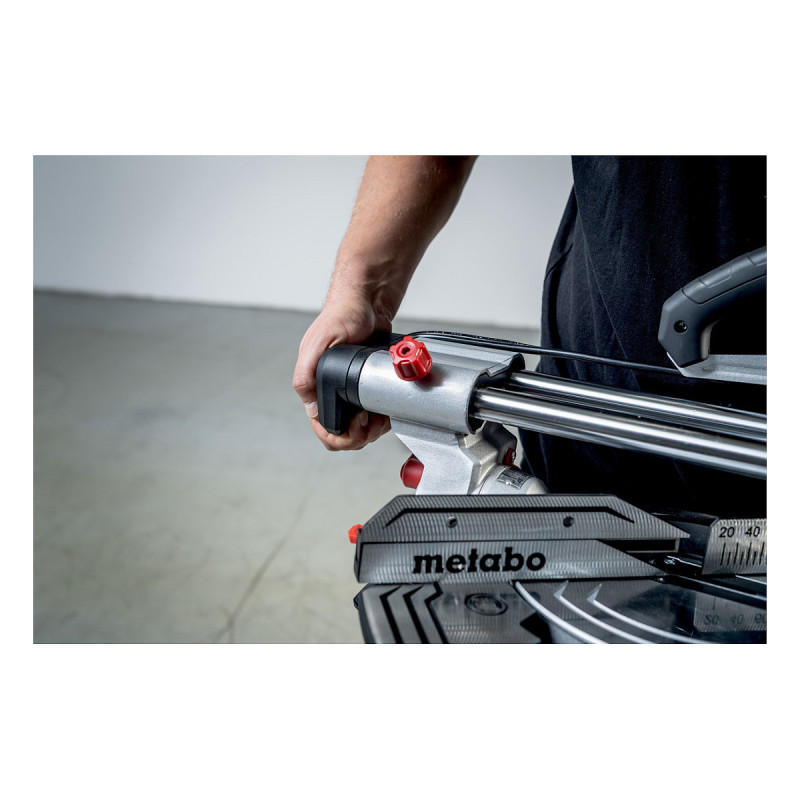

- Ergonomic handle areas for carrying with one or two hands

Features

Feature: Sliding rails
Bevel type: Double bevel

Performance

Idle speed (min): 3750 RPM
Idle speed (max): 5000 RPM
Mitre setting (left): 47°
Mitre setting (right): 2°
Compound cut capacity (45° x 45°): 215 x 40 mm
Cutting depth (90º): 7 cm
Cutting width (90°): 30.5 cm
Cutting speed (max): 57 m/s
Sound power level: 98 dB
Sound pressure level: 85 dB

Power

Input power: 1200 W
AC input voltage: 220-240 V
AC input frequency: 50 - 60 Hz
Cable length: 2 m
Power source: AC

Weight & dimensions

Width: 710 mm
Depth: 476 mm
Height: 512 mm
Weight: 13.4 kg

Packaging content

Feature: Saw blade included
Blade diameter: 21.6 cm
Blade thickness: 3 cm
