Bachmann 906.18803 maitinimo prailgintuvas

Bachmann STEP ALU 3-way power strip with switch. Placement supported: Indoor, International Protection (IP) code: IP20, Housing material: Aluminium. AC outlets quantity: 3 AC outlet(s). AC input voltage: 230 V, Maximum input power: 3680 W, Maximum current: 16 A. Width: 52 mm, Depth: 272 mm, Height: 44 mm. Number of products included: 1 pc(s)

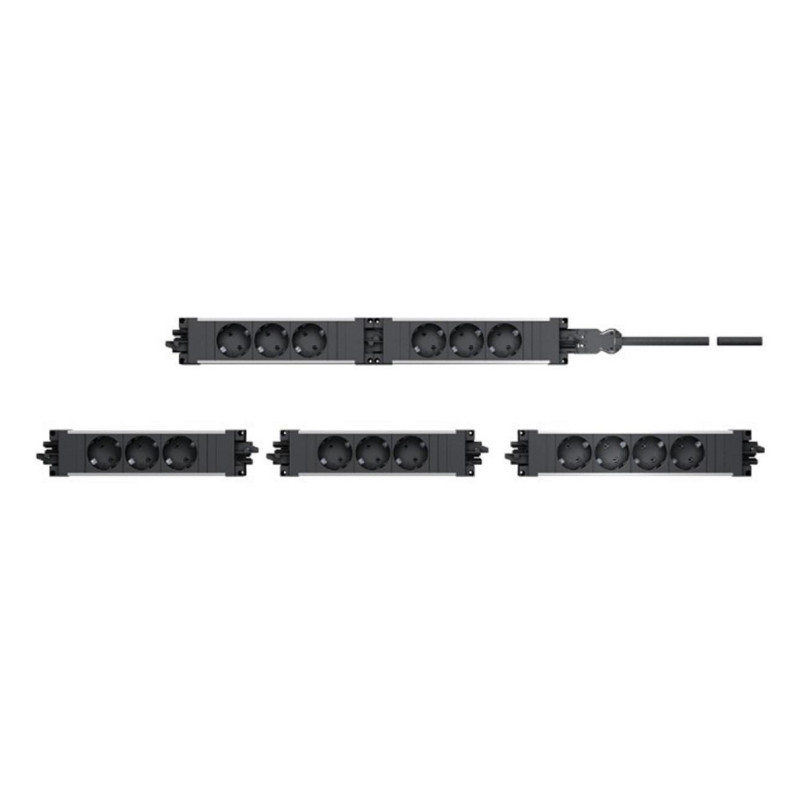

The Bachmann STEP ALU socket strip, 3-way socket strip with switch (906.18803) can be seen with an aluminum profile (52 mm width) as a simple, modular electrification set. Successor to 906.031.

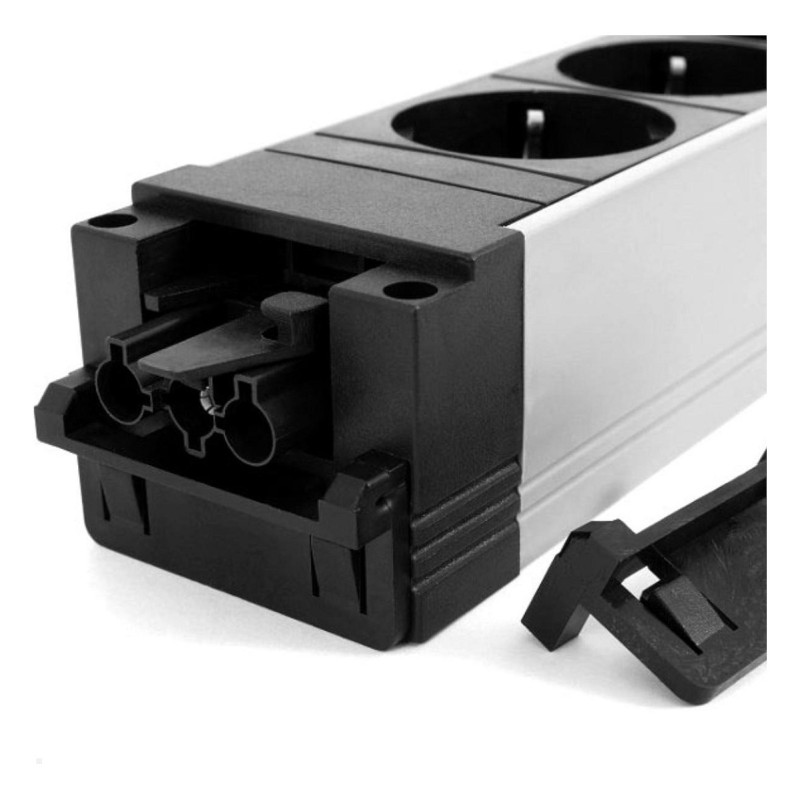

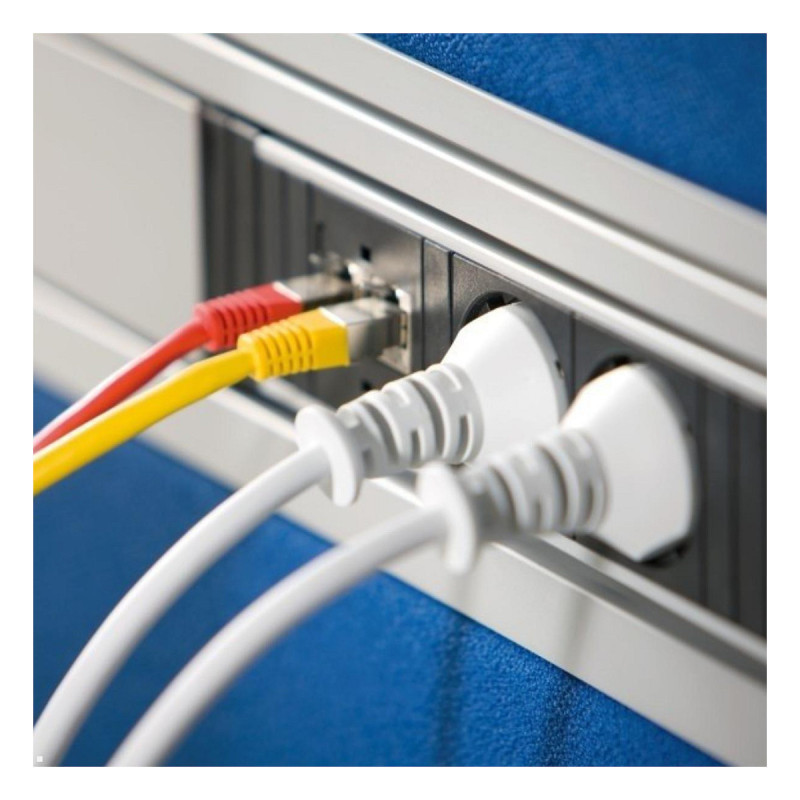

Bachmann STEP ALU (906.18803) 3-way socket strip with switch is equipped with Wieland GST18i3 for the power supply as standard and can therefore be used with different line inputs. The multiple socket is equipped with triple protective contact sockets 35° rotated and a green illuminated switch. STEP power strips can be used in a variety of ways, for example for mounting under tabletops, in cable ducts and partitions. Various attachments are available for this. The Bachmann STEP system is ideal for flexible energy and data supply at workplaces, in double floors, in partition wall systems and many other connection applications. The modularity of the STEP ALU socket strips offers almost limitless possibilities. The power supply for the STEP is equipped with Wieland GST18i3 as standard and can be fed in with different cable lengths. Other plug-in connection systems can also be implemented.

Features

Placement supported: Indoor
Feature: On/off switch
International Protection (IP) code: IP20
Housing material: Aluminium
Product colour: Anthracite, Silver

Ports & interfaces

AC outlets quantity: 3 AC outlet(s)

Power

AC input voltage: 230 V
Maximum input power: 3680 W
Maximum current: 16 A

Weight & dimensions

Width: 52 mm
Depth: 272 mm
Height: 44 mm

Packaging data

Number of products included: 1 pc(s)
