ROLINE 26.21.0186 stovo spinta

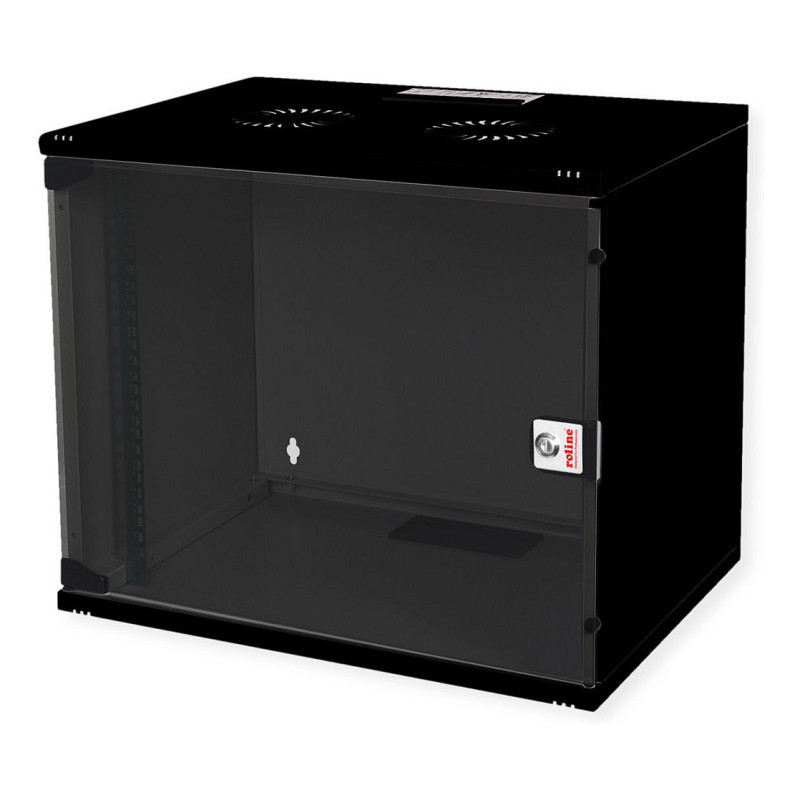

ROLINE 19-inch wall-mounted housing Basic 7 U, 540x400 WxD kit black. Type: Wall mounted rack, Rack capacity: 7U, Key lock, Rack rails, International Protection (IP) code: IP20. Weight: 9.5 kg. Product colour: Black

The 19" wall-mounted enclosures in the ROLINE Basic series are supplied unassembled as a flat pack (kit). Available in four different height units and equipped with a full glass door and cable entries with brushes on the top and bottom, they are ideal for sub-distribution or for setting up a small to medium-sized network. Inside, a pair of galvanised 19" profile rails with readable height units are installed, which are adjustable in depth. Each enclosure consists of a robust steel construction made of up to 1.5 mm thick sheet steel and is available electrostatically powder-coated in the standard colours grey (RAL 7035) and black (RAL 9005). The door hinge can be changed if required. Assembly is quick and easy thanks to the enclosed assembly instructions.

Features

Rack capacity: 7U
Type: Wall mounted rack
Product colour: Black
Material: Steel
Front door construction: Glass
Feature: Removable front door
Feature: Side panels included
Feature: Key lock
Feature: Rack rails
Cooling type: Passive
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 48.3 cm (19")
Width: 540 mm
Depth: 400 mm
Height: 370 mm
Weight: 9.5 kg
Mounting depth (min): 36 cm
Mounting depth (max): 38 cm

Packaging data

Feature: Mounting kit
Feature: Quick installation guide
Package width: 425 mm
Package depth: 630 mm
Package height: 70 mm
Package weight: 10.7 kg
