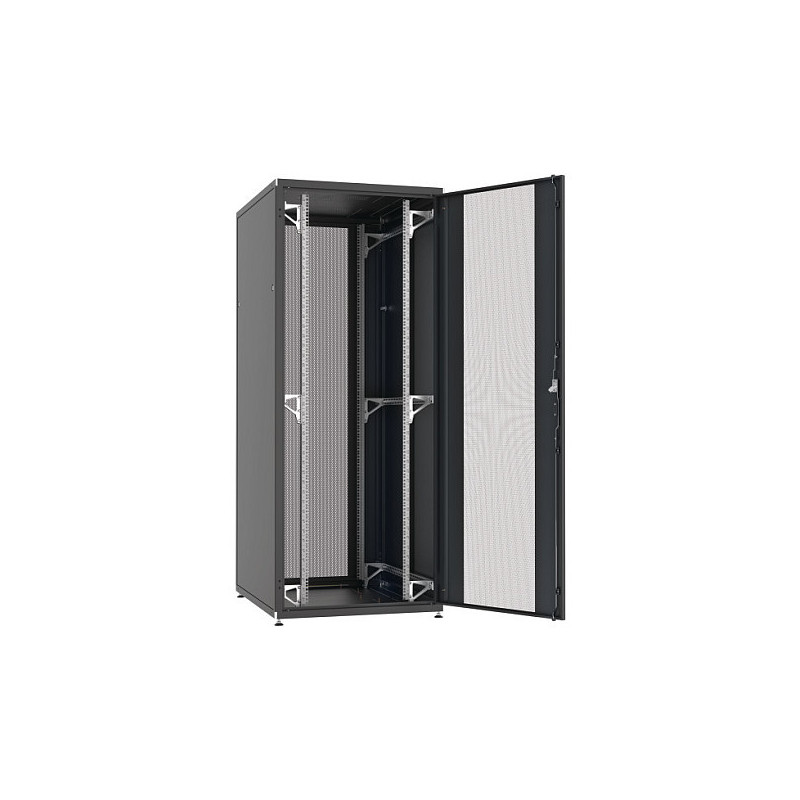

EFB Elektronik PRO-4280TS.P1P2 stovo spintelė

EFB Elektronik PRO-4280TS.P1P2. Type: Freestanding rack, Rack capacity: 42U, Maximum weight capacity: 1000 kg, Adjustable feet, International Protection (IP) code: IP20, Product colour: Black

ARTICLE INFORMATION

- 19" server cabinet according to DIN41494
- Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, detachable
- Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
- Contrariwise numbering of rack units at the 19" profiles
- Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
- Profile half-cylinder exchangeable by customer (30/10 mm)
- Door stop for front and rear door possible left- or right-sided
- Detachable side walls with 2 x latch locking (lock equal to the door lock)
- Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

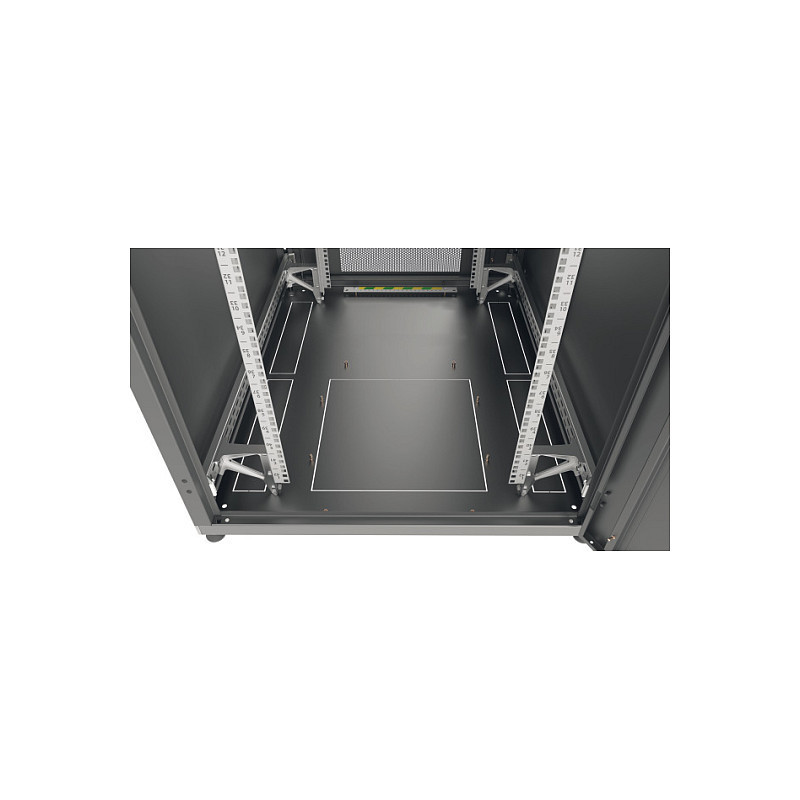

- Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

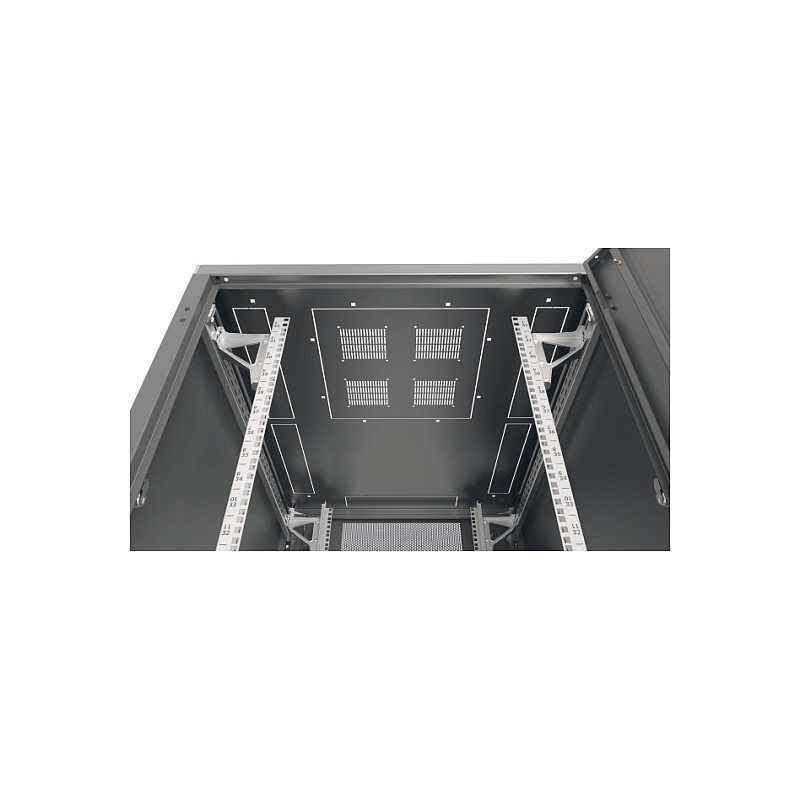

- Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
- Internal earthing of all cabinet sections
- Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
- Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for > 24U)
- Paint finish RAL9005, jet black
- Protection degree IP20
- Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
- Delivery in transport packaging on disposable pallet

Features

Rack capacity: 42U
Type: Freestanding rack
Maximum weight capacity: 1000 kg
Product colour: Black
Material: Steel
Back door construction: Mesh
Front door construction: Mesh
Side panel construction: Steel
Feature: Removable side panels
Feature: Side panels included
Feature: Back door key lock
Feature: Front door key lock
Feature: Adjustable feet
International Protection (IP) code: IP20
Feature: Preassembled

Weight & dimensions

Width: 800 mm
Depth: 1000 mm
Height: 1963 mm

Packaging data

Feature: Nuts included
Number of nuts: 20
