„Digitus DN-91624S-SL-EA-G“ komutacinė panelė

Digitus CAT 6A, Class EA High Density Patch Panel, shielded. Connector contacts plating: Gold, Cable types supported: Cat6a, Plug/connector retention force: 30 N. Mounting: Rack mounting, Rack capacity: 0.5U, Product colour: Grey. Package width: 515 mm, Package depth: 130 mm, Package weight: 980 g. Country of origin: China

Very space-saving (only 0.5U) - With dust protection caps - Future-oriented standards and high-end quality for your network

- Slim installation height of only 0.5 U
- Up to 48 ports per U possible (2 x 24 port panels)
- Dust protection flaps on the RJ45 sockets
- 360° shield contacting
- Cable clamp for fixing and routing, reclosable

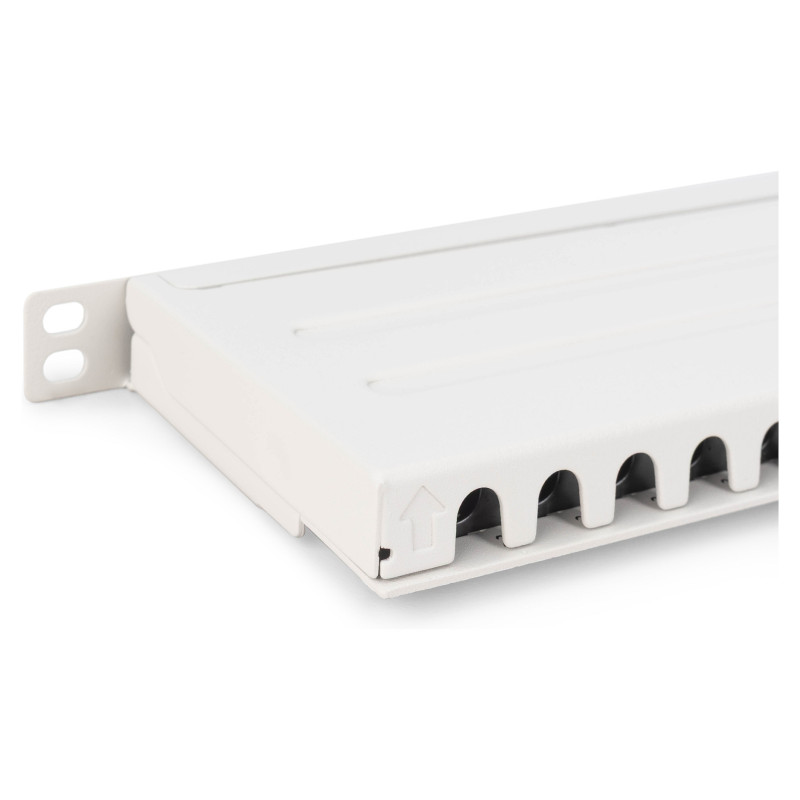

- Quick-release fastener to secure the housing cover

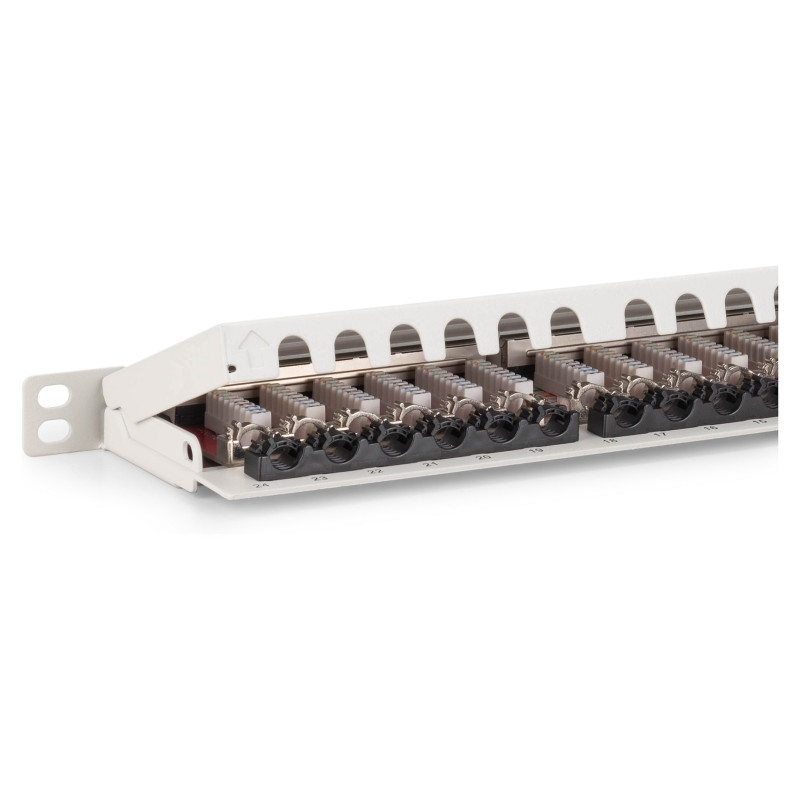

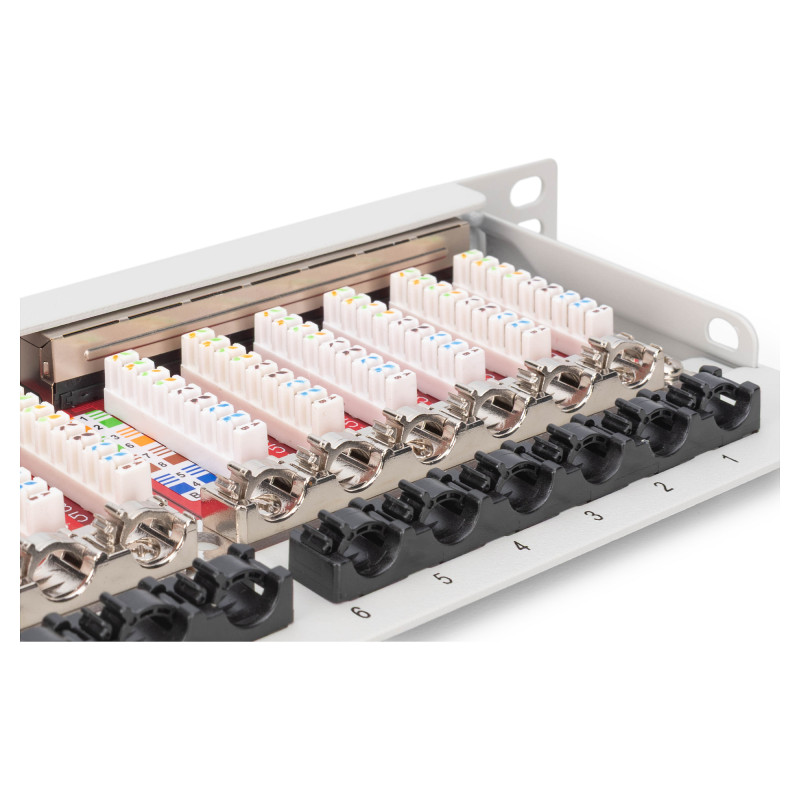

The DIGITUS® 24-port patch panel offers a very high packing density with only 0.5 U. This means that up to 48 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded and equipped with dust protection caps on the RJ45 sockets. The 360° shield contact of the cables ensures the best performance characteristics. The quick-release fastener on the housing ensures easy and tool-free access to the LSA cutting terminals.

Network

Ports quantity: 24
Connector contacts plating: Gold
Cable types supported: Cat6a
Plug/connector retention force: 30 N

Design

Product colour: Grey
Material: Steel
Mounting: Rack mounting
Rack capacity: 0.5U

Operational conditions

Operating temperature (T-T): -20 - 70 °C

Packaging content

Feature: Anti-dust plug

Packaging data

Package width: 515 mm
Package depth: 130 mm
Package weight: 980 g
Package volume: 2343.25 cm³

Logistics data

UK Trade Tariff code: 85369010
Country of origin: China
Harmonized System (HS) code: 85371098
