StarTech.com 196UE-USBC-DOCK nešiojamojo kompiuterio dokas / prievado replikatorius

StarTech.com Dual-Monitor USB-C Docking Station, HDMI, 4K 60Hz, 100W Laptop Charging, 1GbE, Driverless, Multi-Monitor Dock For Windows. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 1 Gbit/s, Cable lock slot type: Kensington, Nano, Noble, Wedge. Power source type: DC, AC input voltage: 100 - 240 V, Input current: 2.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Linux operating systems supported: Ubuntu 24.04 LTS

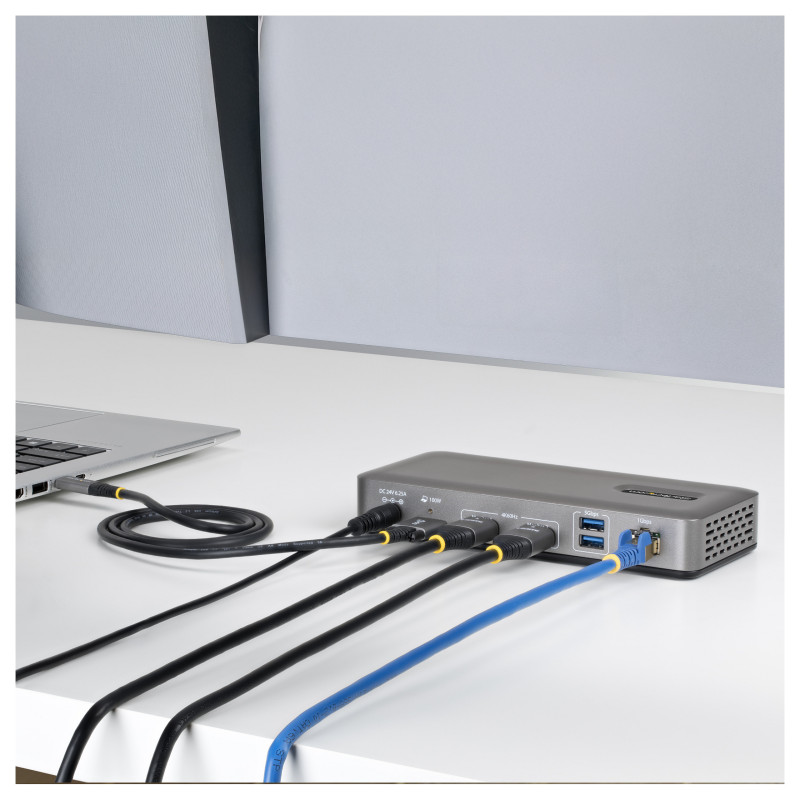

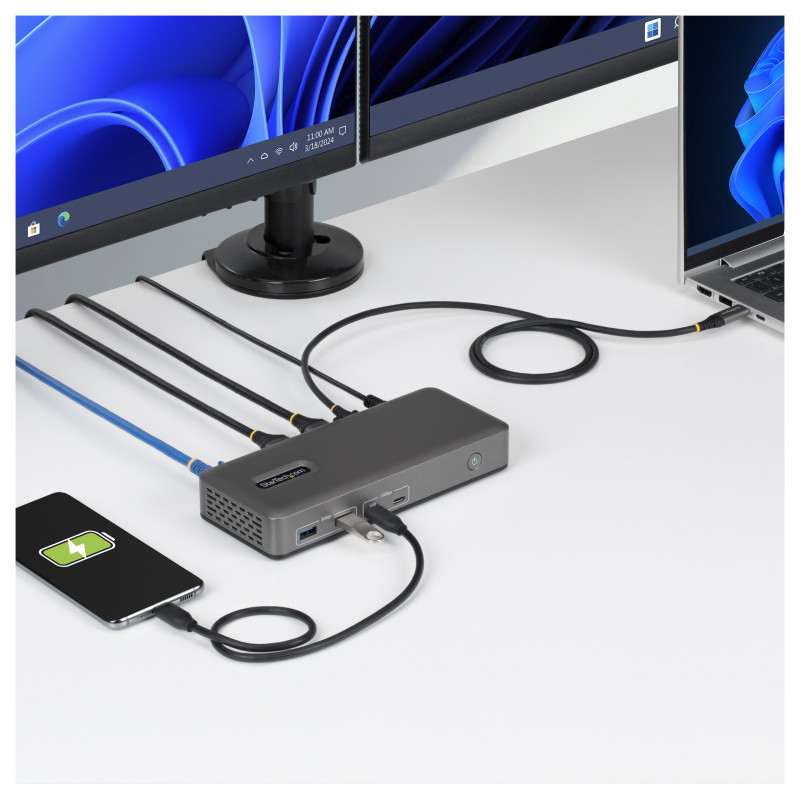

Transform a USB-C laptop into a dual-monitor workstation with HDMI video and USB-A and USB-C ports

Connect up to two 4K 60 Hz HDMI displays through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.

Uncompressed Video Over USB-C

Connect up to two 4K 60Hz HDMI monitors through a single USB Type-C port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression

Driverless Deployment

Features plug-and-play functionality on Windows with no drivers or software required*. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.

Flexible, High-Speed I/O

This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.

Mounting and Security

This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).

*Note: Not compatible with macOS or ChromeOS

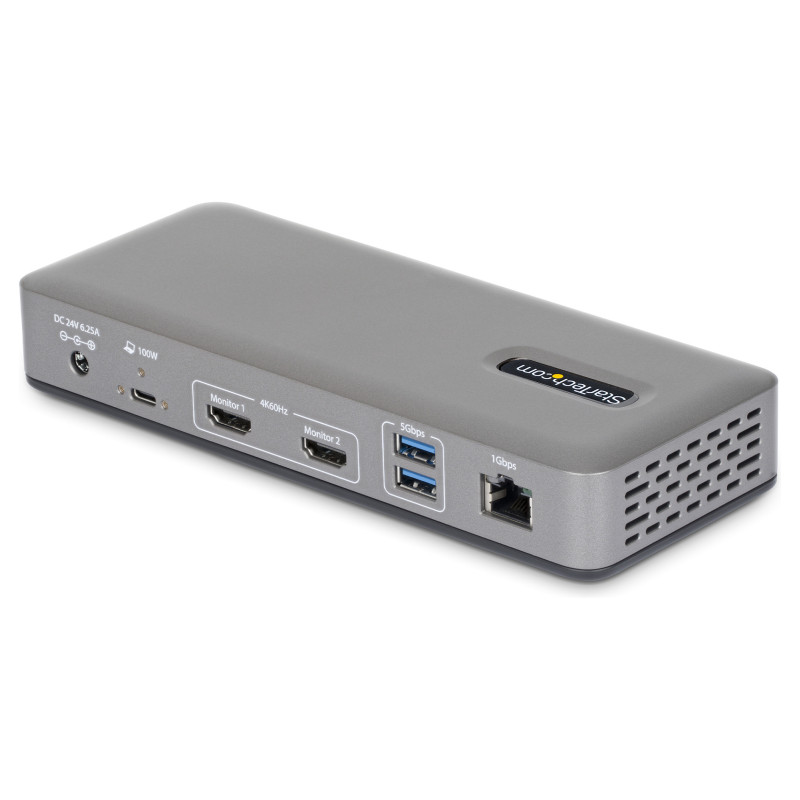

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Full duplex

Performance

Data transfer rate: 1 Gbit/s
Number of displays supported: 2
Feature: Cable lock slot
Cable lock slot type: Kensington, Nano, Noble, Wedge
Product colour: Grey
Feature: On/off switch
LED indicators: Power
Feature: Plug and Play
Housing material: Plastic

Power

Power source type: DC
AC input voltage: 100 - 240 V
Input current: 2.5 A
Output voltage: 24 V
Output current: 6.25 A
Power consumption (max): 150 W
Power plug type: Type N
Compatible power plug types: UK, EU

Software

Linux operating systems supported: Ubuntu 24.04 LTS

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): 10 - 70 °C
Operating relative humidity (H-H): 10 - 85%

Weight & dimensions

Width: 79 mm
Depth: 190 mm
Height: 27 mm
Weight: 300 g

Packaging data

Package width: 250 mm
Package depth: 205 mm
Package height: 50 mm
Package weight: 1 kg

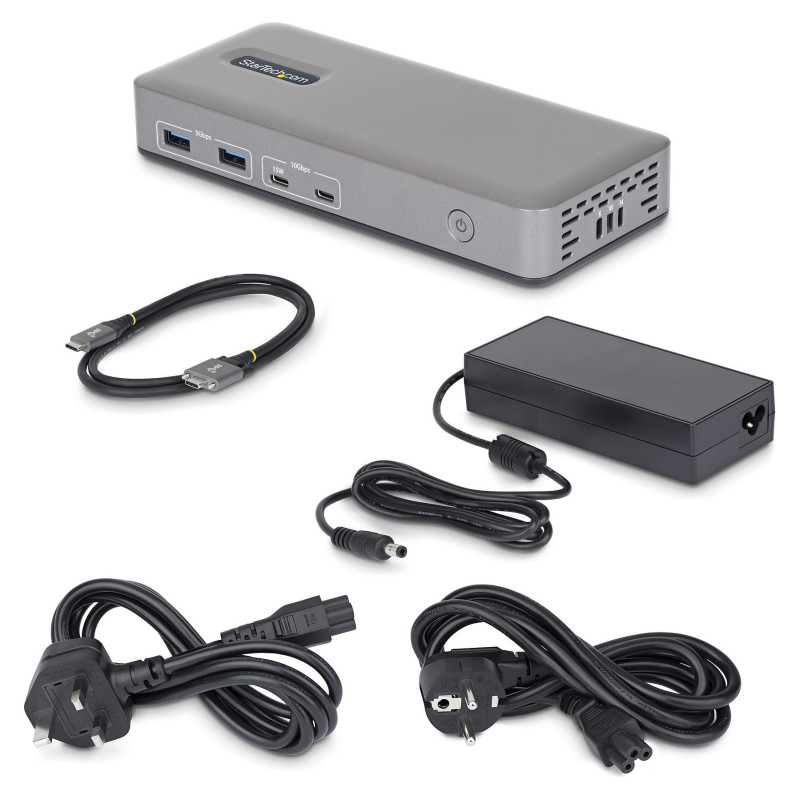

Packaging content

Cables included: USB
Feature: User guide

Technical details

Compliance certificates: Federal Communications Commission (FCC), RoHS

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 430 mm
Master (outer) case length: 270 mm
Master (outer) case height: 280 mm

Other features

Chipset: VMM5220, VL103R, VL171, VL822Q8T, VP226, RTL8153E, VL817Q7S
