StarTech.com MST14CD123HD USB grafikos adapteris

StarTech.com 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x HDMI MST Hub, Triple 4K 60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only. USB connector type: USB Type-C, USB connector gender: Male, USB connector form factor: Straight. Product colour: Grey, Housing material: Plastic. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 43 mm, Depth: 105 mm, Height: 14 mm. Package width: 145 mm, Package depth: 174 mm, Package height: 32 mm

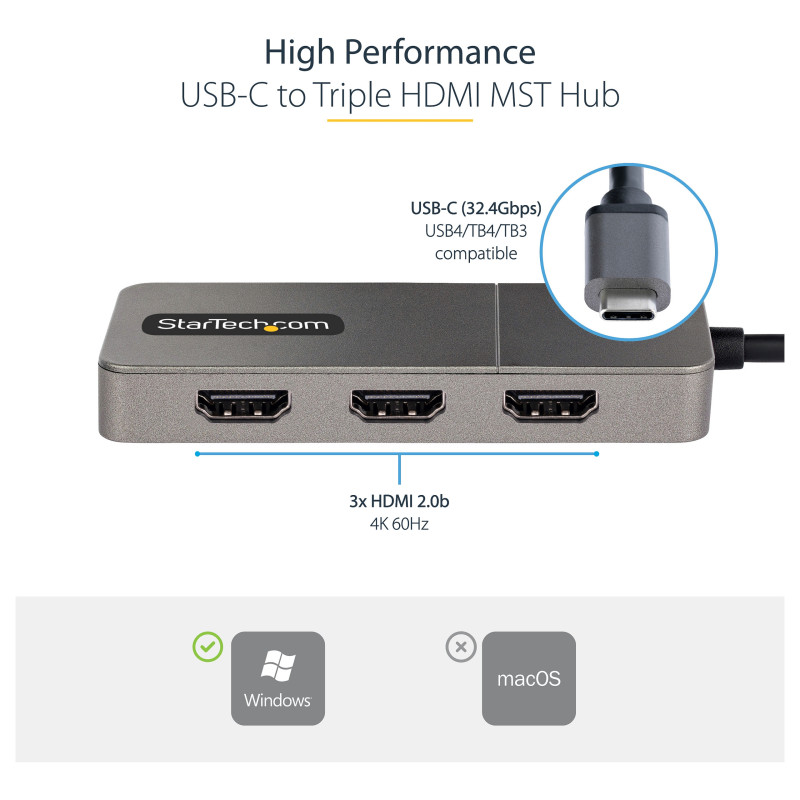

Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitors

This USB-C to HDMI MST Hub enables a connection to three HDMI monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.

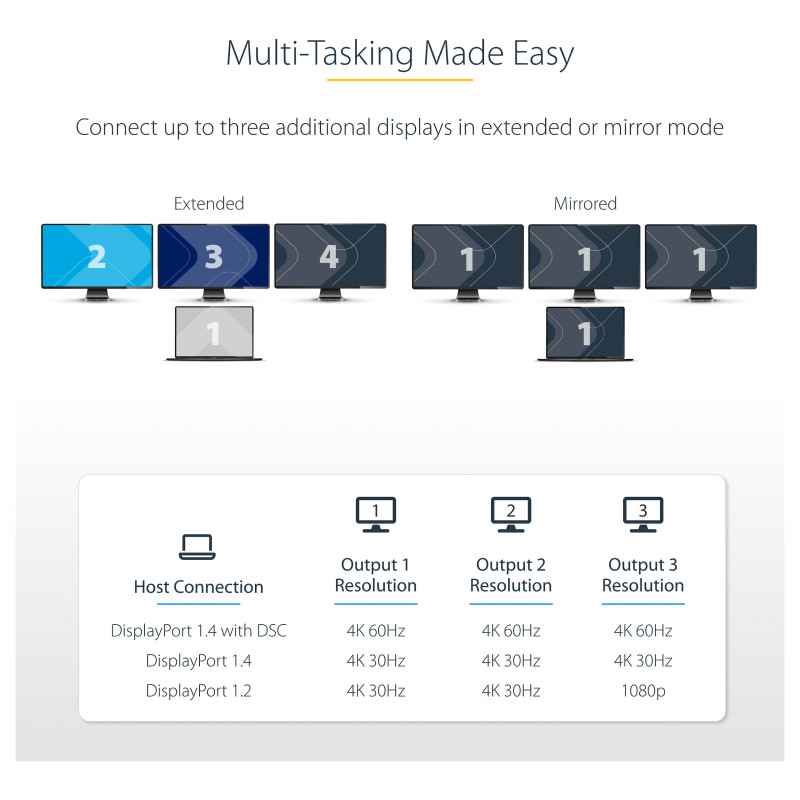

Multi-Tasking Made Easy

Configure up to three displays in extended or mirrored mode, using this USB-C to HDMI triple-video adapter. Connecting three independent 4K 60Hz displays creates high-performance extended-display workstations. This encourages increased multi-tasking across your organization, resulting in increased productivity.

Host Connection

Max Resolution

Output 1

Max Resolution

Output 2

Max Resolution

Output 3

Example Host

Processor/Graphics

DisplayPort 1.4 with DSC

4K 60Hz

4K 60Hz

4K 60Hz

*Some Intel 11th Gen

Intel 12th Gen Processors & Later

Discrete AMD & Nvidia GPU's that support DSC

DisplayPort 1.4

4K 30Hz

4K 30Hz

4K 30Hz

Intel 10th Gen (Ice Lake Only)

Intel 11th Gen Processors & Later

Discrete AMD and Nvidia GPU's that support DP 1.4

DisplayPort 1.2

4K 30Hz

4K 30Hz

1080p

Intel 8th - 10th Gen Processors & Later

*Please verify the GPU capabilities and DSC for MST driver support with the OEM of the host device

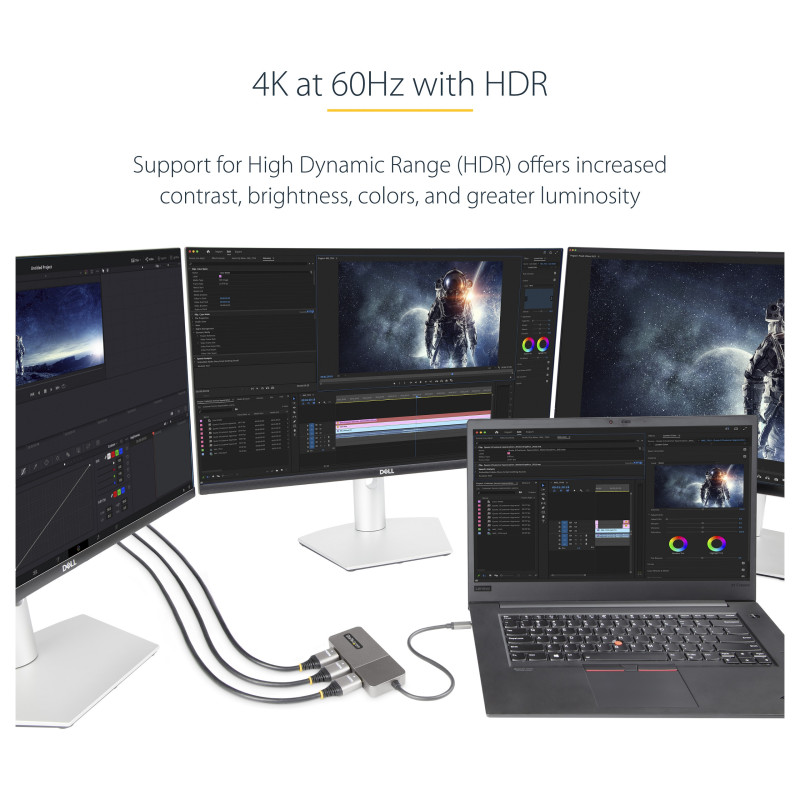

4K at 60Hz and HDR

Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into three independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

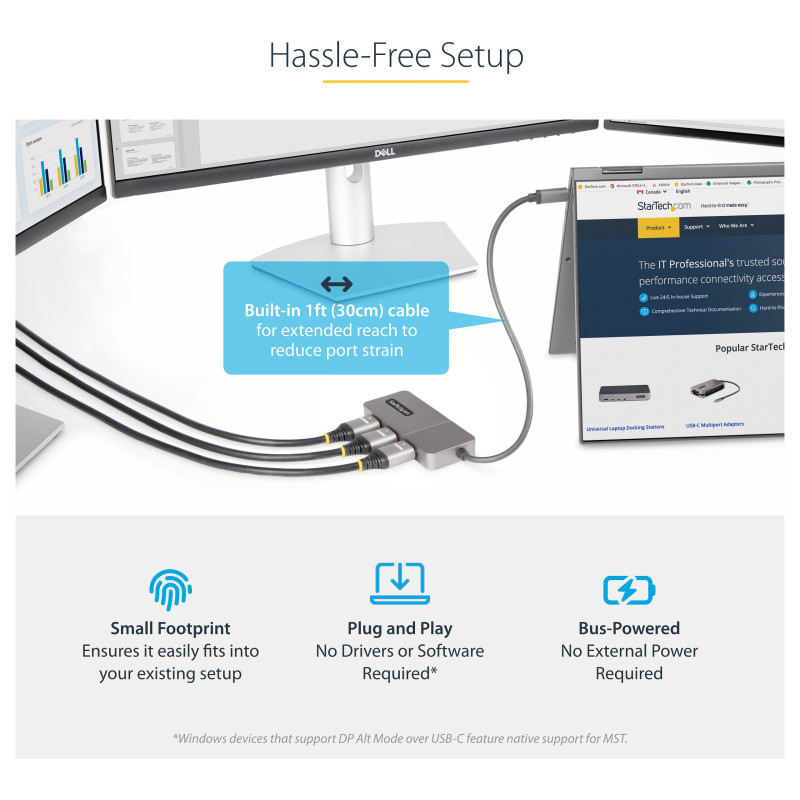

Hassle-Free Setup

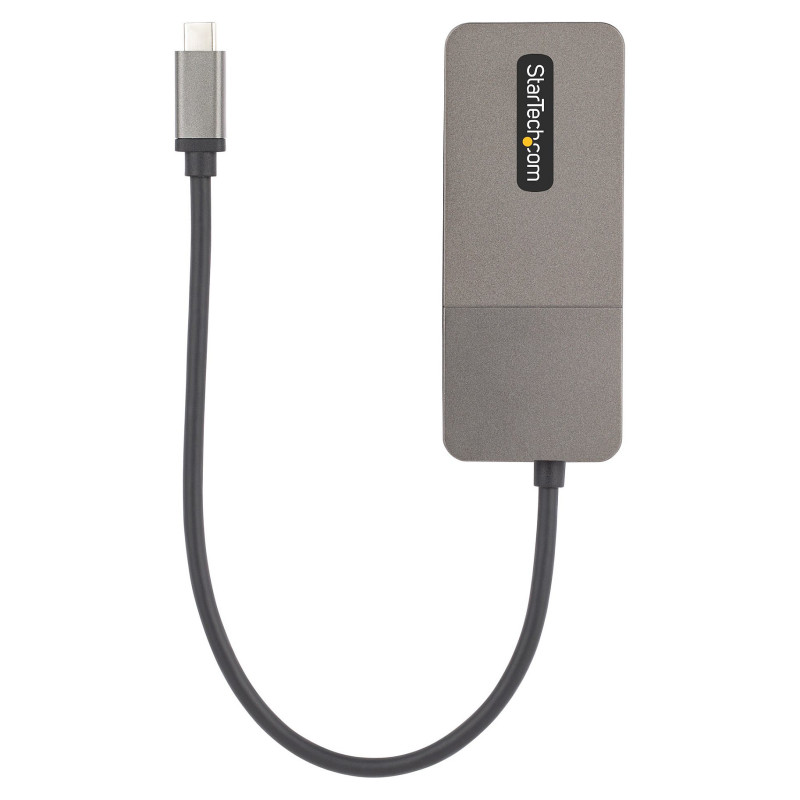

Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.

This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.

Performance

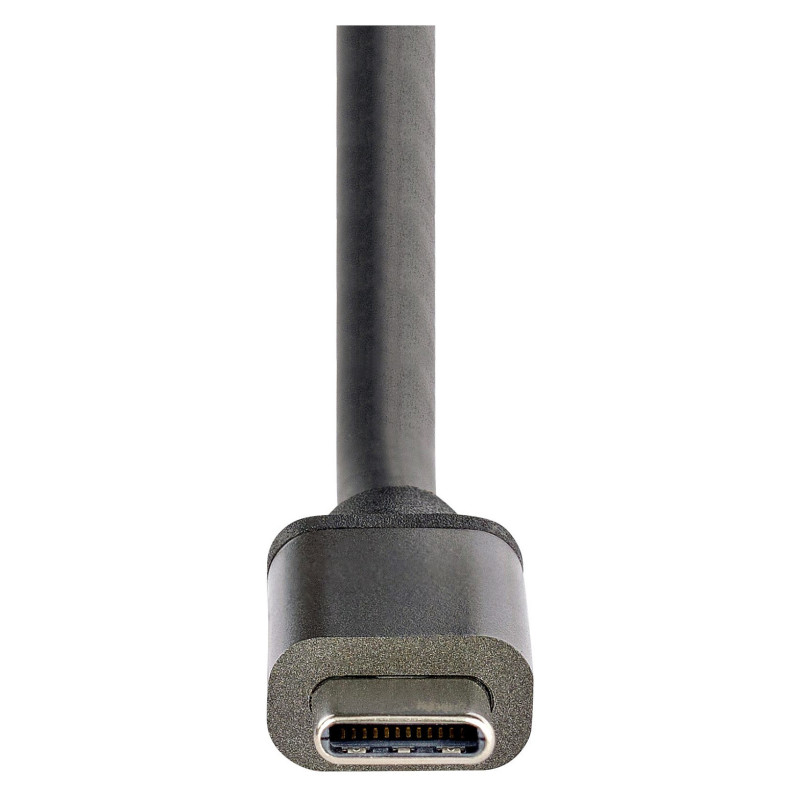

USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
Feature: High Dynamic Range (HDR) supported
Feature: HDMI output
Number of displays supported: 3

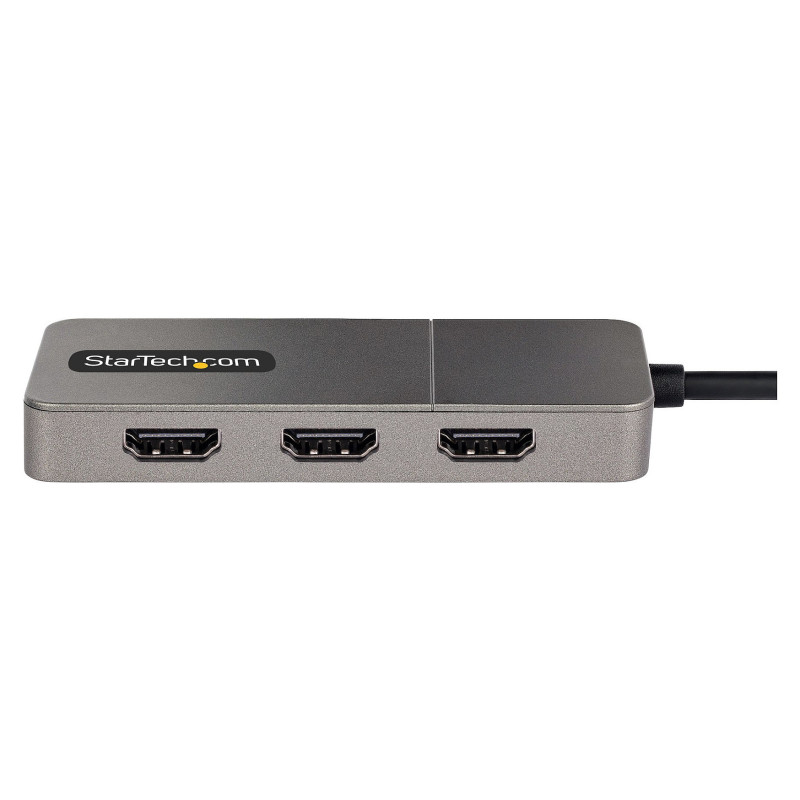

HDMI ports quantity: 3
HDMI version: 2.0
Feature: HDCP
HDCP version: 2.2
Maximum resolution: 3840 x 2160 pixels
Refresh rate at maximum resolution: 60 Hz
Audio output channels: 2.0 channels
Chipset: Synaptics VMM5310

Design

Product colour: Grey
Housing material: Plastic

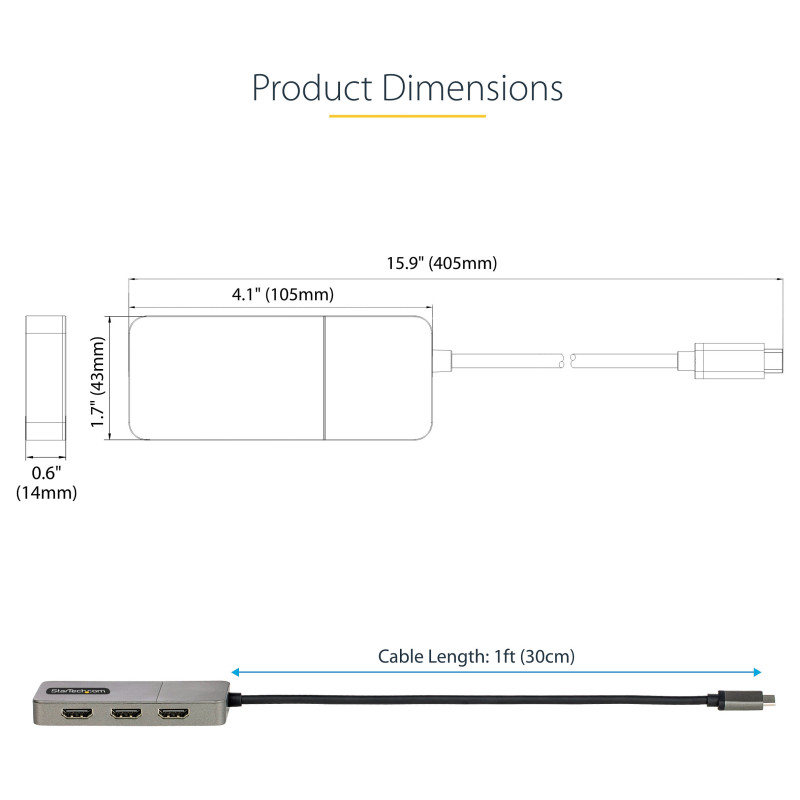

Weight & dimensions

Width: 43 mm
Depth: 105 mm
Height: 14 mm
Weight: 72 g
USB cable length: 0.3 m

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 85%

Packaging data

Package width: 145 mm
Package depth: 174 mm
Package height: 32 mm
Package weight: 124 g

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 70 pc(s)
Master (outer) case width: 473 mm
Master (outer) case length: 331 mm
Master (outer) case height: 440 mm
