StarTech.com ICUSB234858I sąsajos šakotuvas

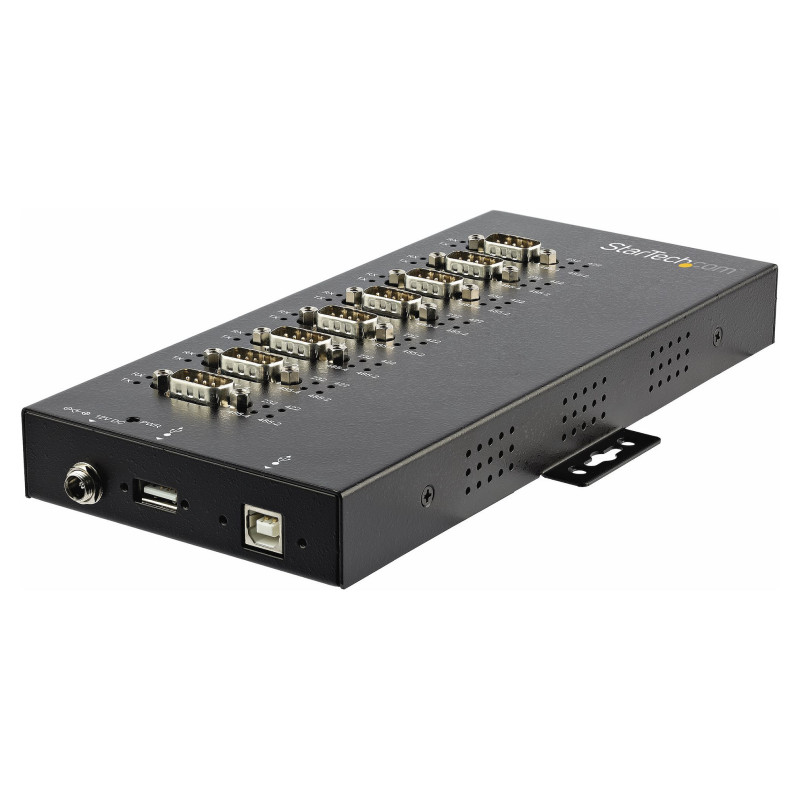

StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection - TAA. Host interface: USB 2.0, Hub interfaces: Serial. Product colour: Black, Housing material: Steel, LED indicators: Power. Power source type: AC, Power consumption (typical): 36 W, Input voltage: 100 - 240 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows.... Width: 128 mm, Depth: 219 mm, Height: 25 mm

Add eight ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection

Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.

Supports multiple serial protocols

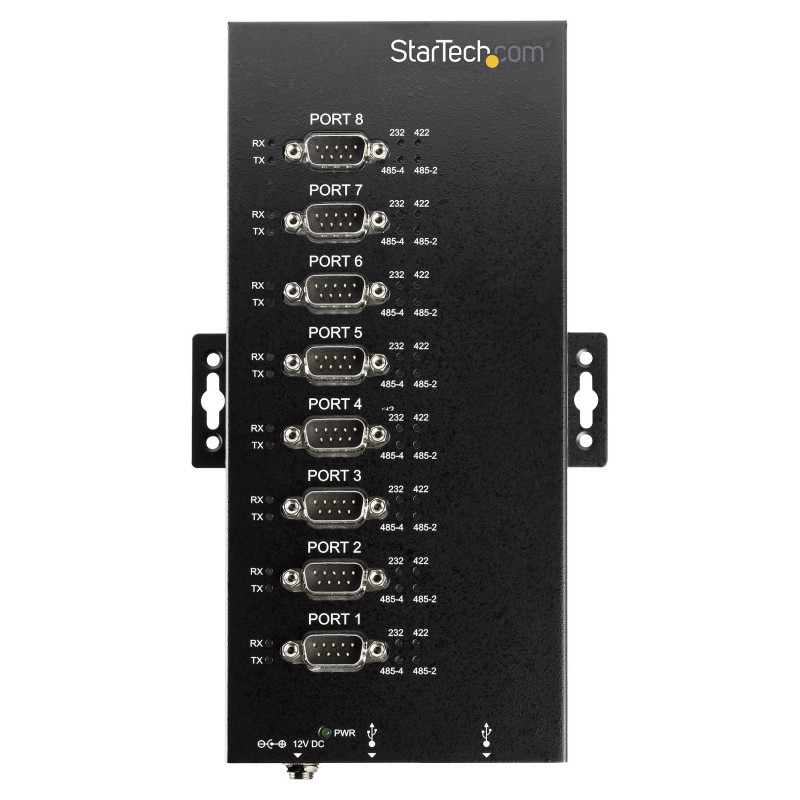

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.

Ideal for harsh environments

With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

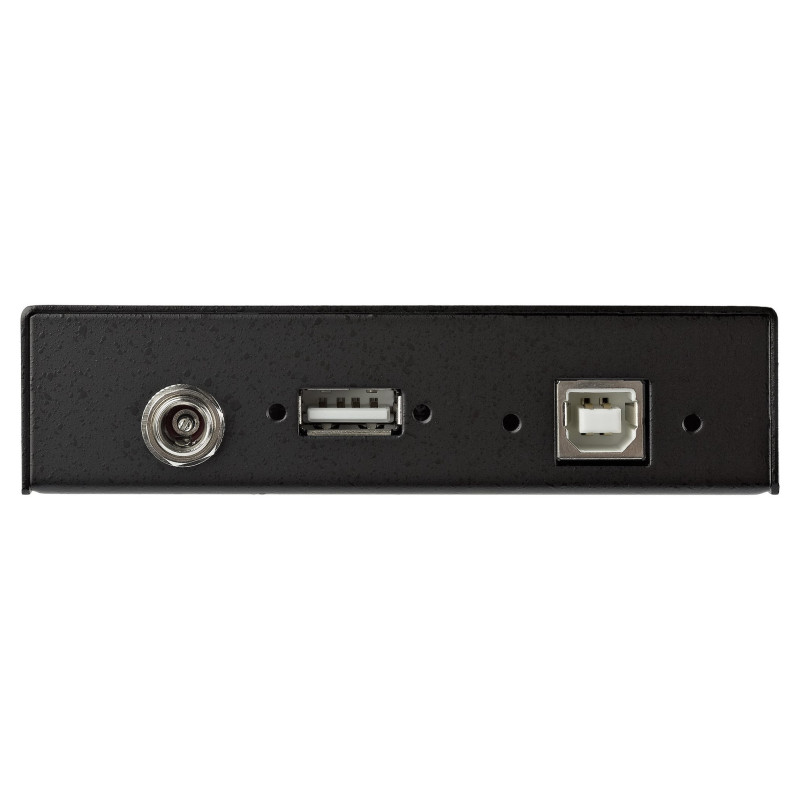

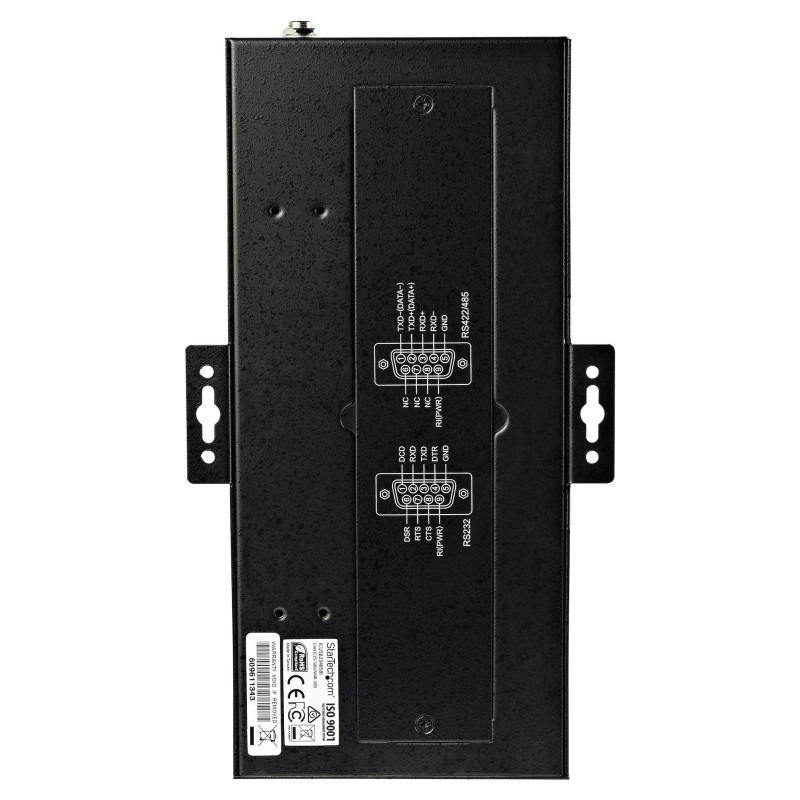

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.

Fast data transfers

The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.

The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Host interface: USB 2.0
Hub interfaces: Serial
USB 2.0 ports quantity: 2
Ports quantity: 8
RS-232 ports: 8
Feature: DC-in jack

Features

Product colour: Black
Housing material: Steel
Feature: Surge protection
LED indicators: Power

Power

Power source type: AC
Power consumption (typical): 36 W
Input voltage: 100 - 240 V
Input current: 1 A
Output voltage: 12 V
Output current: 3 A
Power plug type: Type M

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Weight & dimensions

Width: 128 mm
Depth: 219 mm
Height: 25 mm
Weight: 688 g

Packaging data

Package width: 195 mm
Package depth: 294 mm
Package height: 70 mm
Package weight: 1.6 kg

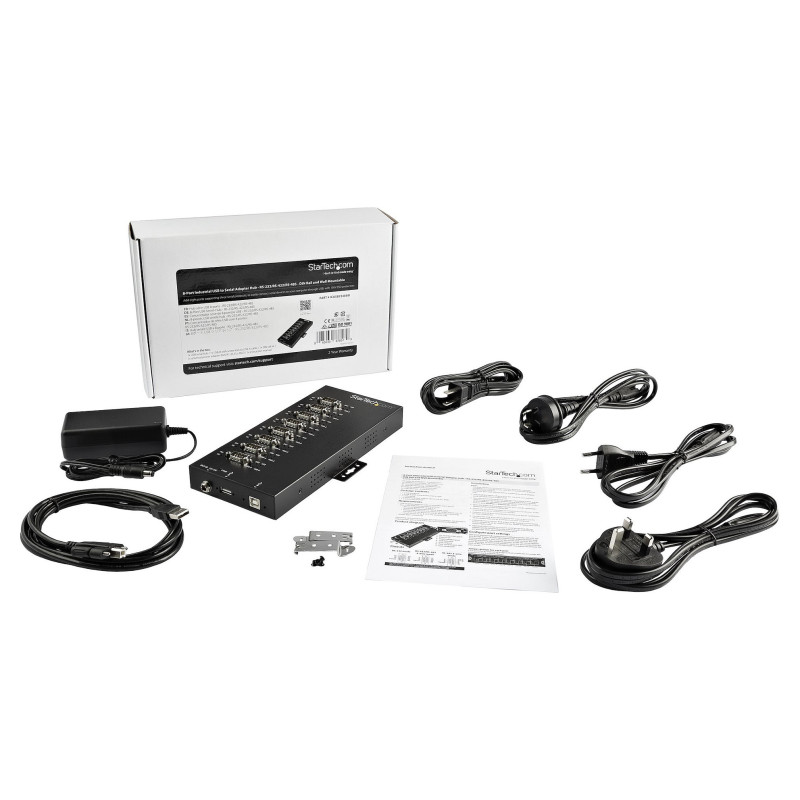

Packaging content

Feature: AC adapter included
Included power plug types: ANZ, EU, UK, US
Cables included: USB
Feature: DIN rail kit included

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Data bits: 7, 8
Stop bits: 1, 2
Parity bit: Even, Mark, No, Odd, Space
Baud rate: 921.6 Kbit/s

Sustainability

Feature: Sustainability compliance

Logistics data

Master (outer) case width: 398 mm
Master (outer) case length: 514 mm
Master (outer) case height: 322 mm
Products per master (outer) case: 14 pc(s)
Harmonized System (HS) code: 84719000

Technical details

Compliance certificates: CE, RoHS

Other features

Chipset: FTDI - FT4232H, Genesys Logic - GL825
