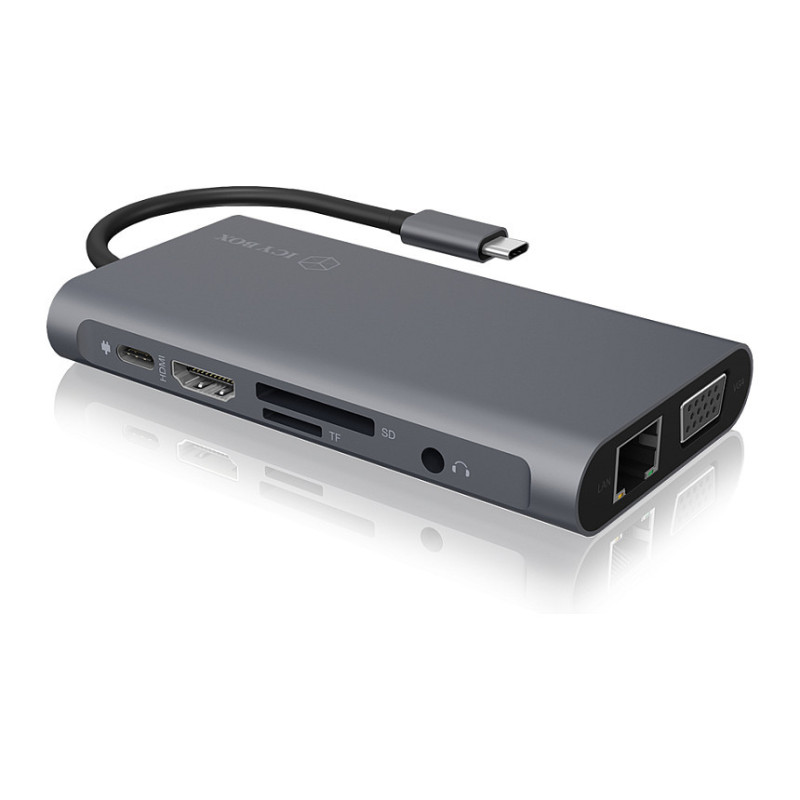

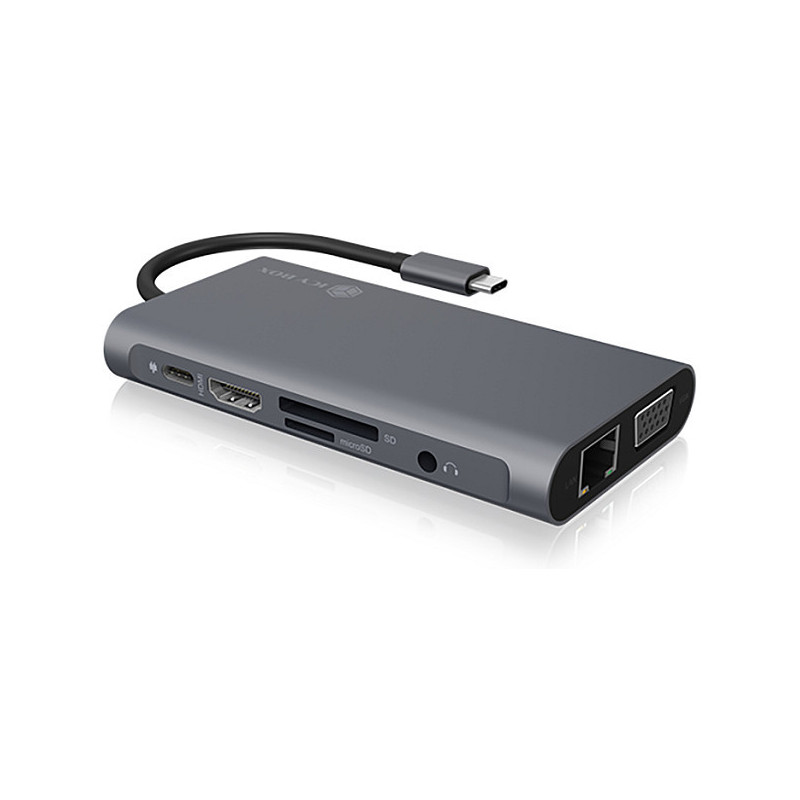

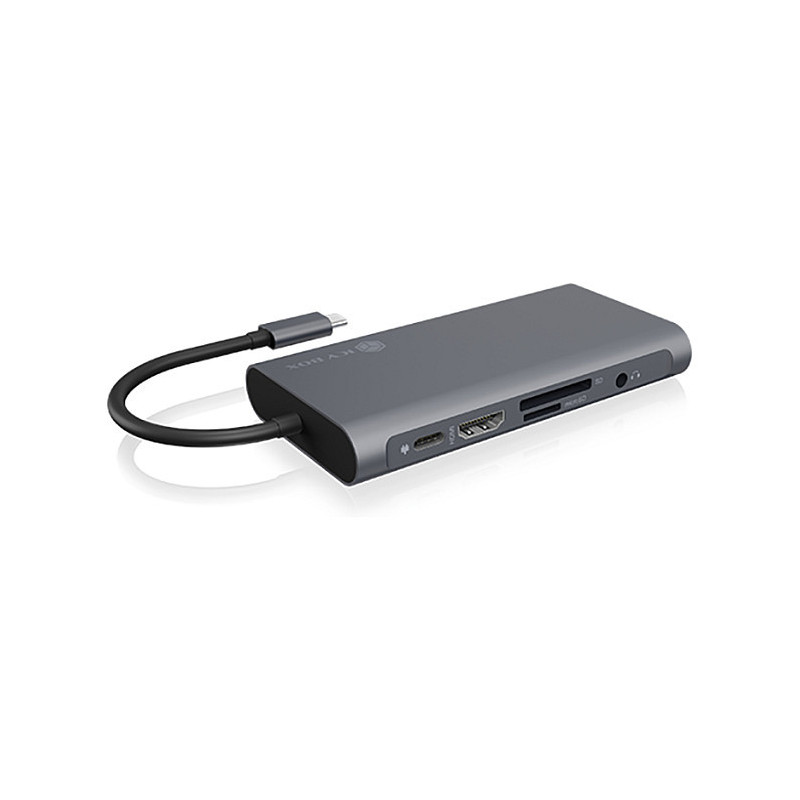

Ledinė dėžutė IB-DK4040-CPD

ICY BOX IB-DK4040-CPD. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Anthracite, Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB, Power connector: USB Type-C. Width: 60 mm, Depth: 115 mm, Height: 17 mm

Easy connection - multiple benefits

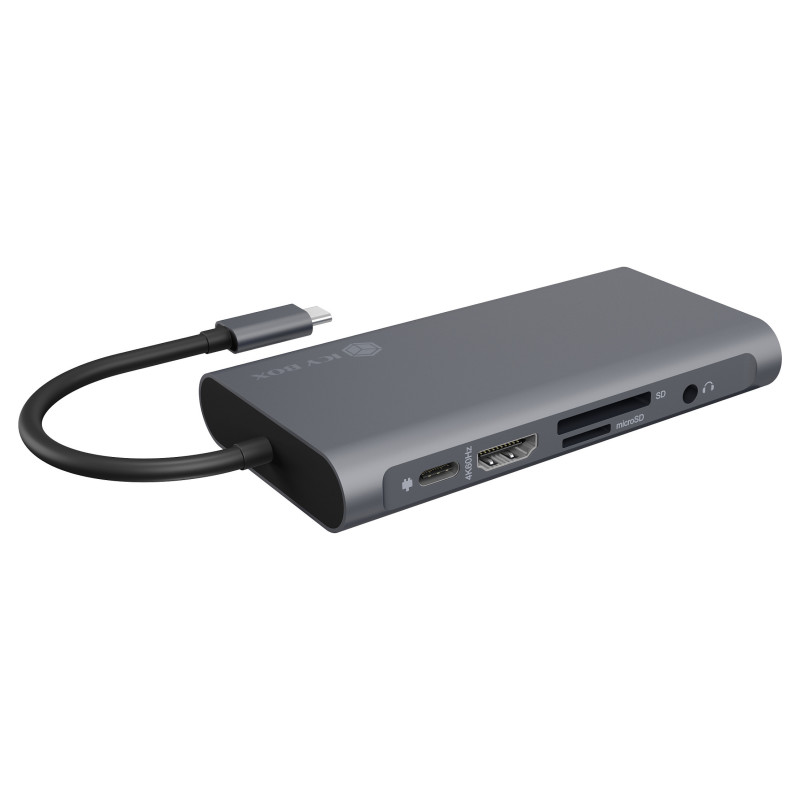

Perfectly combines a high-quality appearance and efficient technology with a very compact size. The premium aluminum DockingStation does not only look good but also offers high comfort while using. This solution is suited for any location such as private or office areas.

Small but strong
The Type-C™ connection offers incredible versatility. It combines data transmission, video output and power in a single, compact port. The integration of USB Type-C™ makes the connection even more practical, as it has a twist-proof connection as its physical feature - making it a truly universal connection.

Always informed
The IB-DK4040-CPD provides two different video interfaces and enables you to connect an HDMI® and VGA device simultaneously in mirror mode.

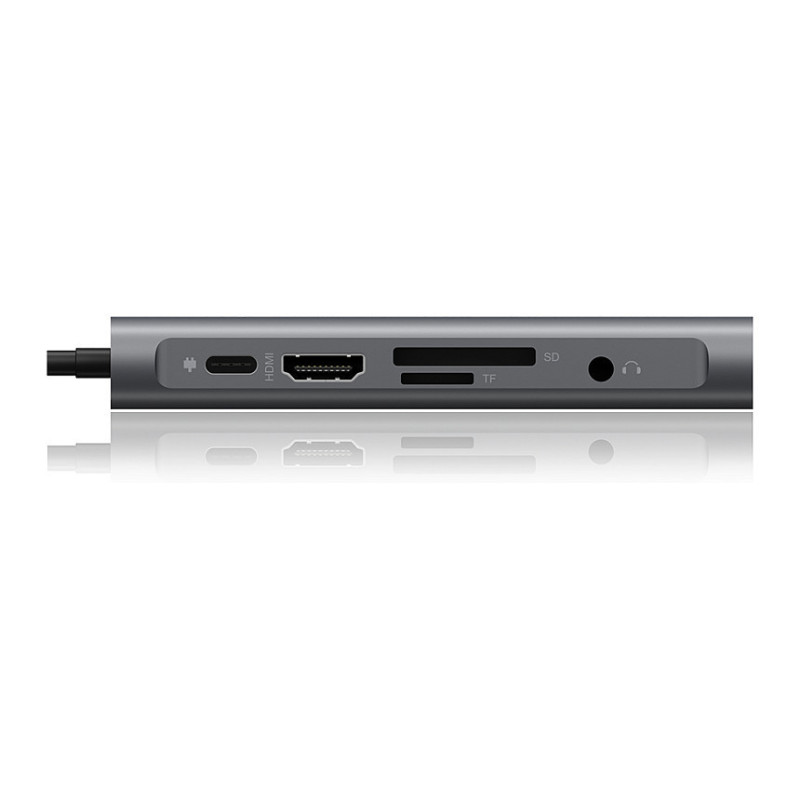

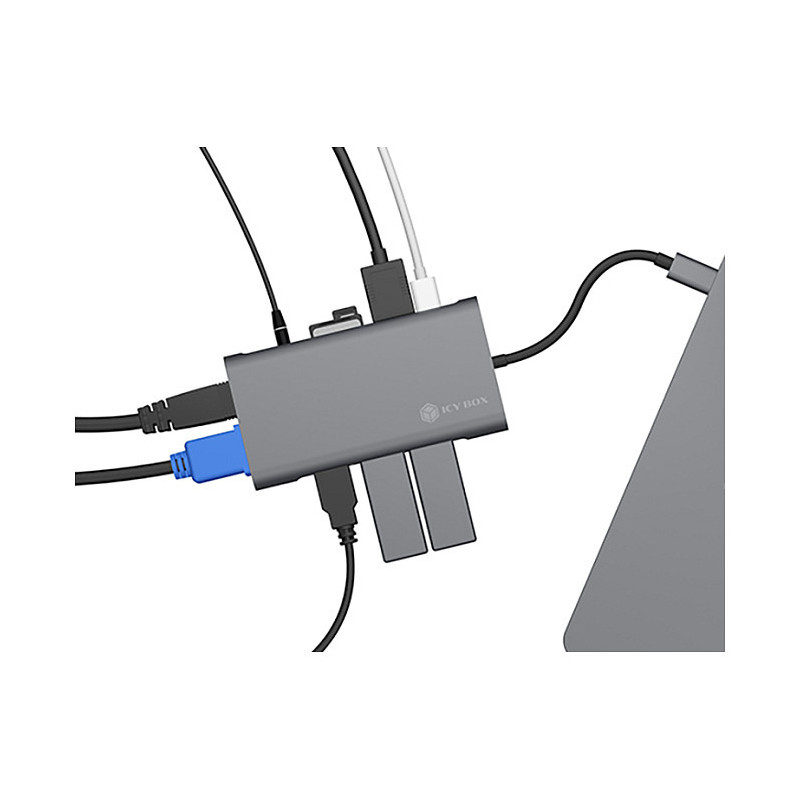

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C

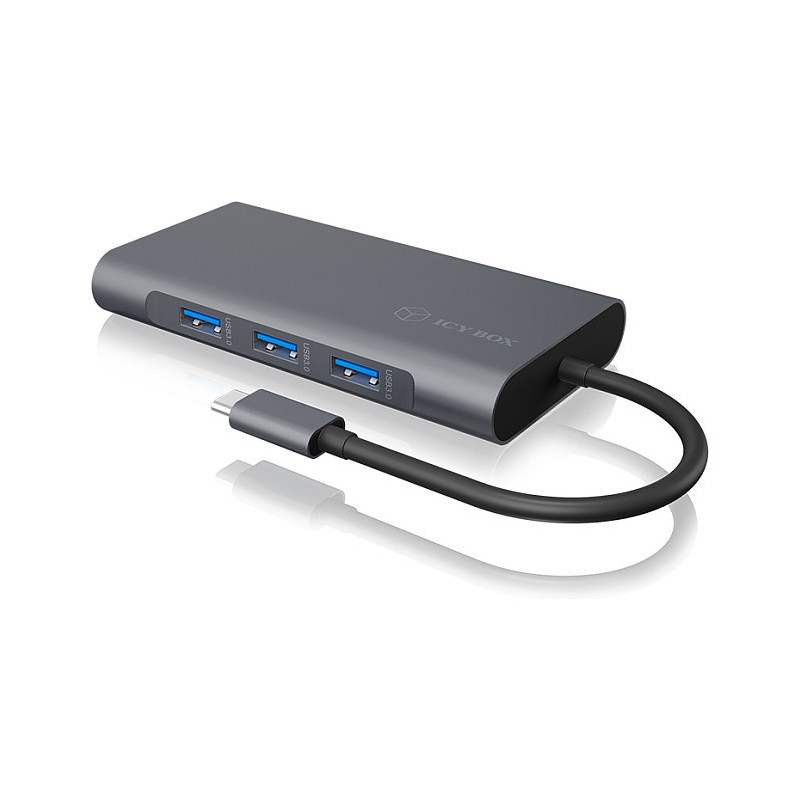

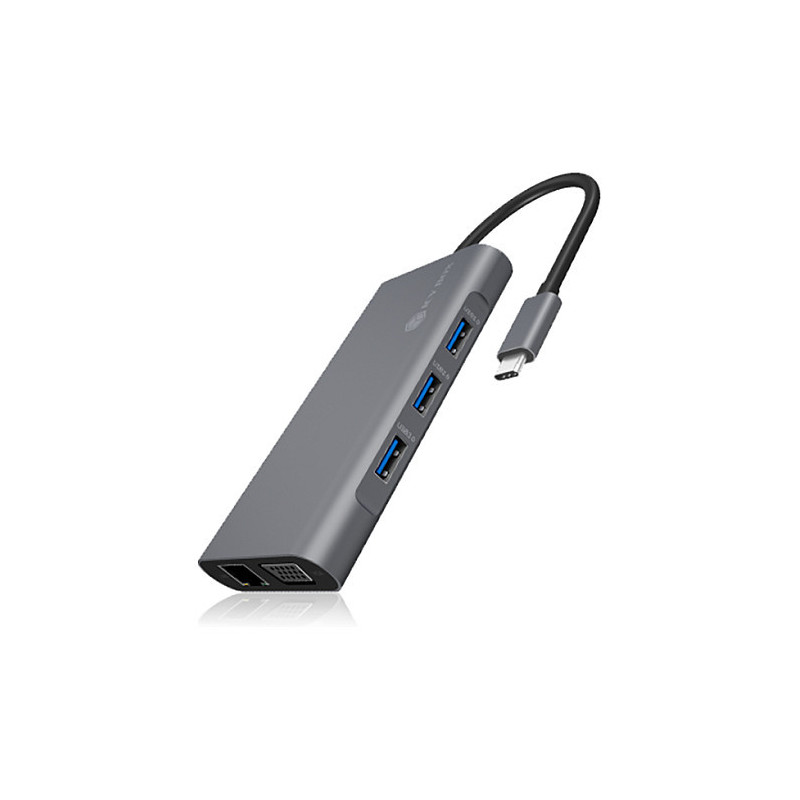

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)

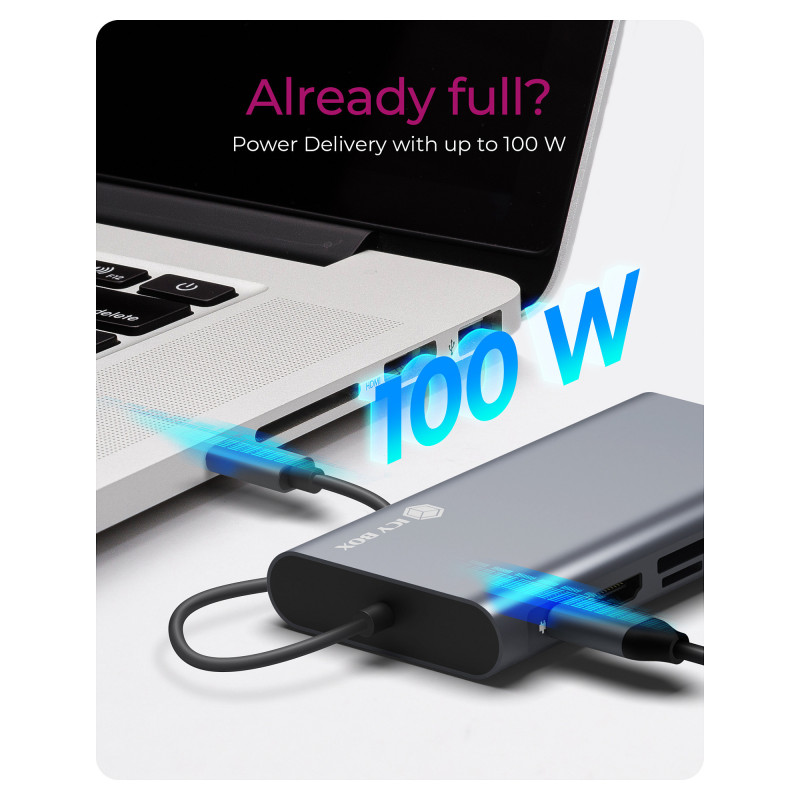

USB Power Delivery up to: 100 W
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1

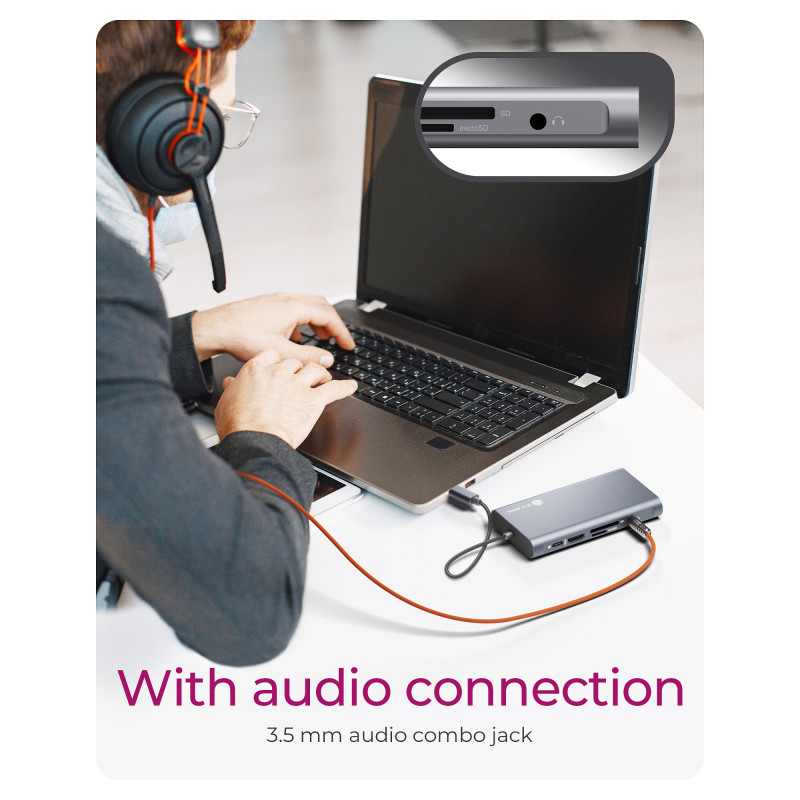

Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN

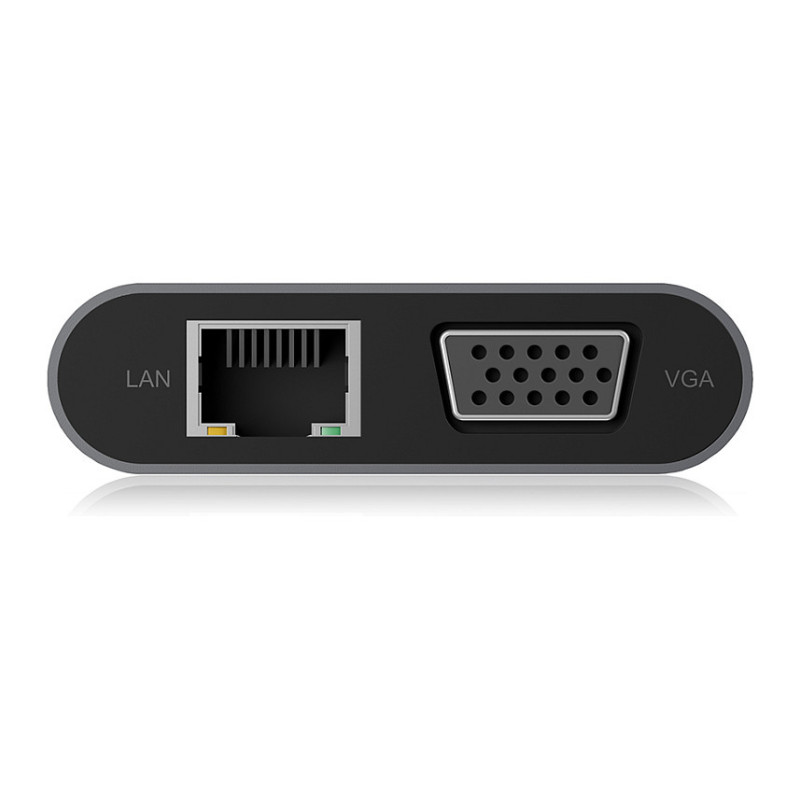

Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD

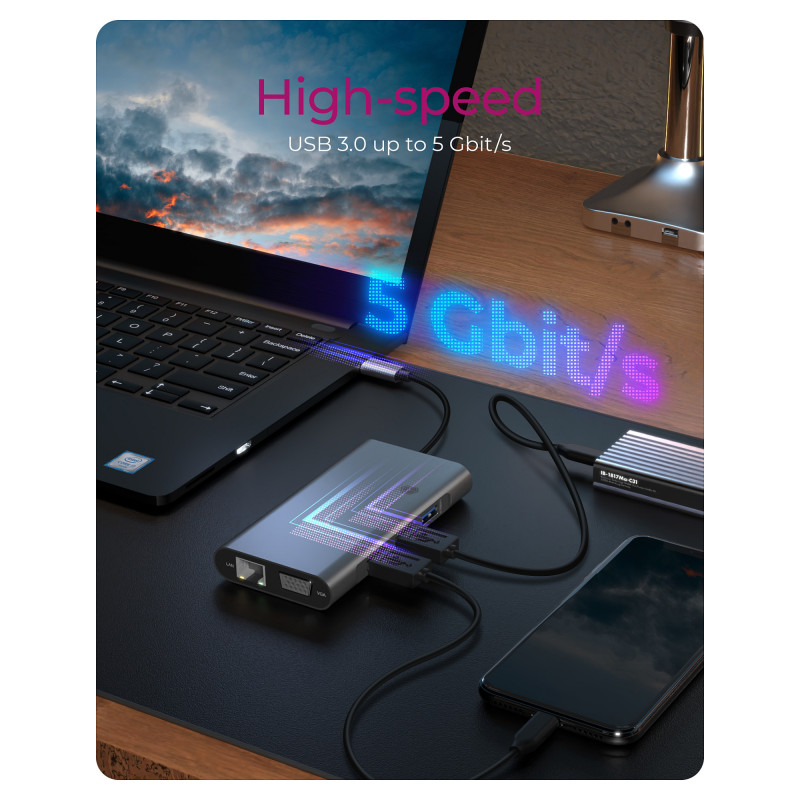

Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Maximum analog resolution: 1920 x 1200 pixels
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Product colour: Anthracite, Black
Feature: UASP support
Housing material: Aluminium, Plastic
Country of origin: China

Power

Power source type: USB
Power connector: USB Type-C

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 60 mm
Depth: 115 mm
Height: 17 mm
Weight: 100 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 100 mm
Package depth: 25 mm
Package height: 200 mm
Package weight: 176 g

Packaging content

Feature: Manual

Logistics data

Products per master (outer) case: 60 pc(s)
Master (outer) case width: 330 mm
Master (outer) case length: 460 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 10.7 kg
Harmonized System (HS) code: 84718000

Other features

Cable length: 0.2 m
