ICY BOX IB-DK2245AC

ICY BOX IB-DK2245AC. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 65 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 5 Gbit/s, HD type: 5K Ultra HD. Power source type: DC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 83 mm, Depth: 224 mm, Height: 26 mm

High resolution
The IB-DK2245AC is equipped with four display video outputs. With triple Ultra HD displays simultaneously, the DockingStation allows you to split up the content to three display devices when the system supports the function, to mirror your primary screen, or extend the computer's desktop allowing visibility of more applications at the same time. It supports a resolution of up to 4096x2160@60 Hz for two monitors or one single 5K@60 Hz display with two cables connected via DisplayPort™ and fulfills your high resolution desires.

Big flexibility
This high-performance DockingStation can be used with both current Windows® and macOS® operating systems. Thus, the IB-DK2245AC is the perfect companion for eager travelers, business, and multimedia enthusiasts who want to be prepared for all environments.

One port
Notebooks and other mobile computers are becoming thinner and smaller. This is usually at the expense of connectivity - even the widely used RJ45 LAN port or multiple USB ports are often omitted, as are video connections, which are required by many display devices. The IB-DK2245AC offers a large selection of ports and can eliminate this lack permanently.

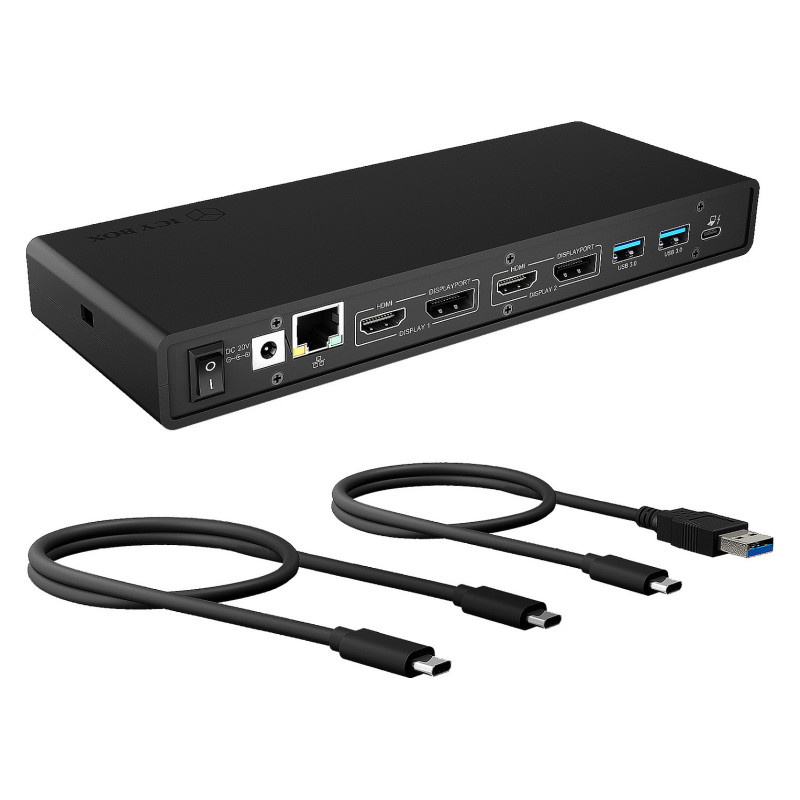

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C

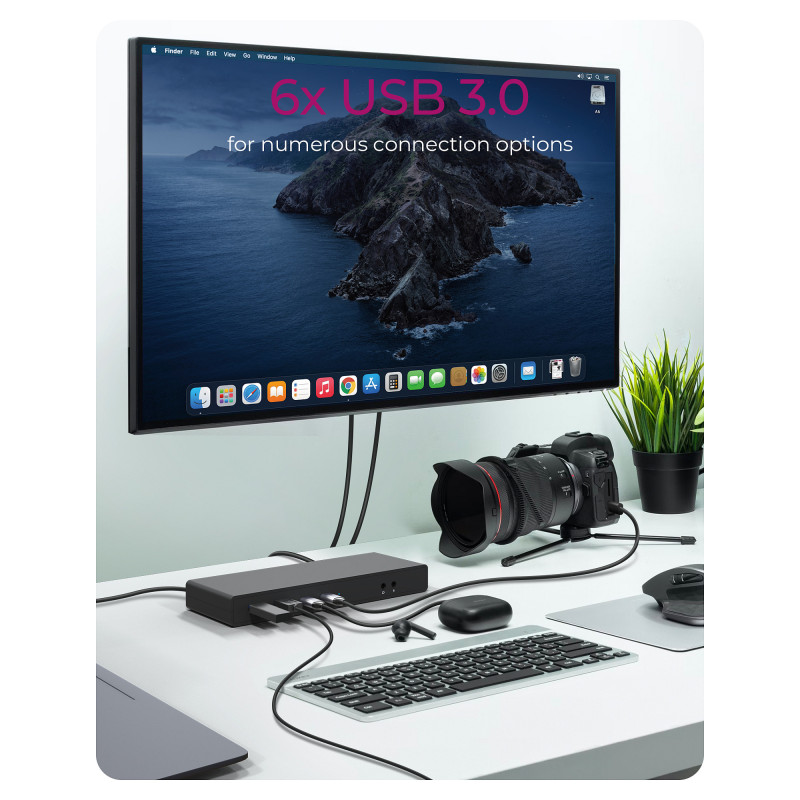

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2

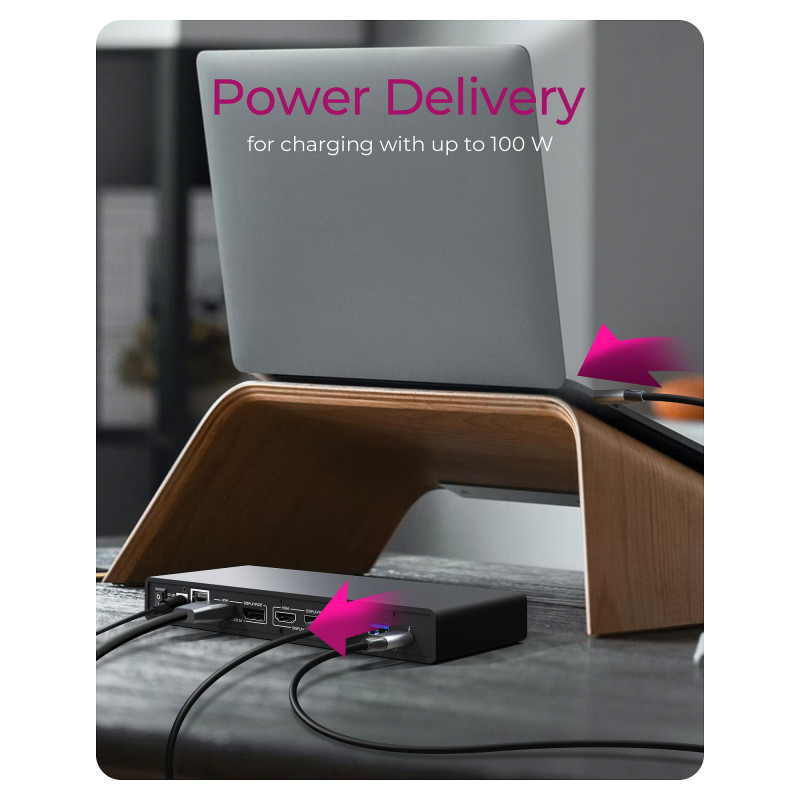

Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 65 W
HDMI ports quantity: 2
DisplayPorts quantity: 2
DisplayPort version: 1.2

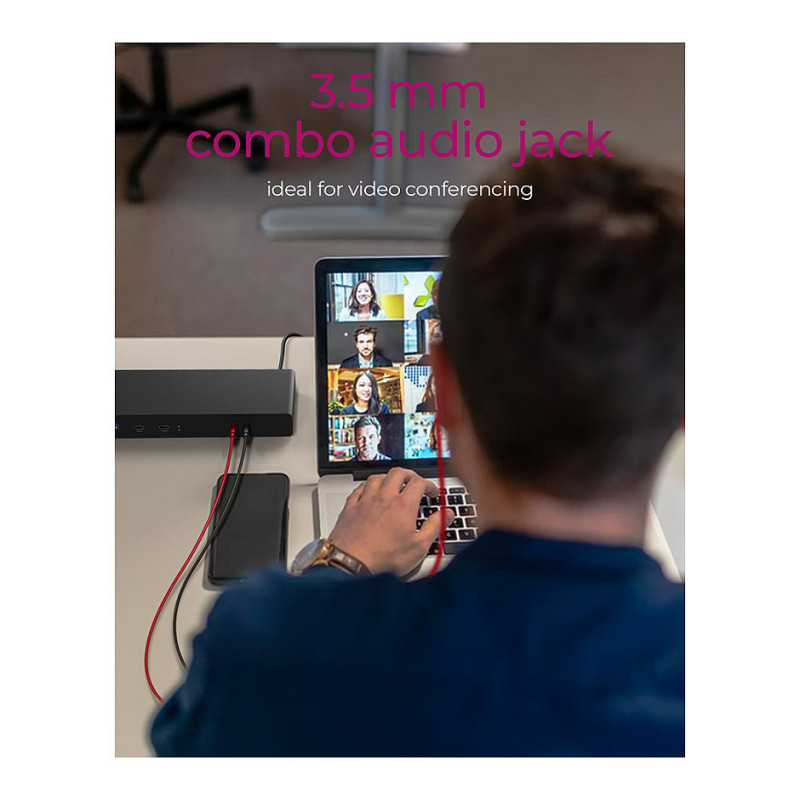

Feature: Microphone in
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: Line-in
Feature: Line-out
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready

Performance

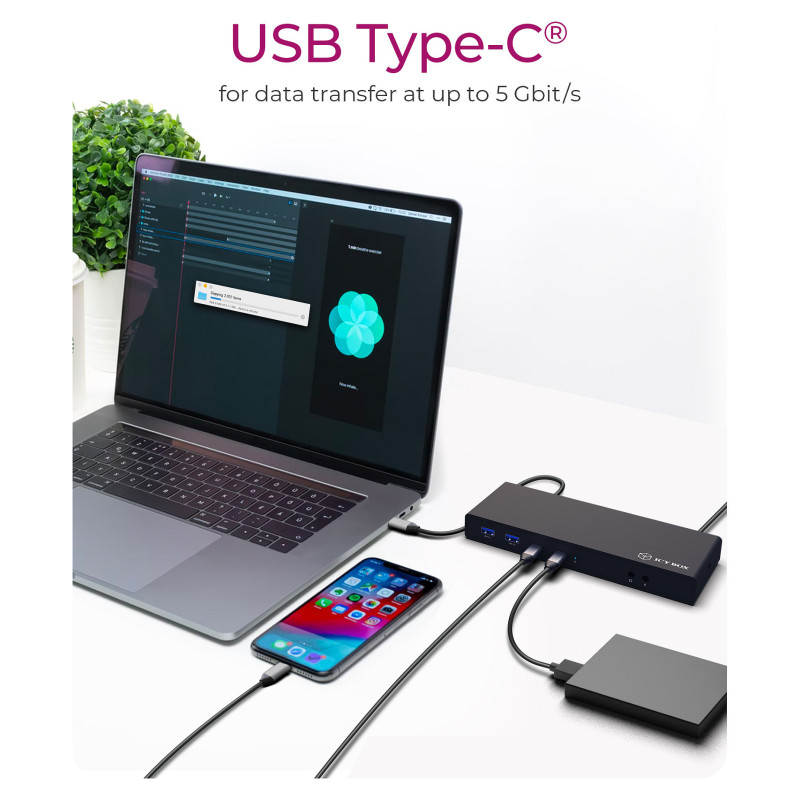

Data transfer rate: 5 Gbit/s
HD type: 5K Ultra HD

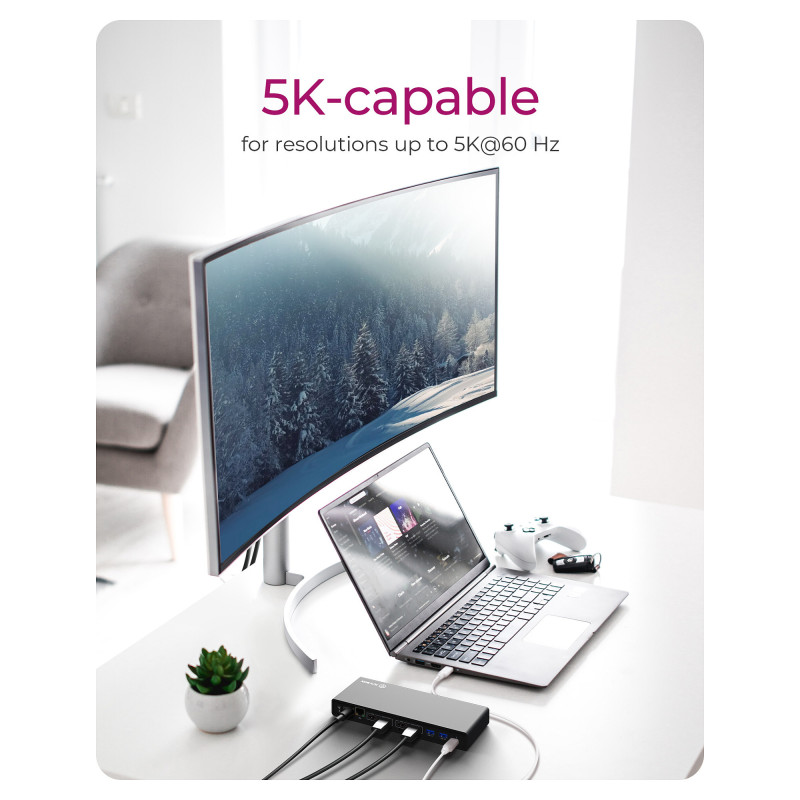

Maximum digital resolution: 5120 x 2880 pixels
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Feature: On/off switch
Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Country of origin: China

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 2 A
Power supply: 100 W
Output voltage: 20 V
Output current: 5 A

Software

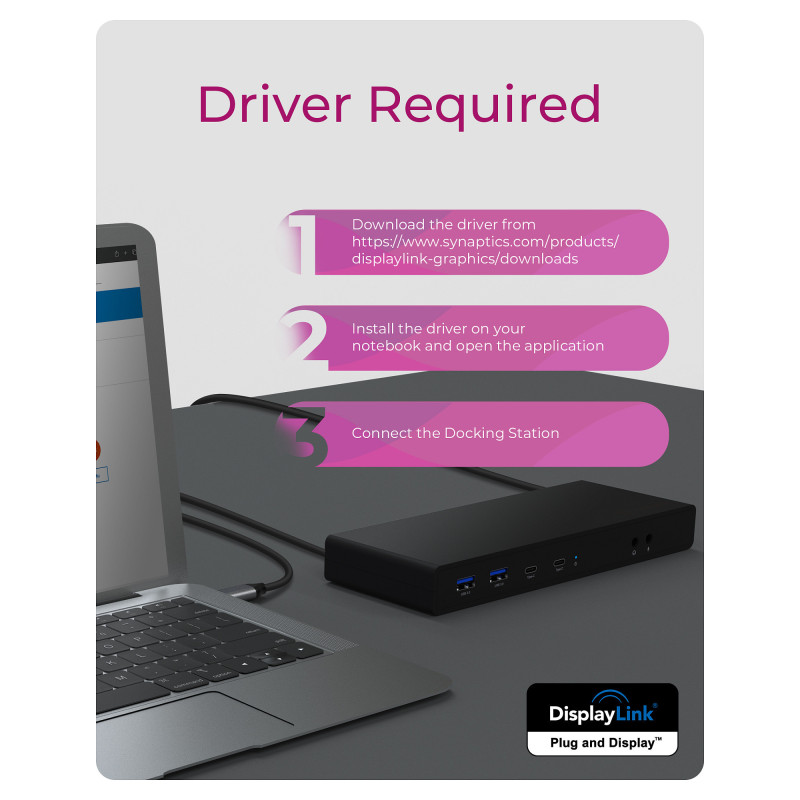

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 83 mm
Depth: 224 mm
Height: 26 mm
Weight: 342 g

Packaging data

Package width: 100 mm
Package depth: 270 mm
Package height: 135 mm
Package weight: 1.36 kg

Packaging content

Cables included: AC, USB Type-A to USB Type-C, USB Type-C to USB Type-C
Feature: AC adapter included
Feature: Manual

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 285 mm
Master (outer) case length: 520 mm
Master (outer) case height: 300 mm
Master (outer) case gross weight: 13.6 kg
Harmonized System (HS) code: 84718000
